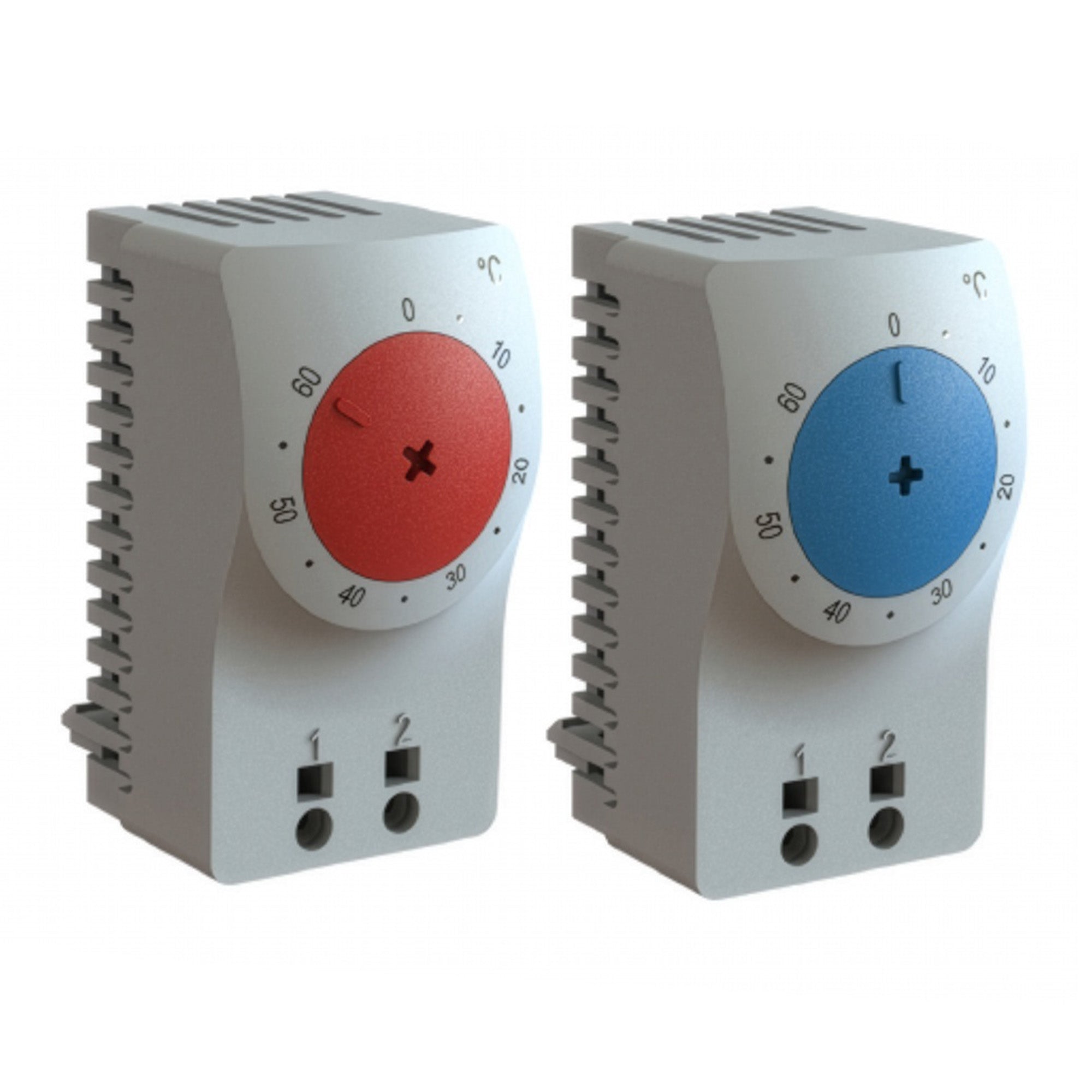

KTO 111 / KTS 111 Small Compact DIN Rail Thermostat

The mechanical thermostats KTO 111 and KTS 111 are two state regulators for use up to 5,000 meters in altitude, thanks to optimized air gap and increased creepage distance. The conductor can easily be connected via Push-In clamps without tools.

KTO 111: Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising.

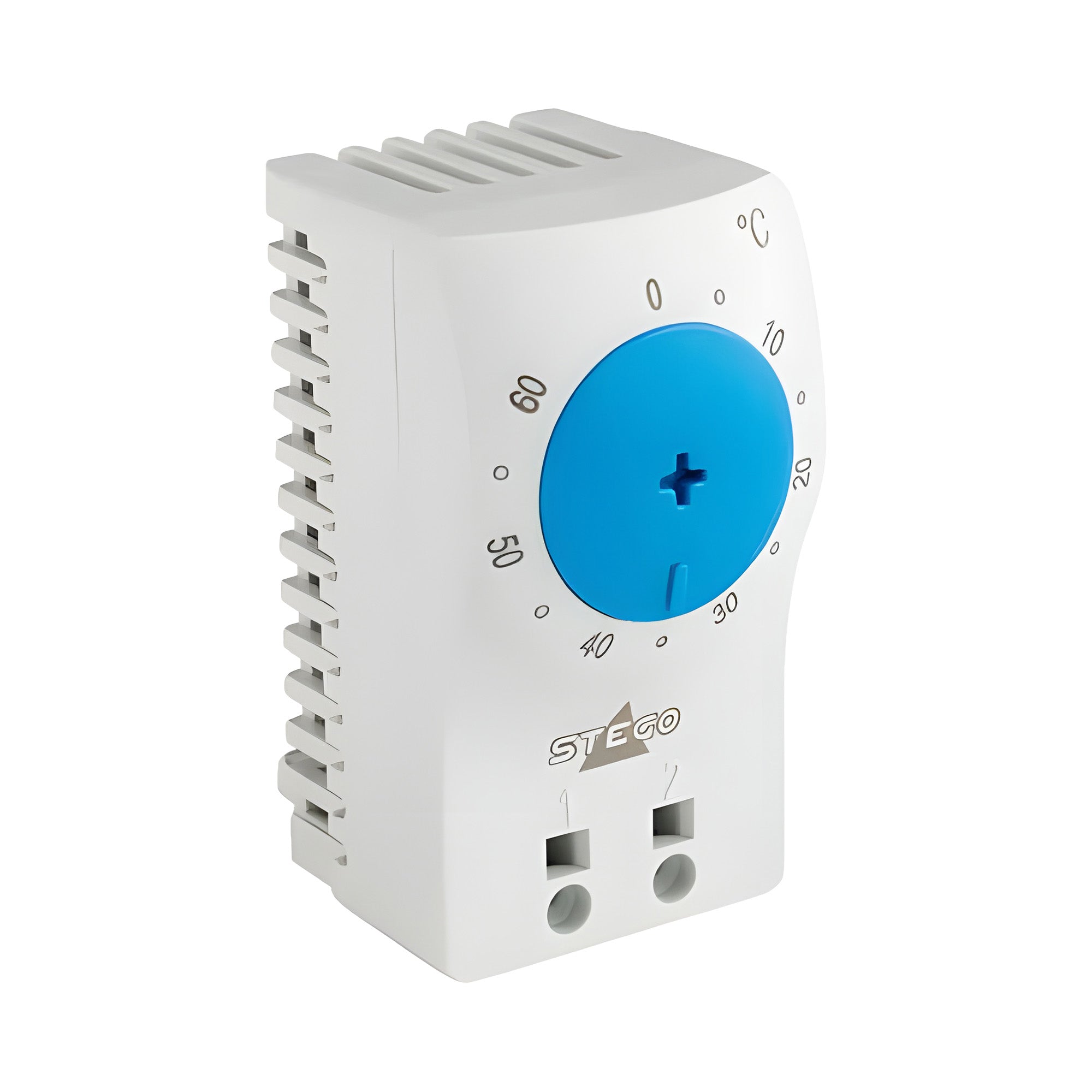

KTS 111: Thermostat (NO); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.

Features

• Compact design
• Wide adjustment range
• Color coded temperature dials
• DIN rail mounted

Specifications

• Switch Temperature Difference:  7 K (±4 K tolerance)
• Sensor Element:  Thermostatic bimetal
• Service Life:  100,000 cycles verified
• Max. Operating Voltage, Frequency Range:  AC 250 V, 50-60 Hz
• Max. Inrush Current:  AC 16 A for 10 sec.
• Connection1:  2 Push-In clamps
  Rigid wire 2.5 mm2 (AWG 14)
  Stranded wire 1.5 mm2 (AWG 16)
• Mounting:  DIN rail clip for 35 mm DIN rail, EN 60715
• Casing:  plastic according to UL94 V-0, light grey
• Dimensions:  60 x 33 x 41 mm
• Weight:  approx. 40 g
• Mounting Position: variable
• Operating/Storage Temperature: -49 to +176 ºF, -45 to +80 ºC
• Operating/Storage Humidity: max. 90 % RH (non-condensing)
• Protection Type/Protection Class:  IP20 / II

• Overvoltage Category/Altitude: II: up to 5,000 m; III: up to 2,000 m

• Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may vary

Model Numbers

• 11100.0-00      0 to 60°C  Heating Control (NC),

• 11100.0-01     -10 to +50 °C  Heating Control (NC),

• 11100.0-02    +20 to +80°C Heating Control (NC),

• 11100.9-00    +32 to +140°F Heating Control (NC),

• 11100.9-01    +14 to +122°F   Heating Control (NC),

• 11101.0-00     0 to 60°C Cooling Control (NO),

• 11101.0-01    -10 to 50°C Cooling Control (NO),

• 11101.0-02    +20 to+ 80°C Cooling Control (NO),

• 11101.9-00    +32-+140 F Cooling Control (NO),

• 11101.9-01    +14-+122 F Cooling Control (NO)
