Inline Thermostat All Types of Heating Elements 12-24V DC 100-250V AC

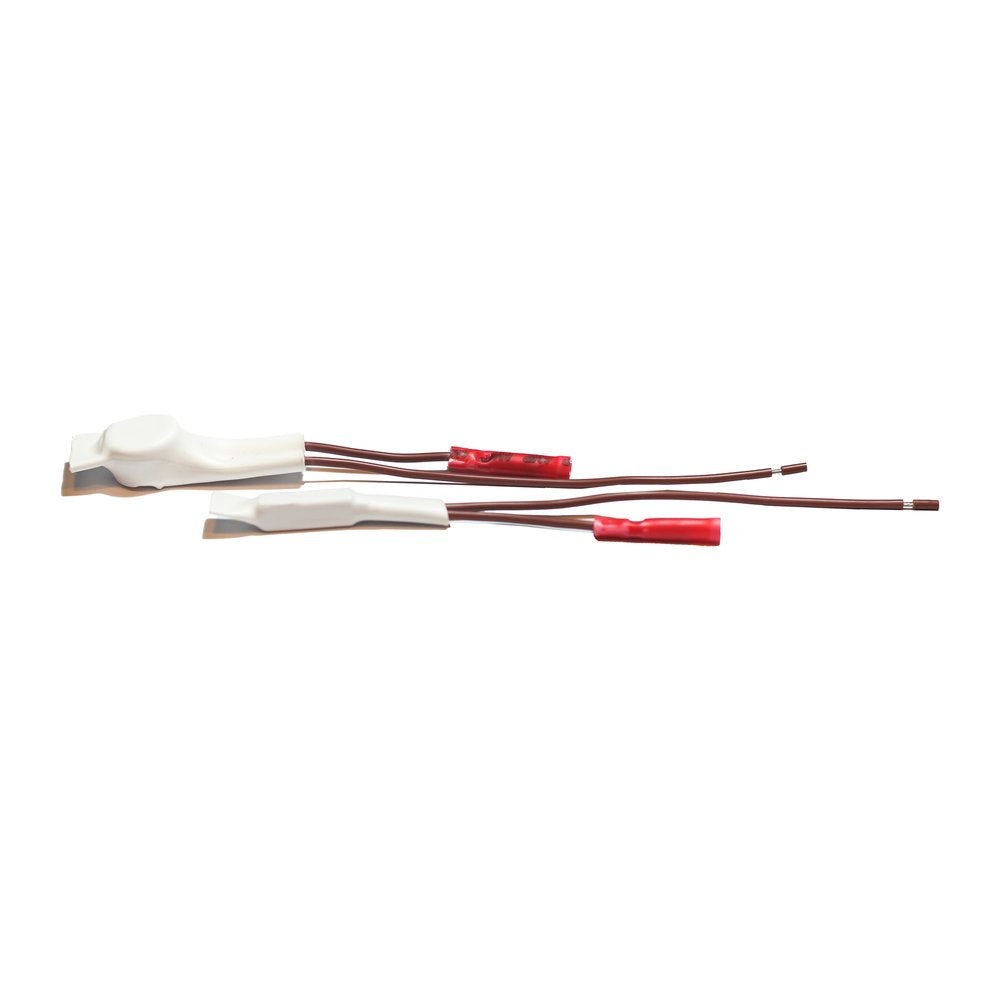

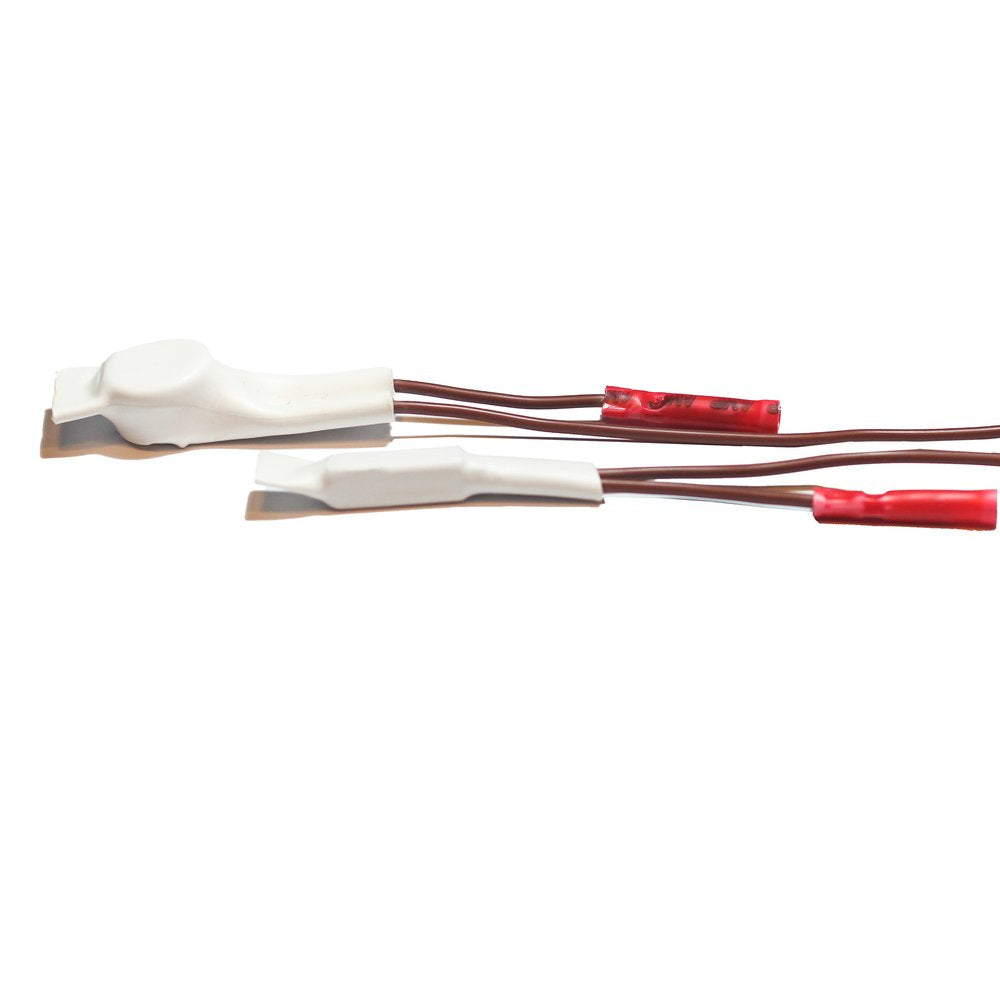

The Inline Thermostat is suitable as a supplement for all types of heating elements up to 8 Ampère depending on their operating voltage. The small bi-metal thermostat has a fixed switching temperature and is available in six different versions as a self-assembly component.

Features

Can be operated in a voltage range of 12 - 24V AC/DC or 100 - 250V AC
Reliable bi-metal technology
Normally closed contact (heating)
Pre-set switching temperature
Self-assembly component

Model Numbers

40100054 - In-Line Thermostat, Close 41°F (+5°C), 12/24V DC, Creep Action (replaces FGT302)
40100055 - In-Line Thermostat, Close 68°F (+20°C), 12/24V DC, Creep Action (replaces FGT303)
40100084 - In-Line Thermostat, Close 41°F Open 59°F, 125/230V AC, Snap Action (replaces FGT305)
40100085 - In-Line Thermostat, Close 68°F Open 86°F, 125/230V AC, Snap Action (replaces FGT 306)

Technical data

Thermostat Inline	High Voltage			Low Voltage
Switching temperature (°F)	41	68	89.6	41	68	89.6
Tolerance (+/-°F)	5.4			5.4
Bi-metal action	Snap			Creep
Hysteresis	10 / 18			–
Current Rating at 250 VAC (A)	3			–
Current Rating at 100 VAC (A)	6			–
Current Rating at 24 VAC / DC (A)	–			8
Current Rating at 12 VAC / DC (A)	–			4
Voltage (V)	100-250			12-24
Degree of enclosure protection	IP20			IP20
Protection Class	I			I
Endurance for nominal approvals (cycles)	10,000			5,000
Crimp details (mm²)	0.25 - 1.5 Red			0.25 - 1.5 Red
Dimensions WxLxH (")	0.59 x 1.77 x 0.28			0.31 x 1.77 x 0.31
Wire length from body (")	4.13			4.13
Wire, Silicone (awg)	20			20
