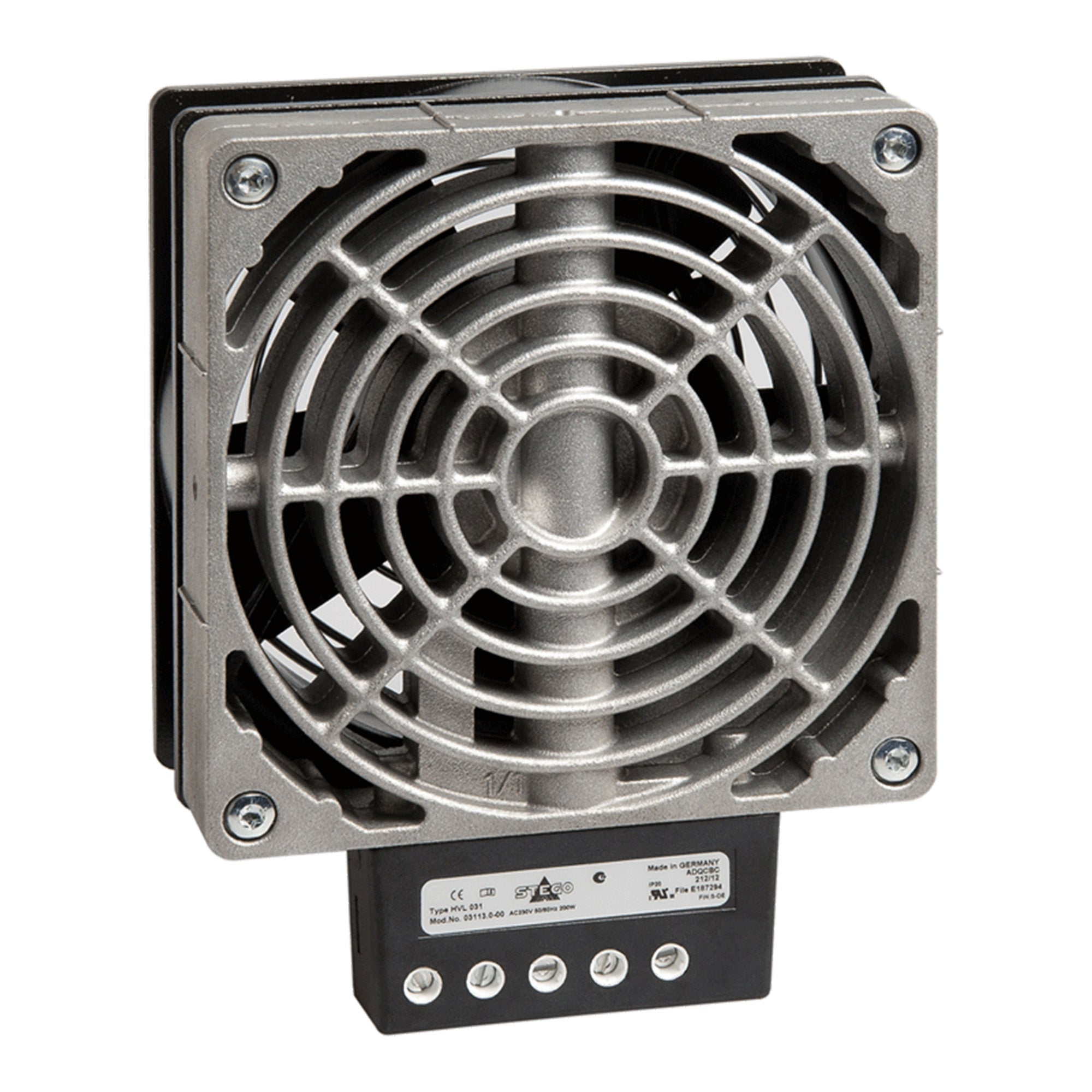

HVL 031 DIN Rail Enclosure Fan Heater 100-400W

The compact HVL 031 high-performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. For large OEM use, this fan heater can also be provided without the fan, in which case the OEM/customer must provide a fan which meets the minimum airflow requirements.

Specifications

• Power: 100 W

• Voltage: 120 VAC, 50/60 Hz

• Minimum Air Flow: 20 cfm (35 m³/h)

• Agency Approvals: UL

• Device Type: Fan heater (complete fan heater)

• Heating Element: Resistance type cartridge heater

• Overheat Protection: Built‑in temperature limiter

• Heat Sink: Die‑cast aluminum, glass bead finish

• Required Fan Size (Included): 80 x 80 x 25 mm

• Air Exit Temperature: Approx. 95 °F (35 °C) measured 2″ (50 mm) above heater

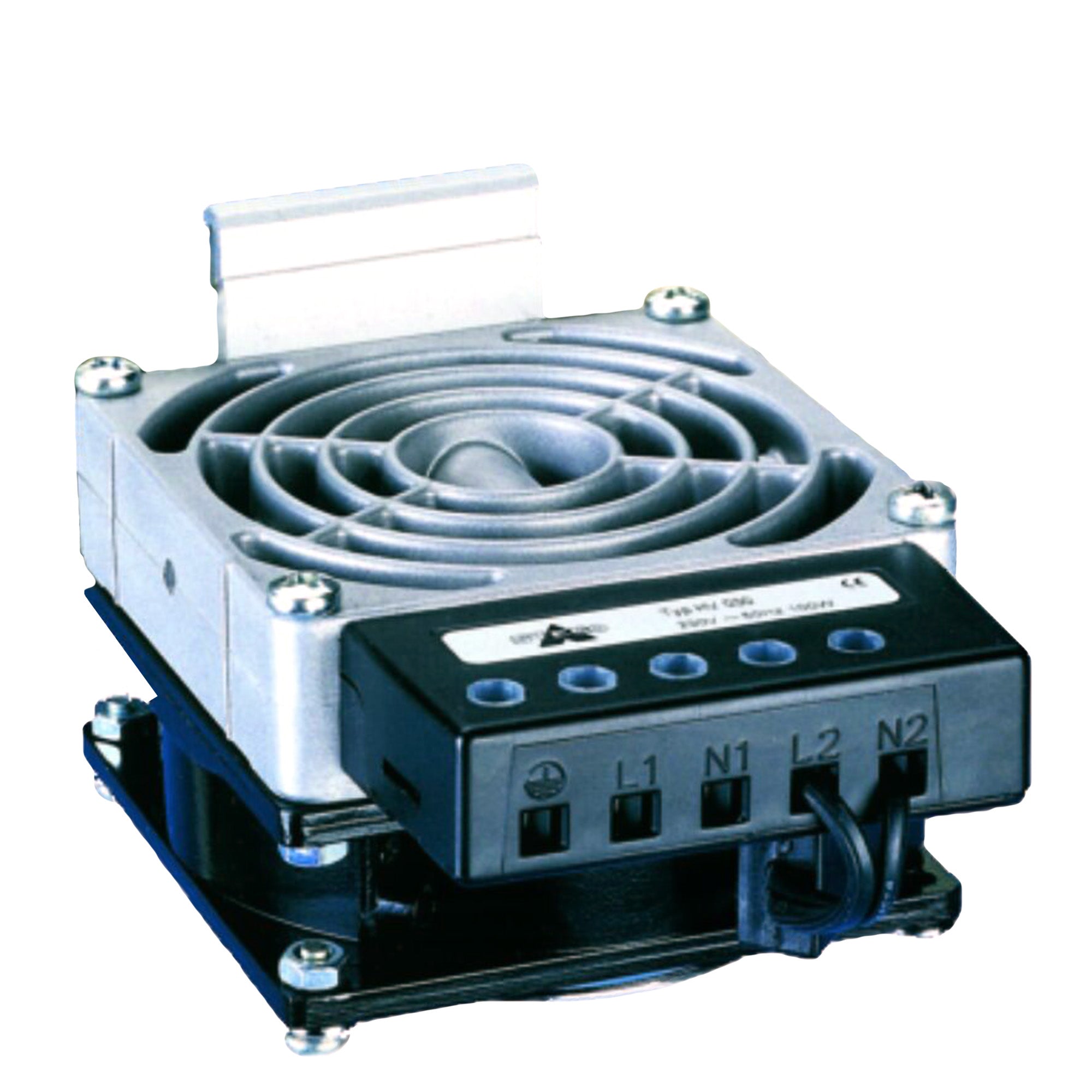

• Connection (Heater): 3‑pole terminal, AWG 14 max. (2.5 mm²)

• Connection (Axial Fan): 2‑pole terminal (L2/N2), AWG 14 max. (2.5 mm²)

• Wiring Compartment: Plastic, UL 94V‑0, black

• Mounting: Clip for 35 mm DIN rail (EN 60 715)

• Weight: 1.3 lb. (0.6 kg)

• Operating/Storage Temperature: ‑49 to 158 °F (‑45 to 70 °C)

• Protection Type: IP20

• Protection Class: I (grounded)

Model Numbers

• 03102.0-00 HVL031  100W 230 VAC
• 03102.9-00 HVL031  100W 120 VAC
• 03103.0-00 HVL031  150W 230 VAC
• 03103.9-00 HVL031  150W 120 VAC
• 03113.0-00 HVL031  200W 230 VAC
• 03113.9-00 HVL031  200W 120 VAC
• 03114.0-00 HVL031  300W 230 VAC
• 03114.9-00 HVL031  300W 120 VAC
• 03115.0-00 HVL031  400W 230 VAC
• 03115.9-00 HVL031  400W 120 VAC
