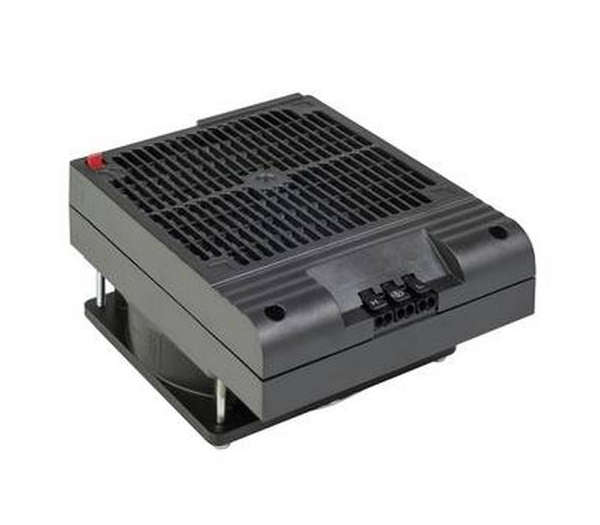

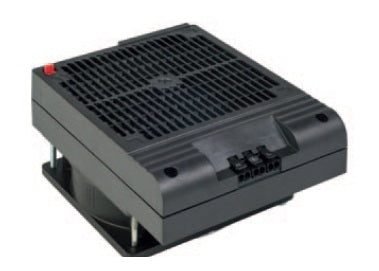

HVI 030 Space Saving Enclosure PTC Fan Heater 500-700W

The compact high-performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic  components. The heater may only be operated together with a fan, but is also available without axial fan (for self-installation). The fan heaters are available with two different mounting systems – either mounting by screws or with a new and unique twist clip mounting
system. These options allow for a quick and easy installation of the fan heater.

Features

Specifications

• Operating Voltage: AC 230 V, 50/60 Hz

• Heating Capacity: 700 W

• Pre‑Fuse T (Time‑Delay): 6.3 A

• Heating Element: High performance cartridge

• Temperature Safety Cut‑Out: With automatic reset and second‑tier one‑shot fuse

• Axial Fan, Ball Bearing: 50,000 h at 77 °F (25 °C)

• Air Flow, Free Blowing: 88 cfm (150 m³/h)

• Connection: 2‑pole dual pressure clamp for solid AWG 14 max (2.5 mm²) and stranded wire with ferrule AWG 16 max (1.5 mm²)

• Housing: Plastic, UL 94V‑0, black

• Mounting: Twist clip for 35 mm DIN rail (EN 60715)

• Mounting Position: Vertical airflow (air outlet up)

• Operating Temperature (UL): 14 to 104 °F (‑10 to 40 °C)

• Operating Temperature (VDE): 14 to 122 °F (‑10 to 50 °C)

• Storage Temperature: ‑49 to 158 °F (‑45 to 70 °C)

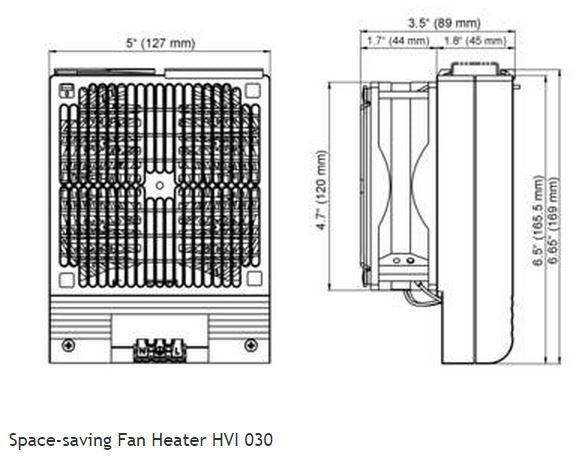

• Dimensions: (H × W × D): 6.65 × 5.0 × 3.5 inches (169 × 127 × 89 mm)

• Weight: Approx. 3.1 lb. (1.4 kg)

• Protection Type: IP20

• Protection Class: Heater: II (double insulated), Fan: I (grounded)

• Agency Approvals: VDE, UL File No. E234324, GOST‑R

Model Numbers

• 03082.0-00    700W, 230VAC, 4 A Fan Heater w/ twist mount
• 03082.0-01    700W, 230VAC, 4 A Fan Heater w/ screw mount
• 03082.9-00    700W, 120VAC, 8 A Fan Heater w/ twist mount
• 03082.9-01    700W, 120VAC, 8 A Fan Heater w/ screw mount
• 03083.0-00    600W, 230VAC, 3.15 A Fan Heater w/ twist mount
• 03083.0-01    600W, 230VAC, 3.15 A Fan Heater w/ screw mount
• 03083.9-00    600W, 120VAC, 6.3 A Fan Heater w/ twist mount
• 03083.9-01    600W, 120VAC, 6.3 A Fan Heater w/ screw mount
• 03084.0-00    500W, 230VAC, 3.15 A Fan Heater w/ twist mount
• 03084.0-01    500W, 230VAC, 3.15 A Fan Heater w/ screw mount
• 03084.9-00    500W, 120VAC, 6.3 A Fan Heater w/ twist mount
• 03084.9-01    500W, 120VAC, 6.3 A Fan Heater w/ screw mount
