High Efficiency Roof Top Mount Enclosure Filter Fan 115V and 230V A/C 200 to 1000 CFM

Specifications

• Operating Voltage: 230 VAC, 50 Hz

• Free Blowing Air Flow (With filter mat): 177 cfm (300 m³/h)

• Power Consumption: 68 W

• Average Noise Level (DIN EN ISO 4871): 55 dB(A)

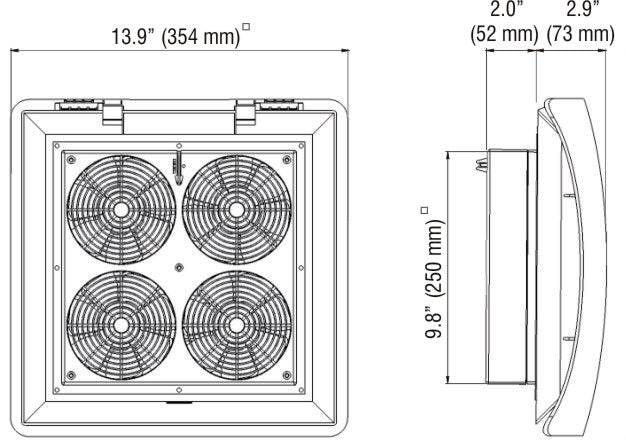

• Mounting Depth: 2.0 inches (52 mm)

• Enclosure Cut‑Out: 9.8 × 9.8 inches

• Weight (approx.): 7.3 lbs (3.3 kg)

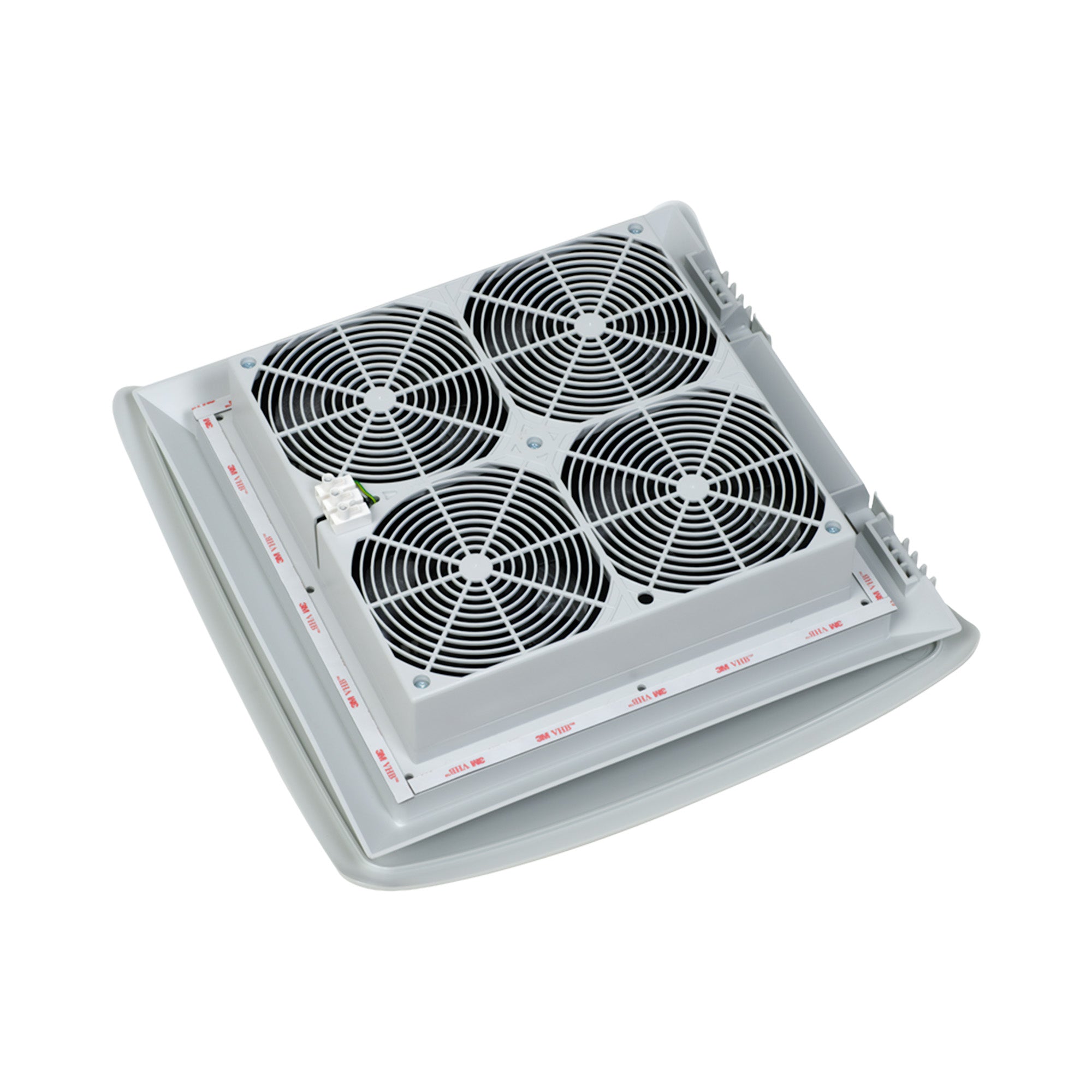

• Axial Fans, Ball Bearing: Service life min. 50,000 h at 77 °F (25 °C) and 65 % RH; aluminum fan body, plastic rotor

• Connection: 3‑pole clamp, AWG 14 (2.5 mm²), clamping torque 0.8 Nm max.

• Housing: Plastic, UL 94V‑0, light gray; weather proof and UV light resistant according to UL 746C (f1)

• Filter Mat: G3 according to DIN EN 779, filtering degree 85%

• Filter Material: Synthetic fiber with progressive construction, temperature resistant to 212 °F, self‑extinguishing class F1, moisture resistant to 100 % RH, reusable (washable or vacuumable)

• Operating Temperature: +14 to +158 °F (‑10 to +70 °C)

• Storage Temperature: ‑40 to +158 °F (‑40 to +70 °C)

• Operating/Storage Humidity: Max. 90 % RH (Non‑condensing)

• Protection Class: I (Grounded)

• Protection Type: IP32

• Approvals: UL intended; VDE (AC 230 V only)

* Important Note: For pressure compensation, the roof filter fan must be operated with another filter fan or a passive intake filter.
