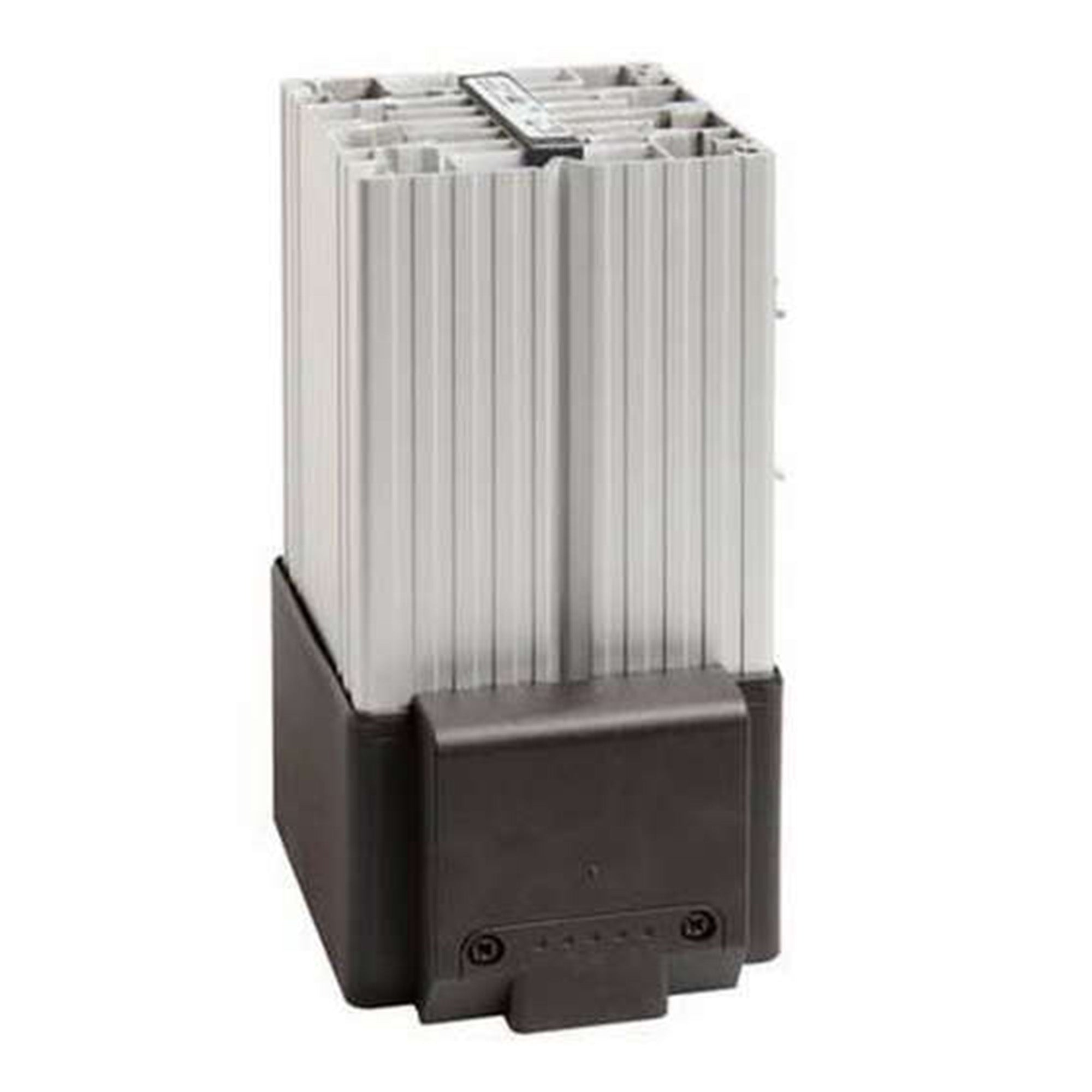

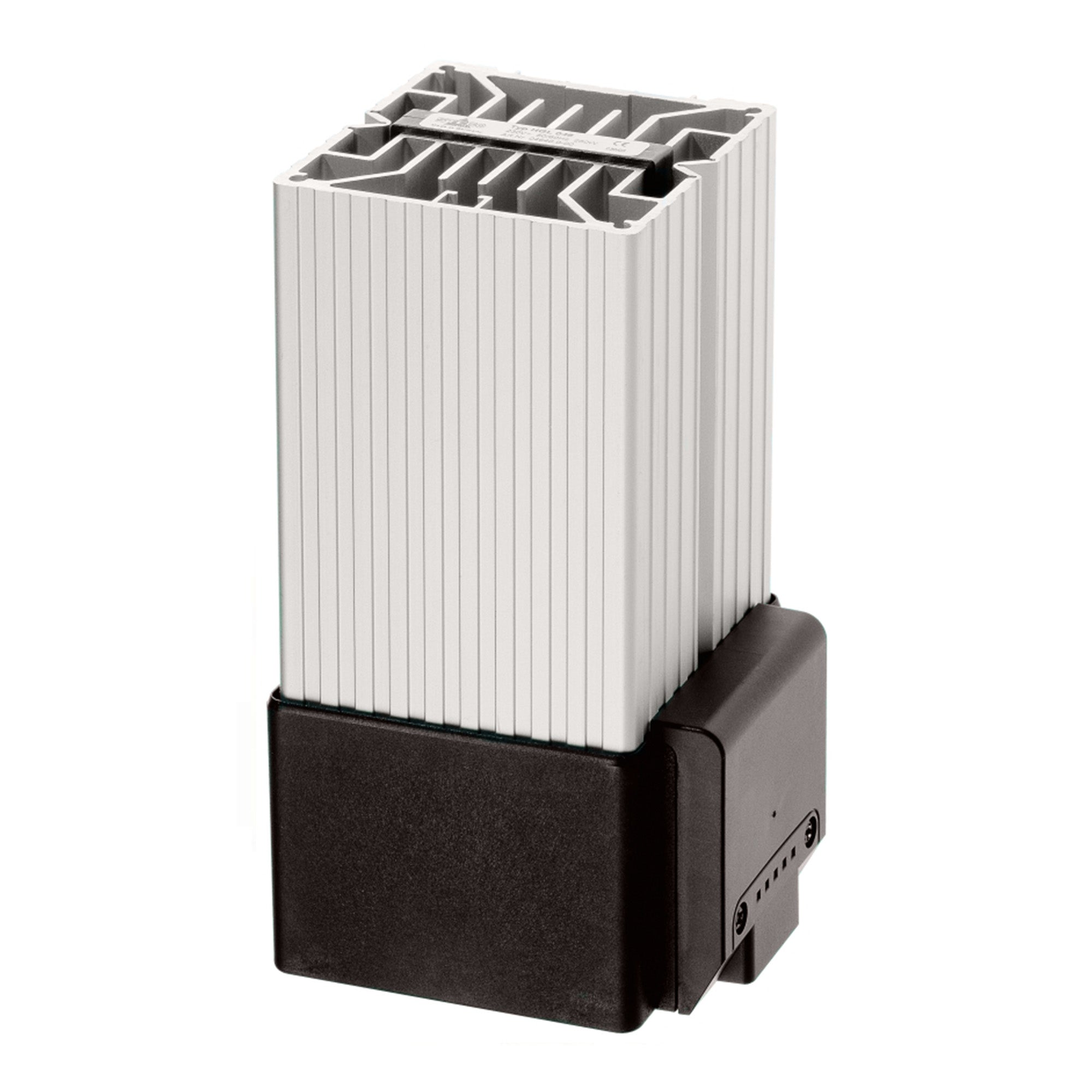

HGL 046 DIN Rail Enclosure Fan Heater 250W to 400W

• DIN rail, panel or rubber foot mount
• Comact Size
• Built-in overheat protection
• Long Service life
• Service life: 50,000 h at 77°F (25°C)
• Protection Class IP20

Specifications

• Power:  250 W

• Voltage:  230 VAC, 50/60 Hz

• Agency Approvals:  UL, VDE

• Heating Element:  Resistance type heater (micanite)

• Overheat Protection:  Built‑in temperature limiter

• Heat Sink:  Extruded aluminum profile, silver anodized

• Max. Surface Temperature ‑ 400 W Heater:  167 ºF (75 ºC)

• Axial Fan, Ball Bearing:  50,000 h at 77 ºF (25 ºC)

• Air Flow, Free Blowing:  26 cfm (45 m³/h) – 50 Hz; 32 cfm (54 m³/h) – 60 Hz

• Connection:  3‑pole terminal, AWG 16 max (1.5 mm²) with strain relief

• Wiring Compartment:  Plastic, UL 94V‑0, black

• Mounting:  Clip for 35 mm DIN rail (EN 60 715)

• Position:  Preferably vertical

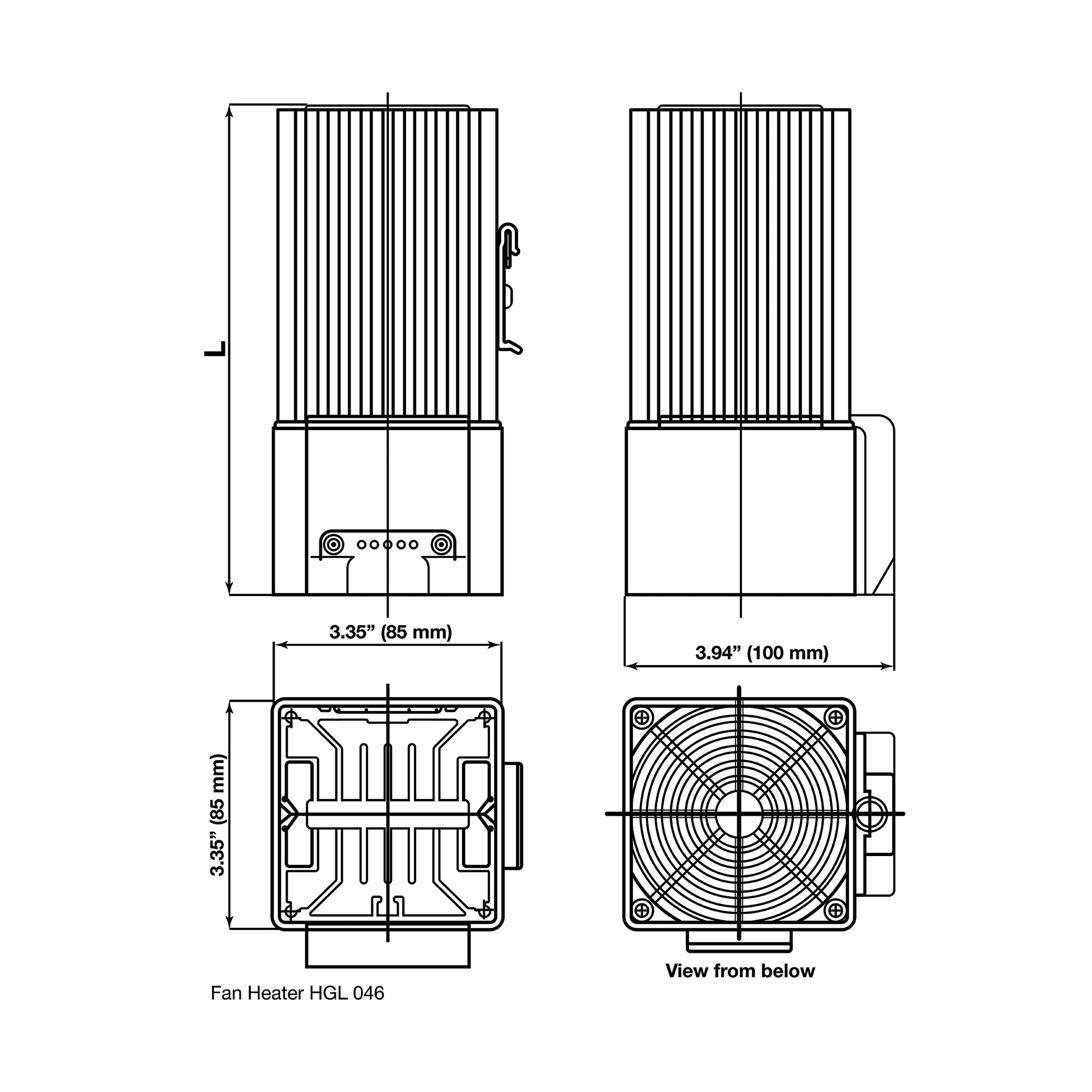

  L ‑ Length:  7.2 inches (182 mm)

• Weight (Approx.):  2.4 lb (1.1 kg)

• Operating/Storage Temperature:  -49 to 158 ºF (-45 to 70 ºC)

• Protection Type:  IP20

• Protection Class:  I (Grounded)

Model Numbers

• 04640.0-00    250W, 230VAC Fan Heater
• 04640.9-00    250W, 120VAC Fan Heater
• 04641.0-00    400W, 230VAC Fan Heater
• 04641.9-00    400W, 120VAC Fan Heater
• 04640.1-00    250W, 24VDC Fan Heater
• 04640.2-00    250W, 48VDC Fan Heater
• 04641.2-00    400W, 48VDC Fan Heater
