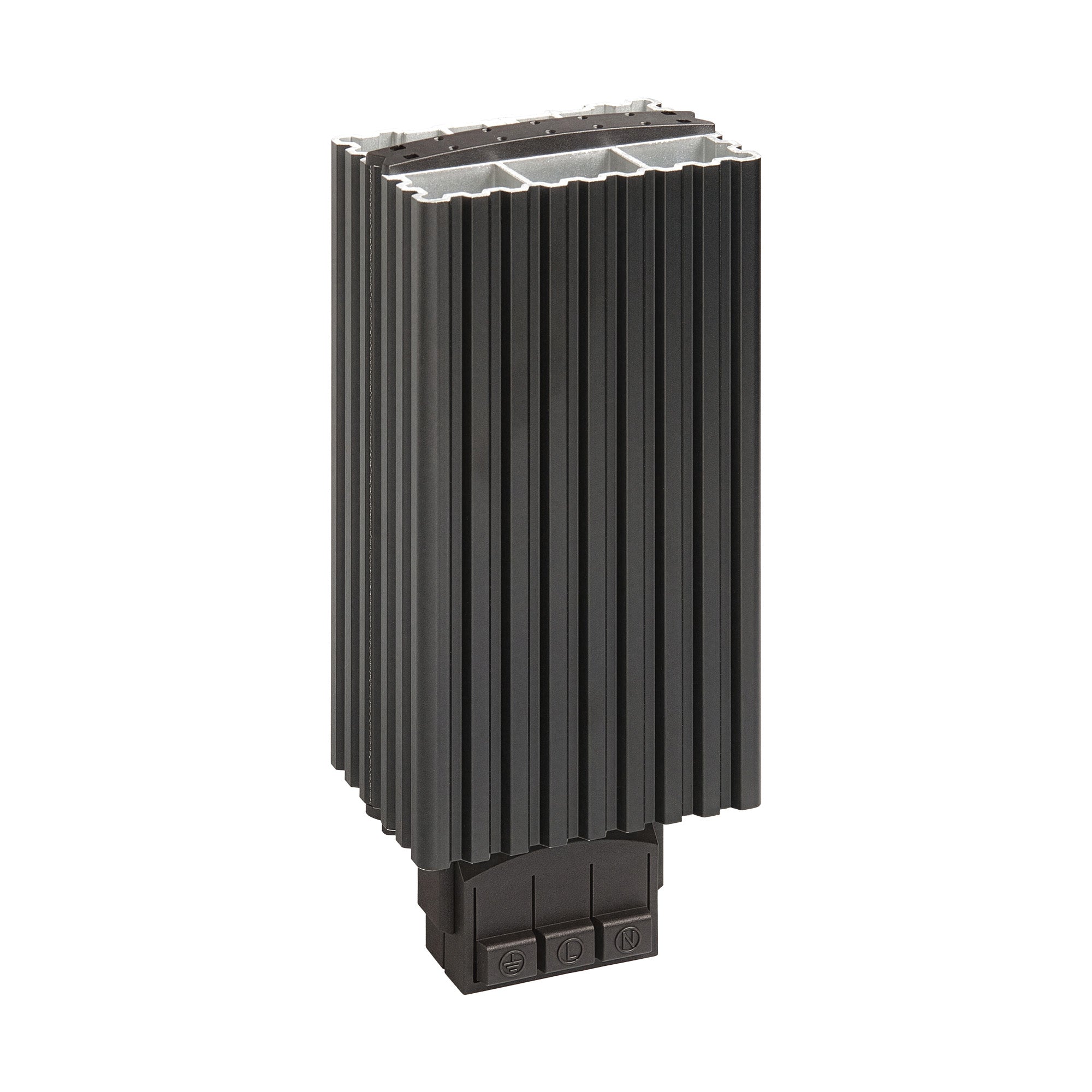

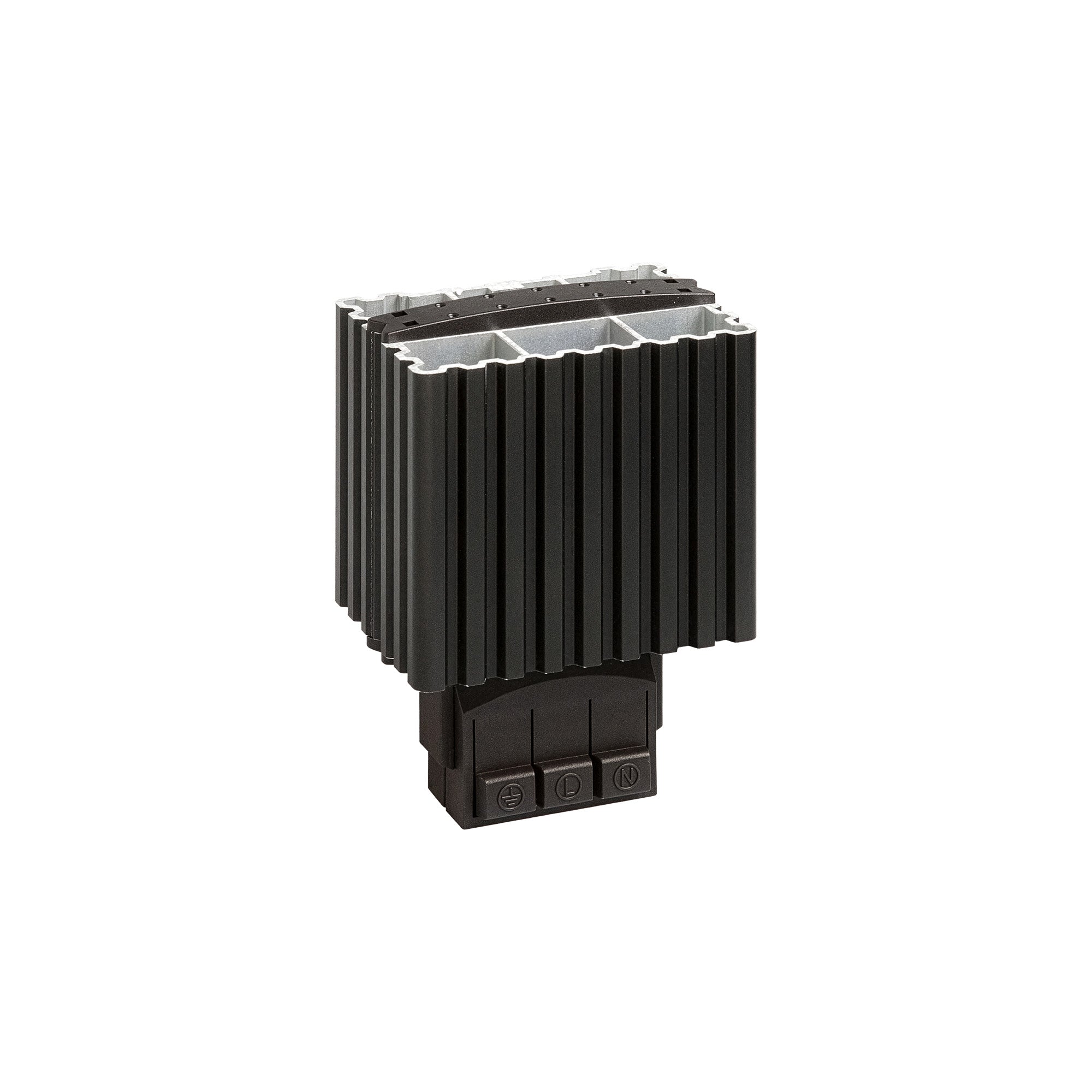

HG 140 DIN Rail Enclosure PTC Heater 15W to 150W 120/240V AC

Features

• Compact Size
• Wide voltage range
• Heating power adjusts to ambient temperature

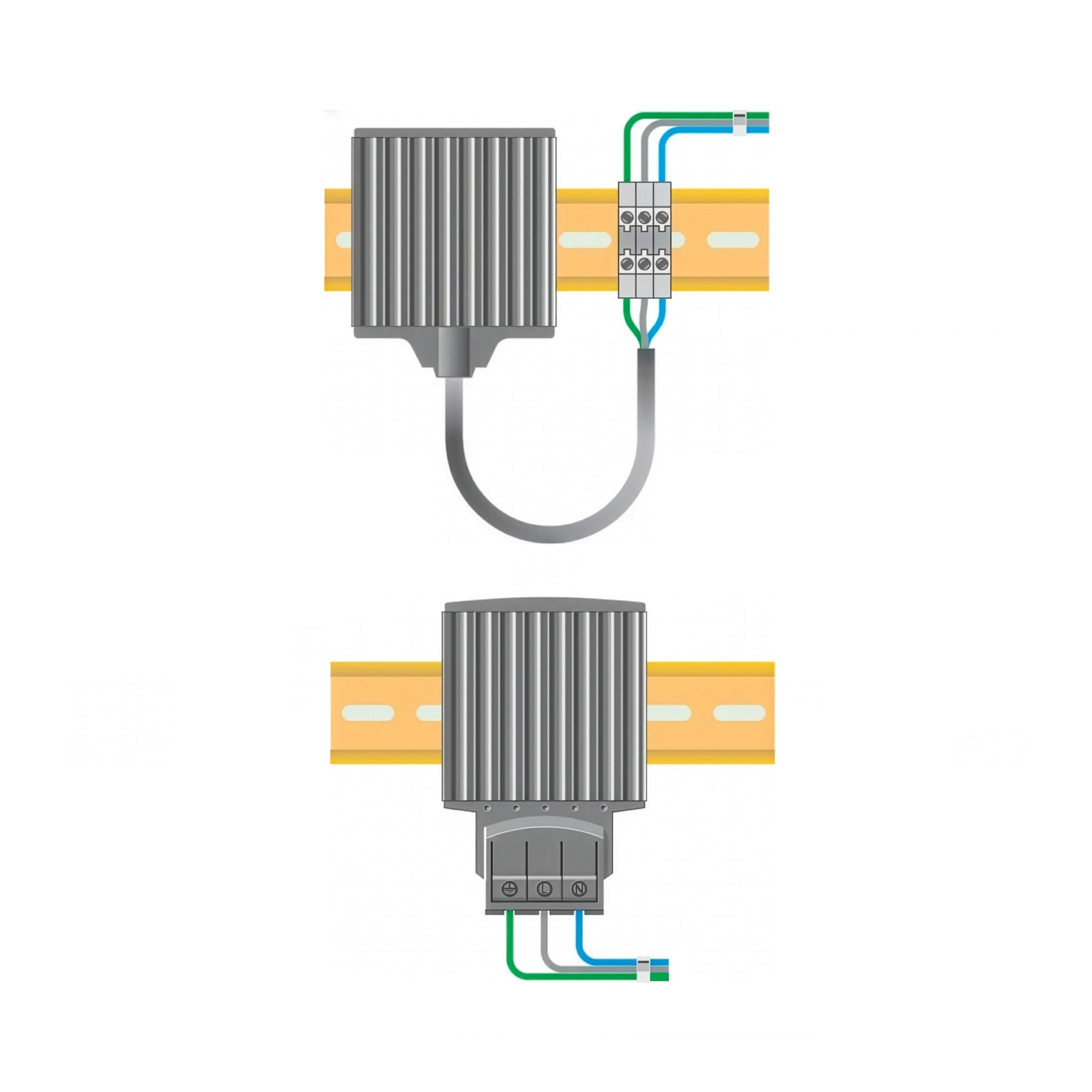

• Cage clamp connectors for quick & easy wiring
• DIN Rail mountable
• Voltage: 120-240VAC (min. 110V, max. 265V)
• Protection Type: IP20
• CE, RU, and RoHS

Specifications

• Power:  15 W

• Voltage:  120 - 240 VAC/VDC

• Max. Current:  1.5 A (inrush)

• Agency Approvals:  UL, VDE

• Heating Element:  PTC resistor, temperature limiting

• Heating Body:  Anodized extruded aluminum

• Connection:  Push‑type terminals for stranded and solid wire 3 x AWG 20‑16 (0.5‑1.5 mm²)

• Mounting:  Clip for 35 mm DIN rail (EN 60 715)

• Position:  Preferably vertical

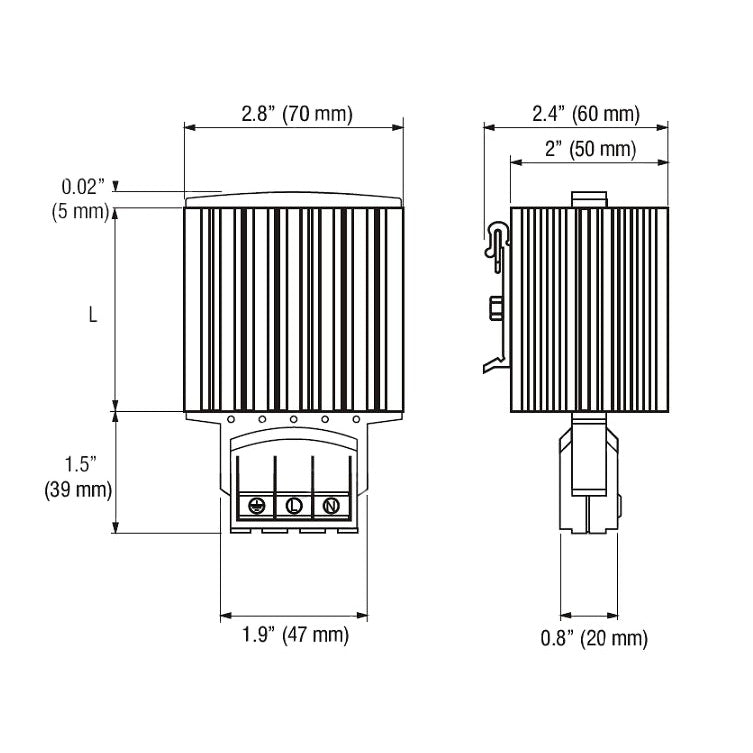

• Dimensions:  4.3 x 2.8 x 2.4 inches (104 x 70 x 60 mm)

• Weight:  7.6 Oz (215 g)

• Operating/Storage Temperature:  -49 to 158 ºF (-45 to 70 ºC)

• Protection Type:  IP20

• Protection Class:  I (grounded)

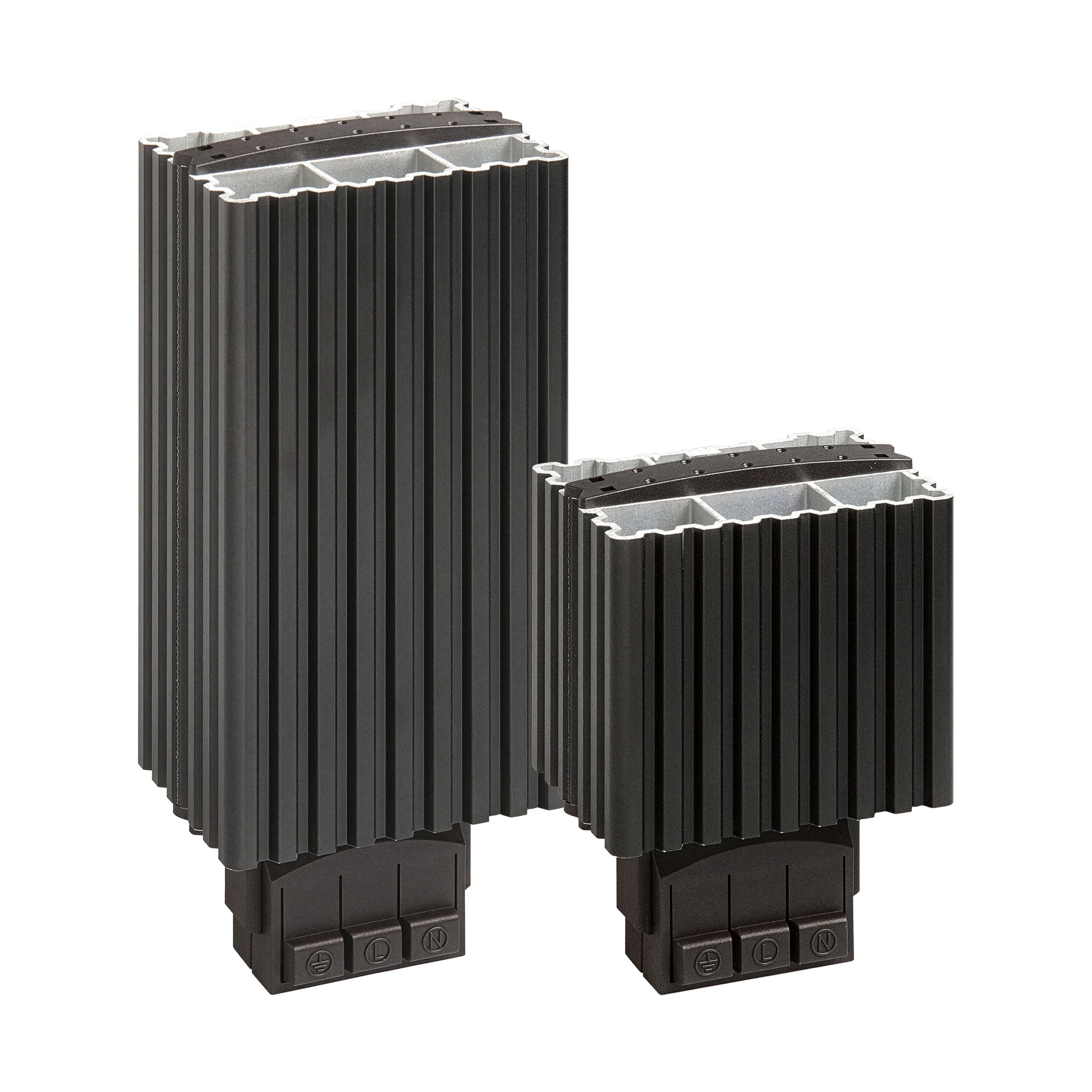

Model Numbers

• 14000.0-00      15 Watt, 120-240 Voltage AC/DC, 1.5 Amps PTC Heater
• 14001.0-00      30 Watt, 120-240 Voltage AC/DC, 3.0 Amps PTC Heater
• 14003.0-00      45 Watt, 120-240 Voltage AC/DC, 3.5 Amps PTC Heater
• 14005.0-00      60 Watt, 120-240 Voltage AC/DC, 2.5 Amps PTC Heater
• 14006.0-00      75 Watt, 120-240 Voltage AC/DC, 4.0 Amps PTC Heater
• 14007.0-00    100 Watt, 120-240 Voltage AC/DC, 4.5 Amps PTC Heater
• 14008.0-00    150 Watt, 120-240 Voltage AC/DC, 9.0 Amps PTC Heater
