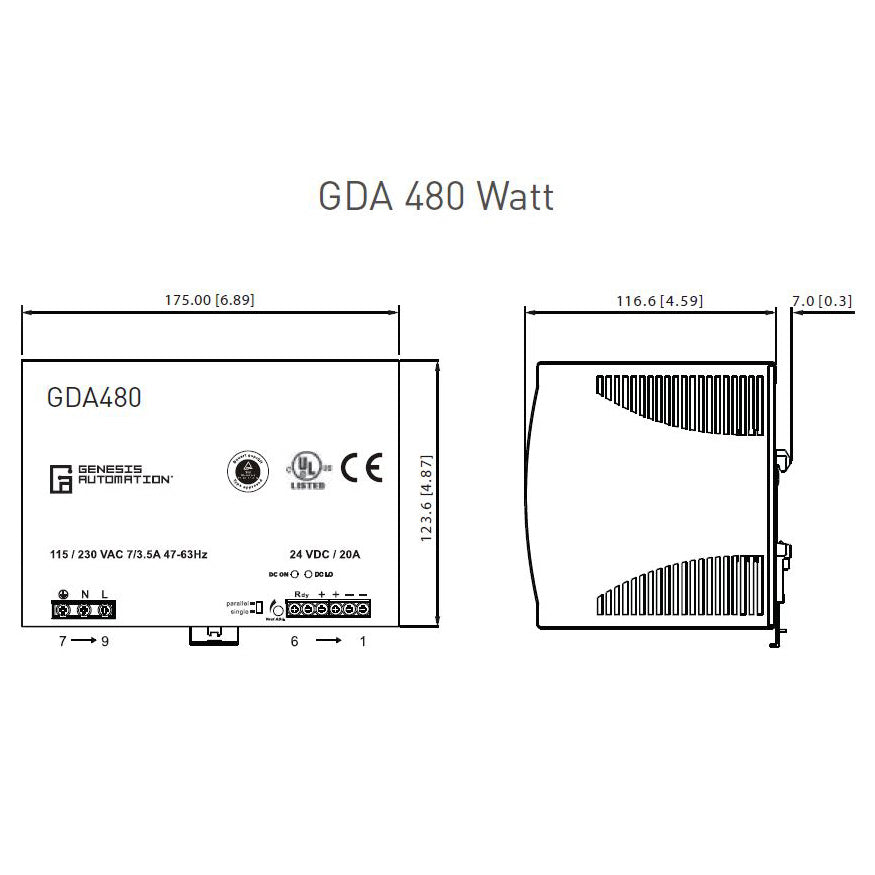

GDA 480W AC/DC DIN Rail Enclosure Power Supply

A rugged family of Industrial DIN Rail mounted DC Power Supplies with PWM design. These are UL Class II with operating temperatures from -4 to 159°F (-20 to 71°C). The single phase models accept a wide universal input range 90-264V AC. All models feature touch-proof spring clamp terminations for input & output wire connections.

Features

DIN Rail Mounting
Wide Input Range 100-240 VAC, 47-63Hz
Finger Safe Terminals - Spring clamp on 5-60 watt, screw type on 5-60, 92, 120/240/480 watt
Relay output for DC signal on 30-480 Watt
Output overload, over voltage, short circuit & no load protection
Input line fuse, filter & inrush current limiter
UL 1310 Class 2 for 5-100 watt except GDA30-05, GDA60-05-12; UL 508 (E222875), CE
Transformer isolation: 3kV
Power factor correction on 240-480 Watt
Parallel operation switch selectable on 120-480 Watt
Plastic body 5-100 Watt, metal body 120-480 Watt

Specifications

Rated Power: 480 W
Input Voltage: 115 / 230 VAC, 47–63 Hz
Input Current: 7 / 3.5 A
Output Voltage (GDA480-24A): 24 VDC (22.5–28.5 V)
Output Current (GDA480-24A): 20 A
Output Voltage (GDA480-48A): 48 VDC (47–56 V)
Output Current (GDA480-48A): 10 A
Power Factor Correction (PFC): Yes (480 W Models)
Parallel Operation (Selectable): Yes (120–480 W Models)
Protection: Overload, overvoltage, short circuit, no load
Input Protection: Line fuse, filter, inrush limiter
LED Indicators: DC ON (Green) & DC LOW (Red) 5,10,18, 92, 120, 240, 480
Isolation Voltage: 3 kV transformer isolation
Approvals: UL 508, CE
Body Material: Metal (120–480 W Models)

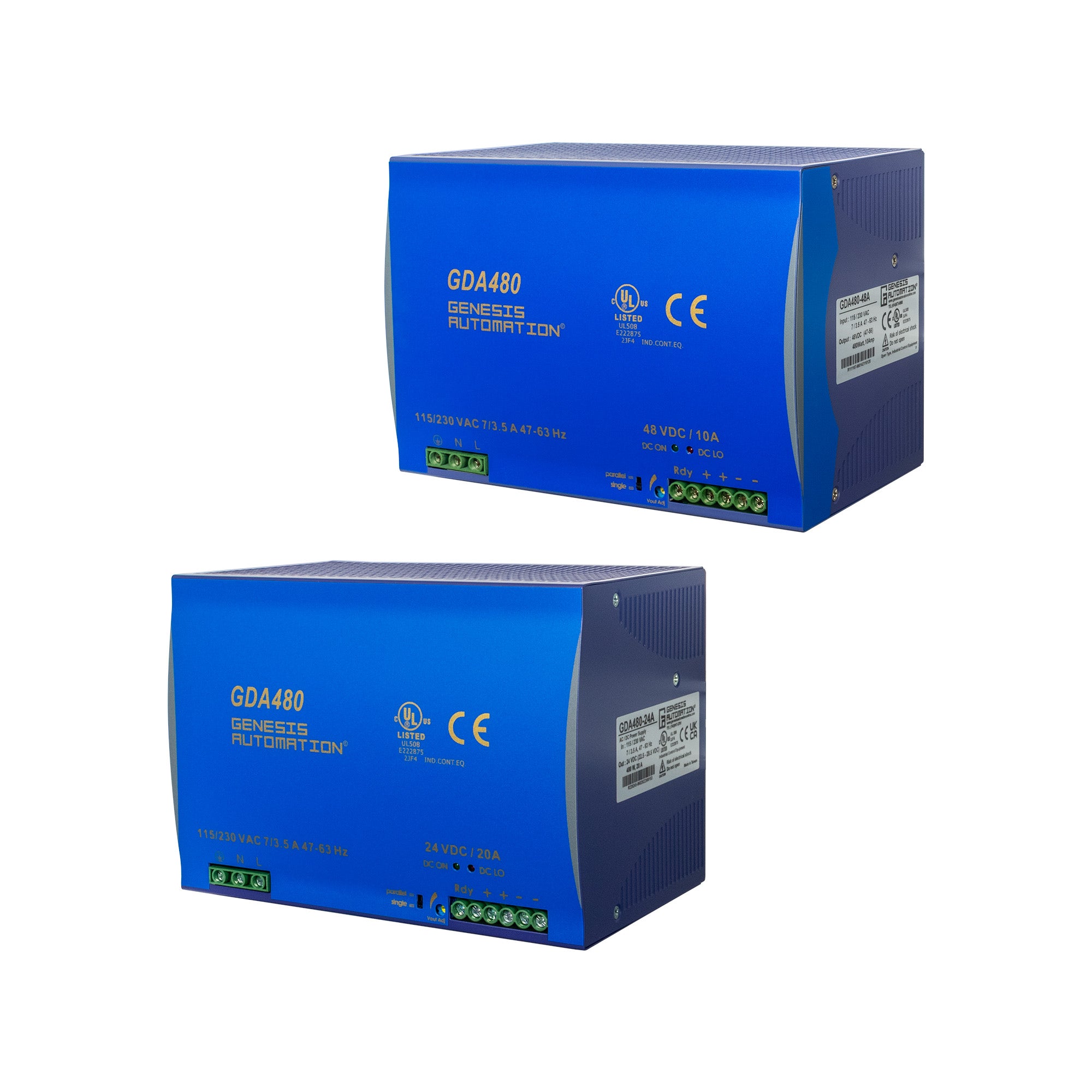

Model Numbers

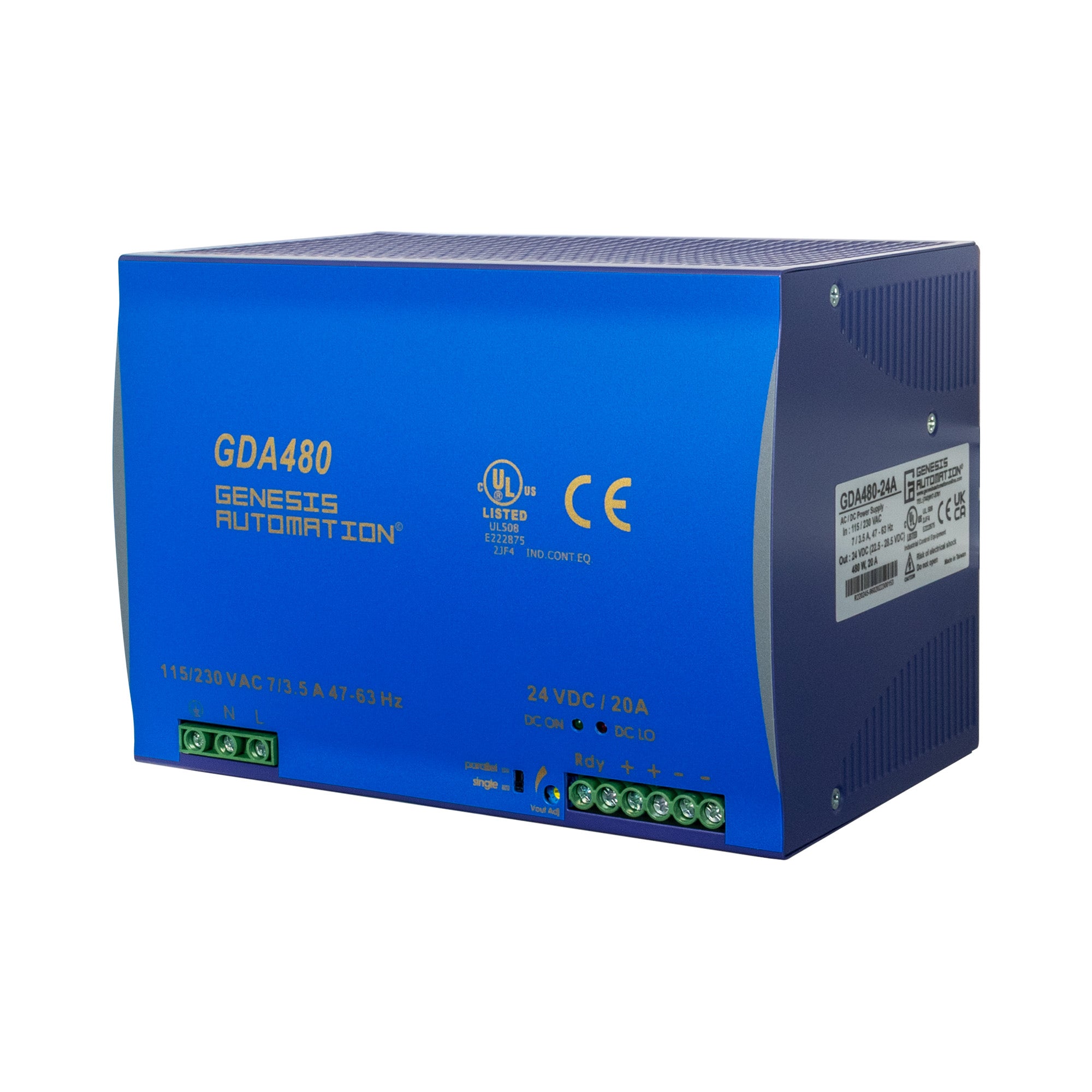

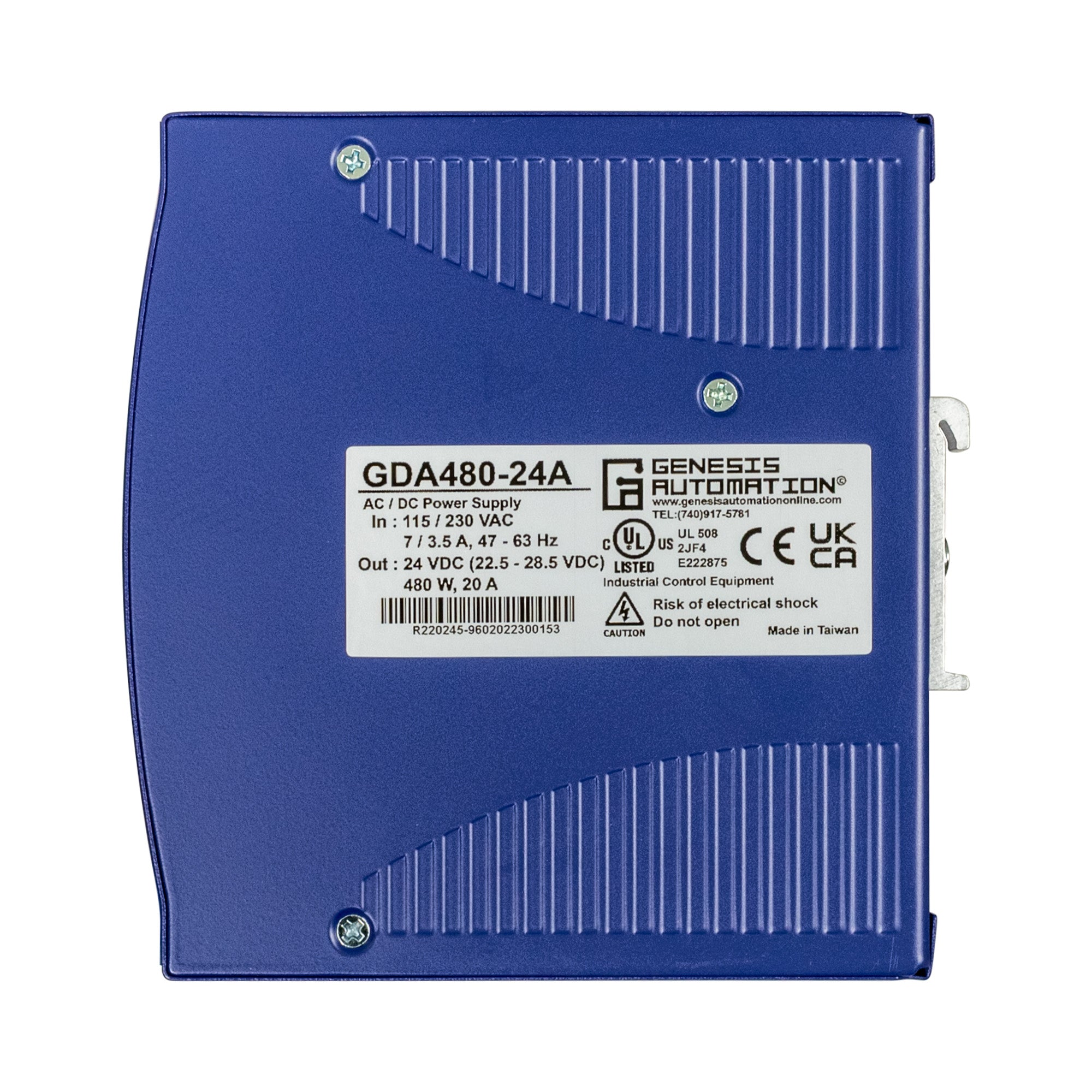

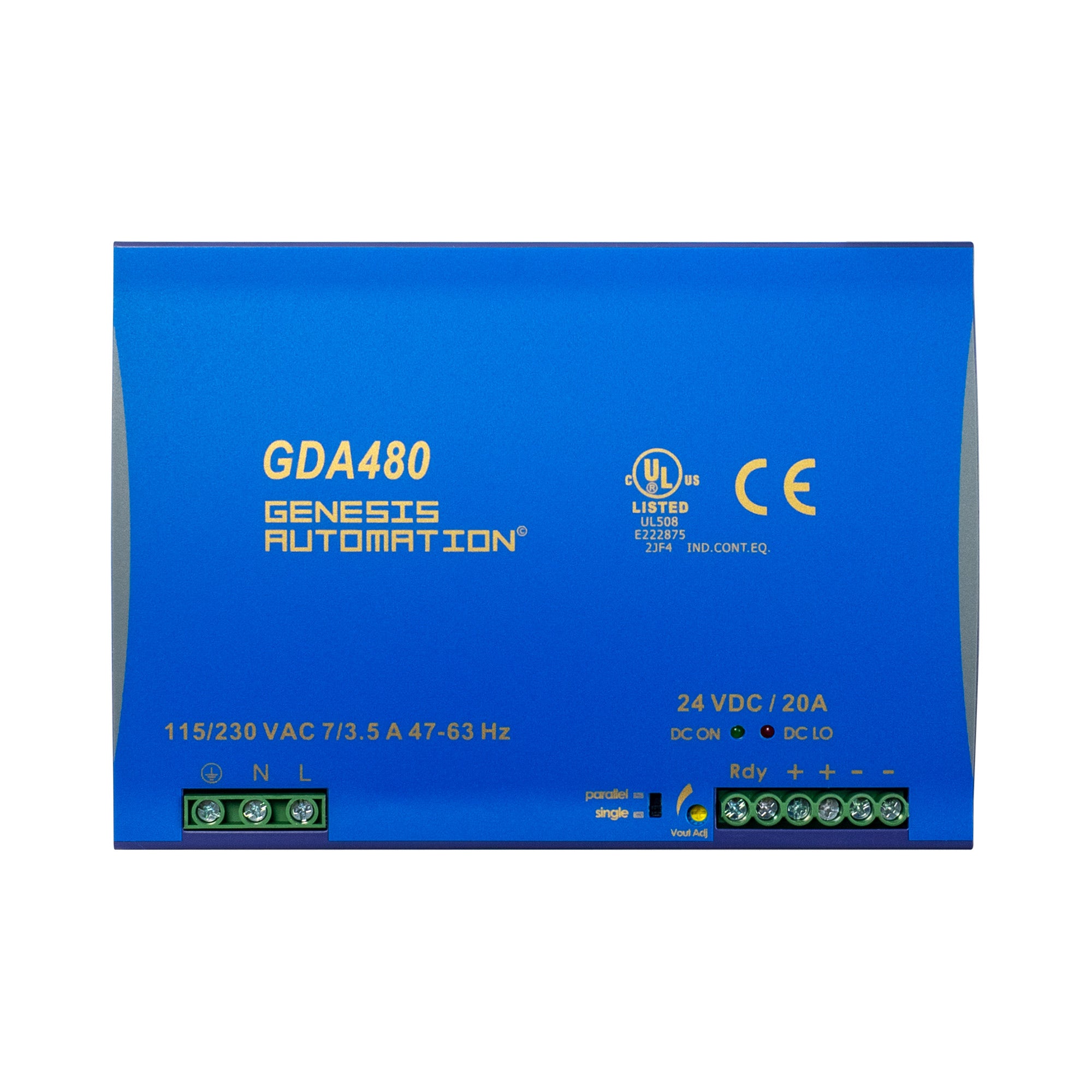

GDA480-24A - 480W DC, 24V/20A PFC & Parallel UL508

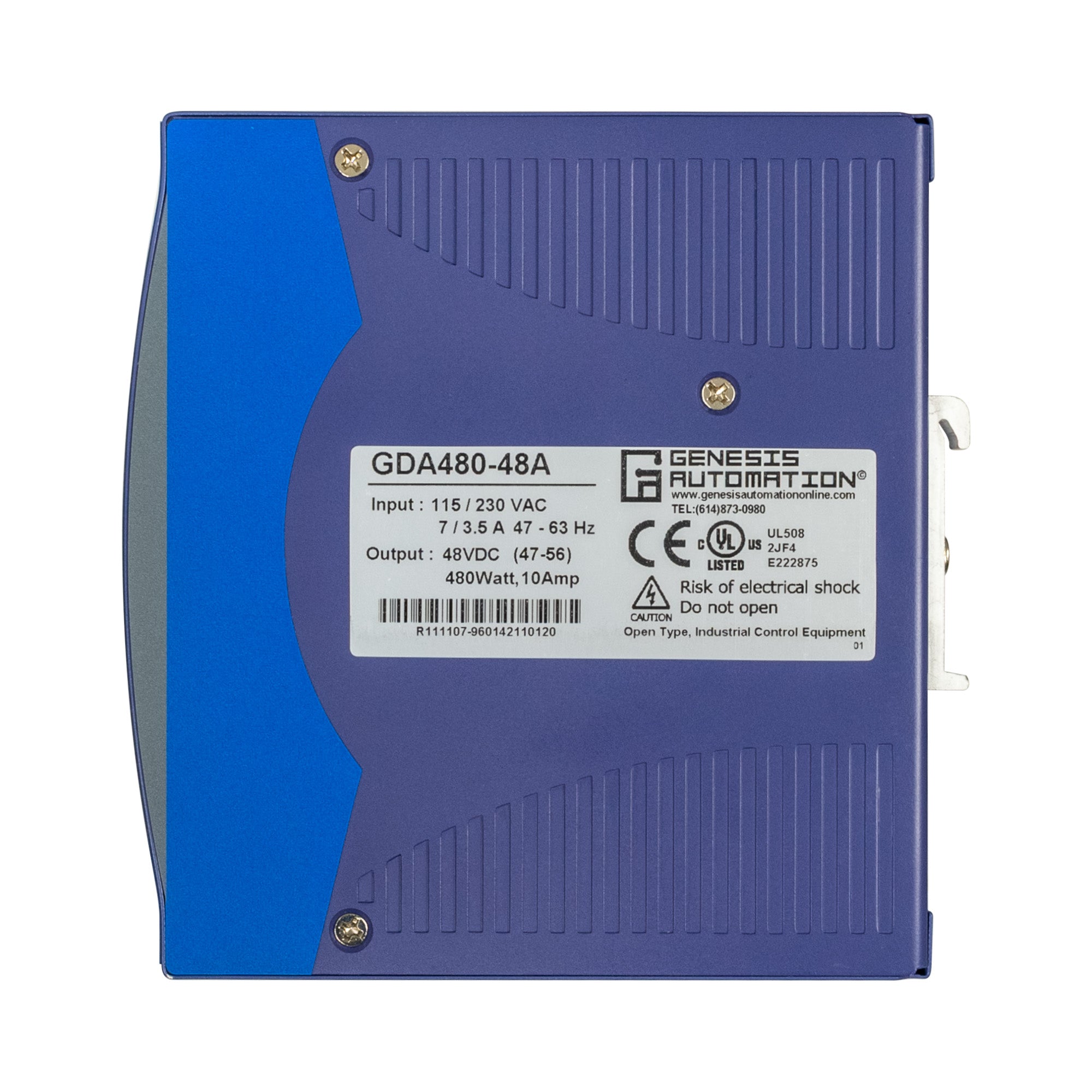

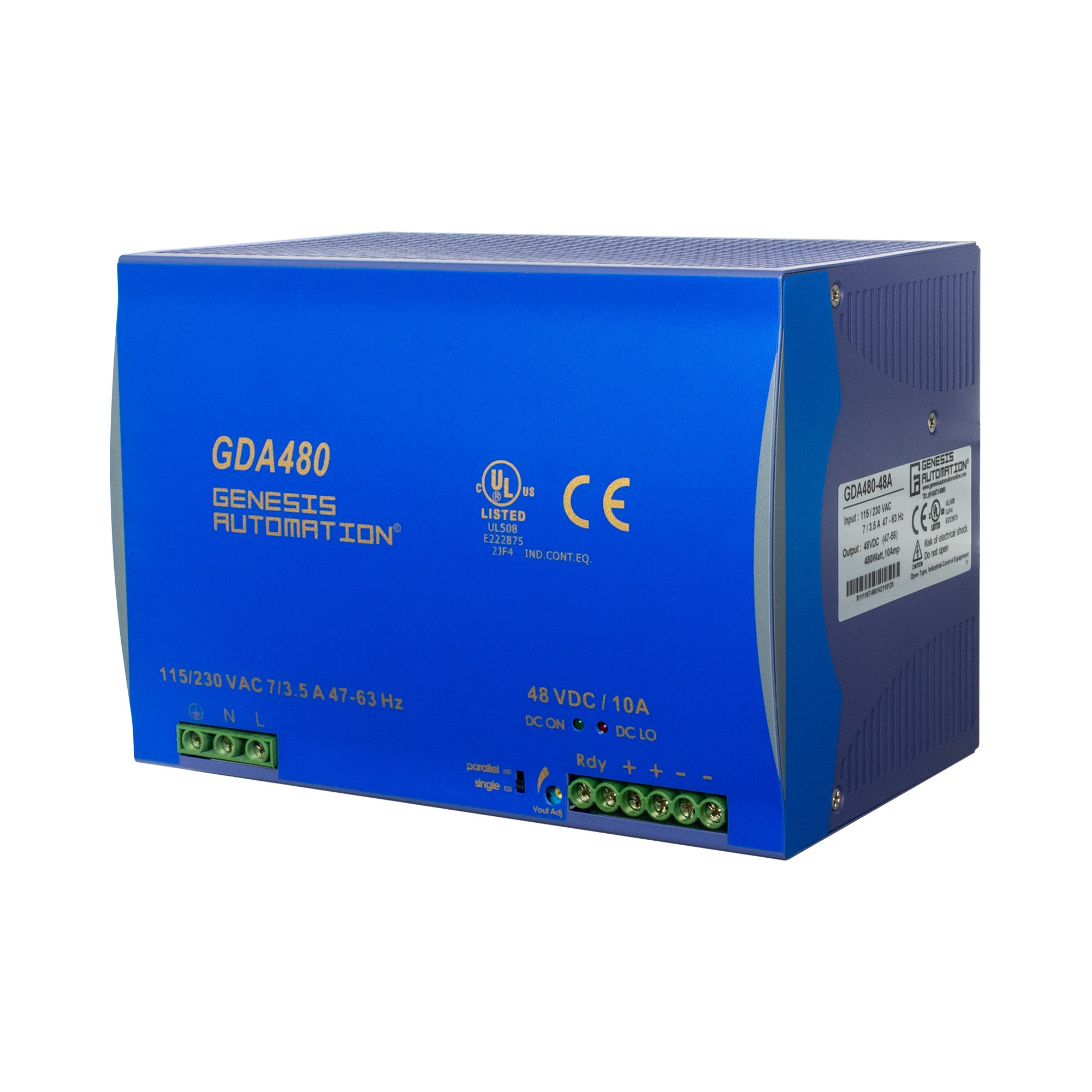

GDA480-48A - 480W DC, 48V/10A PFC & Parallel UL508
