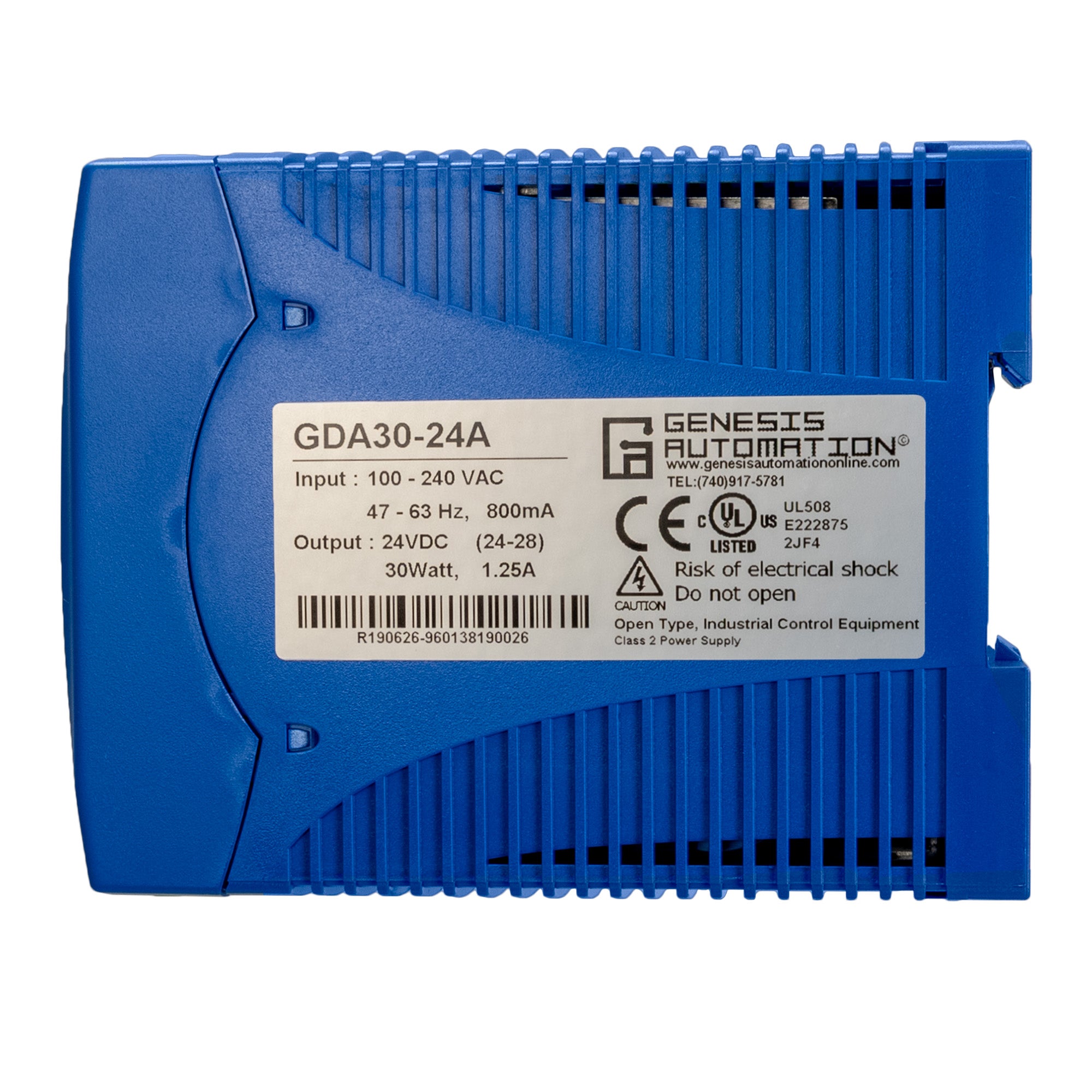

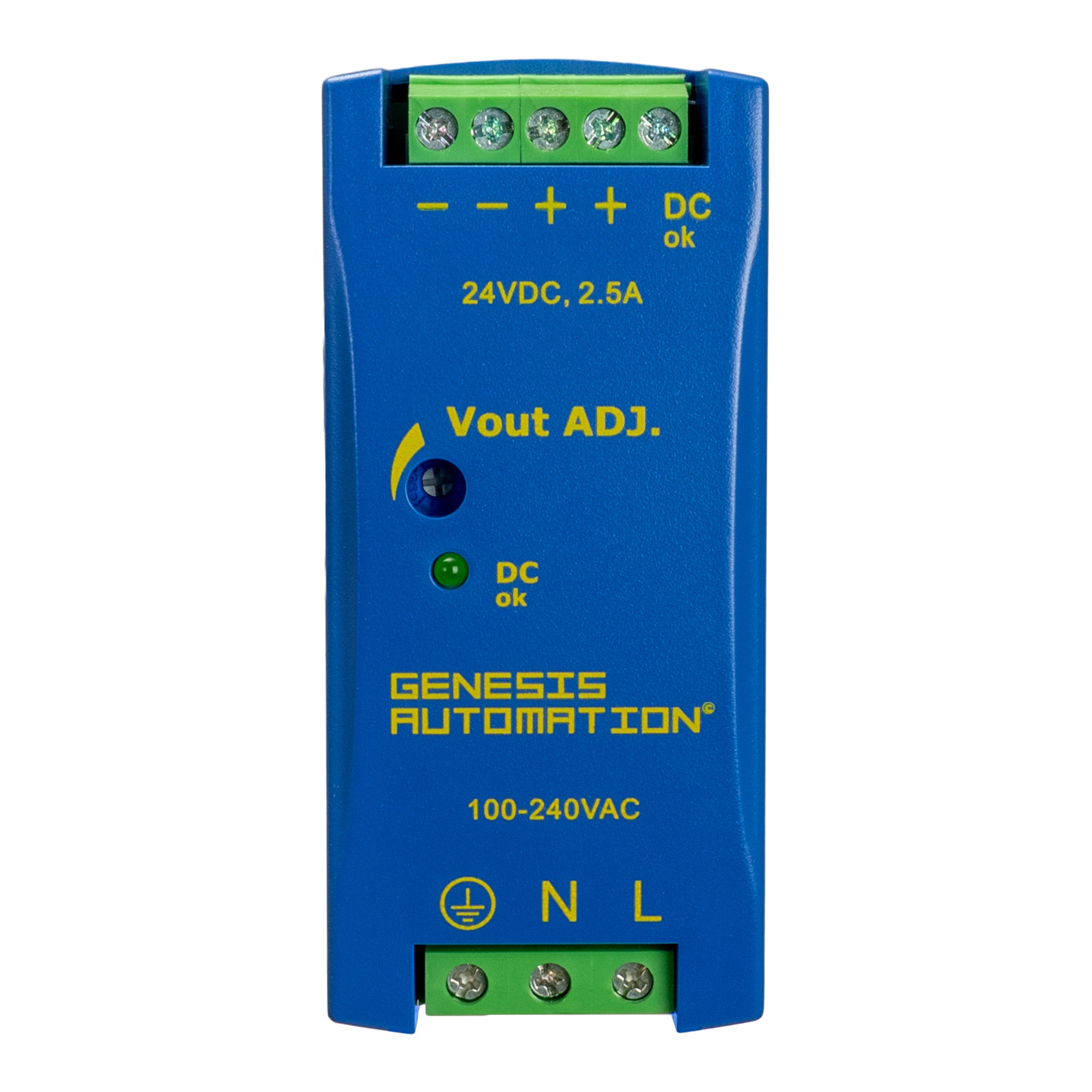

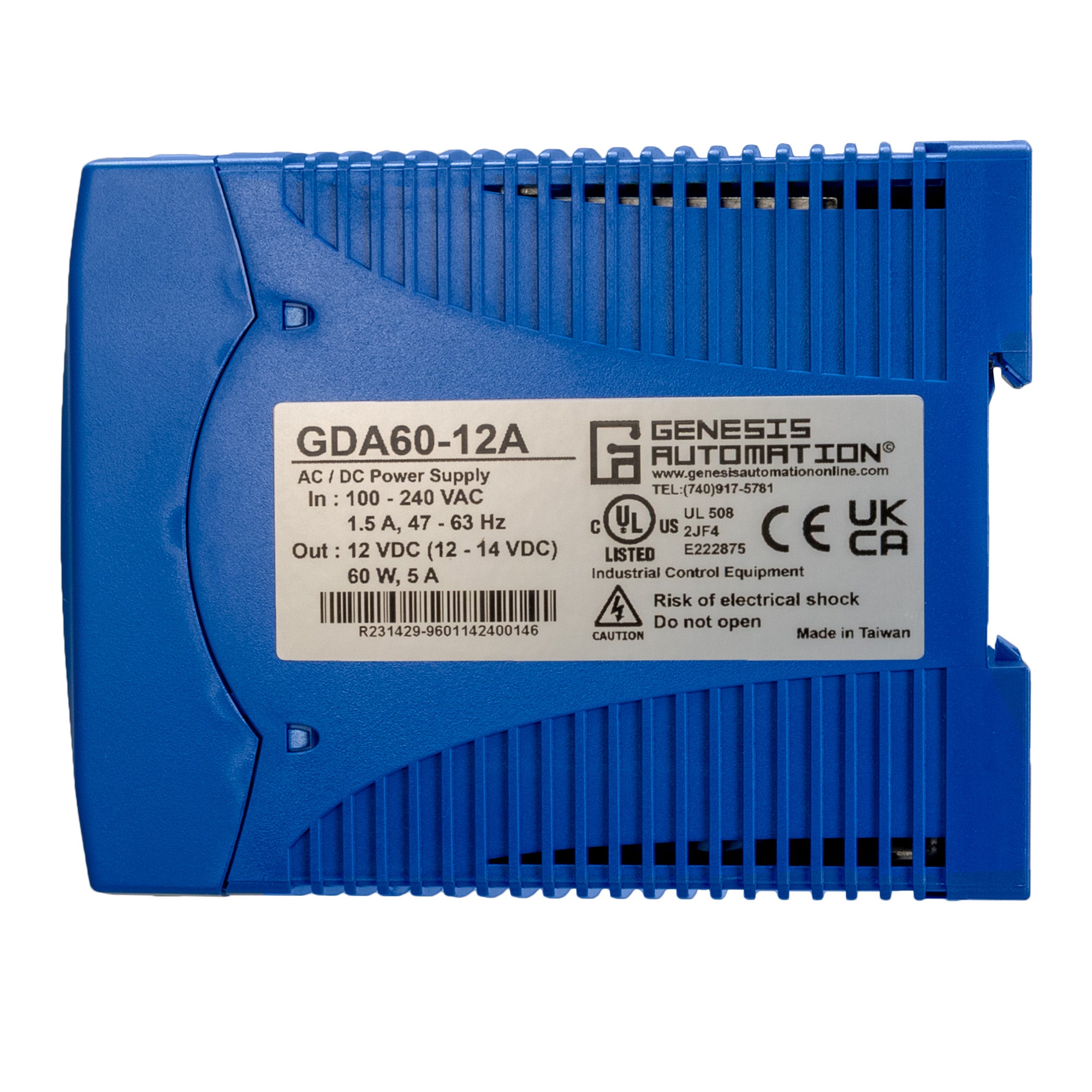

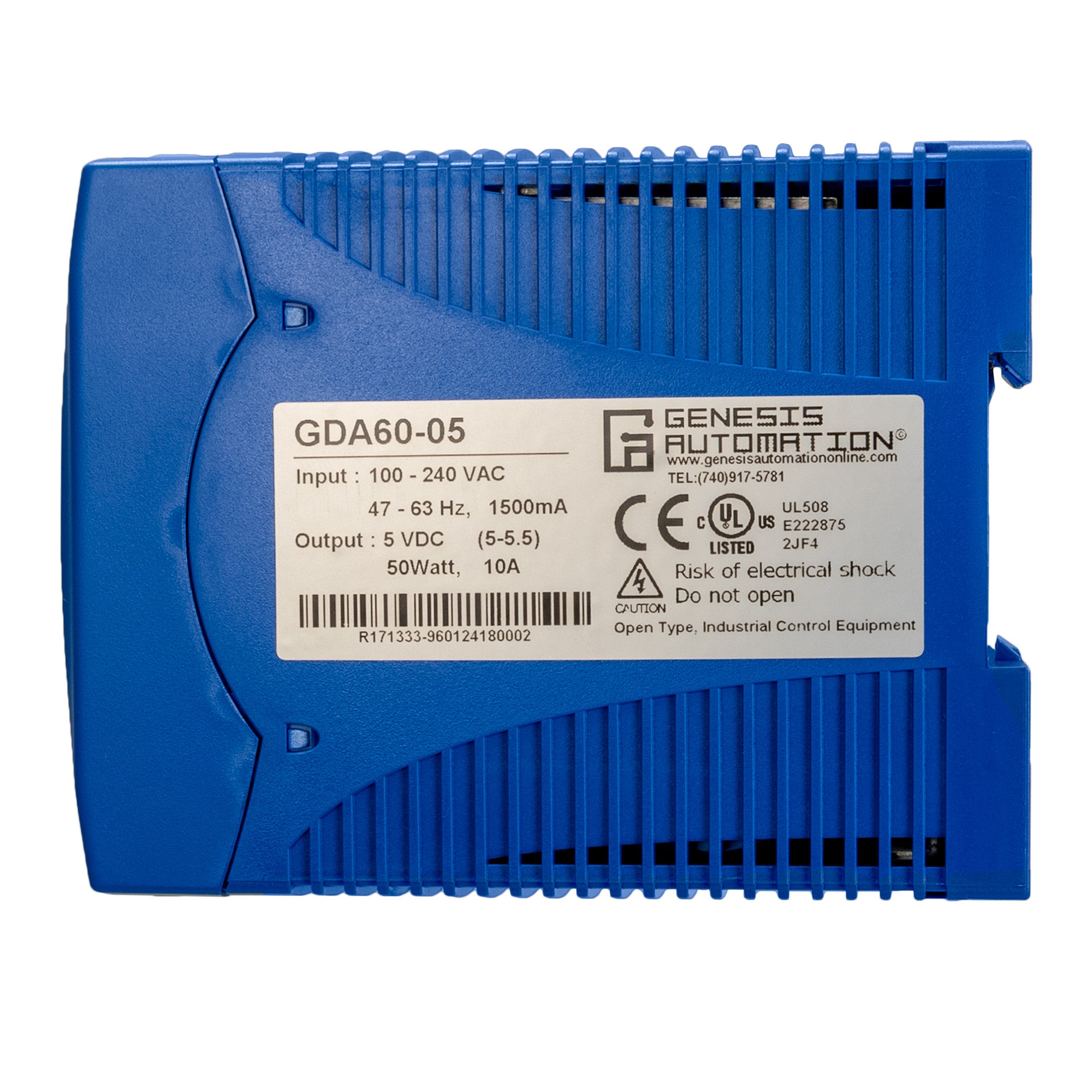

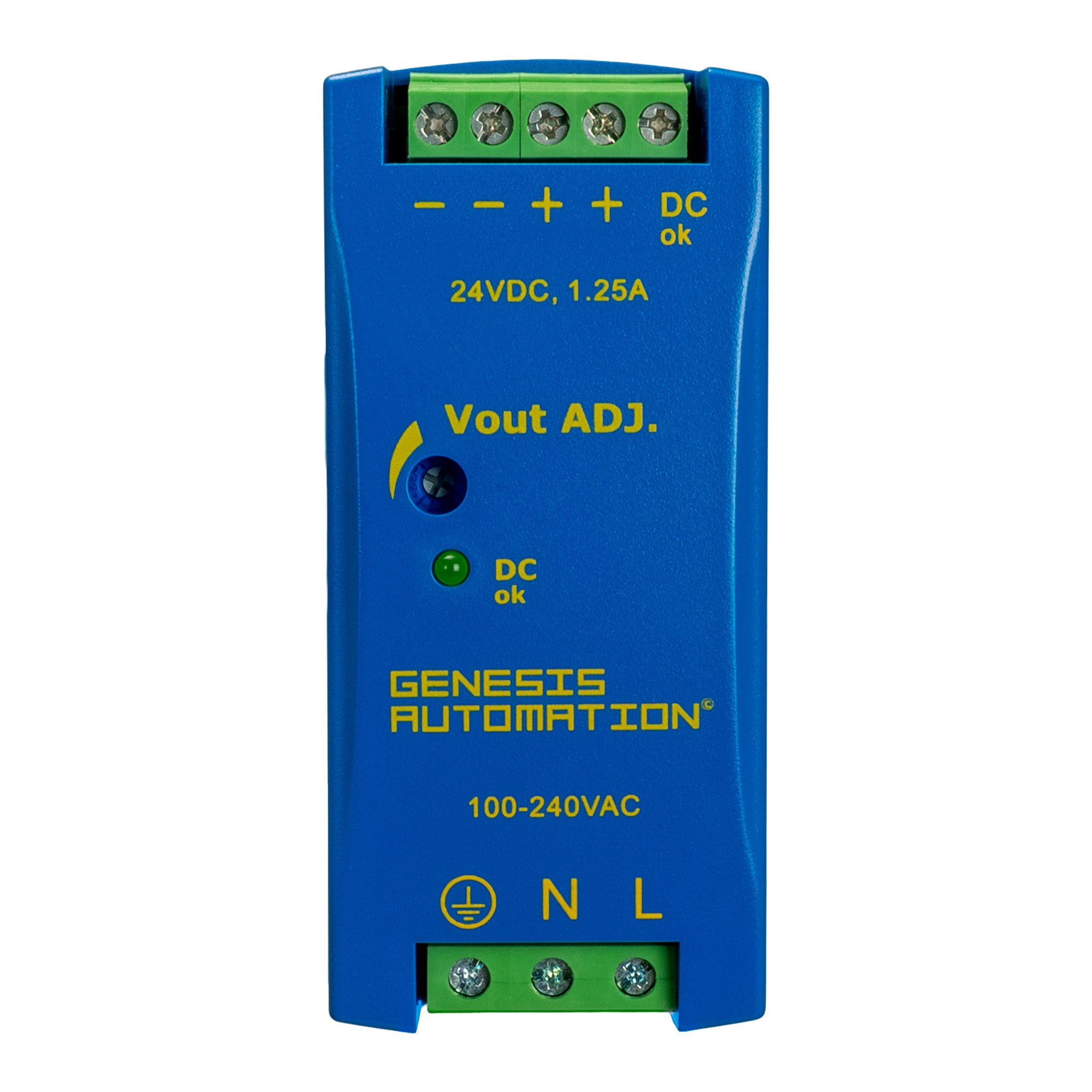

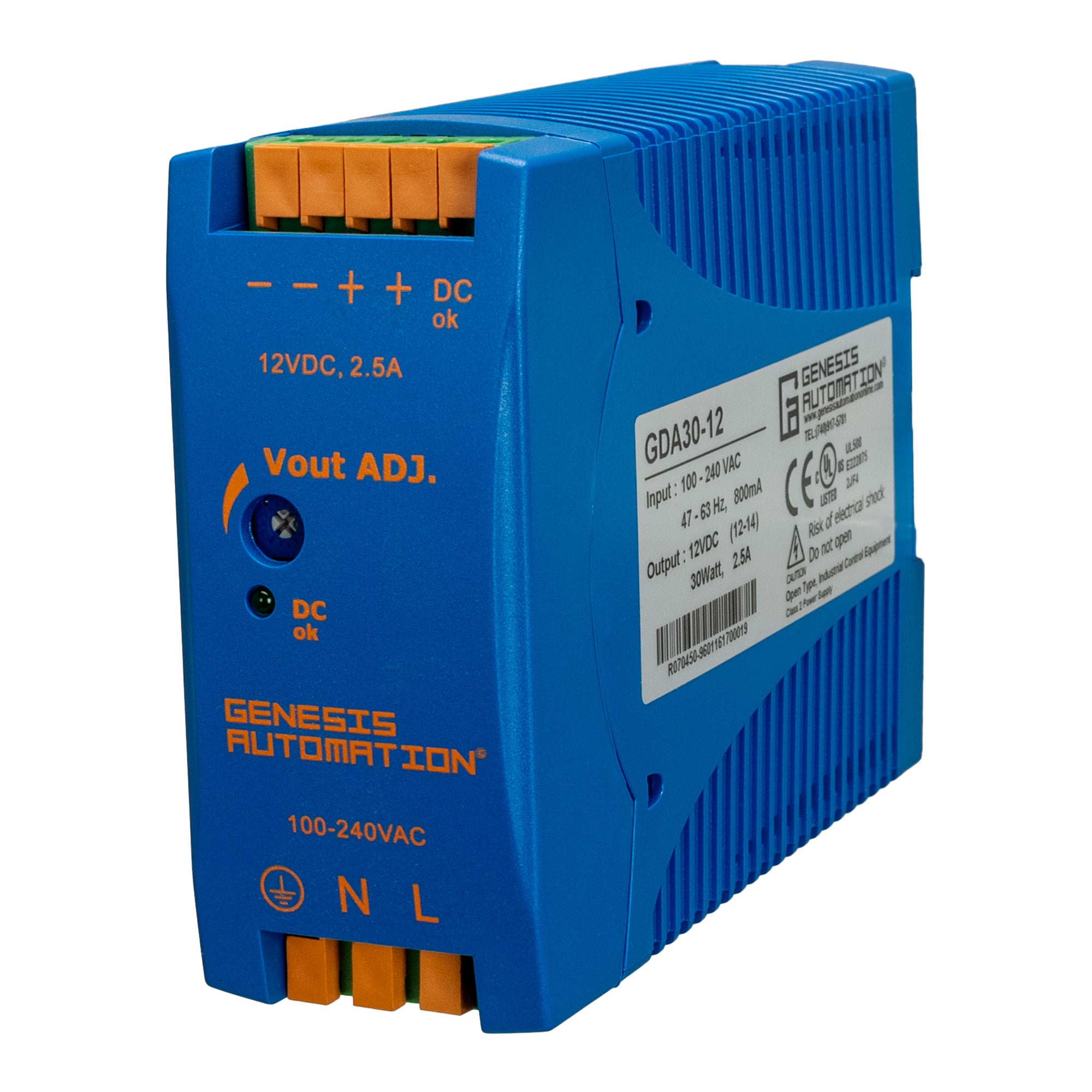

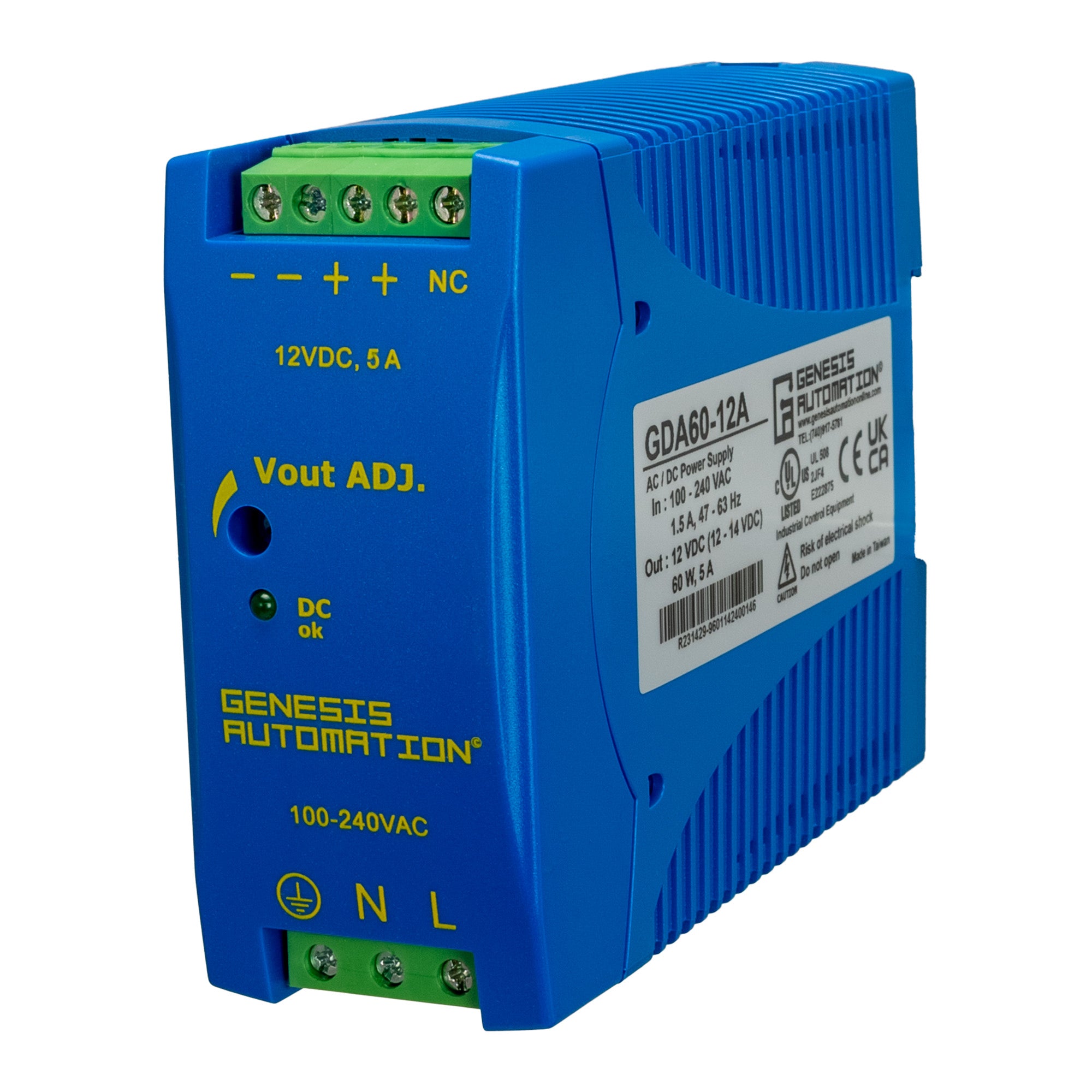

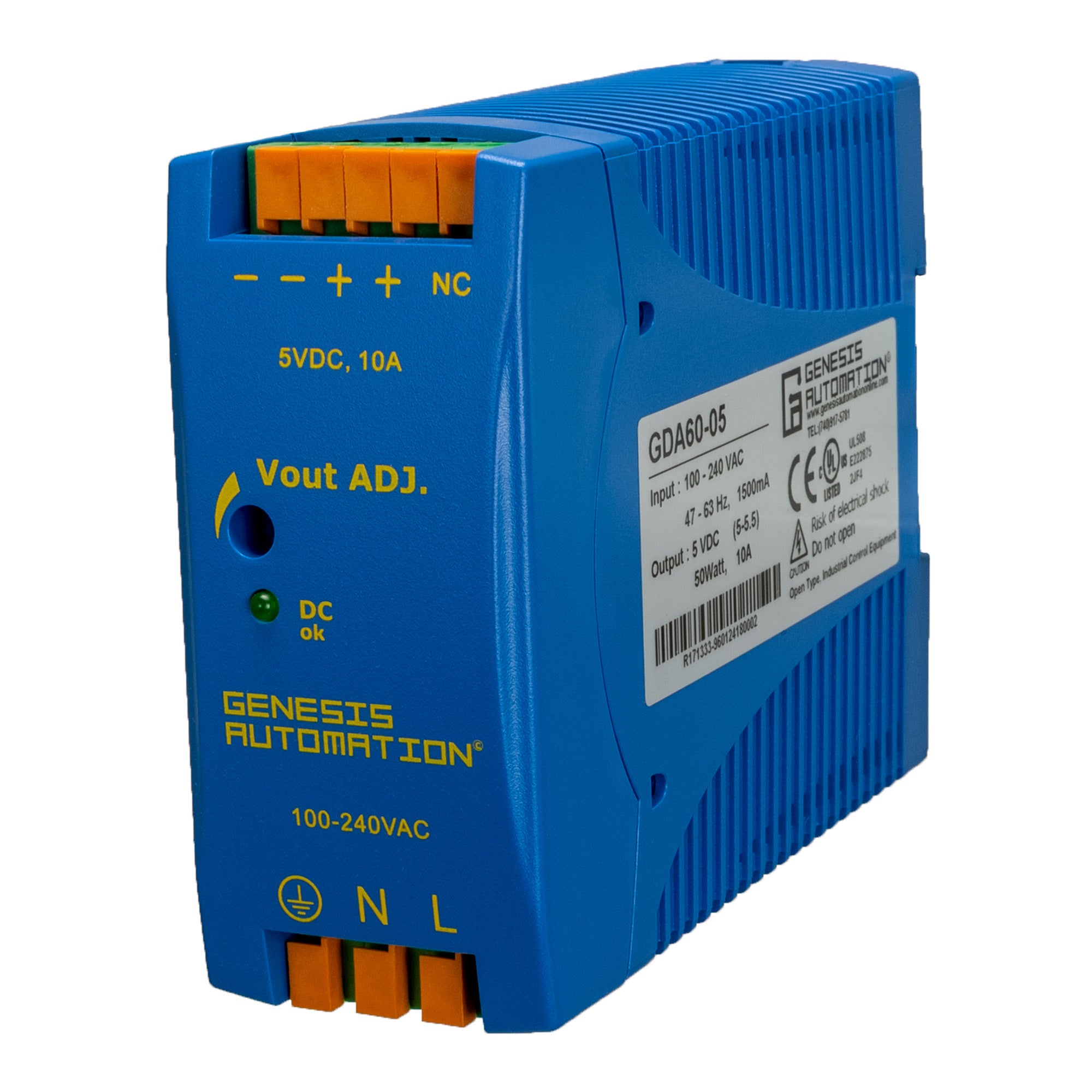

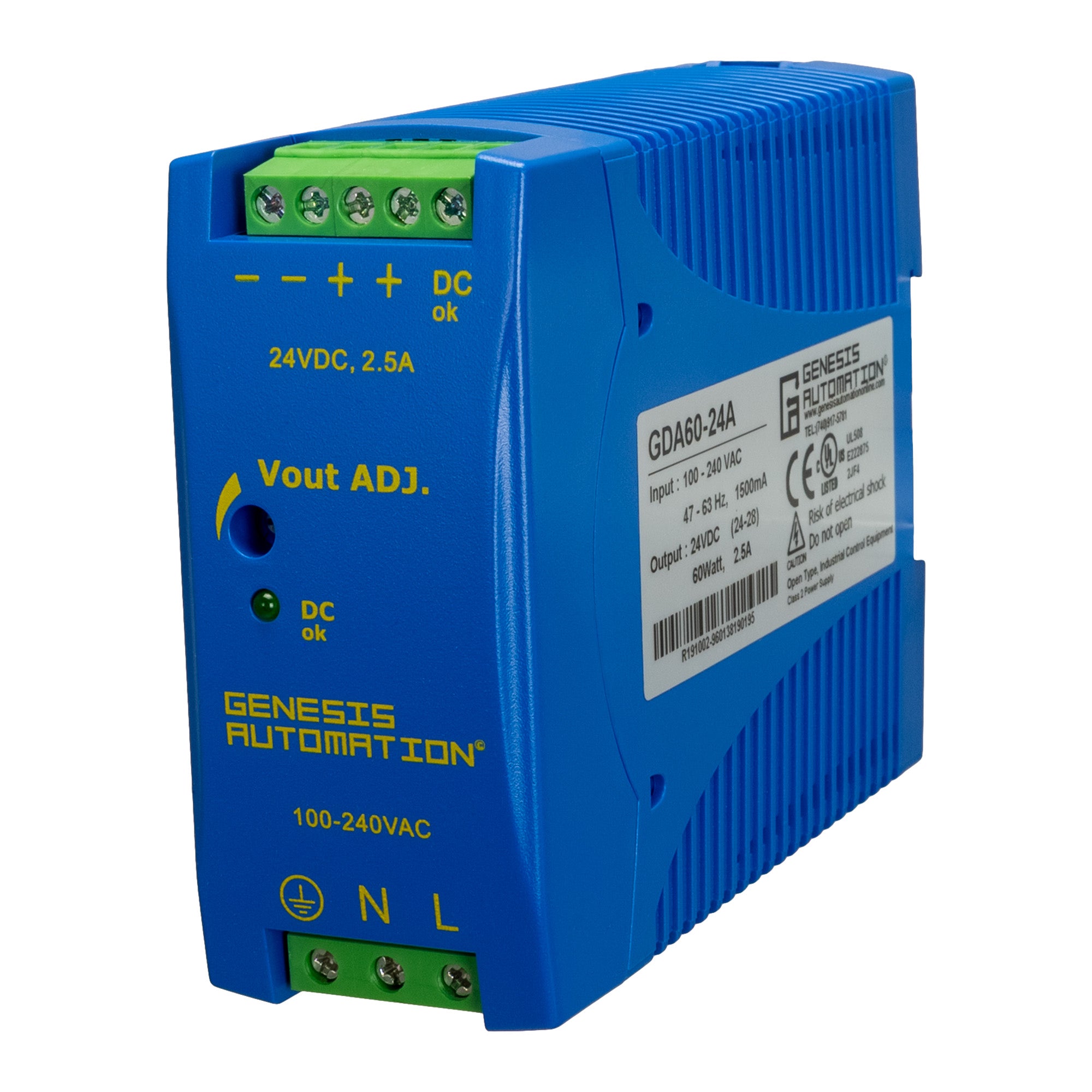

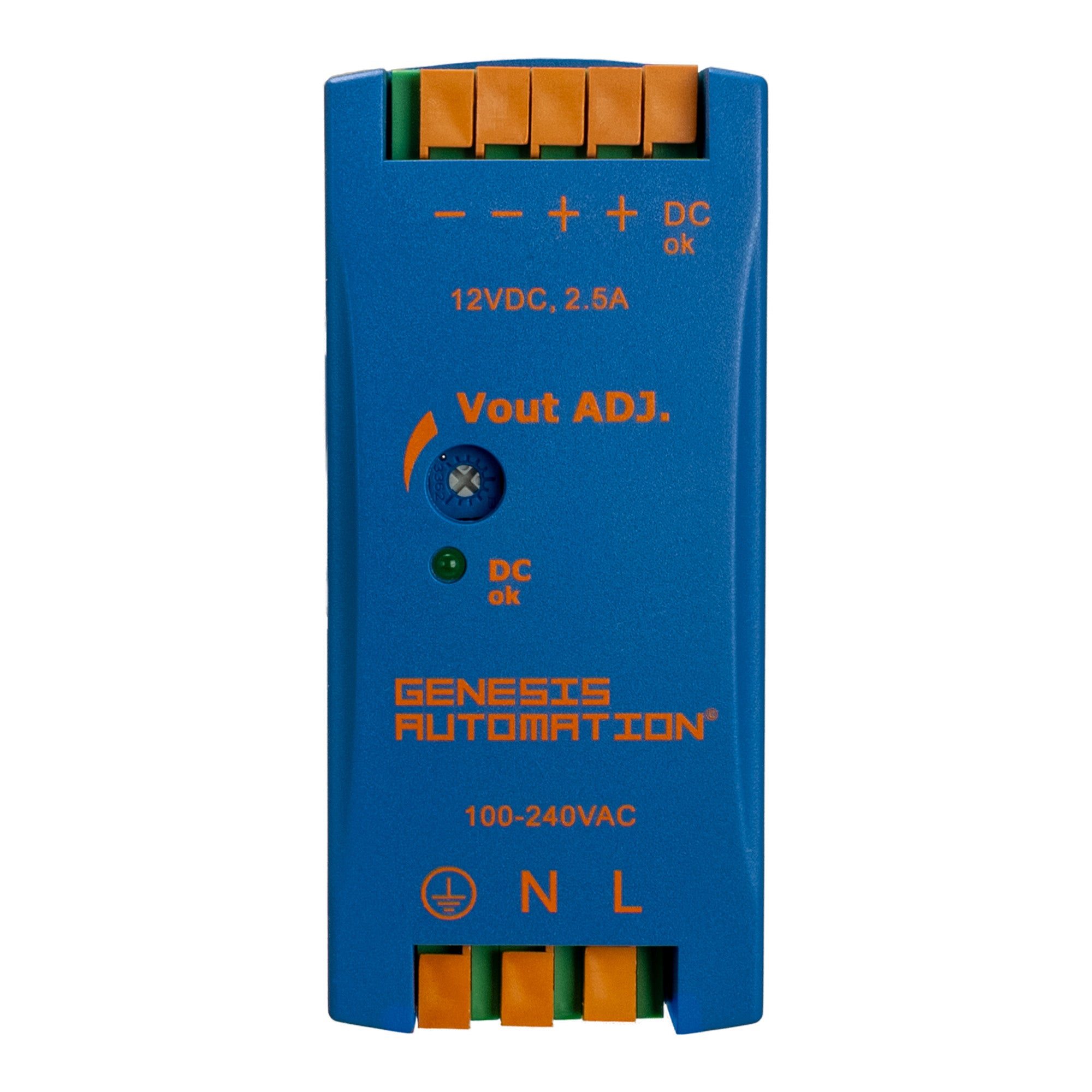

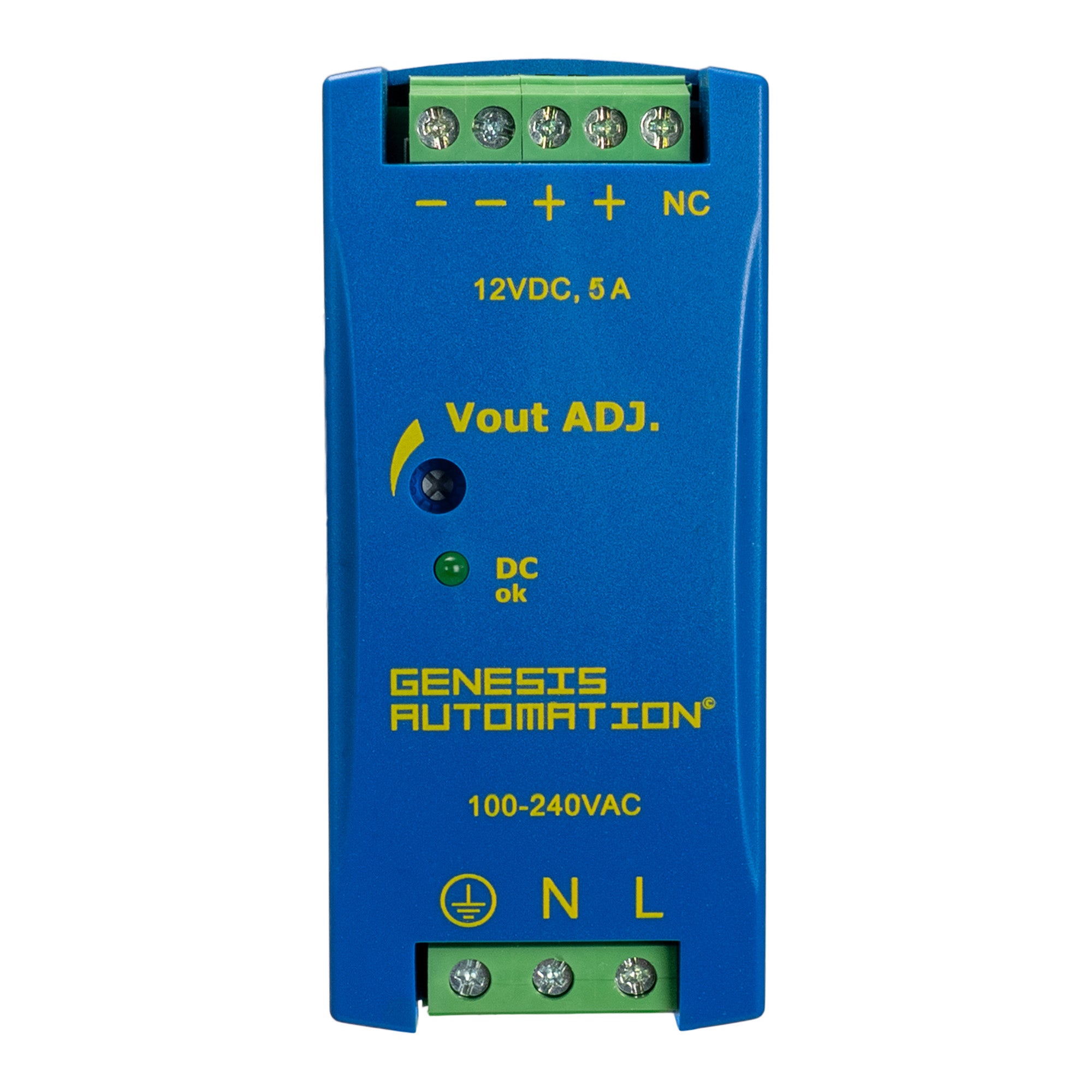

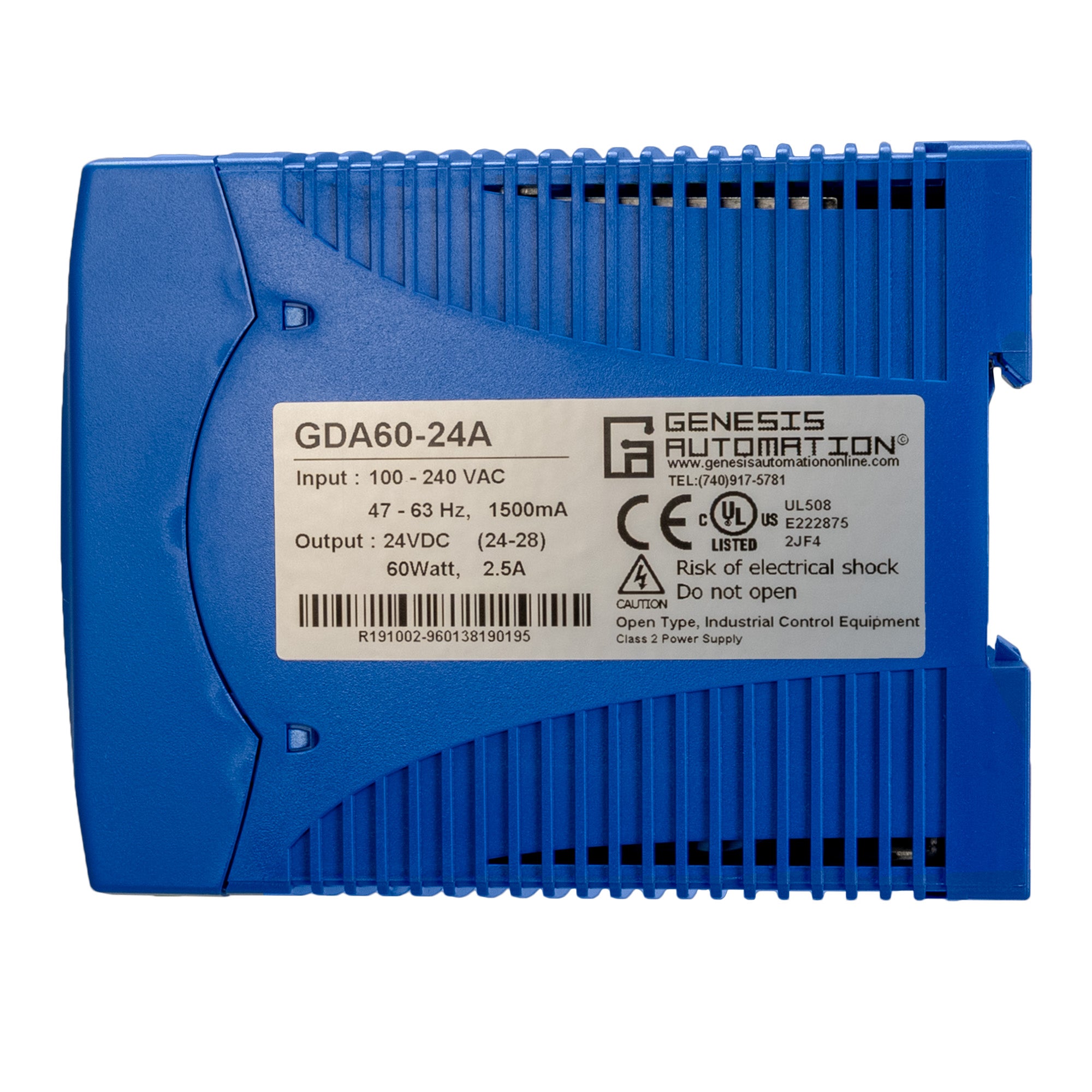

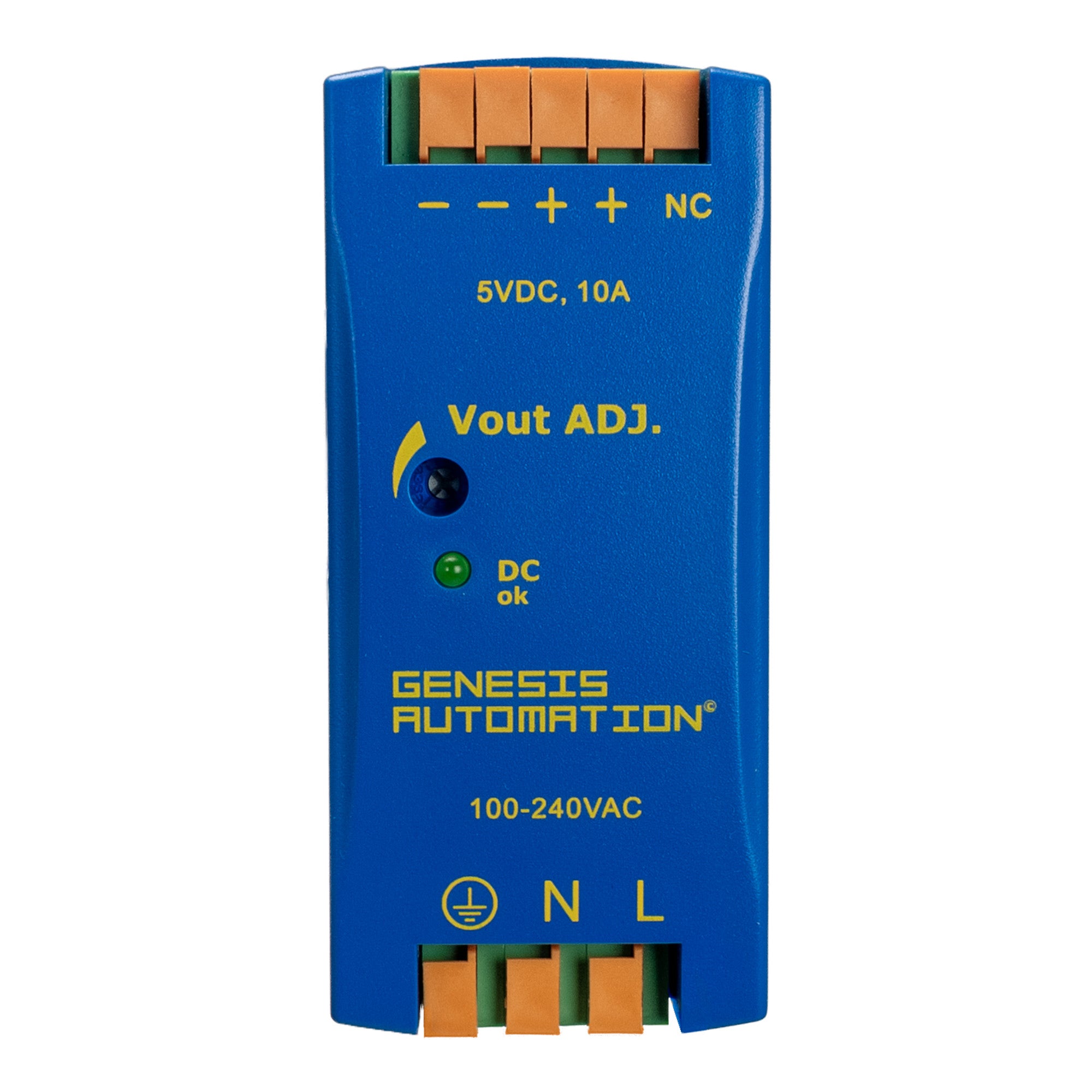

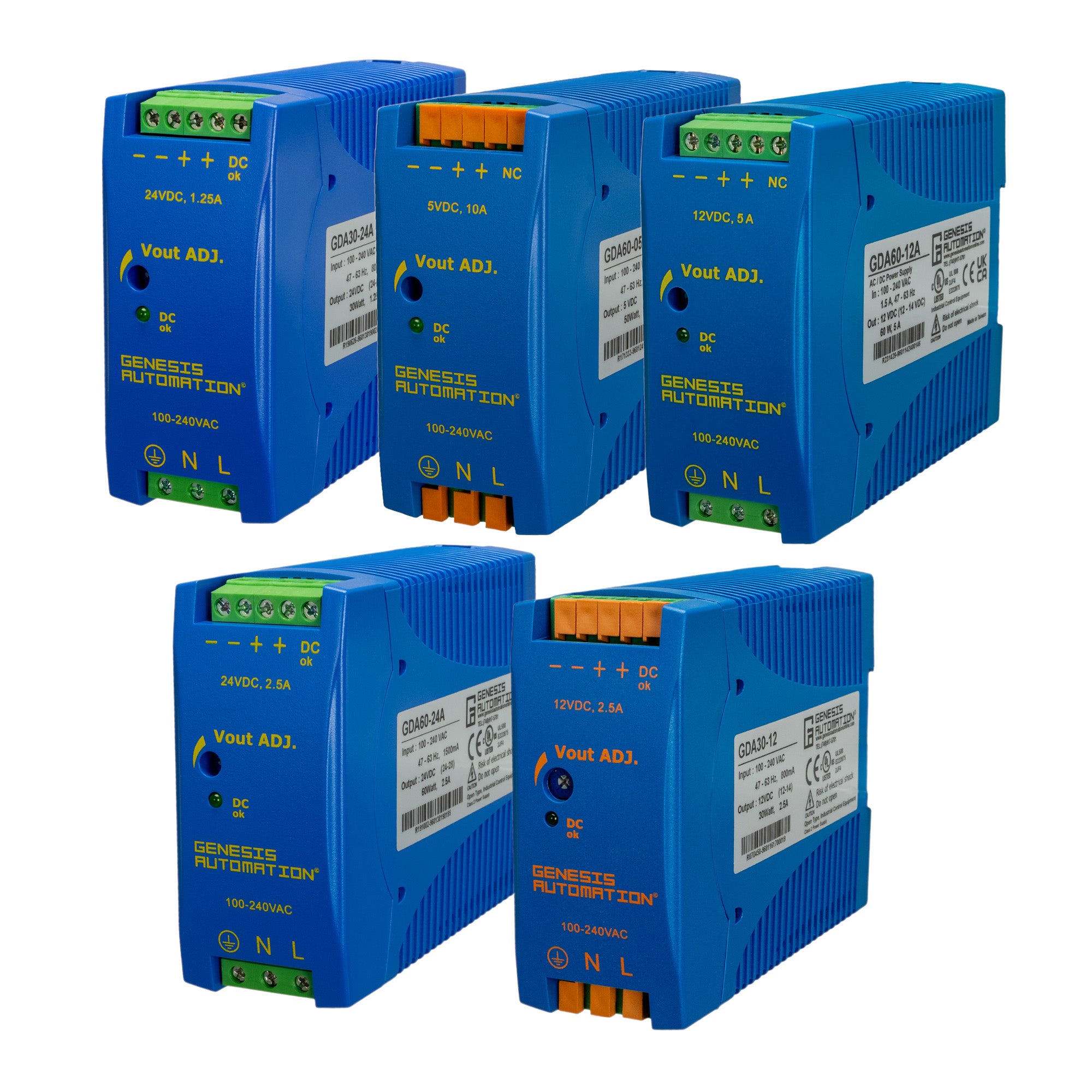

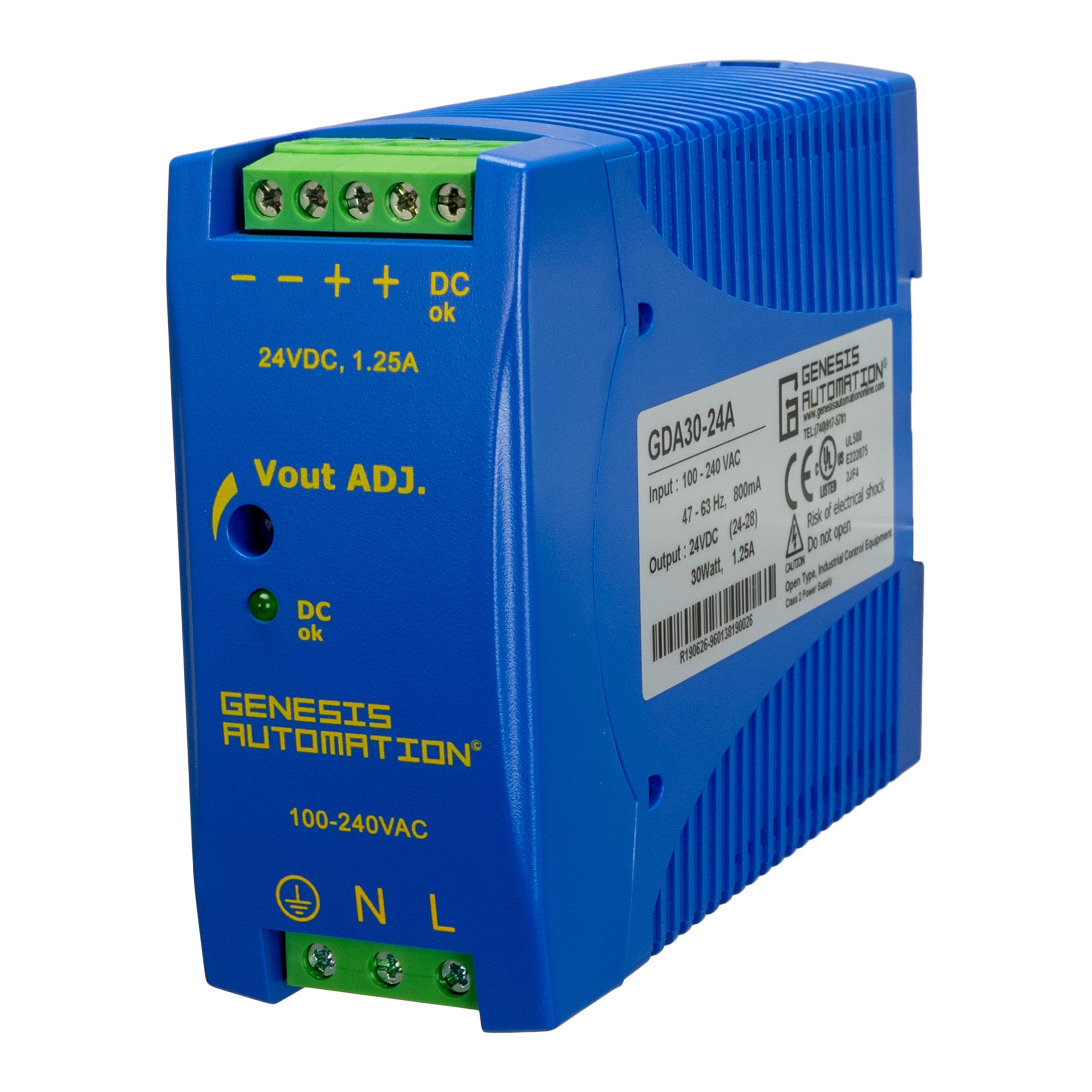

GDA 30W and 60W AC/DC DIN Rail Enclosure Power Supply

A rugged family of Industrial DIN Rail mounted DC Power Supplies with PWM design. These are UL Class II with operating temperatures from -4 to 159°F (-20 to 71°C). The single phase models accept a wide universal input range 90-264V AC. All models feature touch-proof spring clamp terminations for input & output wire connections.

Features

DIN rail mounting
Wide input Range 85-264 VAC, 47-63Hz
Finger safe terminals - spring clamp or screw terminal available for all models 30W &-60W
Status indicator GREEN LED for DC ON at start-up
Relay output Power Ready at start-up (24VDC models only) on 30W & 60W
Operating temperature range -4 to 160F, continuous operation (no de-rating) to 142F
Output overload, over voltage, short circuit & no load protection
Input line fuse & filter with surge voltage protection, and inrush current limiter
Class 2 UL 1310 for all models (except GDA30-05, GDA60-05/12); UL 508 (E222875), CE
Input isolation voltage is 3kV, and input isolation resistance is 100 Mega ohm
Plastic body for all models 30W & 60W
