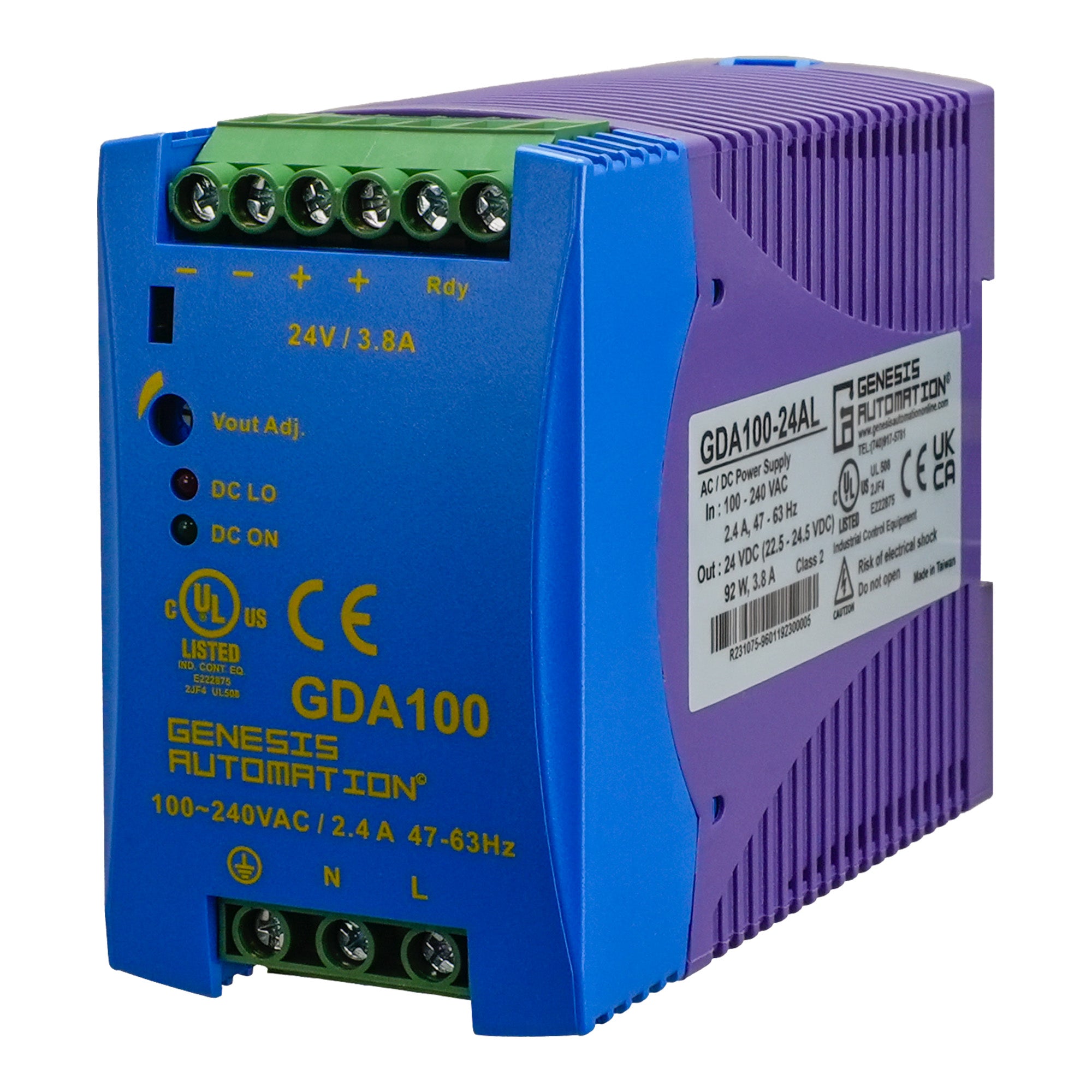

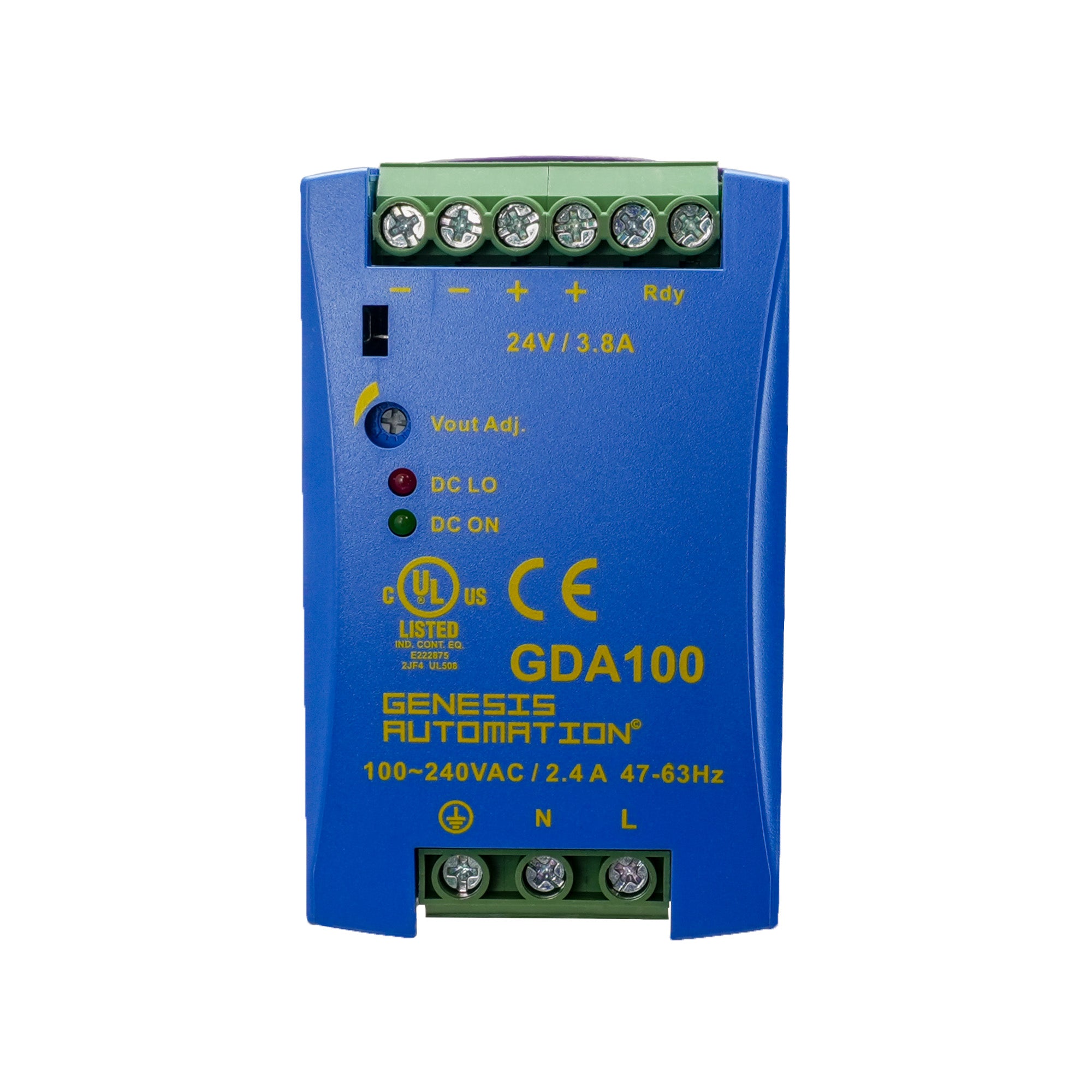

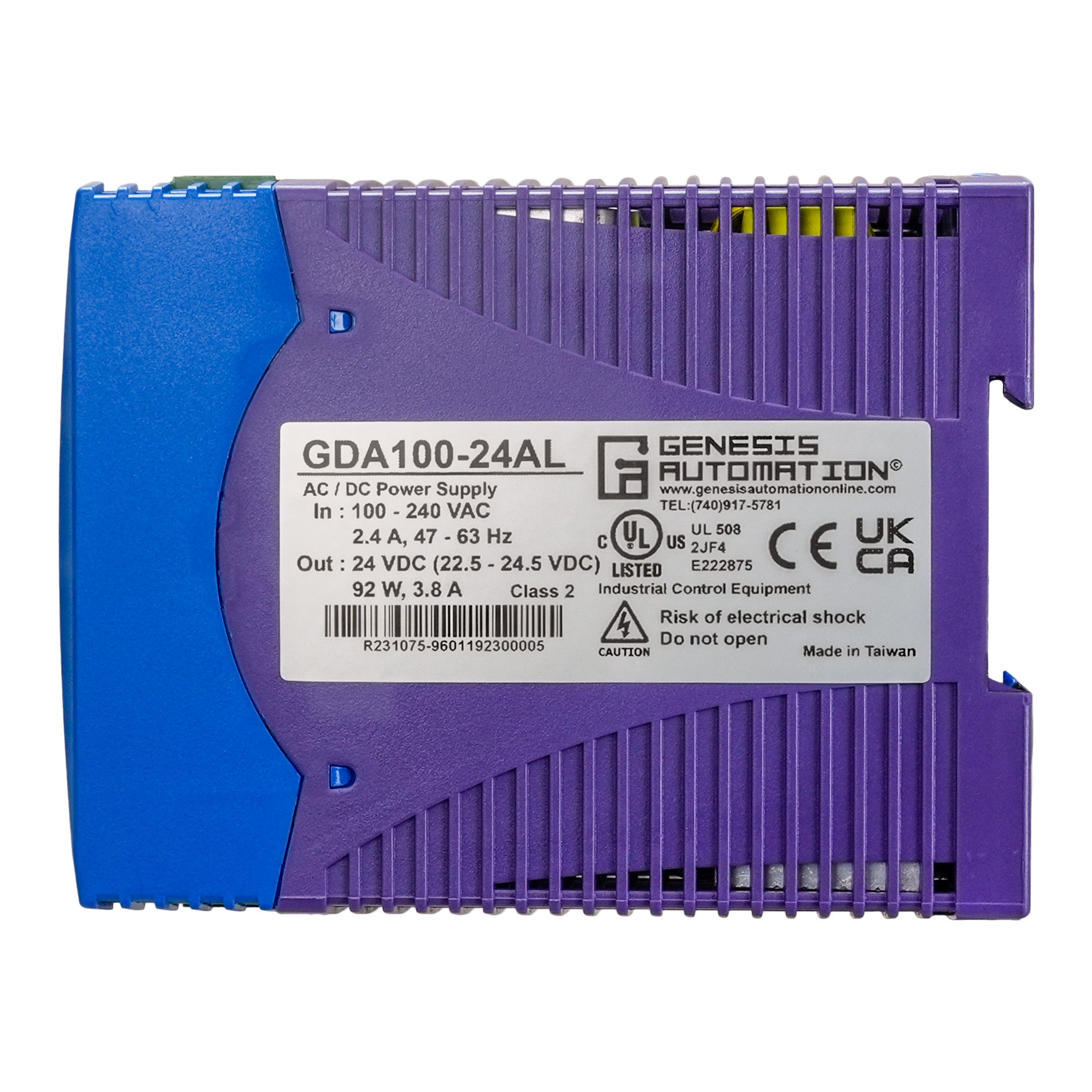

GDA 100W AC/DC DIN Rail Enclosure Power Supply

A rugged family of Industrial DIN Rail mounted DC Power Supplies with PWM design. These are UL Class II with operating temperatures from -4 to 159°F (-20 to 71°C). The single phase models accept a wide universal input range 90-264V AC. All models feature touch-proof spring clamp terminations for input & output wire connections.

Features

DIN rail mounting
Wide input Range 90-264 VAC, 47-63Hz
Finger safe terminals - screw terminal on all 100W models
Status indicator GREEN LED for DC ON at start-up
Status indicator RED LED for DC Low indication after start-up
Relay output Power Ready at start-up (24V model only)
Operating temperature range -31 to 160F, continuous operation (no de-rating) to 142F
Output overload, over voltage, short circuit & no load protection
Input line fuse & filter with surge voltage protection & inrush current limiter
Class 2 UL 1310 for 24V model only, UL 508 (E222875), CE
Input isolation voltage is 3kV, and input isolation resistance is 100 Mega ohm
Plastic case for all 100W models; IP20 Protection

Specifications

Model: GDA100‑24AL
Output Power: 92 W
Output Voltage: 24 V DC
Output Current: 3.8 A
Input Voltage Range: 90‑264 VAC
Input Frequency: 47‑63 Hz
Output Voltage Adjustable Range: 22.5‑28.5 V DC
Input & Output Isolation: 3 kV
Protection: Overvoltage, overload, short circuit
Isolation Protection: Touch‑proof screw terminals
Status Indicators: DC ON (green) & DC LO (red)
Case Protection: IP20
Approvals: cUL (UL508 & UL1013 Class II) and CE
Operating Temperature Range: -31 to 141°F (-35 to 71°C)

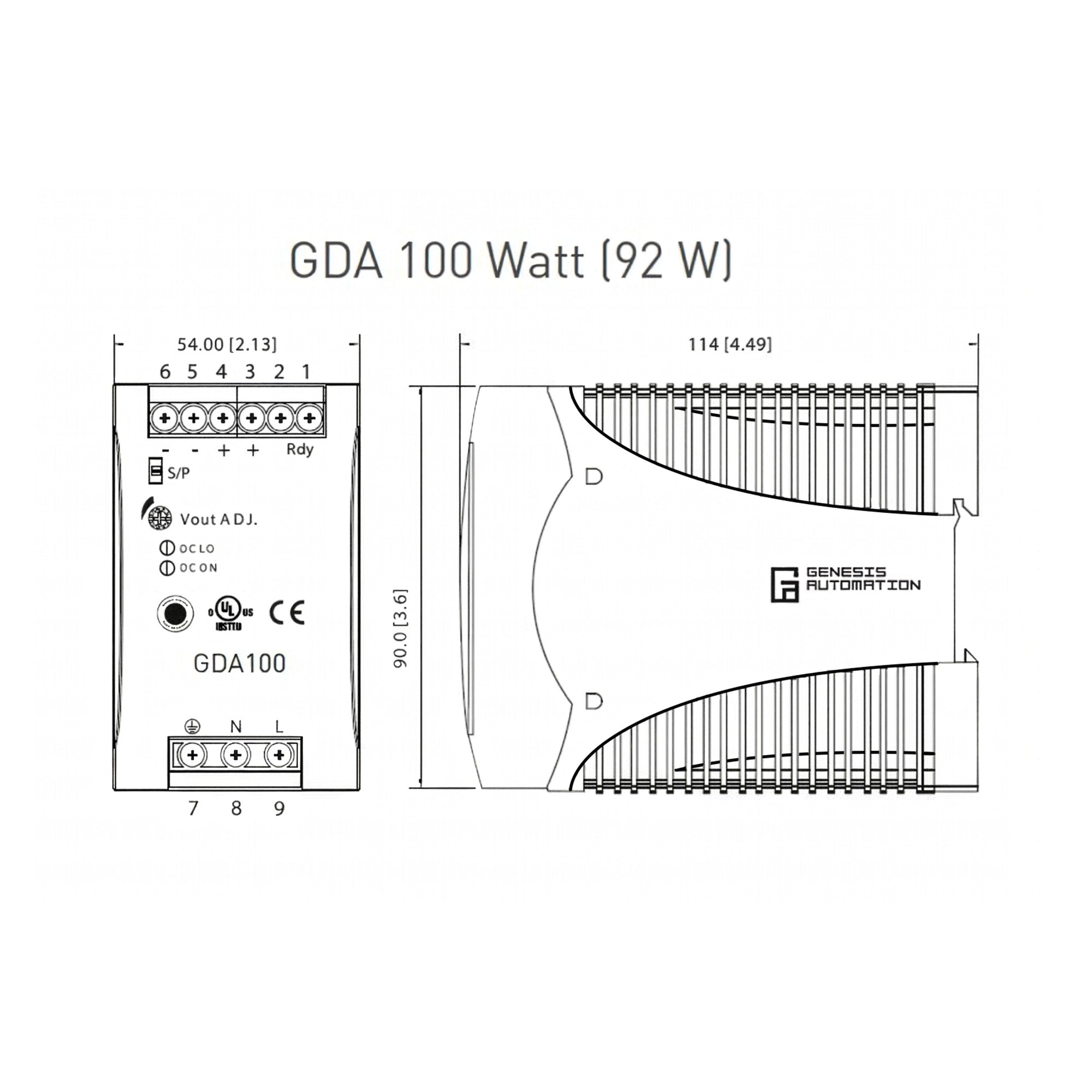

Dimensions (HxWxD): ~3.6 x 2.1 x 4.5 in
Weight: ~15 oz (approx. 0.94 lb)
Mounting: DIN rail
