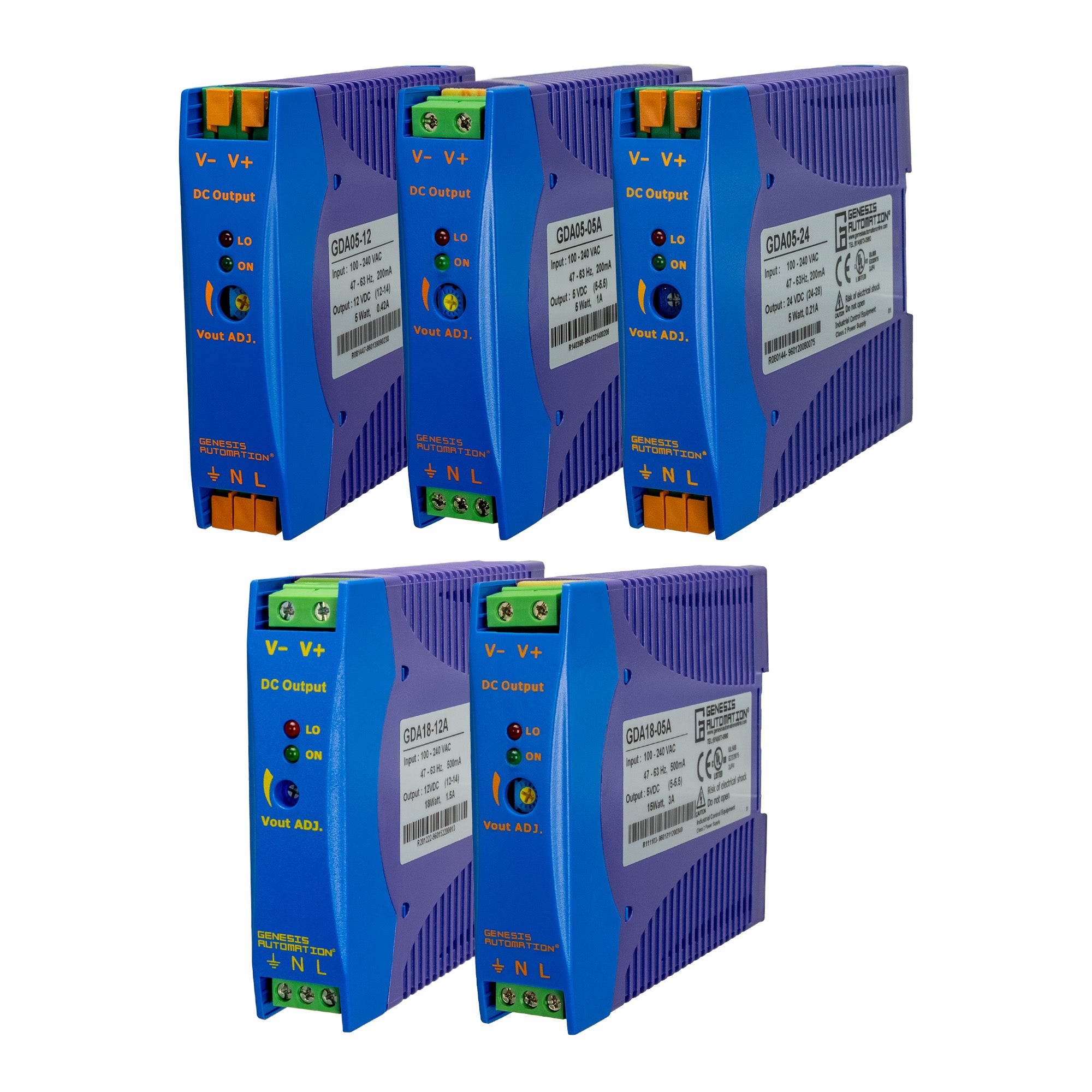

GDA 05W, 10W, and 18W AC/DC DIN Rail Enclosure Power Supply

Model Number

GDA05-05 DIN Rail 5W DC Power Supply 5V/1A Spring Clamp UL508 Class 2

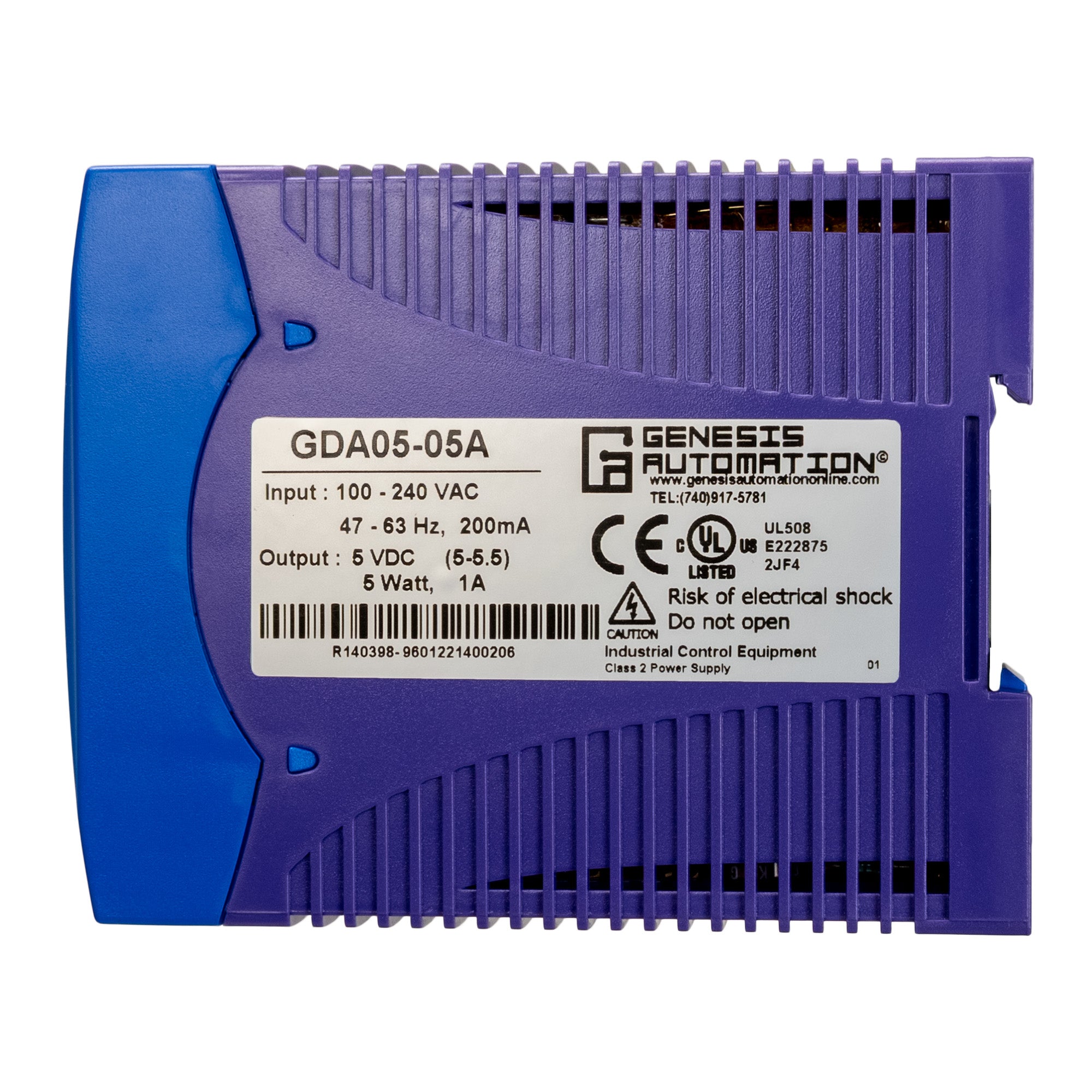

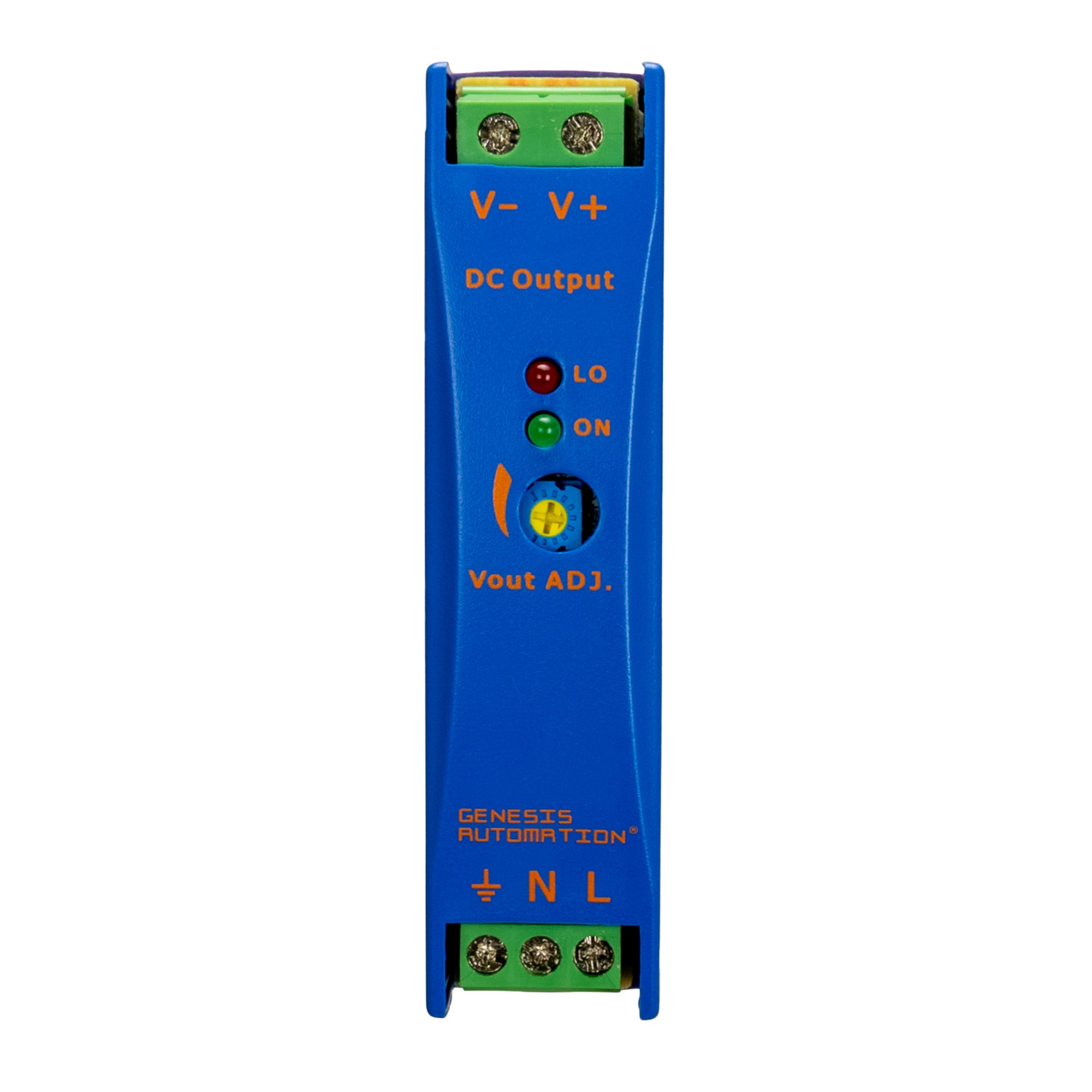

GDA05-05A DIN Rail 5W DC Power Supply 5V/1A Screw Term UL508 Class 2

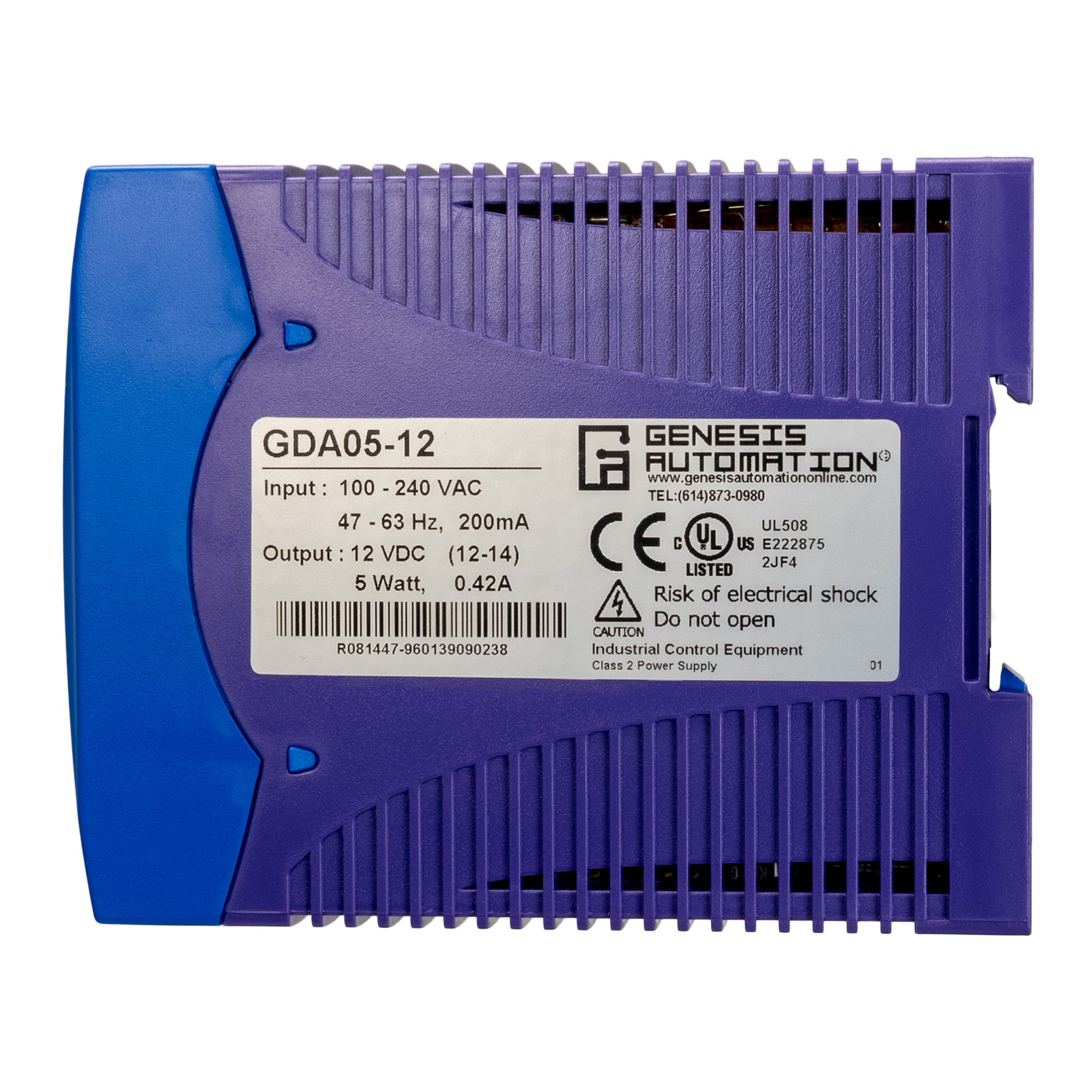

GDA05-12 DIN Rail 5W DC Power Supply 12V/0.42A Spring Clamp UL508 Class 2

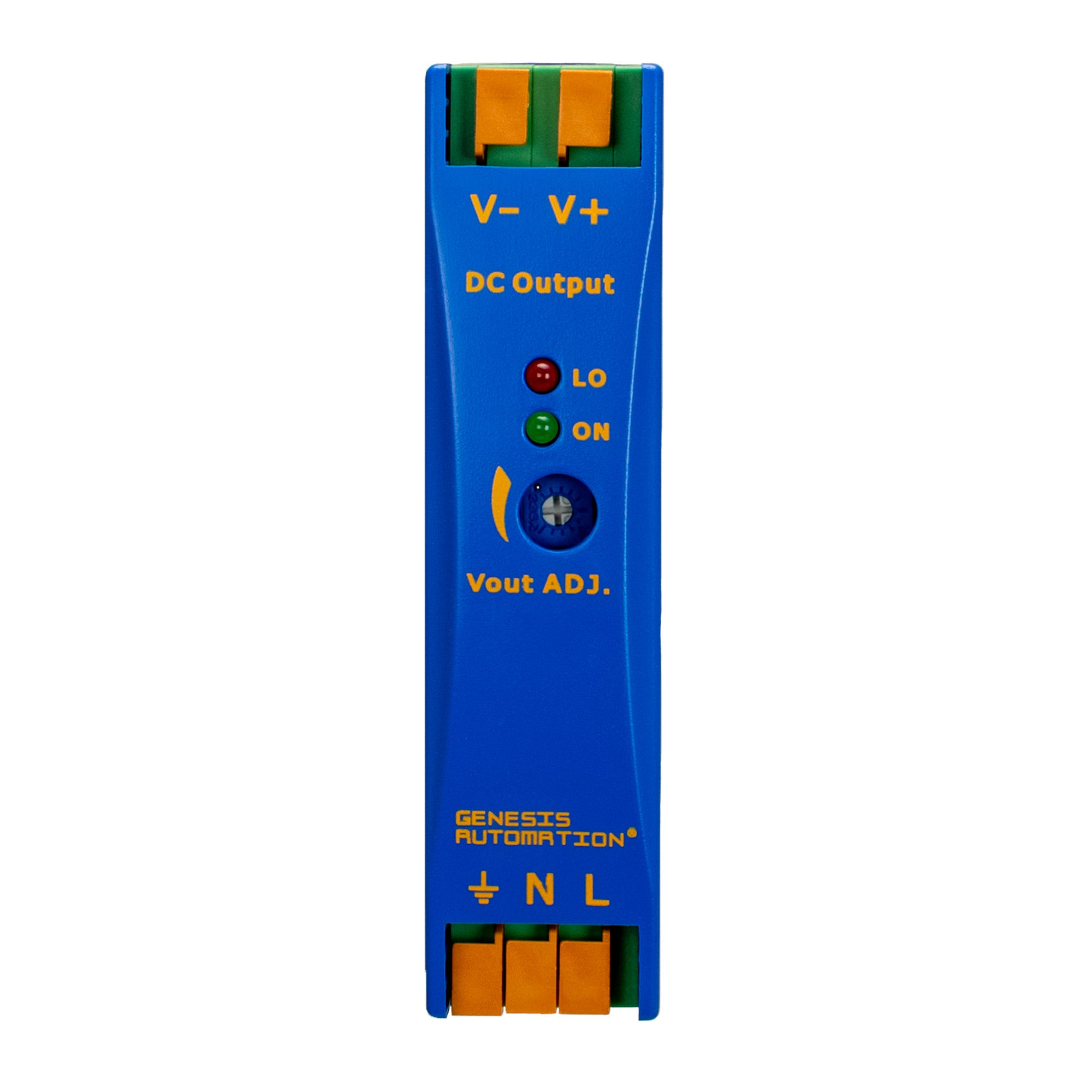

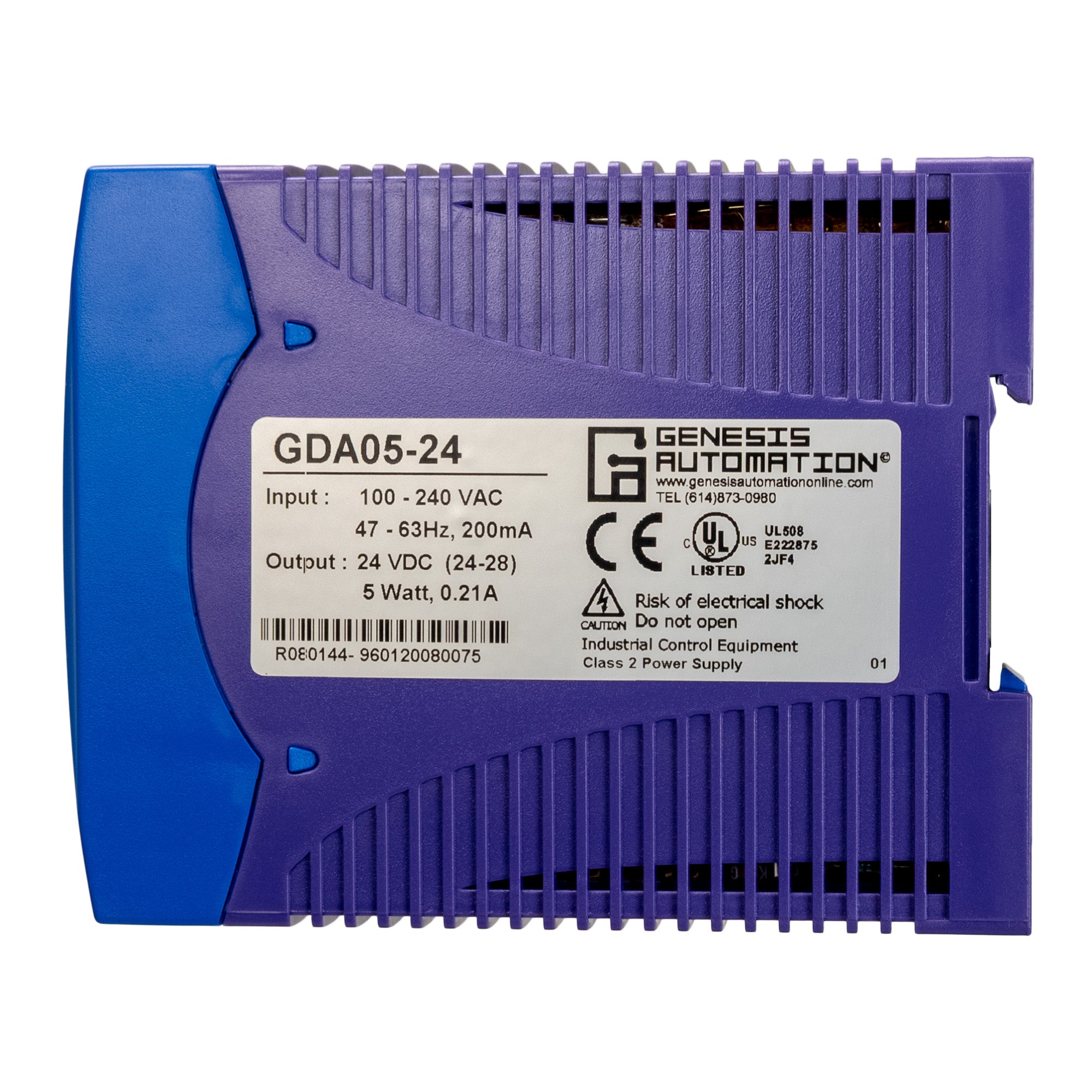

GDA05-24 DIN Rail 5W DC Power Supply 24V/0.21A Spring Clamp UL508 Class 2

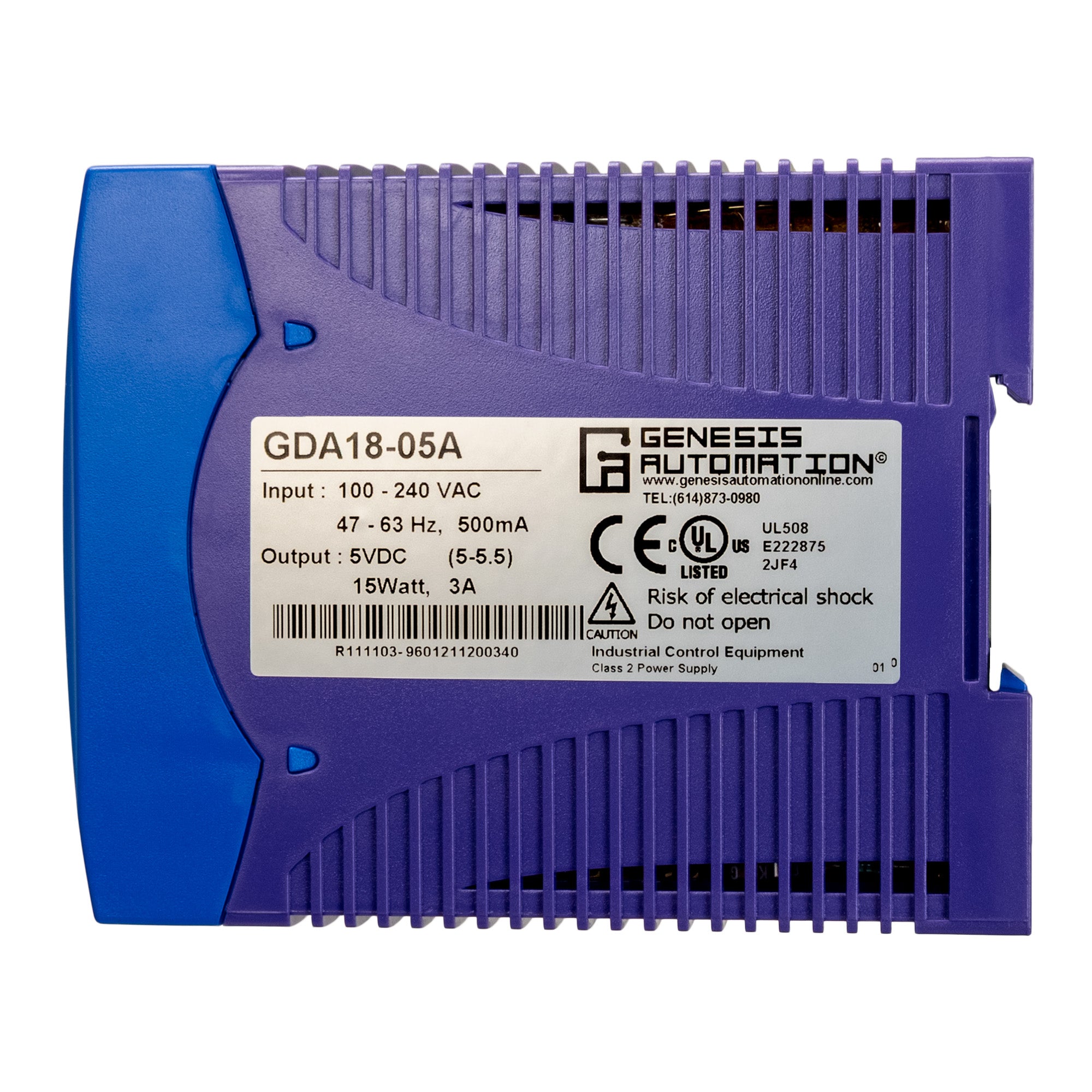

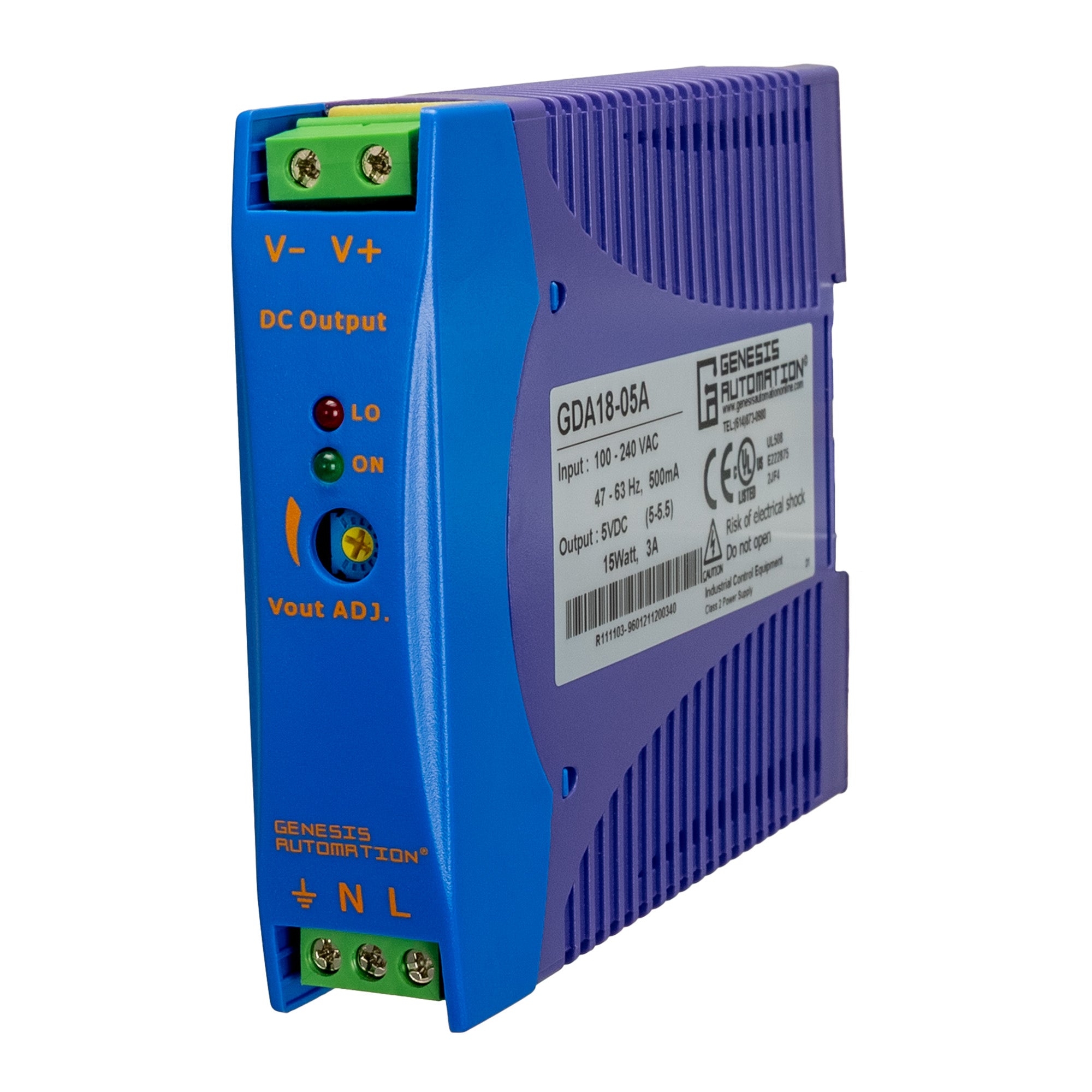

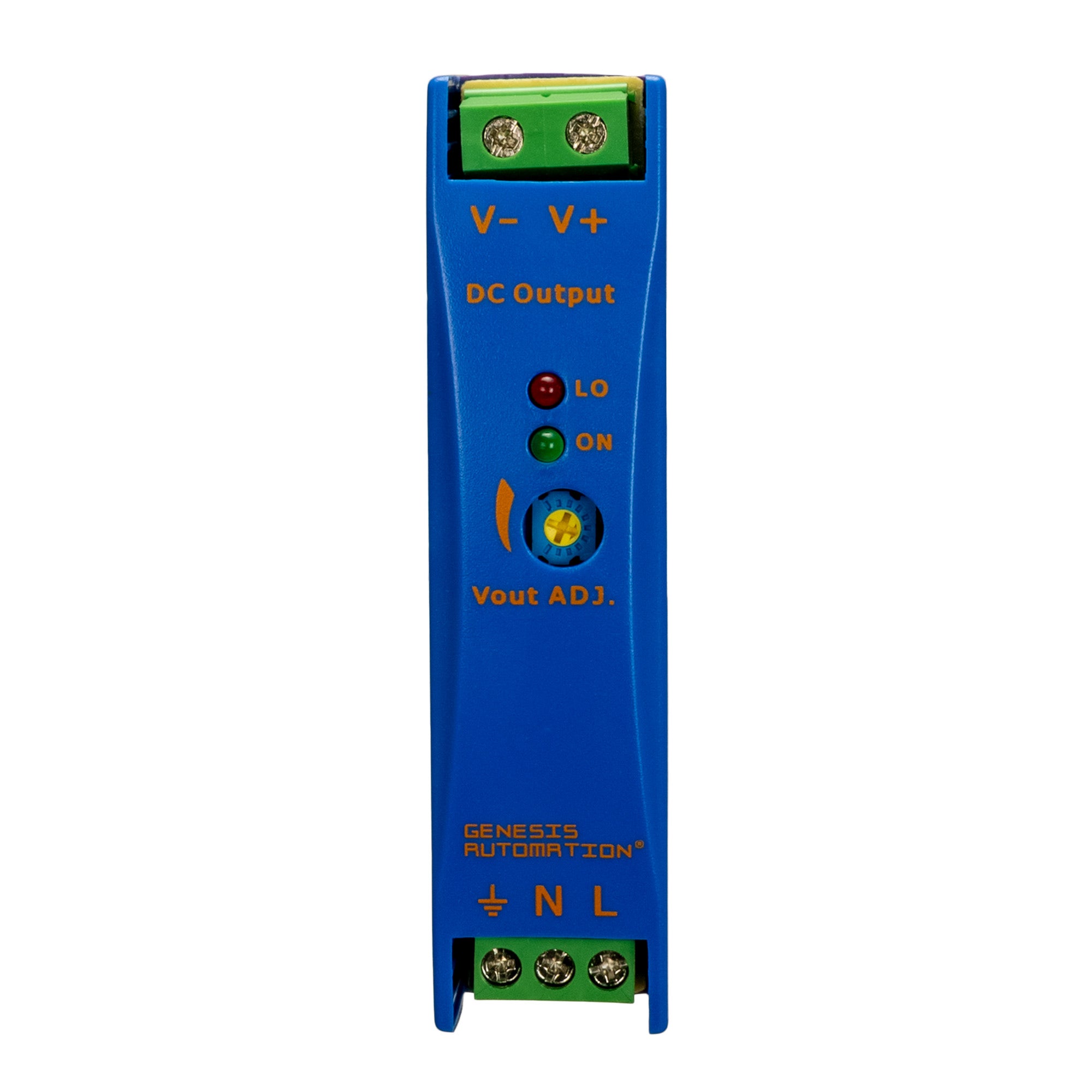

GDA18-05A DIN Rail 15W DC Power Supply 5V/3A Screw Term UL508 Class 2

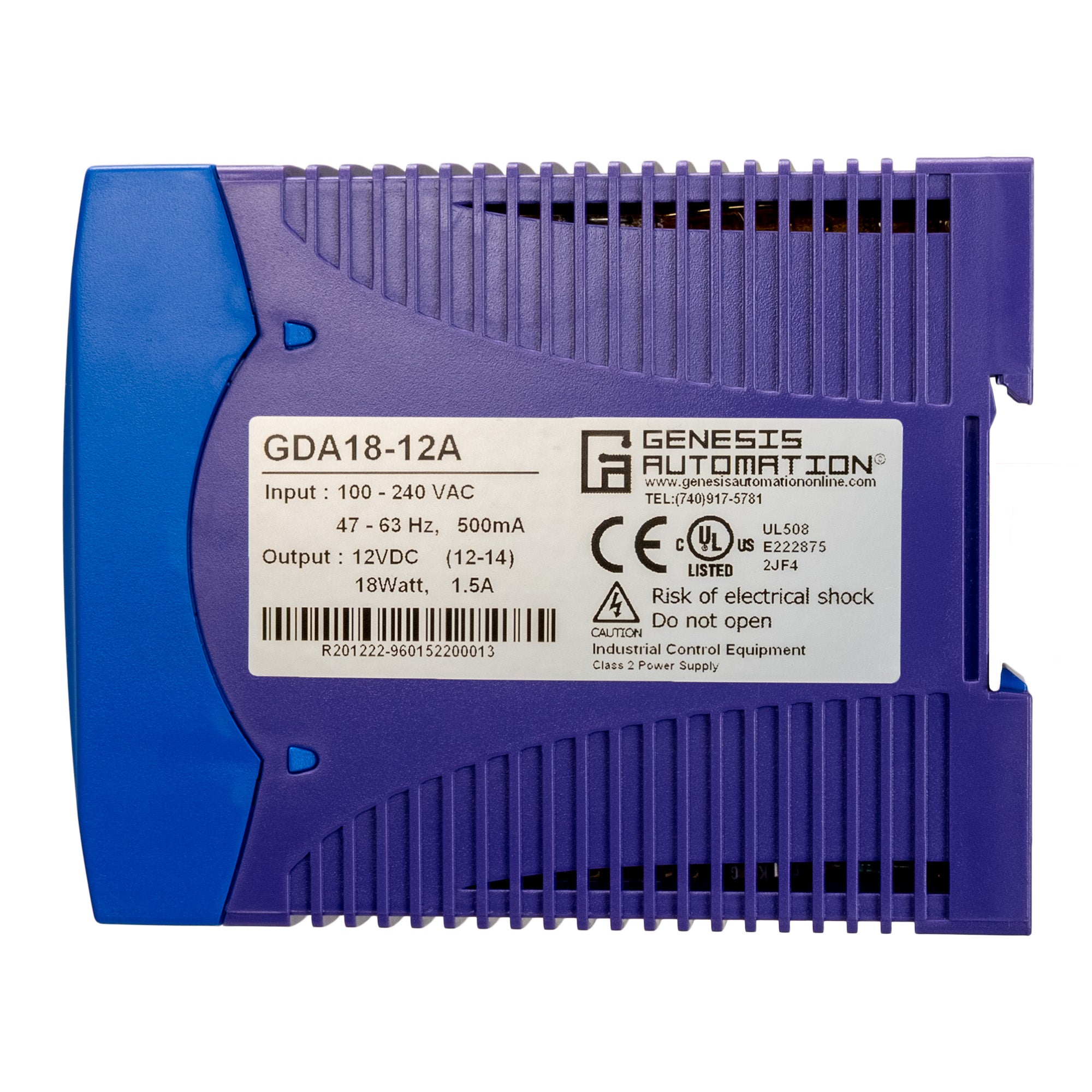

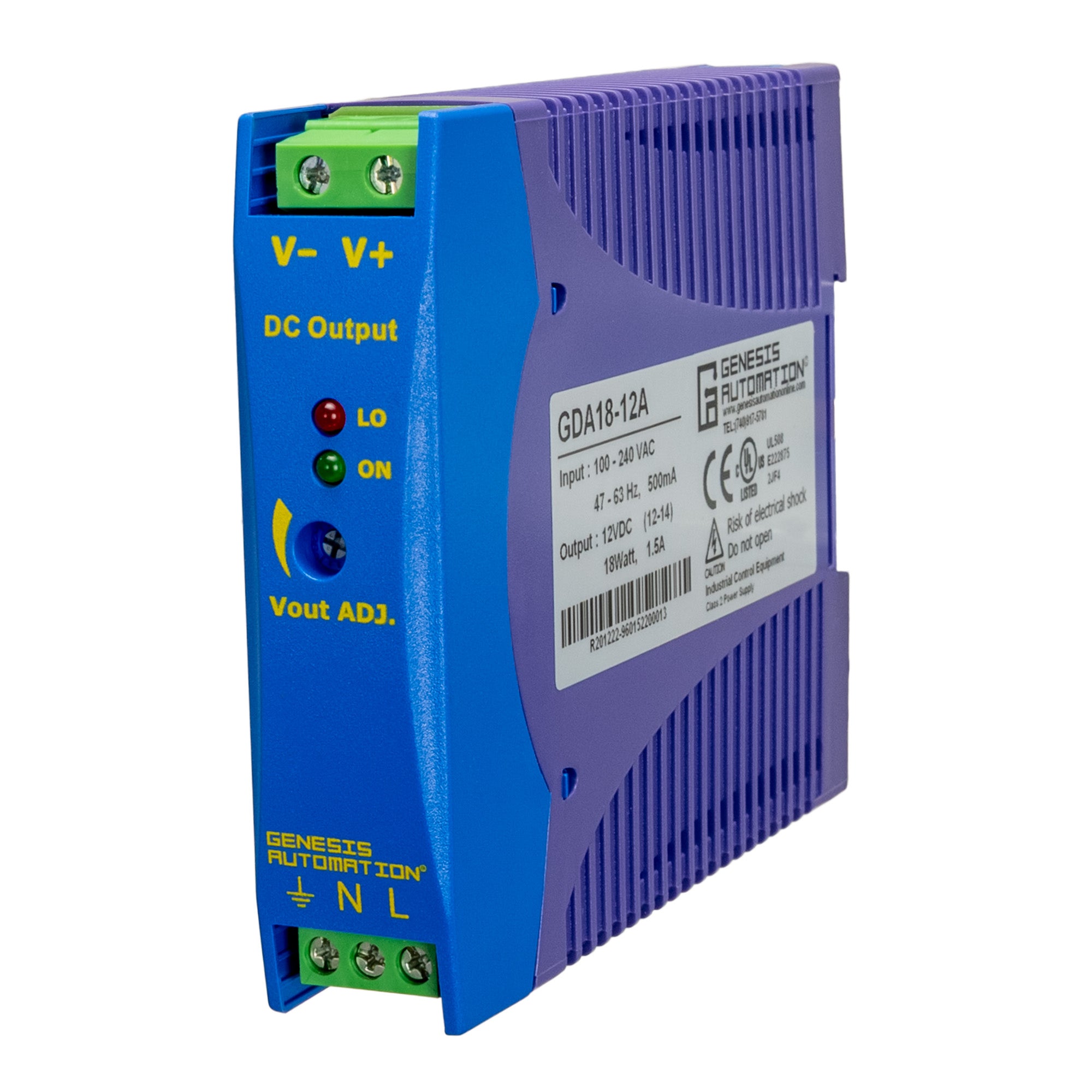

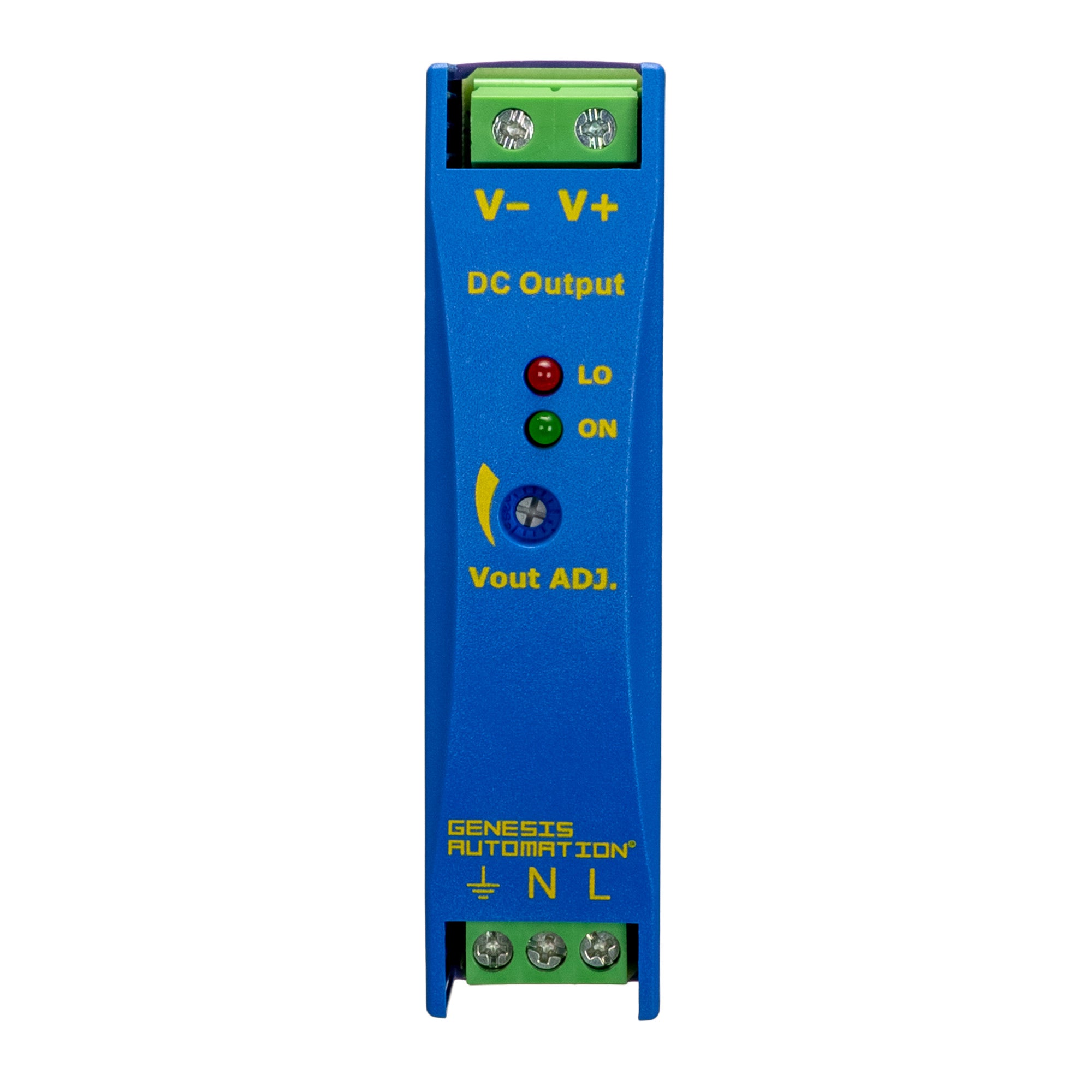

GDA18-12A DIN Rail 18W DC Power Supply 12V/1.5A Screw Term UL508 Class 2

GDA18-15 DIN Rail 18W DC Power Supply 15V/1.2A Spring Clamp UL508 Class 2

Product variants

SKU: GDA05-05

$30.00

Quantity

Description

A rugged family of Industrial DIN Rail mounted DC Power Supplies with PWM design. These are UL Class II with operating temperatures from -4 to 159°F (-20 to 71°C). The single phase models accept a wide universal input range 90-264V AC. All models feature touch-proof spring clamp terminations for input & output wire connections.

Features

DIN rail mounting
Wide input Range
Finger safe terminals - Spring clamp or screw terminal available for all models
Status indicator GREEN LED for DC ON at start-up
Status indicator RED LED for DC Low indication after start-up
Operating temperature range -4 to 160F, continuous operation (No de-rating) to 142F
Output overload, over voltage, short circuit & no load protection
Input line fuse & filter with surge voltage protection & inrush current limiter
Class 2 UL 1310 for all models 5W, 10W, and 18W, UL 508 (E222875), CE
Input isolation voltage is 3kV, and input isolation resistance is 100 Mega ohm
Plastic body for all models

Specifications

Input Voltage Range: 90–264 VAC
Input Frequency: 47–63 Hz
Output Type: DC Voltage
Output Voltage Options: 5 VDC / 12 VDC / 24 VDC
Output Voltage Adjustable Range (5 W models): ~4.5–5.7 VDC
Output Voltage Adjustable Range (12 V models): ~10.8–13.8 VDC
Output Voltage Adjustable Range (24 V models): ~21.6–28.8 VDC
Power Rating (Series Covered): 5 W, 18 W
Overload Protection: Yes
Overvoltage Protection: Yes
Short Circuit Protection: Yes
No Load Protection: Yes
Input Protection: Line fuse, EMI filter, inrush current limiter
Isolation Voltage: 3 kV transformer isolation
LED Indicators: Green LED for DC ON
DC LOW Indicator: Red LED
Terminal Type: Spring clamp or screw terminal (varies by model)
Housing Material: Plastic (5–60 W family)
Certifications: Class 2 UL 1310 (5–100 W except certain 5 V models) & UL 508 (E222875), CE
