FTS 011 Tamper-Proof Thermostat

The NO thermostat closes when the temperature rises and is used to control filter fans, heat exchangers, cooling devices or to switch signal transmitters when the temperature is exceeded.

The NC thermostat opens when the temperature rises and is used to control heaters or to switch signal transmitters when the temperature undershoots. The temperature is permanently set. This gives you a high switching accuracy.

Features

• DIN Rail Mountable
• Fixed Setpoints

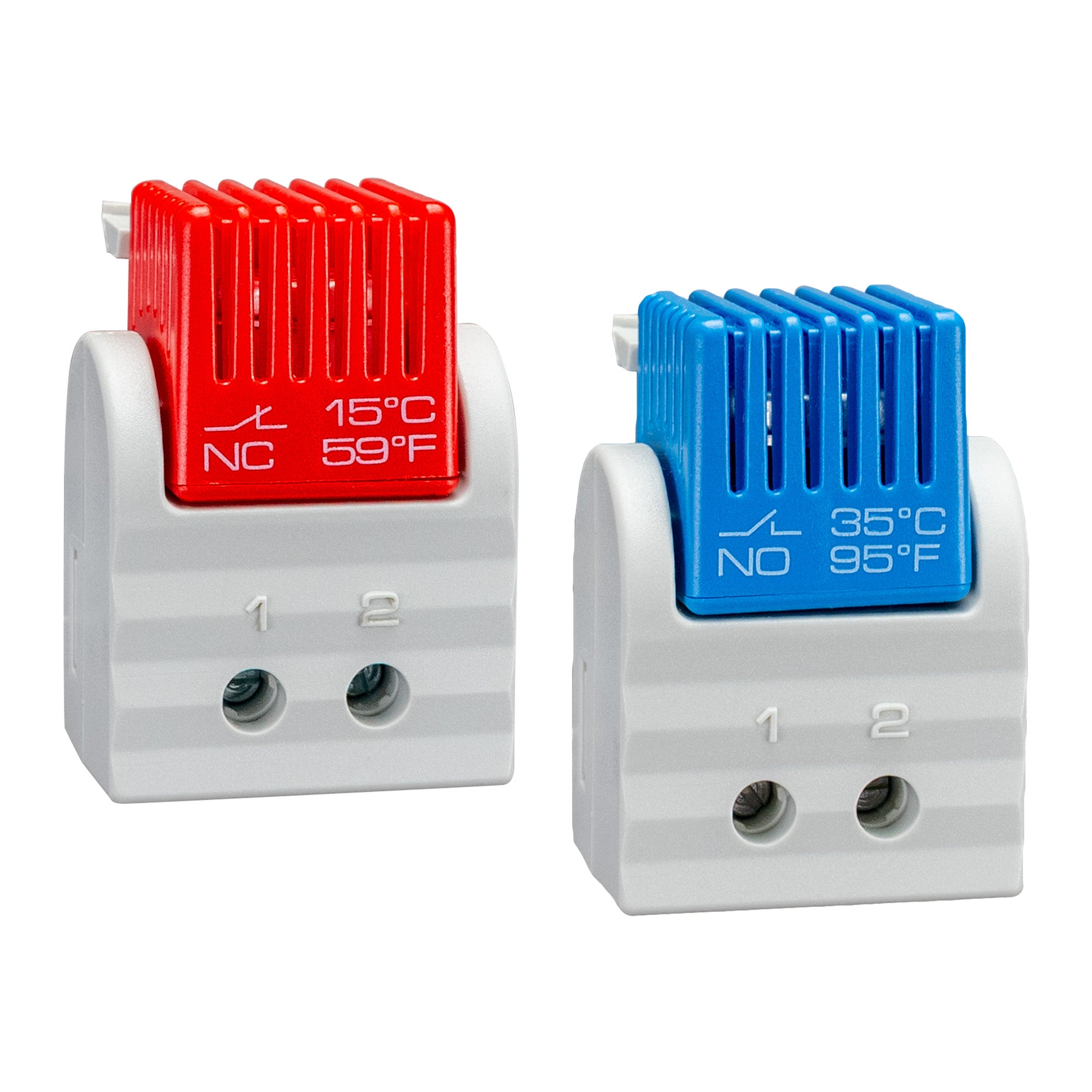

• Color Coded Modules
• Service Life = 100,000 cycles
• Compact and lightweight, 1.85x1.3x1.3 in
• Hysteresis: 9°F ± 5°F
• Voltage: 100-250VAC, 12-24V DC
• Operating Range -4 to 176 °F (-20 to 80°C)
• UL, VDE, CE, RoHS
• IP 20 Protection

Specifications

• Contact Type: NC / open on rise
• Switch‑Off Temperature: 59 °F (15 °C)
• Switch‑On Temperature: 41 °F (5 °C)

• Agency Approvals: UL, VDE

• Sensor Element: Thermostatic bi‑metal

• Maximum Tolerance: ± 9 °F (5 K)

• Contact Resistance: < 20 mΩ

• Service Life: > 100,000 cycles

• Switching Capacity (Max. Load): 10 A resistive / 2 A inductive at 120 VAC; 5 A resistive / 1.6 A inductive at 240 VAC; DC 30 W

• Max. Inrush Current (AC): 10 A

• Minimum Load: 20 mA (all voltages)

• EMI/EMC Compliance: EN 55014‑1‑2, EN 61000‑3‑2, EN 61000‑3‑3

• Connection: 2‑pole terminal for AWG 14 max. (2.5 mm²)

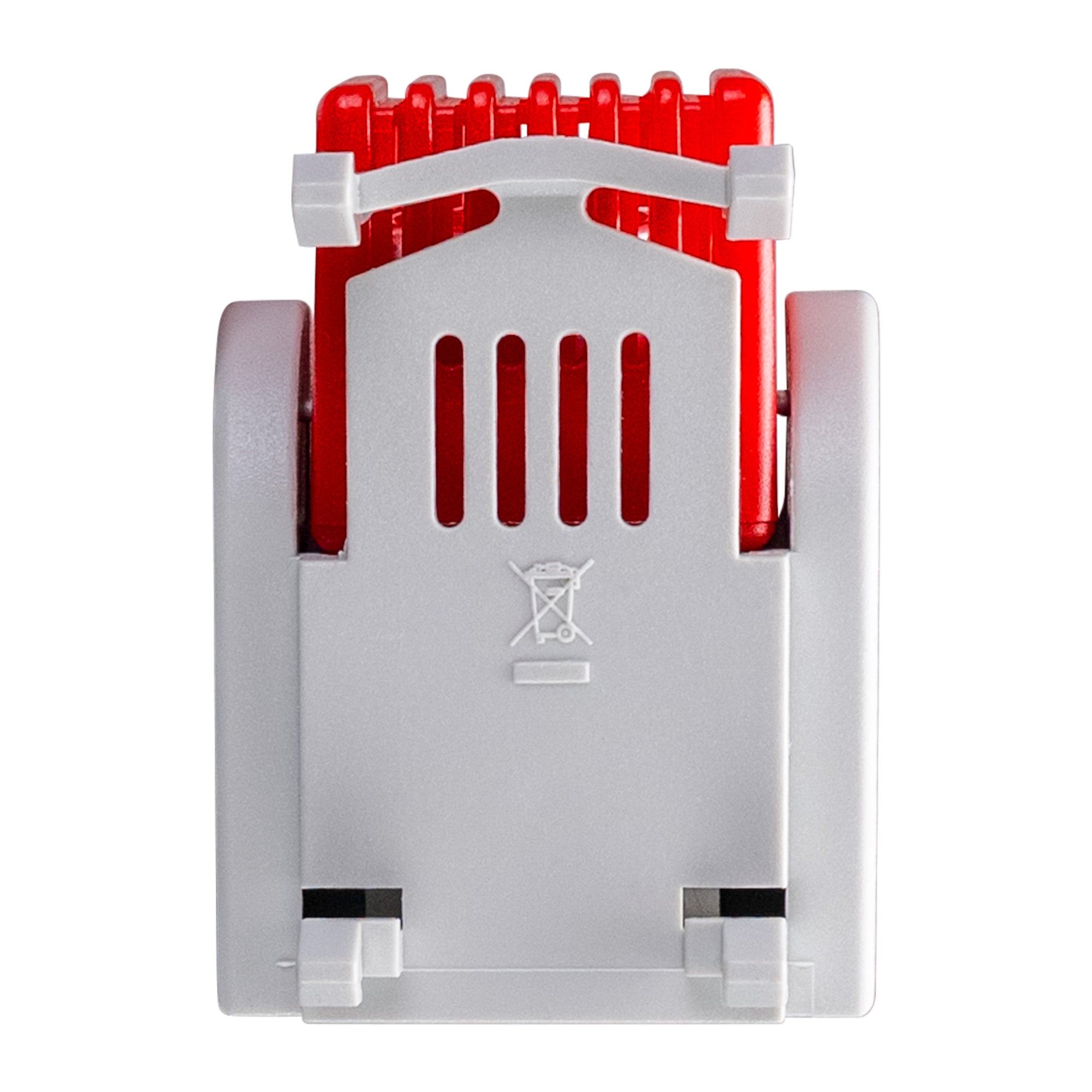

• Mounting: Clip for 35 mm DIN rail (EN 60 715)

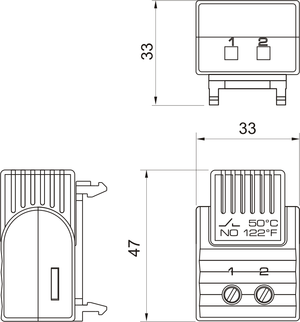

• Dimensions (H × W × D): 1.85 × 1.3 × 1.3 inches (47 × 33 × 33 mm)

• Housing: Plastic, UL 94V‑0, light gray

• Weight: 0.8 oz (23 g)

• Protection Type: IP20

• Operating Temperature: -40 to 176 °F (-40 to 80 °C)

• Storage Temperature: -49 to 176 °F (-45 to 80 °C)

Model Numbers

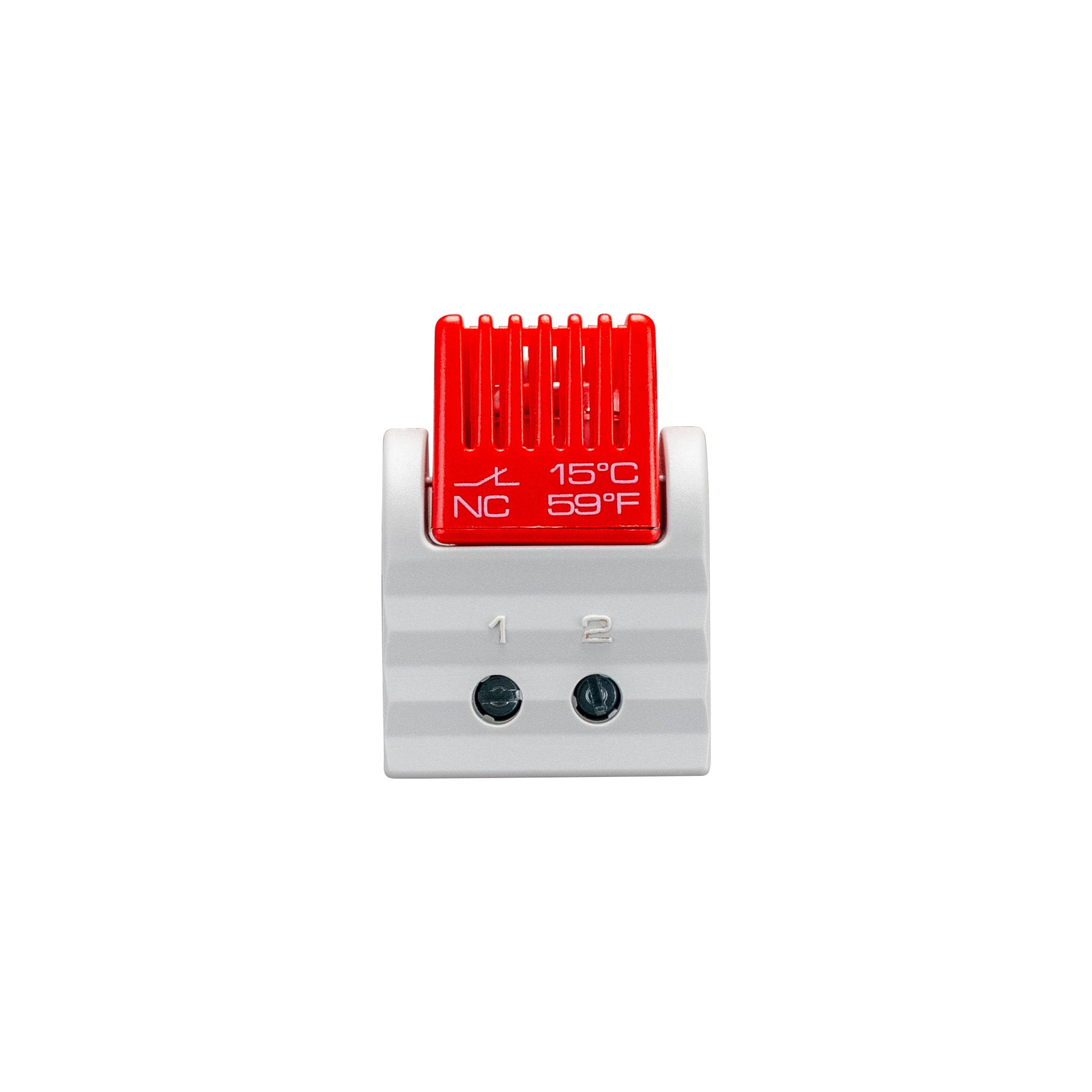

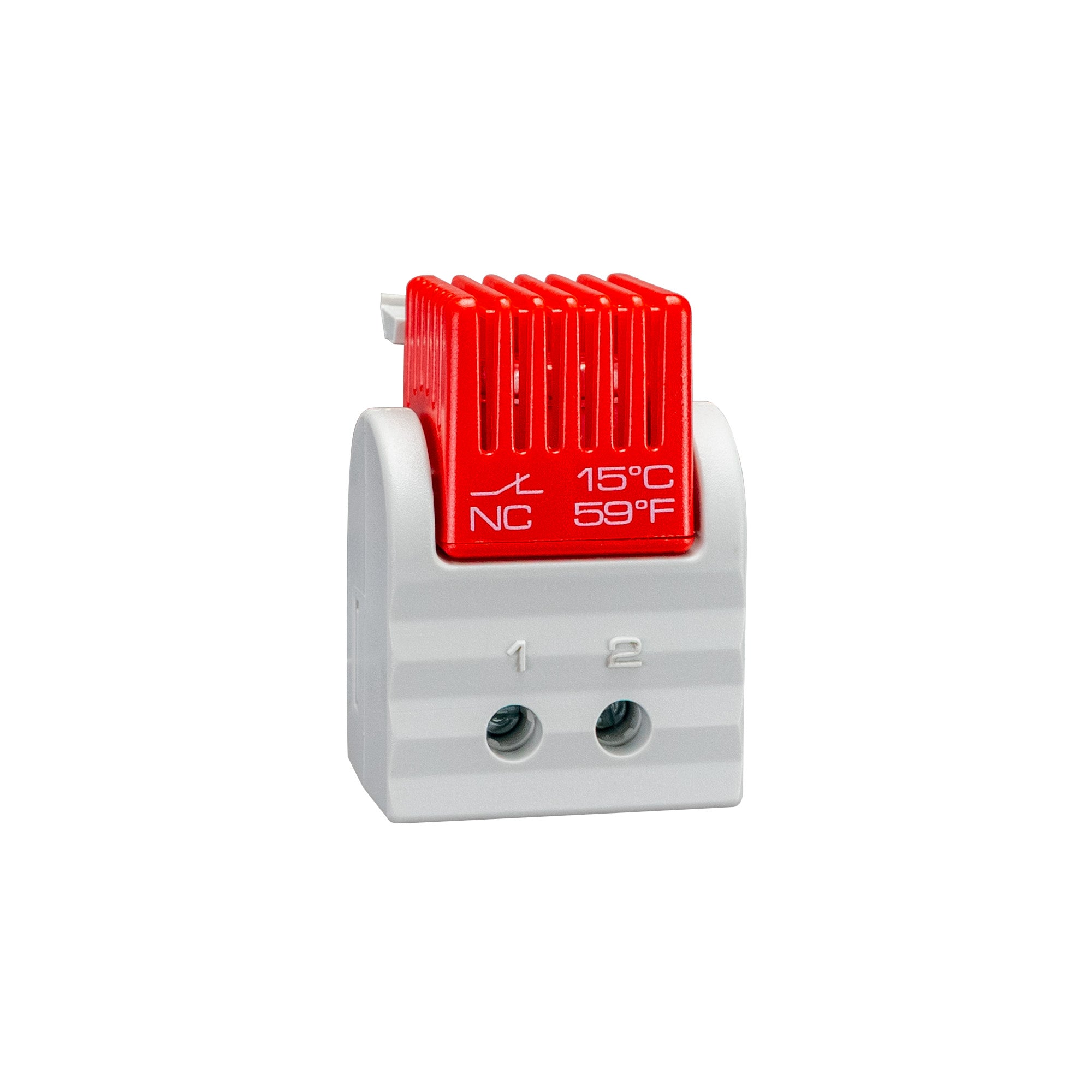

• 01160.0-00 Heating, NC, Preset to 41°F (5°C)
• 01160.0-01 Heating, NC, Preset to 59°F (5°C)

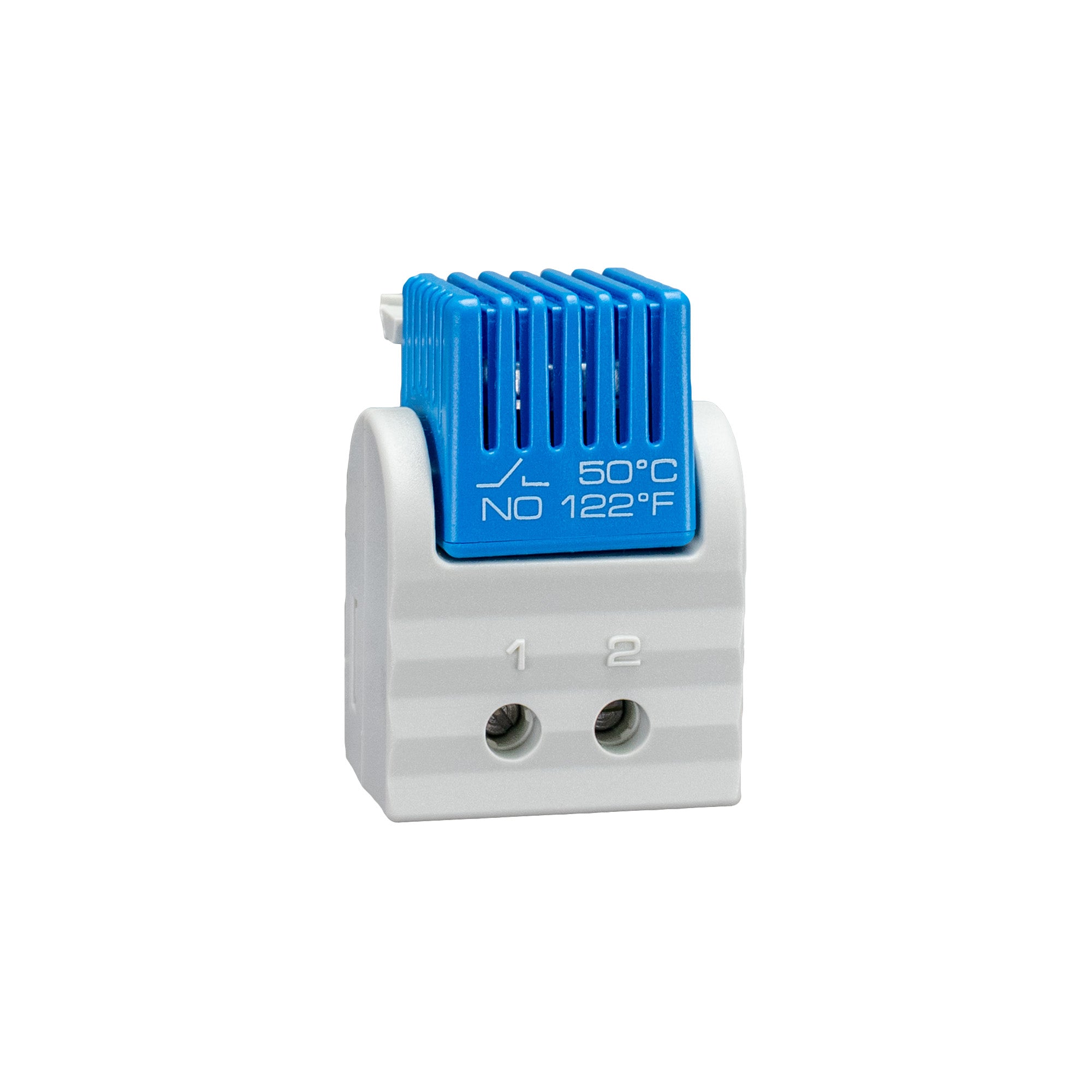

• 01161.0-00 Cooling, NO, Preset to 122°F (50°C)
• 01161.0-01 Cooling, NO, Preset to 140°F (60°C)

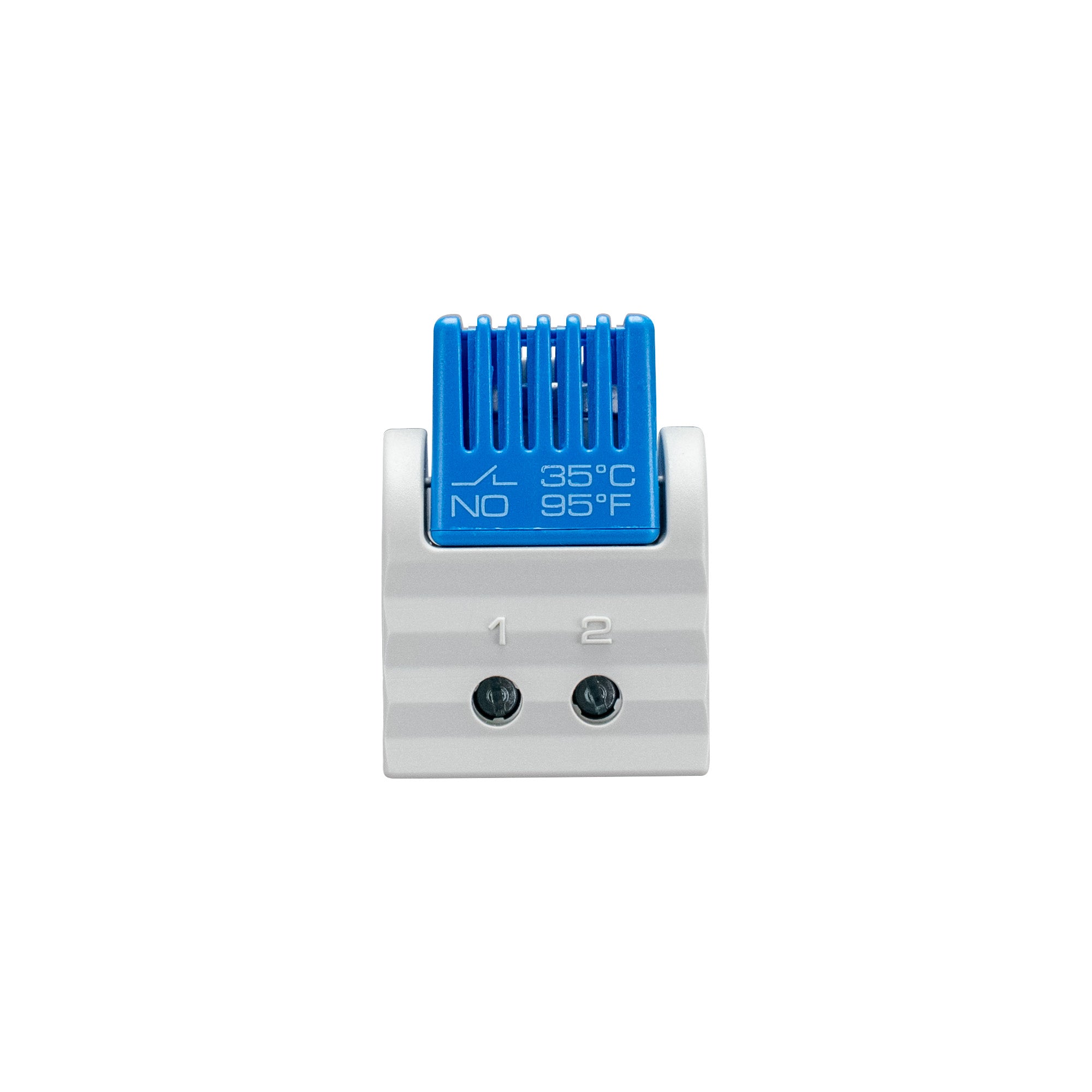

• 01161.0-02 Cooling, NO, Preset to 95°F (35°C)
