FGT Inline Thermostat Kit AC/DC

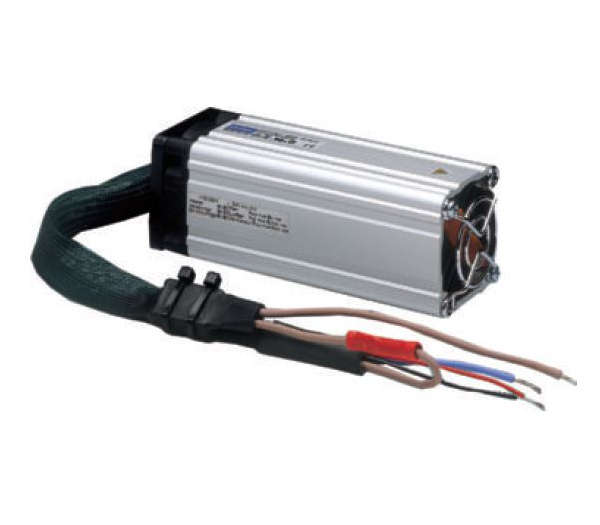

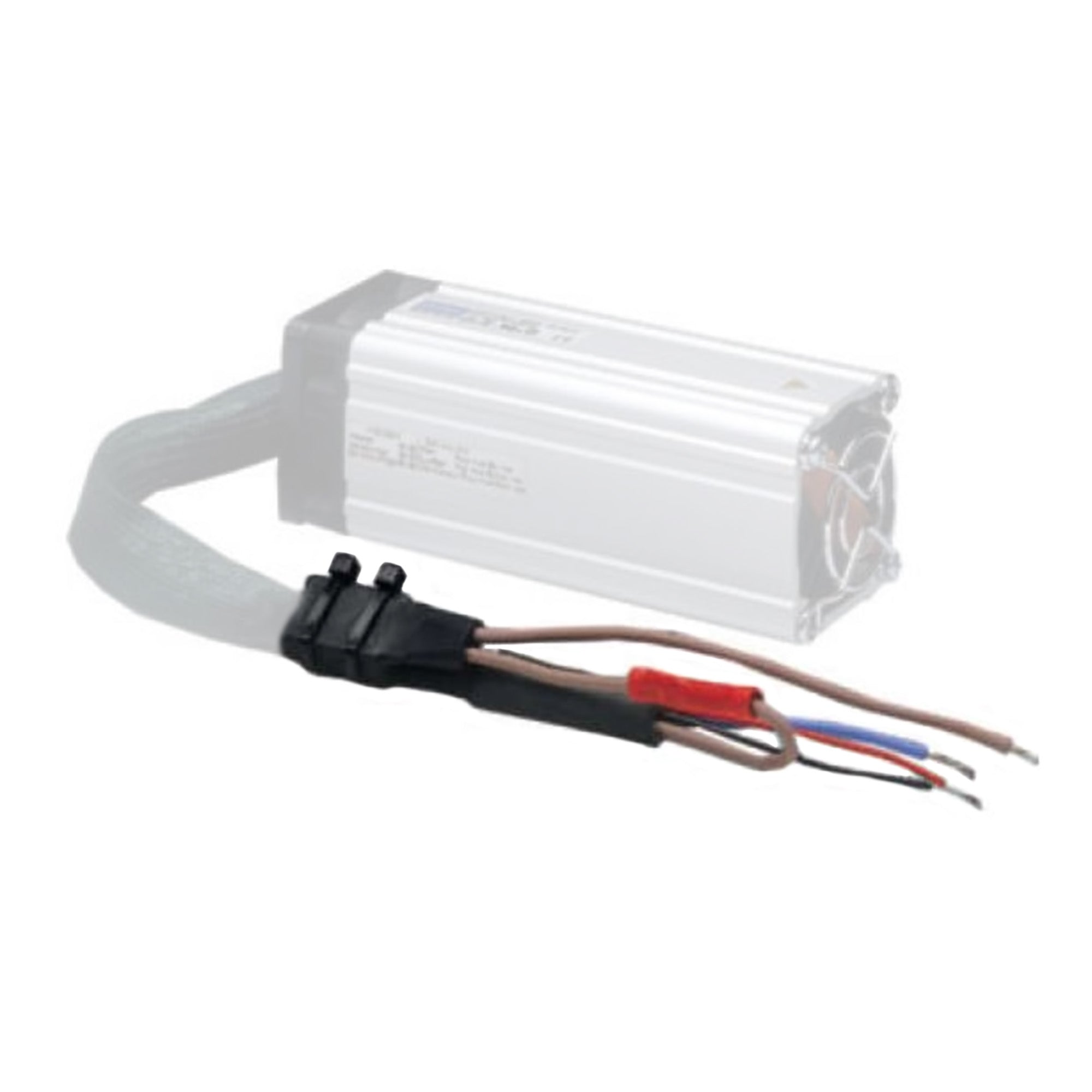

The Inline Heater Thermostat is a fixed point thermostat that crimps on the leads of our DIN Rail Enclosure Heaters and Fan Heaters used int electrical control panels.

Features

Thermostat crimps on Power Lead
Kit Includes Thermostat, Leads, Insulated Crimp Terminal, Cable Ties
Cable Ties Connect Thermostat to Wire Harness
Complete Kit made from UL approved components
Protection Class I, IP20
CE, RoHS

Specifications

Voltage:
- Low voltage models: 12 to 24 VAC/VDC
- High voltage models: 100 to 250 VAC
Temperature Tolerance: ±3°C (±6.4°F)
Bi-Metal Action:
- Low voltage models (FGT302, FGT303): Creep action
- High voltage models (FGT305, FGT306, FGT307): Snap action
Hysteresis: 10°C (50°F)
Current Rating:
- 3 A at 250 VAC
- 6 A at 100 VAC
- 8 A at 12 VAC/VDC
- 4 A at 24 VAC/VDC
Degree of Protection: IP20
Protection Class: Class I
Endurance (Cycles):
- Low voltage models: 5,000 cycles
- High voltage models: 10,000 cycles
Crimp Details: 0.25 to 1.5 mm² (red)
Dimensions:
- Low voltage models: 8 × 45 × 8 mm (0.31 × 1.77 × 0.31 in)
- High voltage models: 15 × 45 × 7 mm (0.59 × 1.77 × 0.28 in)
Wire Length (From Body): 105 mm (4.13 in)
Wire Type: Silicone
Wire Size: 0.5 mm² (0.02 in² Approx.)

Model Numbers

FGT302 12-24 VDC. Preset 41°F (5°C)
FGT303 12-24 VDC. Preset 68°F (20°C)
FGT304 12-24 VDC. Preset 89°F (30°C)
FGT305 100-240 VAC. Preset 41°F (5°C)
FGT306 100-240 VAC. Preset 68°F (20°C)
FGT307 100-240VAC. Preset 89°F (30°C)
