Extension Cable for LED Enclosure Lights 2 Connectors 1 M 100/240V AC 15 AWG

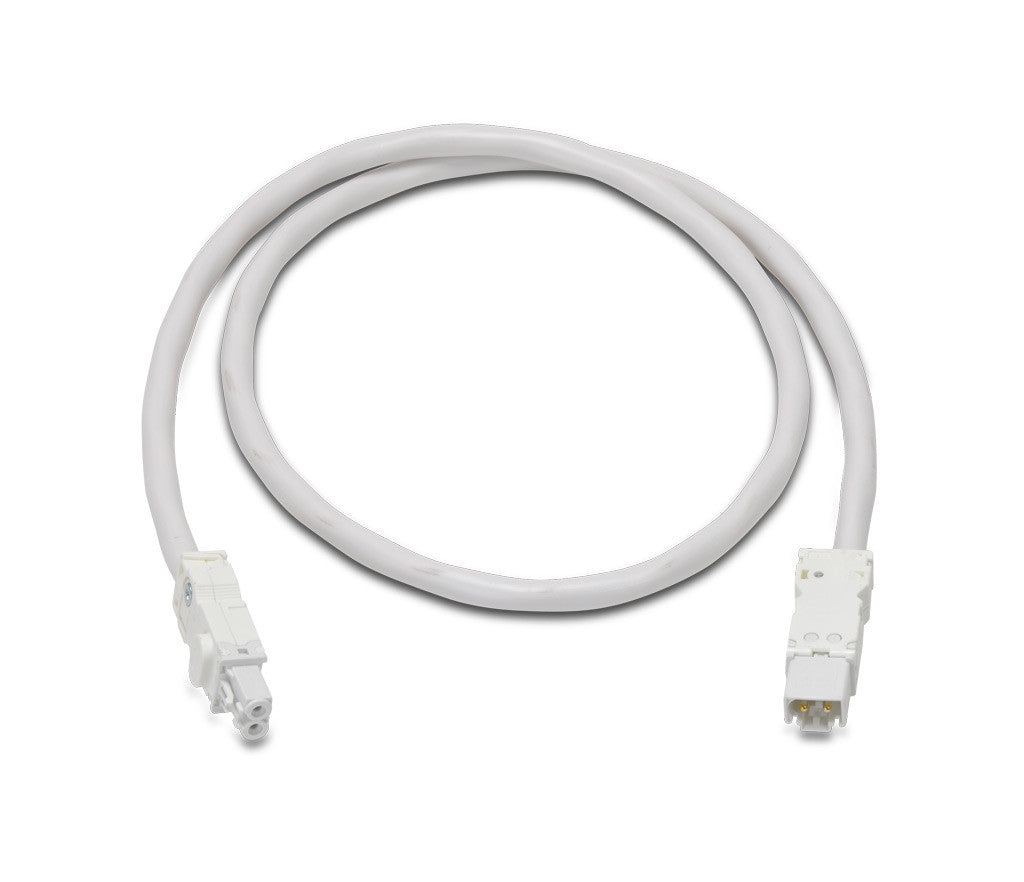

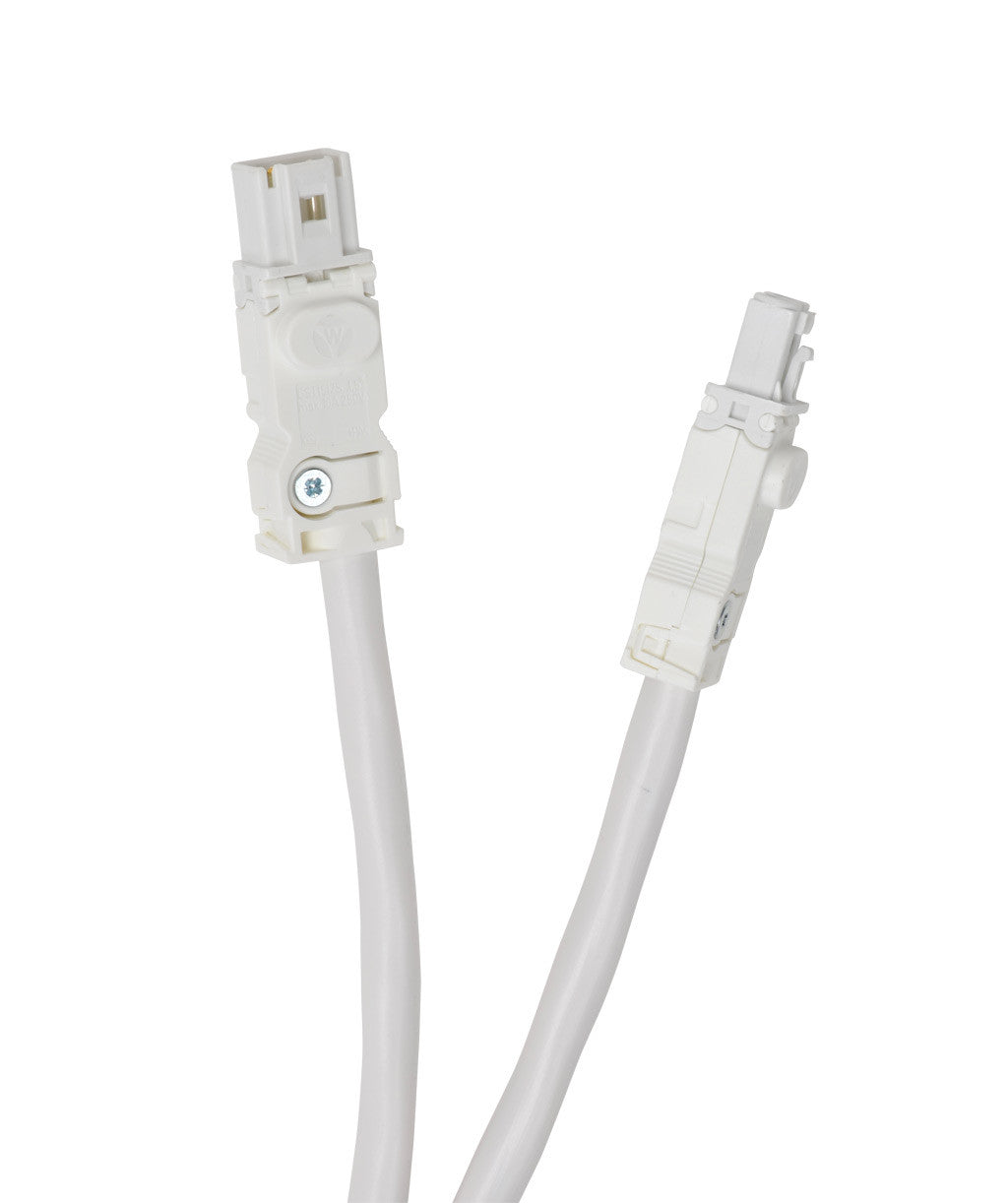

Extension cable #244359 is a 1M (39.4""), 15 AWG cable with two connectors, VDE & UL approved for AC voltage (100 - 240V).  This cable allows you to daisy chain up to 10 LED lights.

Specifications

• Model / Description: Extension cable 2 × AWG 16 with 2 connectors (Input & output, white)

• Operating Voltage: AC

• Connector Color / Cable Color: Connectors: white ‑ cable: white

• Approvals: UL, VDE

• Mounting: Magnet, M5 screws (Not included), or clip (M6 screws); torque 2 Nm max.

• Accessories (Included): Input and output connector; cable for supply or daisy chain

• Length: 1.0 m

• Power Consumption (Associated light spec): max. 5 W (~75 W Incandescent bulb)

• Luminosity (Associated light spec): 400 Lm at 120° (1,200 Lm at 360° or equivalent 95 W light bulb)

• Lamp Type (Associated light spec): LED, 120° angle of radiation; light color – daylight, color temperature – 6,000 to 7,000 K

• Service Life (Associated light spec): 60,000 hrs at 68 °F (20 °C)

• Connection (Associated light spec): 2‑pole plug with snap lock; AC: max. 2.5 A/AC 240 V (White); DC: max. 2.5 A/DC 60 V (Blue)

• Housing (Associated light spec): Plastic, transparent

• Operating/Storage Temperature (Associated light spec): ‑22 to +140 °F (‑30 to +60 °C) / ‑40 to +185 °F (‑40 to +85 °C)

• Operating/Storage Humidity (Associated light spec): max. 90 % RH (Non‑condensing)

• Dimensions (Associated light spec): See drawings

• Protection Type / Protection Class (Associated light spec): IP20 / II (Double insulated)

Compatible with the following LED 025 models

• LED 025 Enclosure Light Multi Wide Voltage (model #025-5X)
• LED 025 Enclosure Light AC or DC (model #025-4X)

Other Accessories

2M Extension Cable with Female Connector and Open End (model #244357)

Male and Female Connectors

• Female - Model #264057
• Male - Model #264058
