REx 011 Explosion-Proof Thermostat Hazardous Area Thermostat

• DIN Rail Mountable
• Fixed Setpoints
• Service Life > 100,000 cycles
• Wire Harness 3-wire 3ft cord
• Black Anodized Aluminum body
• Compact Design
• Hysteresis: 7 ± 2°F
• Voltage: 250VAC
• Operating Range -4 to 104°F (-20 to 40°C)

• ATEX Certified Protection EEx d IIc T6

Specifications

• Contact type (1-pole): Normally Closed (NC)

• Switch temperature: 59 °F / 15 °C (± 5 °F / 3 K tolerance)

• Switching difference (Hysteresis): 9 °F ± 5 °F tolerance (5 K ± 3 K)

• Temperature class: T6

• Ex Protection type (Gases): Ex db IIC T6 Gb

• Ex Protection type (Dusts): Ex tb IIIC T85 °C Db IP66

• Ambient temperature: -76 to +185 °F (-60 to +85 °C)

• Sensor Element: Thermostatic bimetall

• Service life: > 100,000 cycles

• Max. switching capacity: AC 250 V 10 A

• Min. switching capacity: DC 1.5 V 5 mA

• Max. inrush current: AC 16 A for 12 sec.

• Connection: Silicone cable (Halogen-free) 3 × AWG 18 (1.0 mm²), length 3 Ft. (1 m)

• Connection PE: AWG 18 to 14 (1.0 to 2.5 mm²)

• Mounting: Clip for 35 mm DIN rail (EN 60715), screw mounting M5, optional sideways mounting

• Housing: Aluminum, silver anodized

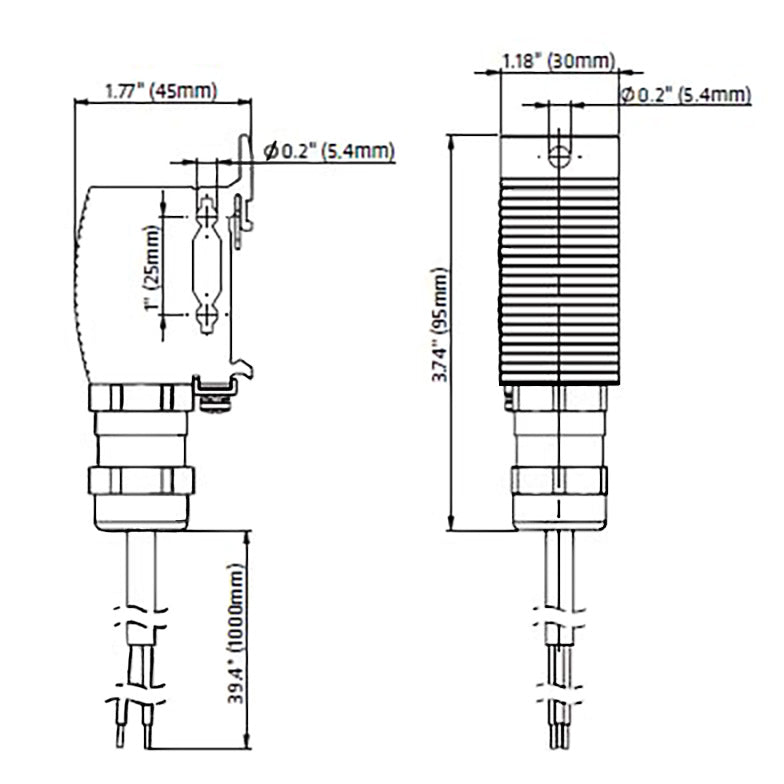

• Dimensions: 3.7 × 1.8 × 1.9 inches (95 × 45 × 30 mm)

• Weight: Approx. 0.66 lbs. (0.3 kg)

• Mounting Position: Variable

• Storage Temperature: -76 to +185 °F (-60 to +85 °C)

• Operating / Storage humidity: Max. 90 % RH (Non-condensing)

• Protection type / Protection class: IP66 / I (Grounded)

• Approvals: EPS 16 ATEX 1 118 X, IECEx EPS 16.0054X, EAC
