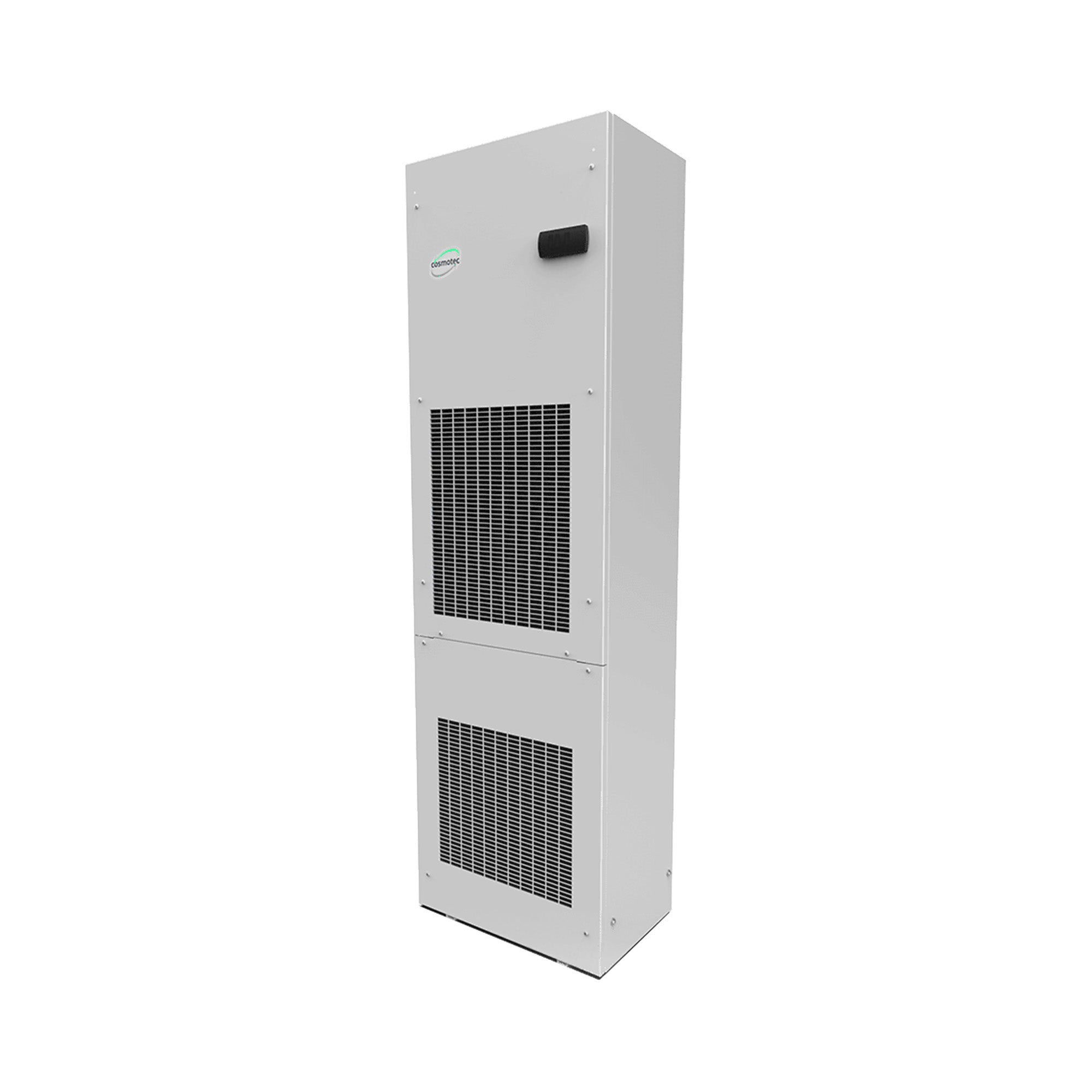

EVE Industrial Air Conditioners for Modular Electrical Enclosures 5800W to 10000W
SKU: EVE-60-400-1
Call for Quote and Customization
Description
Module air conditioners are the best technical and economical solution for conditioning long rows of cabinets, where large cooling capacities are required.
Machine tools, such as for die-casting or extrusion, may require large automation and control systems with high thermal loads, even above 4kW. In this case, the Module range with 6kW to 10kW enables the required cooling needs to be met optimally.
Features
- Air conditioner for modular enclosures
- Cooling Capacity: 5800-10000 W
- Digital Thermostat ECB
- General alarm contacts and remote control as standard
- Certifications: CE, EAC
Specifications
- Product Series: EVE Indoor Module
- Product Type: Indoor enclosure air conditioner module
- Cooling Technology: Compressor-based refrigeration
- Cooling Capacity Range: 5800 W to 10000 W (Varies by model)
- Installation Type: Indoor module installation for enclosure cooling systems
- Power Supply: 400 V AC
- Phase: Three-phase
- Frequency: 50 / 60 Hz
- Rated Current: Model dependent
- Power Consumption: Model dependent
- Temperature Control: Integrated electronic controller
- Ambient Operating Temperature Range: Up to +55 °C
- Refrigerant: R134a
- Evaporator Type: High-efficiency evaporator
- Condenser Type: High-efficiency condenser
- Airflow: Forced air circulation
- Condensate Management: Integrated condensate management system
- Installation Orientation: Vertical
- Housing Material: Painted steel
- Color: Industrial gray
- Protection Degree: IP54 (Interface to enclosure)
- Noise Level: Model dependent
- Electrical Connections: Terminal block connections
- Control Interfaces: Local control and remote enable
- Alarm Output: General fault alarm contact
- Compliance: CE, UL (Varies by model)
- Typical Application: High-capacity cooling for industrial electrical enclosures and automation systems
Model Numbers
- EVE-60-400-1 - 5800W Indoor Module A/C
- EVE-80-400-1 - 8000W Indoor Module A/C
- EVE-A0-400-1 - 10000W Indoor Module A/C
