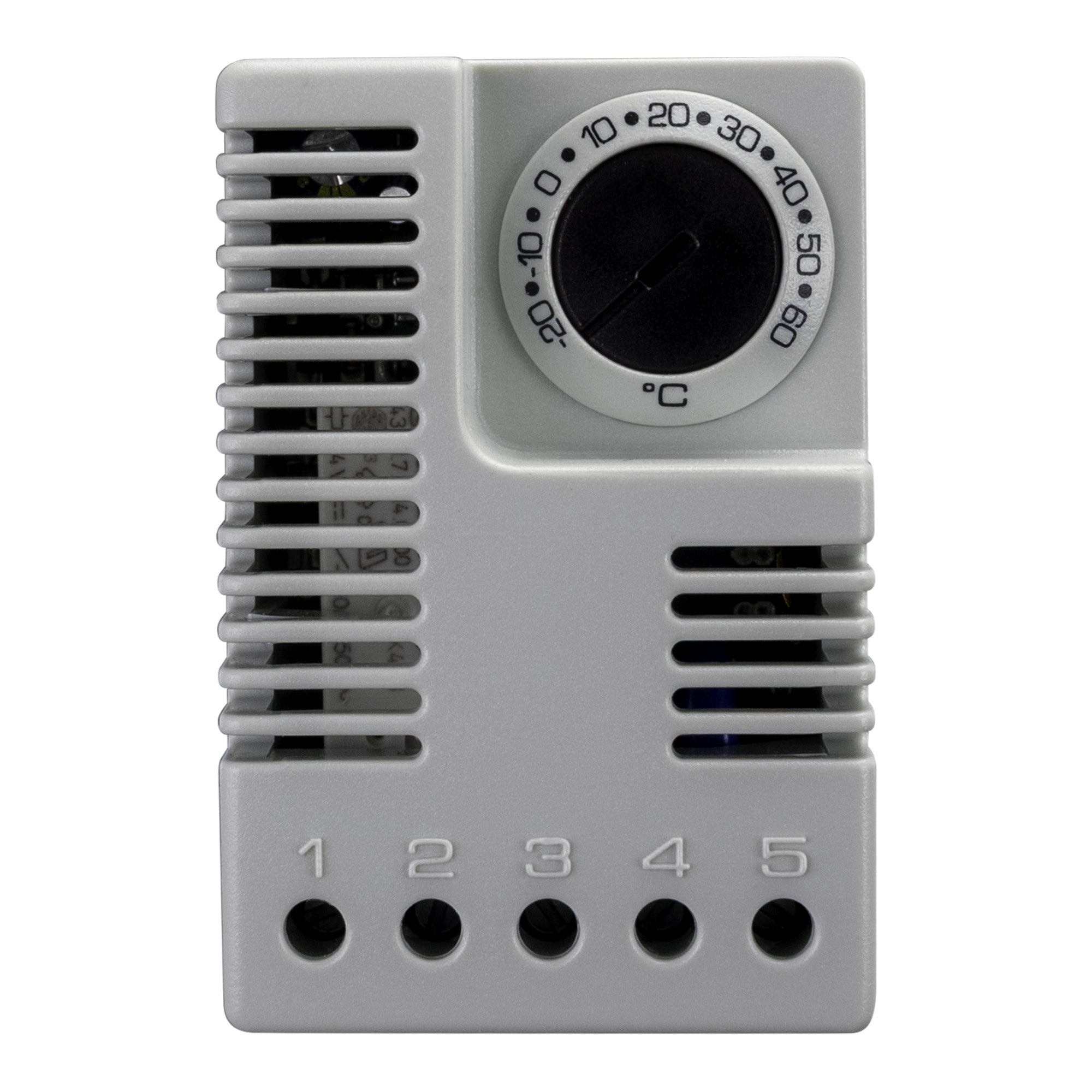

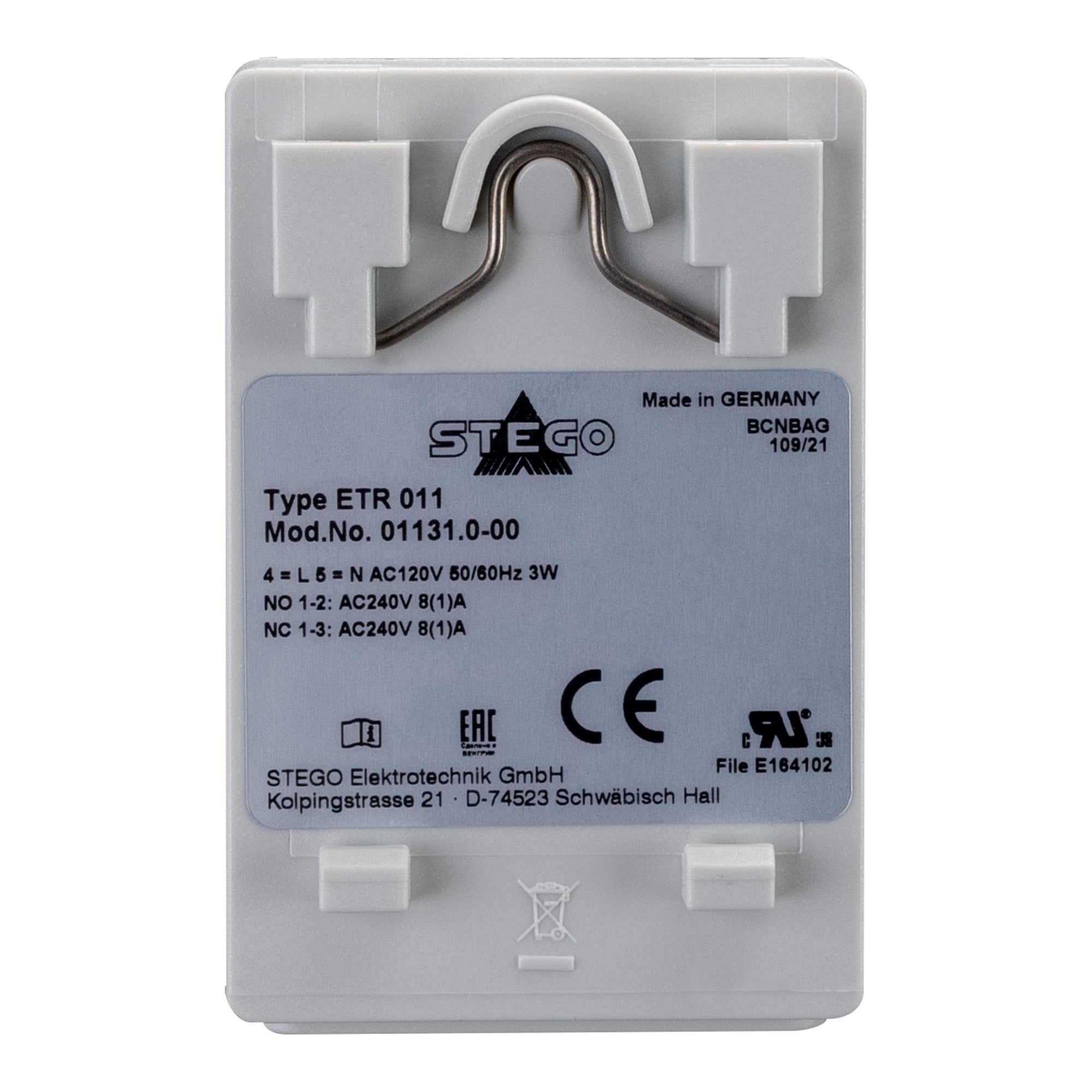

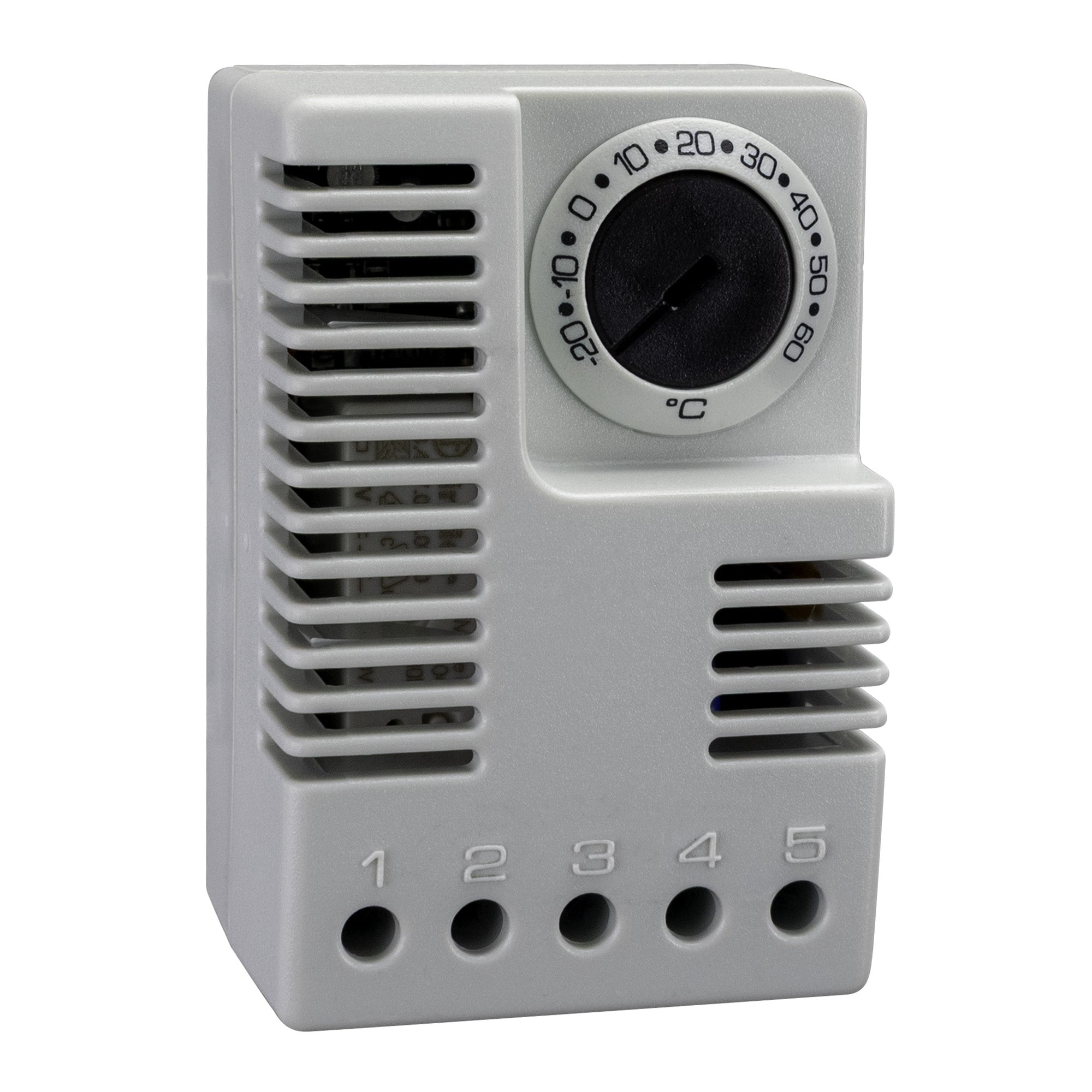

ETR 011 Electronic Thermostats

Electronic thermostat for controlling heating, cooling devices, filter fans or signal transmitters. Detects the ambient temperature and switches via the output relays with changeover contact. If, for example, a heating system is in operation, the integrated LED lights up.

Features

• Electronic Thermostat for Heat & Cool Applications
• NO and NC Contact
• LED Indication when NC contact is closed (Heating)
• Voltage: 115 & 240V AC Models, 24V DC Use Also
• 100,000 cycle rating at 100-250V AC
• Compact and lightweight, 64.5x42x38 mm
• CE, CSA-us, RoHS
• Operating Range -40 to 85 °C, -40 to 185 °C, Max 90% RH
• IP 20 Protection


Specifications

• Voltage: 230 VAC
• Scale / Range: -20 to 60 °C
• Contact Type: SPDT / Change‑over
• Max. Inrush Current: AC 16 A for 10 sec.
• Agency Approvals: CSA‑US, VDE
• Switching Difference (Hysteresis): 7 °F (4 K) ± 1.8 °F (1 K) tolerance at 68 °F (20 °C)
• Sensor Element: NTC
• Reaction Time: approx. 5 sec
• Service Life: > 50,000 cycles
• Max. Switching Capacity (Relay Output): 8 A resistive / 1.6 A inductive at 120 VAC; 8 A resistive / 1.6 A inductive at 240 VAC; 4 A at 24 VDC
• Connection: 5‑pole terminal, clamping torque 0.5 Nm max.; solid wire AWG 14 max (2.5 mm²); stranded wire (with ferrule) AWG 16 max (1.5 mm²)
• Housing: Plastic, UL 94V‑0, light gray
• Mounting: Clip for 35 mm DIN rail (EN 60 715)
• Mounting Position: Vertical
• Operating Temperature: -22 to 140 °F (-30 to 60 °C)
• Storage Temperature: -40 to 185 °F (-40 to 85 °C)
• Dimensions (H × W × D): 2.54 × 1.65 × 1.5 inches (64.5 × 42 × 38 mm)
• Weight: Approx. 2.5 Oz (70 g)
• Protection Type: IP20

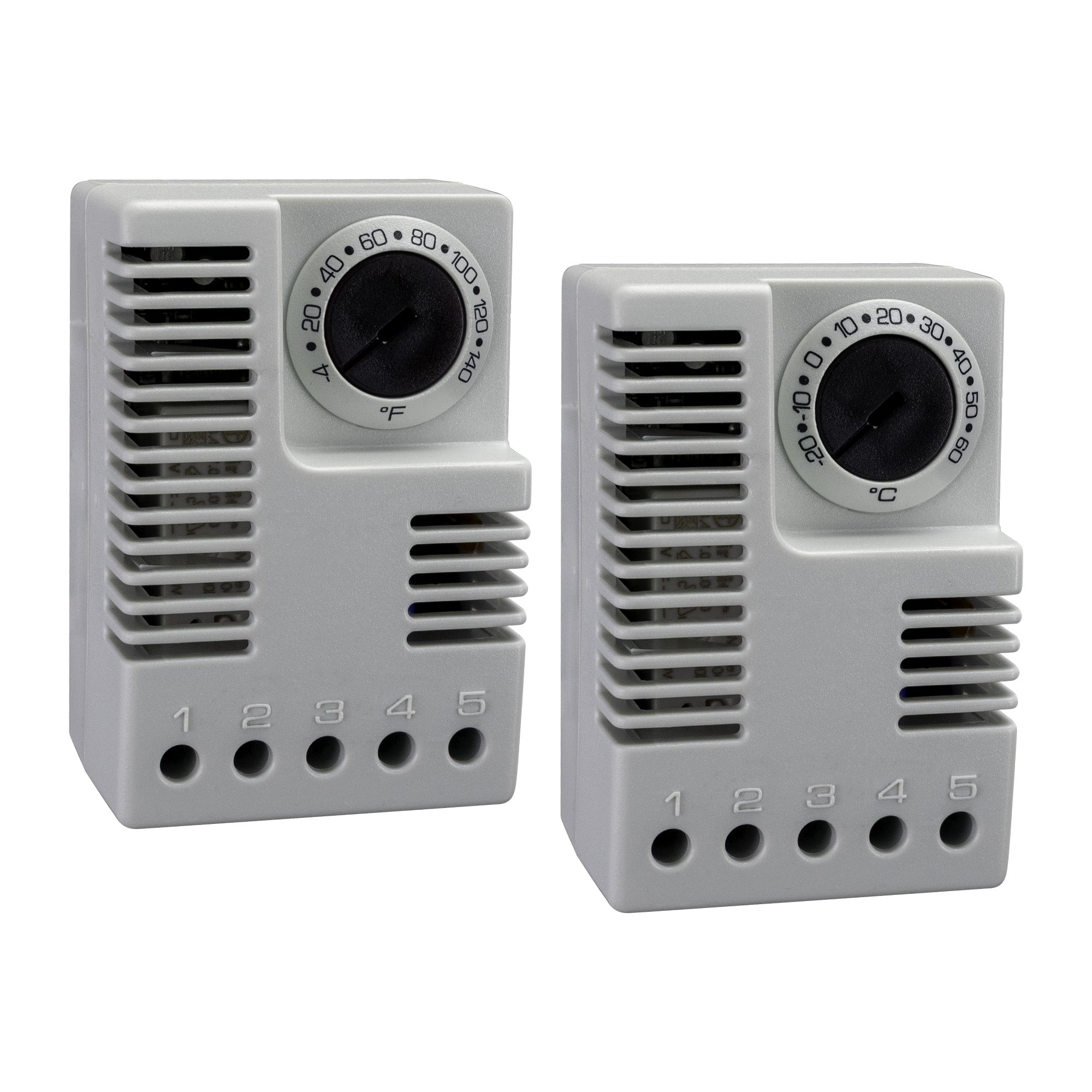

Model Numbers

• 01131.0-00 -  230 VAC, -20 to 60 °C, NO & NC Contacts
• 01131.9-00 - 120VAC, -4 to 140 °F, NO & NC Contacts
