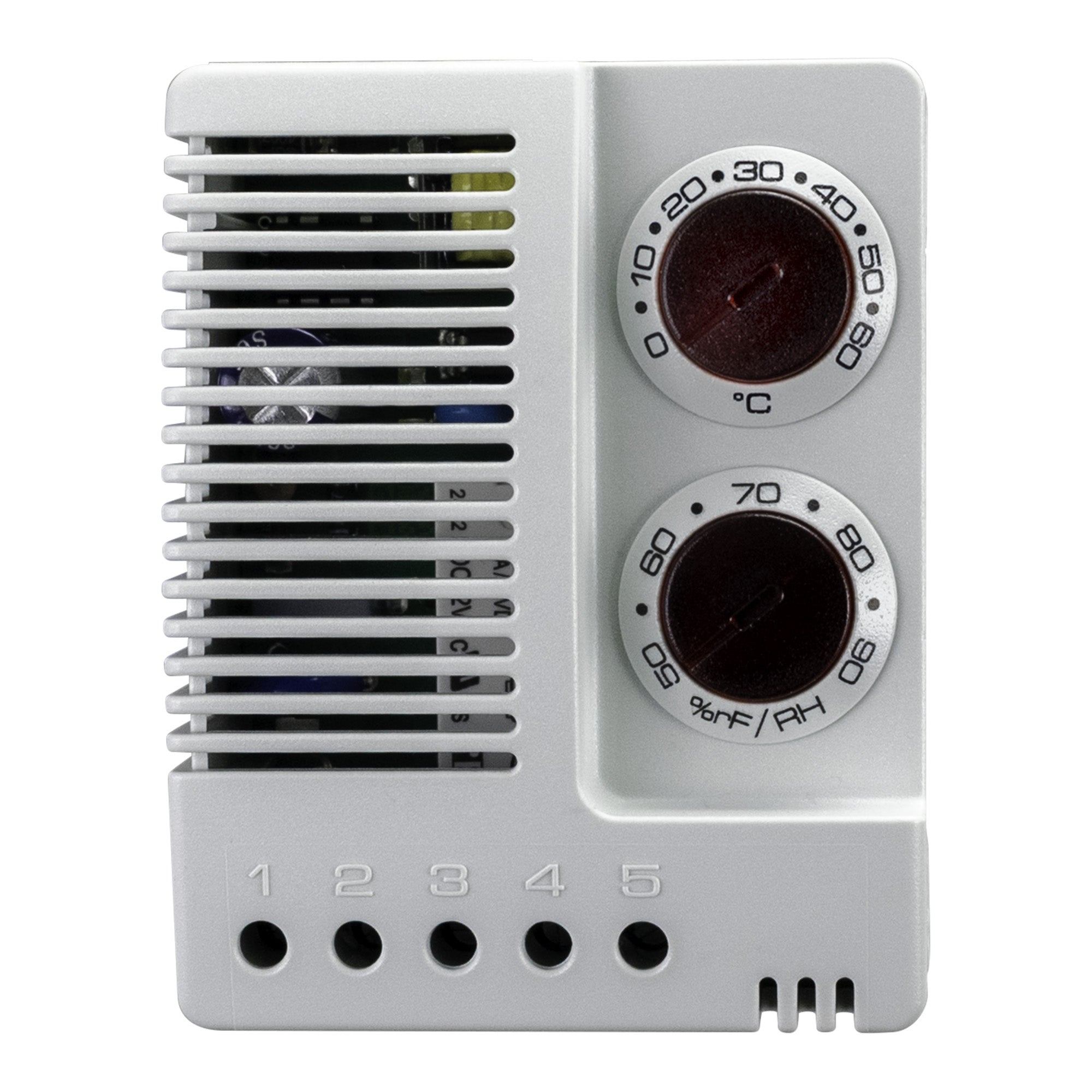

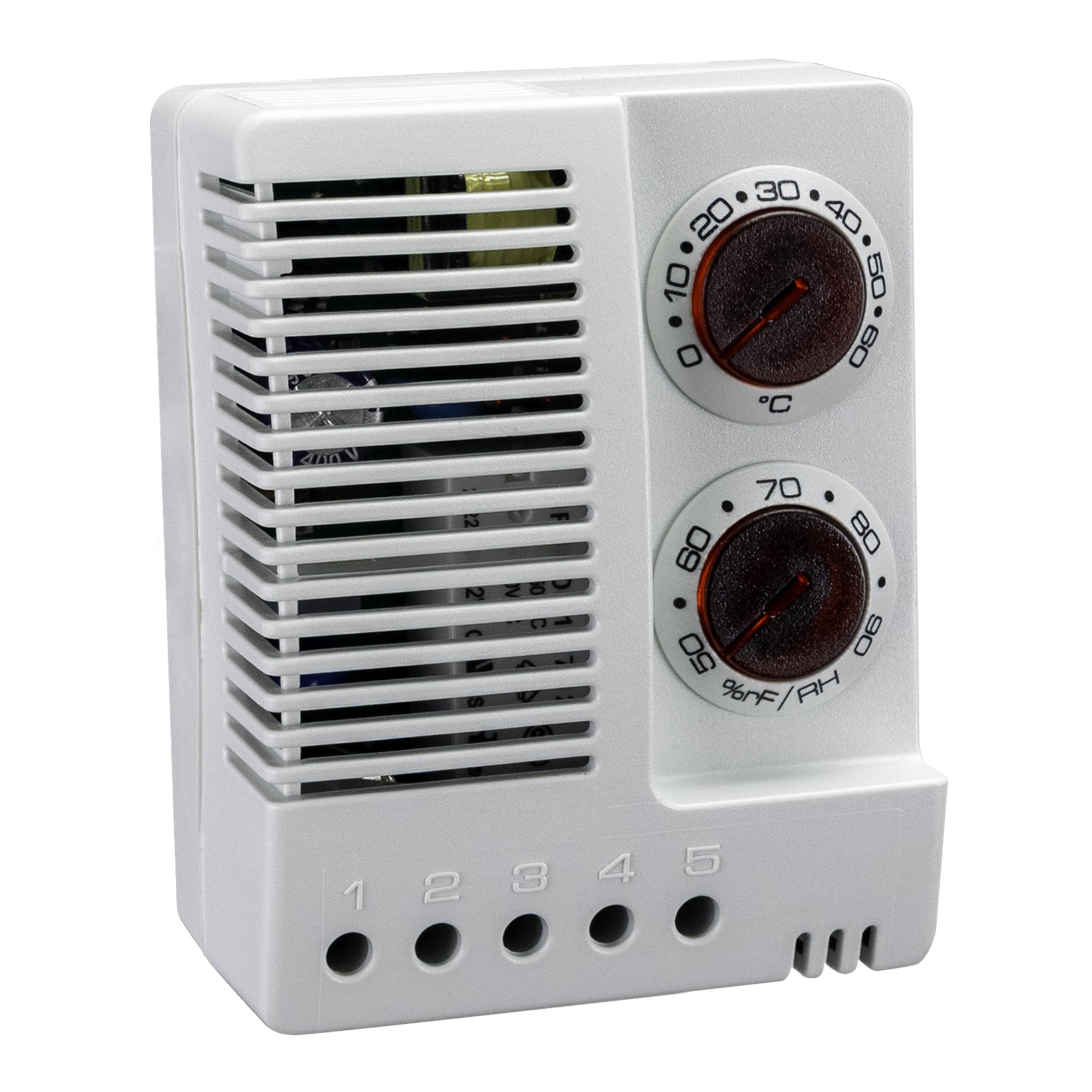

ETF 012 Enclosure Humidity and Temperature Control

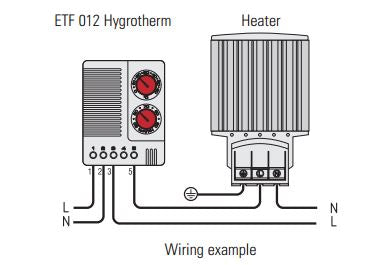

The electronic hygrotherm simultaneously monitors temperature and air humidity in enclosures and cabinets. Condensation is avoided by switching the heating and fans as required. In the design with an external sensor, this can be placed anywhere in the enclosure, enabling precise measurement.

Features

• DIN Rail Mounting
• Adjustable Humidity Setpoint
• N.O. & N.C. contacts for heating or cooling & humidity
• SPDT (Change-over) contact
• Finger safe Screw Terminals IP20
• Wide adjustment ranges
• High switching capacity
• Optical function displays (LED)
• Efficient temperature & humidity control

Specifications

• Voltage: 230 VAC

• Scale / Range (Temperature / Humidity): 0 to 60 °C / 50 to 90 % RH

• Contact Type: SPDT / Change-over

• Agency Approvals: UL, VDE

• Switching Difference (Temperature / Humidity): Approx. 3.6 °F (2 K) ± 1 K / approx. 4 % RH ± 1 %

• Response Time (Humidity): Approx. 5 sec

• Max. Switching Capacity (Relay Output): NC: AC 240 V – 6 A resistive, 1 A inductive; NO: AC 240 V – 8 A resistive, 1.6 A inductive; NC: AC 120 V – 6 A resistive, 1 A inductive; NO: AC 120 V – 8 A resistive, 1.6 A inductive; DC 24 V – 4 A resistive

• Service Life: > 100,000 cycles

• Function Control Light: LED

• Connection: 5-pole terminal for AWG 14 max. (2.5 mm²)

• Mounting: Clip for 35 mm DIN rail (EN 60 715)

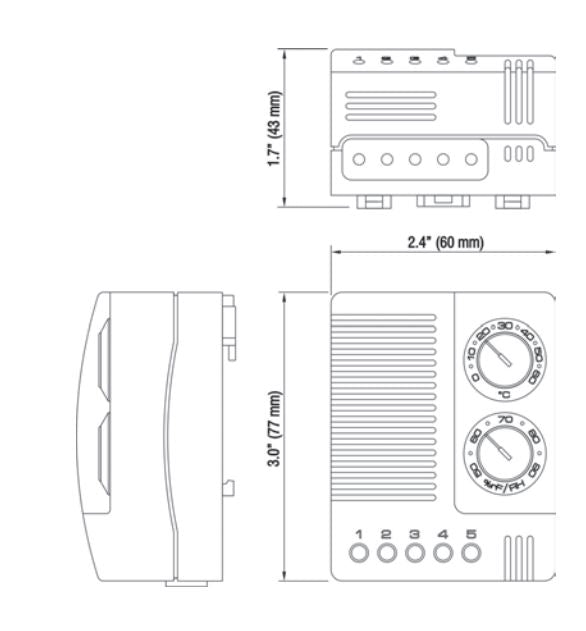

• Dimensions (H × W × D): 3.03 × 2.36 × 1.69 inches (77 × 60 × 43 mm)

• Housing: Plastic, UL 94V-0, light gray

• Weight: 6 Oz (170 g)

• Mounting Position: Vertical

• Operating Temperature: 32 to 140 °F (0 to 60 °C)

• Storage Temperature: -4 to 176 °F (-20 to 80 °C)

• Protection Type: IP20

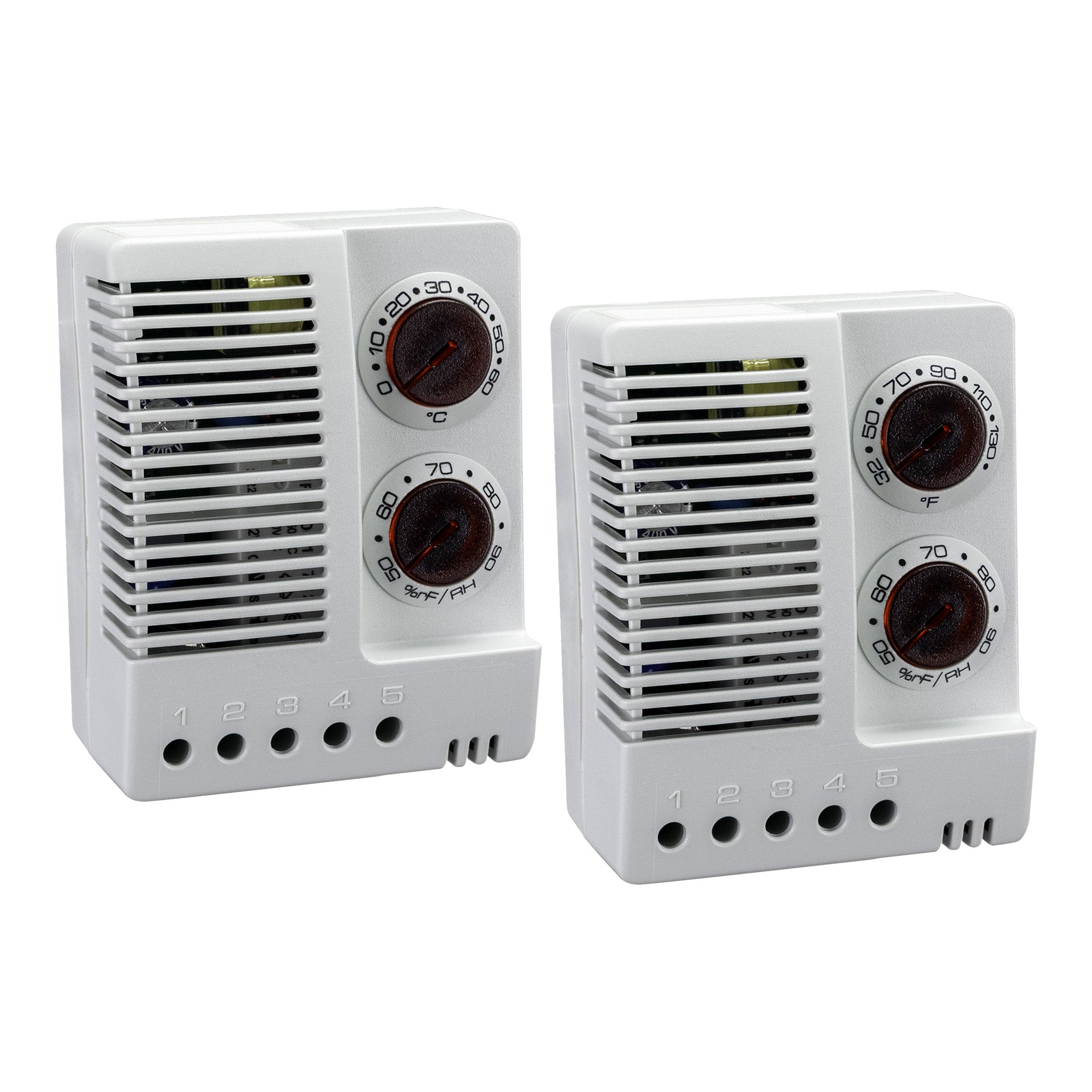

Model Numbers

• 01230.0-00   230 Voltage AC, 0 to 60°C Operating Temperature

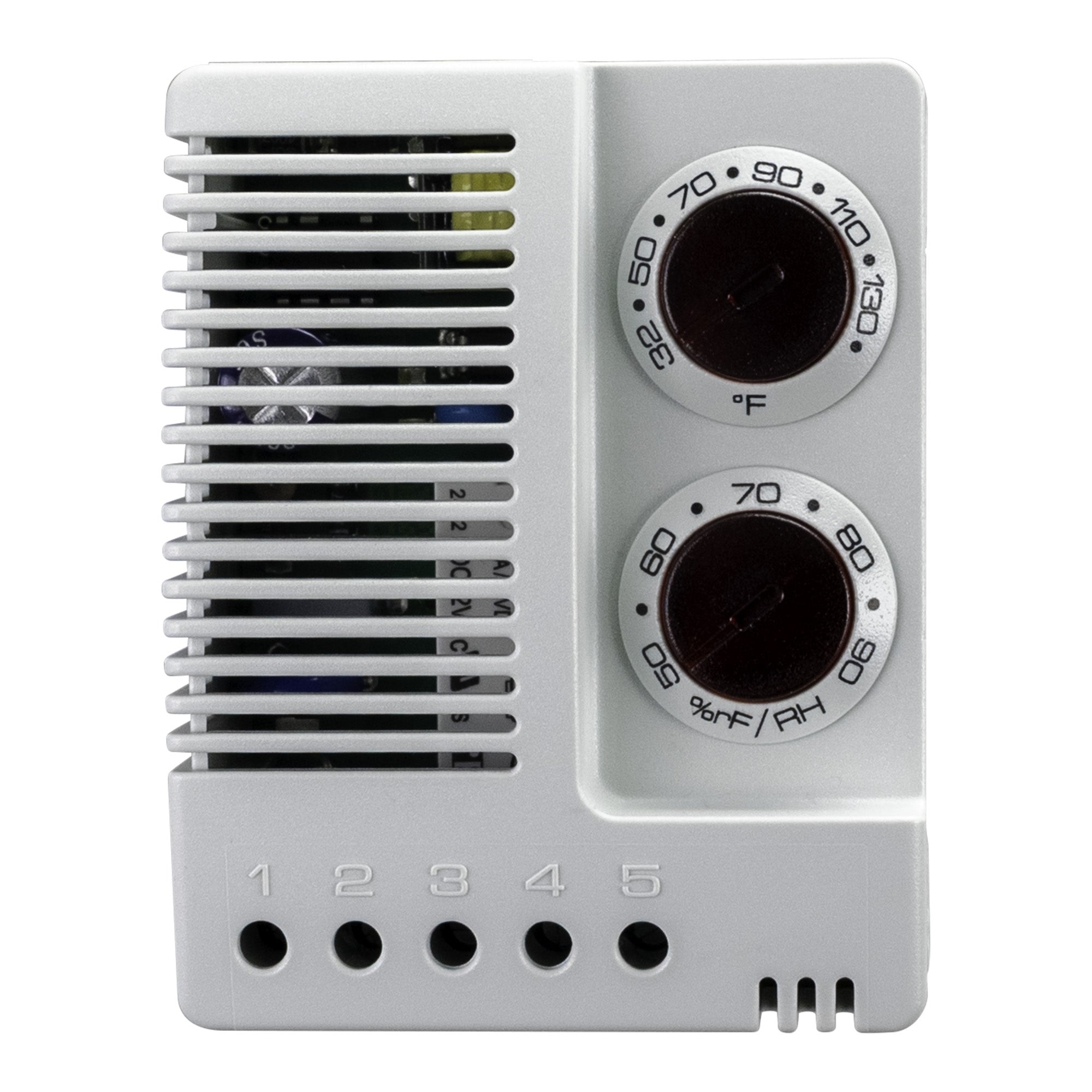

• 01230.9-00   230 Voltage AC, 32 to 140°F Operating Temperature
