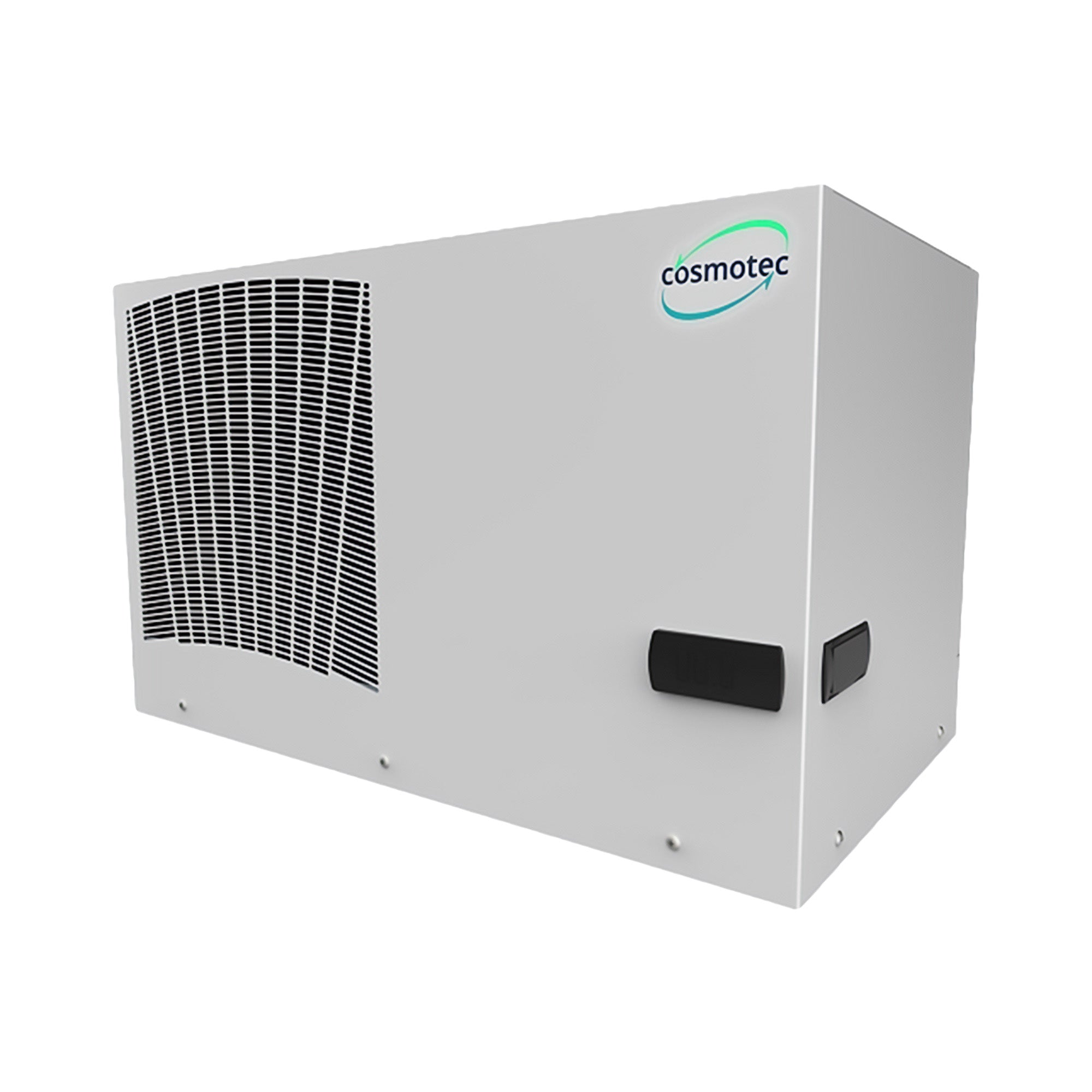

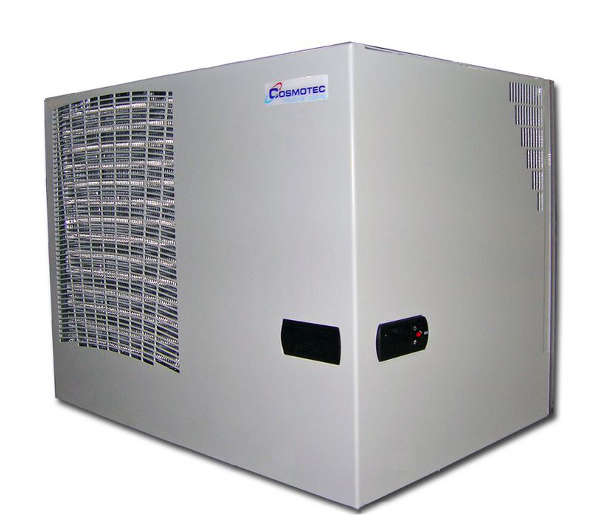

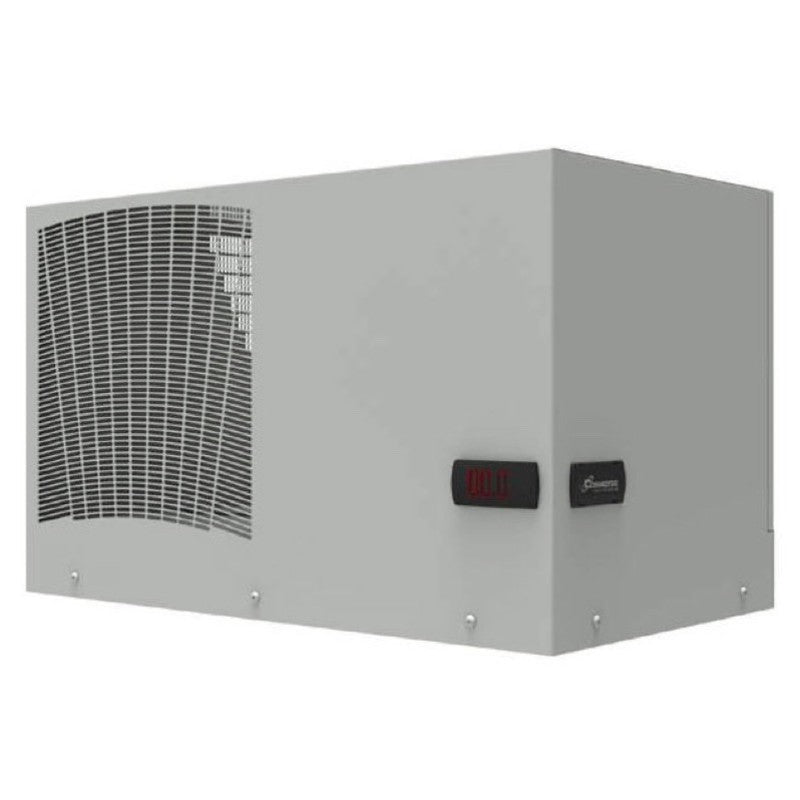

Name: ETE Top Mount Industrial Enclosure Air Conditioner 330W to 5200W
Brand: Genesis Automation
Availability: InStock

Industrial roof-mounted air conditioners allow the cooling of electrical cabinets even in situations where space is at a premium, such as in cabinet batteries or when escape routes must be left clear for safety reasons.

Thanks to the high distance between the intake and the supply of internal air, it is possible to avoid short circuits of cold air, without the need to install conveyors and guaranteeing reliable operation. In addition, starting from the ETE14 model, thanks to the management of the room air flow, it is possible to install air conditioners adjacent to each other, optimizing installation layouts.

Specifications

Product Series: ETE Enclosure Air Conditioners
Product Type: Enclosure-mounted air conditioner
Mounting Type: Side-mounted on electrical enclosures
Cooling Technology: Compressor-based refrigeration
Cooling Capacity Range: 330 W to 5200 W (model dependent)
Power Supply Options: 115 V AC / 230 V AC / 400 V AC (model dependent)
Frequency: 50 / 60 Hz
Rated Current: Model dependent
Power Consumption: Model dependent
Temperature Control: Integrated electronic thermostat
Ambient Operating Temperature: Up to +55 °C
Refrigerant: R134a
Air Circulation: Forced internal and external airflow
Condensate Management: Integrated condensate evaporation system
Installation Orientation: Vertical
Housing Material: Painted sheet steel
Color: RAL 7035 (Light gray)
Protection Degree (Enclosure Interface): IP54 / Type 12 (Varies by model)
Noise Level: Model dependent
Compliance: CE, UL (Varies by model)
Typical Application: Cooling of industrial electrical and control enclosures

Model Numbers

ETE0300220 330 W Cooling Capacity, 1,4 A, 230 V
ETE0300203 330 W Cooling Capacity, 2,8 A, 115 V
ETE06012207000 600 W Cooling Capacity, 2,2 A, 230 V
ETE06U12207000 600 W Cooling Capacity, 3 A, 230 V
ETE06U12037000 600 W Cooling Capacity, 4,5 A, 230 V
ETE06012287000 600 W Cooling Capacity, 1,2 A, 230 V
ETE09012207000 900 W Cooling Capacity, 3,2 A, 230 V
ETE09U12207000 900 W Cooling Capacity, 4 A, 230 V
ETE09U12037000 900 W Cooling Capacity, 8 A, 115 V
ETE09012287000 900 W Cooling Capacity, 1,8 A,400 V
ETE14002207000 1400 W Cooling Capacity, 5,2 A, 230 V
ETE14U02207000 1400 W Cooling Capacity, 5,5 A, 230 V
ETE14U02037000 1400 W Cooling Capacity, 10 A, 115 V
ETE14002287000 1400 W Cooling Capacity, 2,8 A, 400 V
ETE20002207000 2000 W Cooling Capacity, 5,7 A, 230 V
ETE20U02207000 2000 W Cooling Capacity, 7 A, 230 V
ETE20002287000 2000 W Cooling Capacity, 3,3 A, 400 V
ETE28002207000 2700 W Cooling Capacity, 7 A, 230 V
ETE28U02207000 2700 W Cooling Capacity, 9,5 A, 230 V
ETE28002617000 2700 W Cooling Capacity, 2,3 A, 400 V
ETE41002207000 3800 W Cooling Capacity, 9 A, 230 V, 2000 Power Supply
ETE41U02207000 3800 W Cooling Capacity, 9 A, 230 V, 2050 Power Supply
ETE41002617000 3800 W Cooling Capacity, 2,9 A, 400 V, 2000 Power Supply
ETE41U02627000 3800 W Cooling Capacity, 3,5 A, 400 V, 1550 Power Supply
ETE60002617000 5200 W Cooling Capacity, 4,6 A, 400 V, 2540 Power Supply
