ET 011 Electronic Thermostat 24V DC

The ET 011 Electronic Thermostat for controlling electrical DC 24 V devices with high power. Heaters, cooling devices or signal transmitters can be switched via the potential-free changeover contact. In contrast to mechanical thermostats, the ET 011 is characterized by a low hysteresis (= switching temperature differential). This results in more precise temperature control.

Features

• High DC switching capacity
• Small hysteresis
• Adjustable temperature
• Changeover contact
• Clip mounting

Specifications

• Voltage: 24 VDC
• Scale / Range: 0 to 60 °C

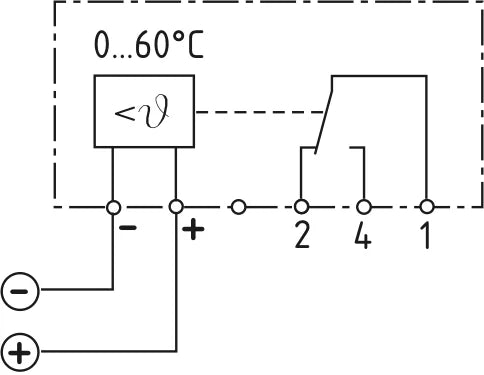

• Contact Type: SPDT / Change‑over
• Operating Voltage Range: 20 – 28 VDC
• Switching Difference (Hysteresis): Approx. 5.4 °F (3 K)
• Sensor Element: PTC
• Contact Resistance: < 10 mΩ
• Service Life: > 100,000 cycles
• Max. Switching Capacity (Resistive Load): 16 A at DC 28 V
• EMI/EMC Compliance: EN 55014‑1‑2, EN 61000‑3‑2, EN 61000‑3‑3
• Connection: 5‑pole terminal for AWG 14 max. (2.5 mm²)
• Mounting: Clip for 35 mm DIN rail (EN 60 715)
• Housing: Plastic, UL 94V‑0, light gray

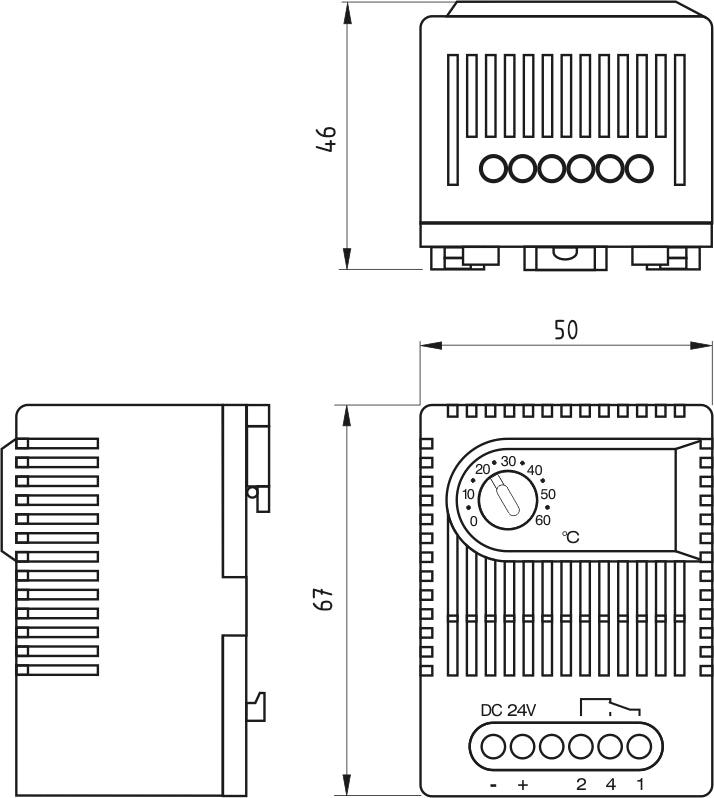

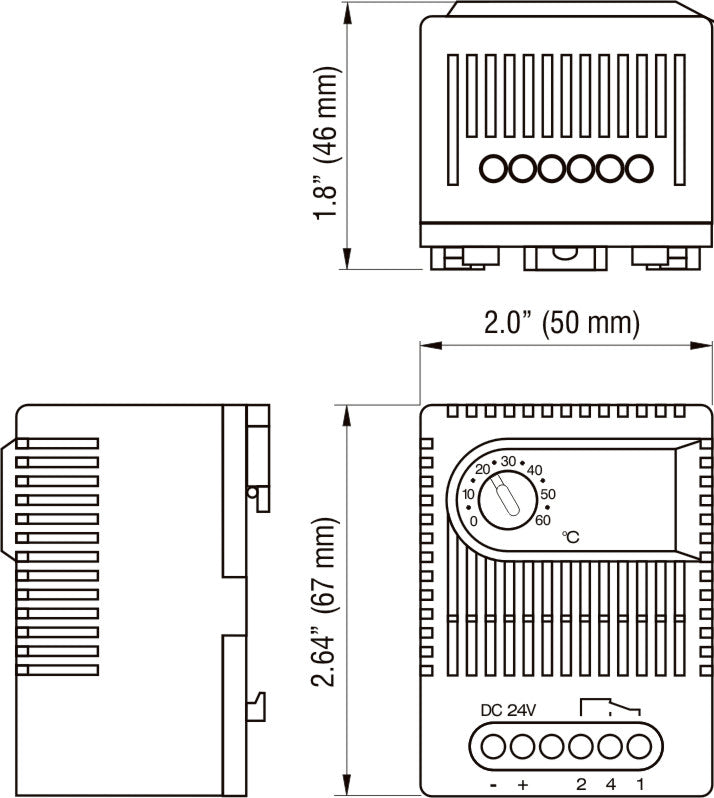

• Dimensions (H × W × D): 2.6 × 2.0 × 1.8 inches (67 × 50 × 46 mm)
• Weight (Approx.): 2.8 Oz (80 g)
• Mounting Position: Vertical
• Operating Temperature: 32 to 140 °F (0 to 60 °C)
• Storage Temperature: ‑49 to 176 °F (‑45 to 80 °C)
• Protection Type: IP20

If you want the same for Part # 01190.0‑01 or in a table layout, just tell me!

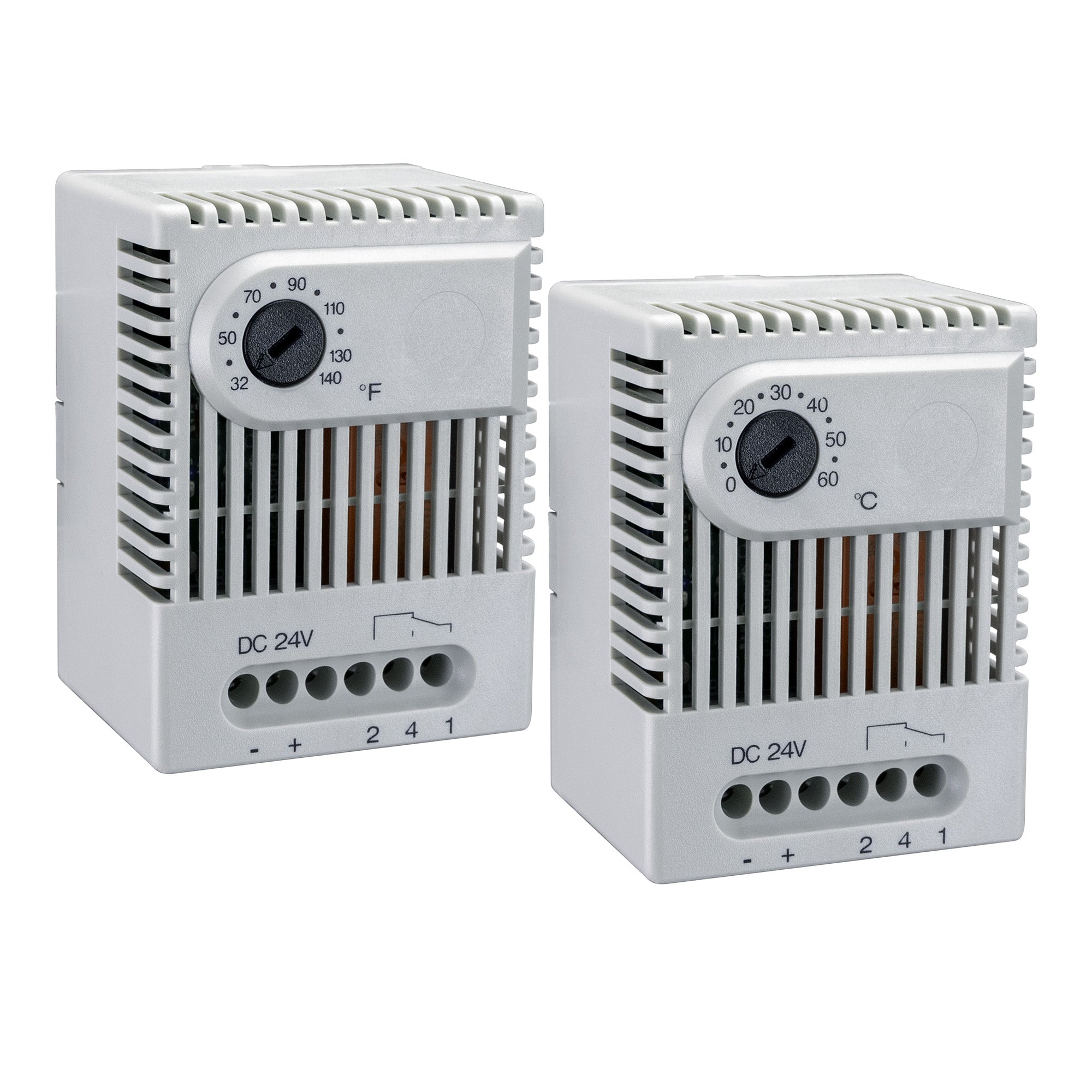

Model Numbers

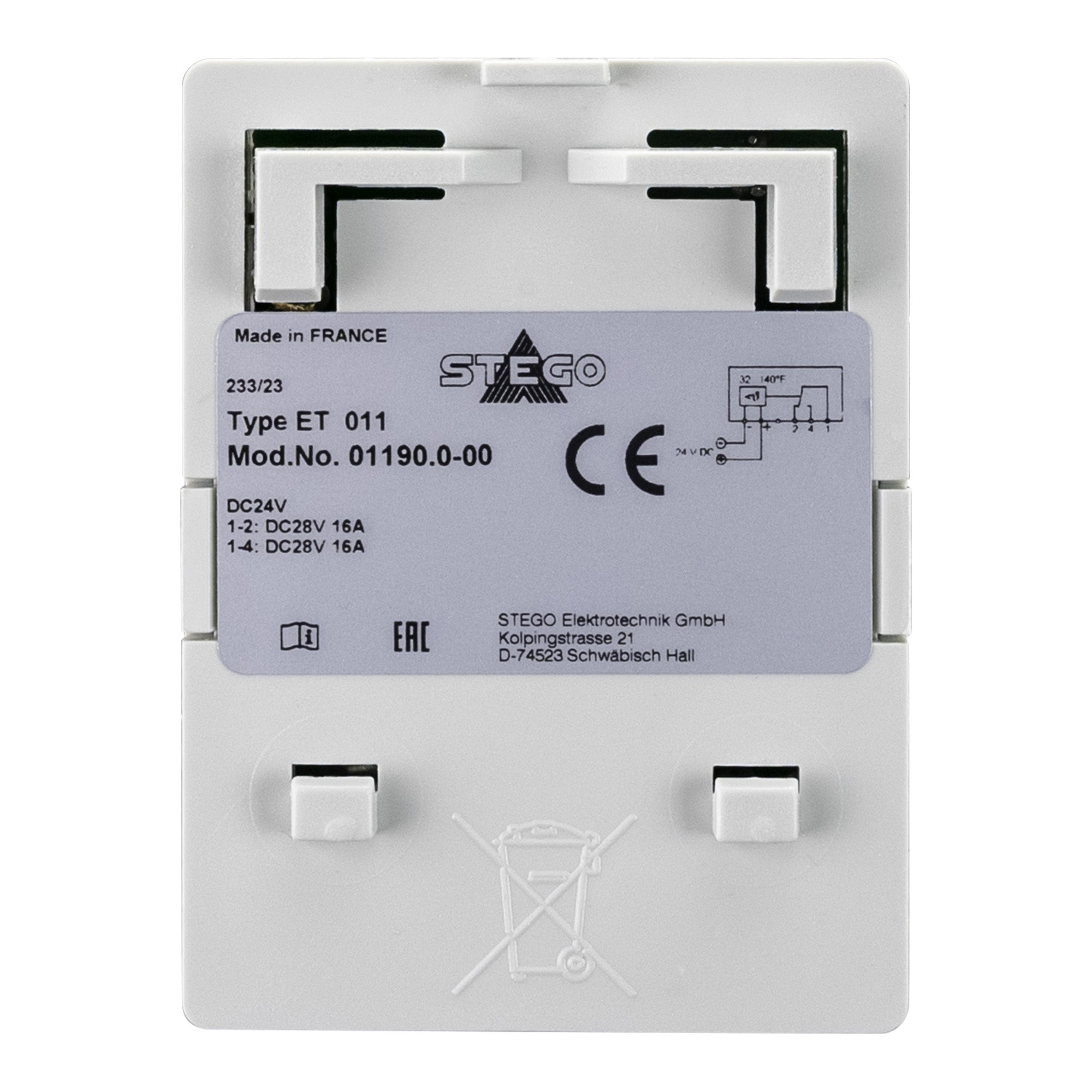

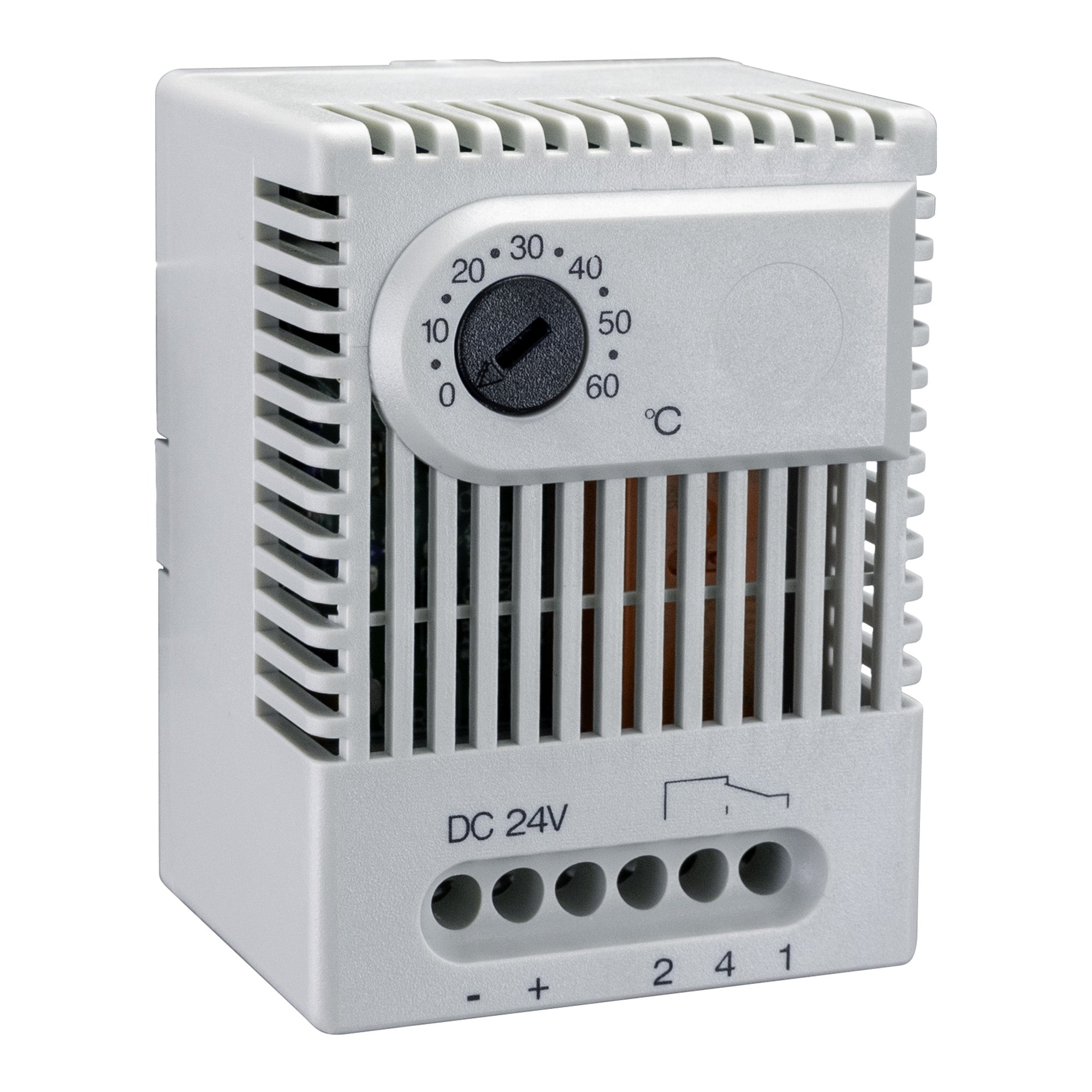

01190.0.00 - Electronic Thermostat (24VDC) °C

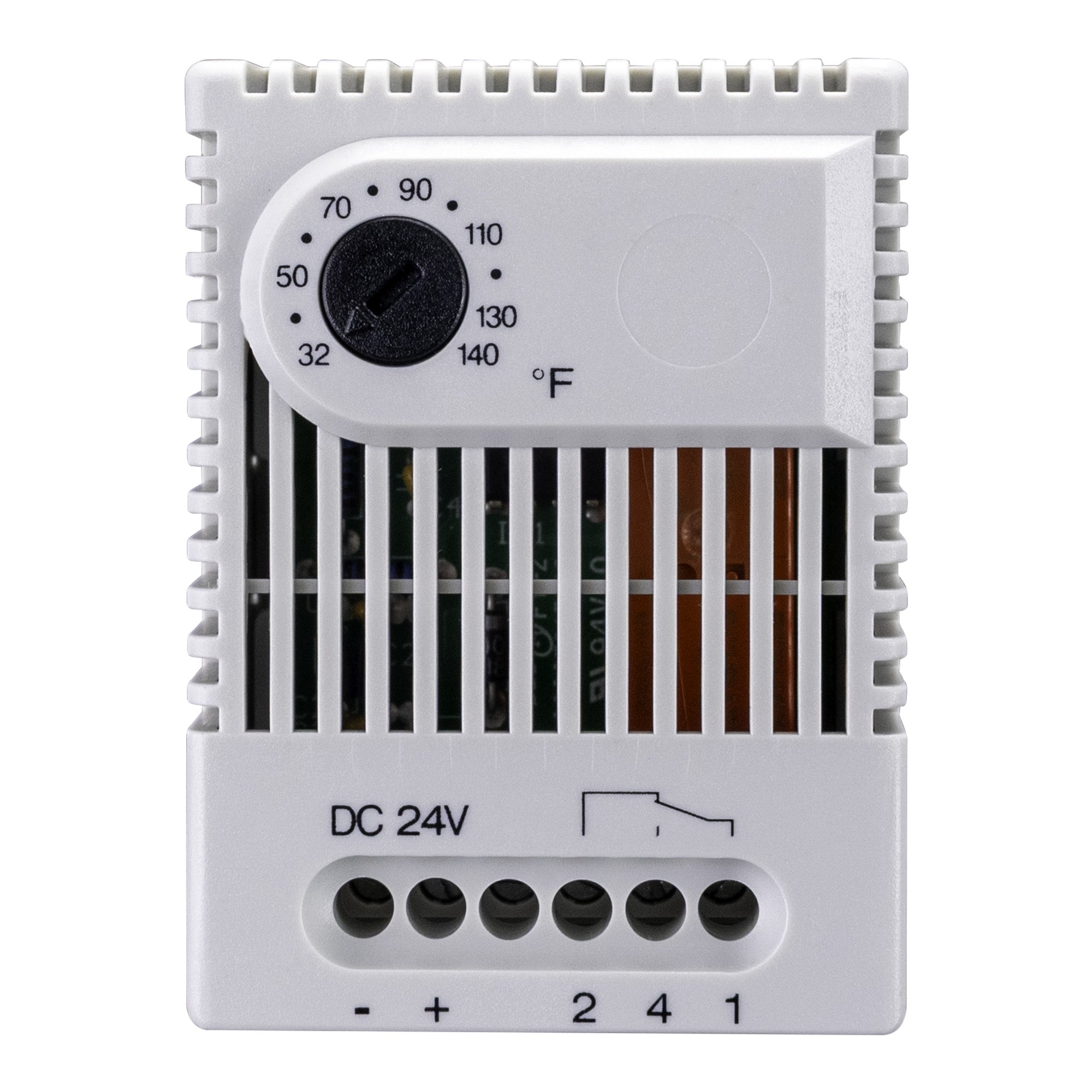

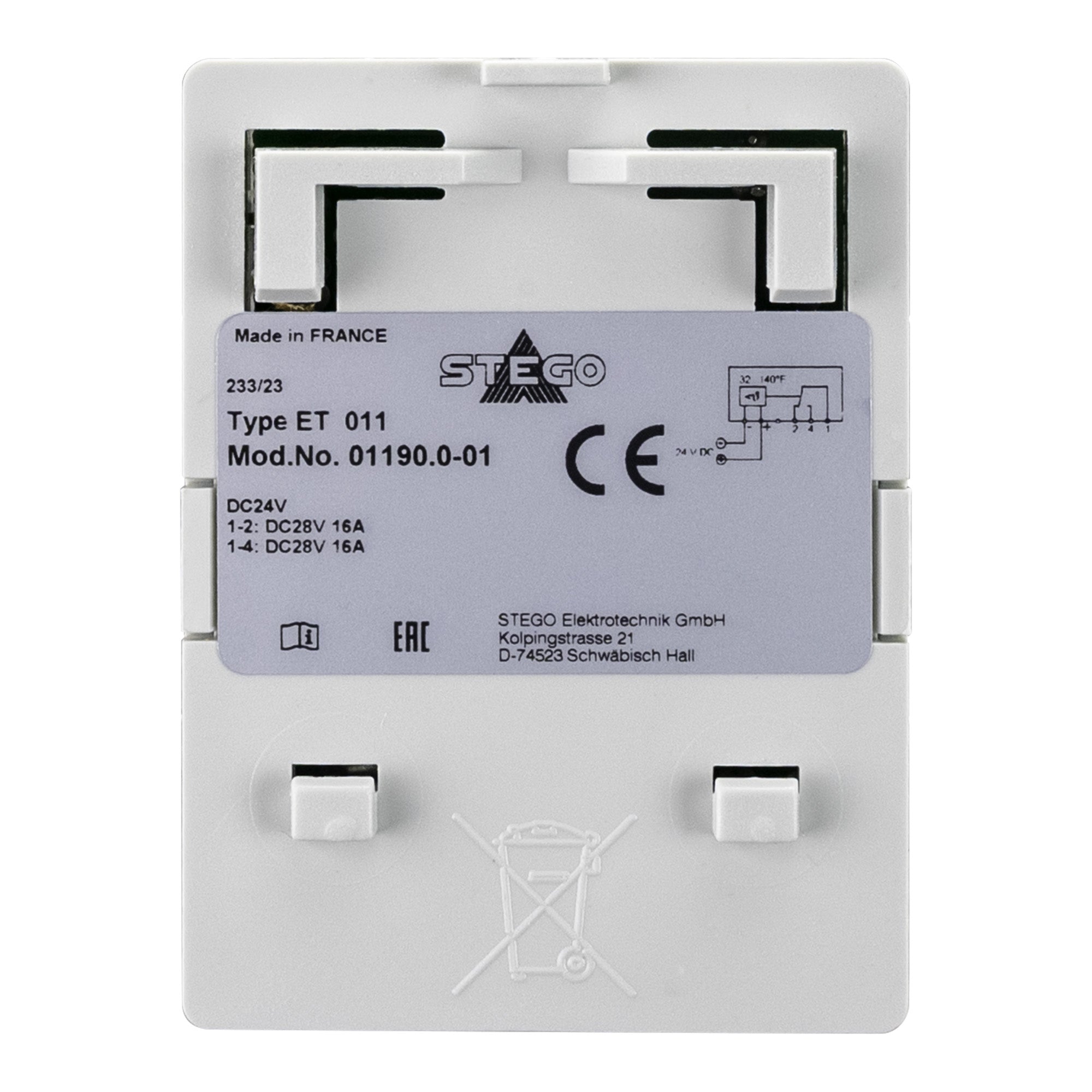

01190.0-01 - Electronic Thermostat (24VDC) °F
