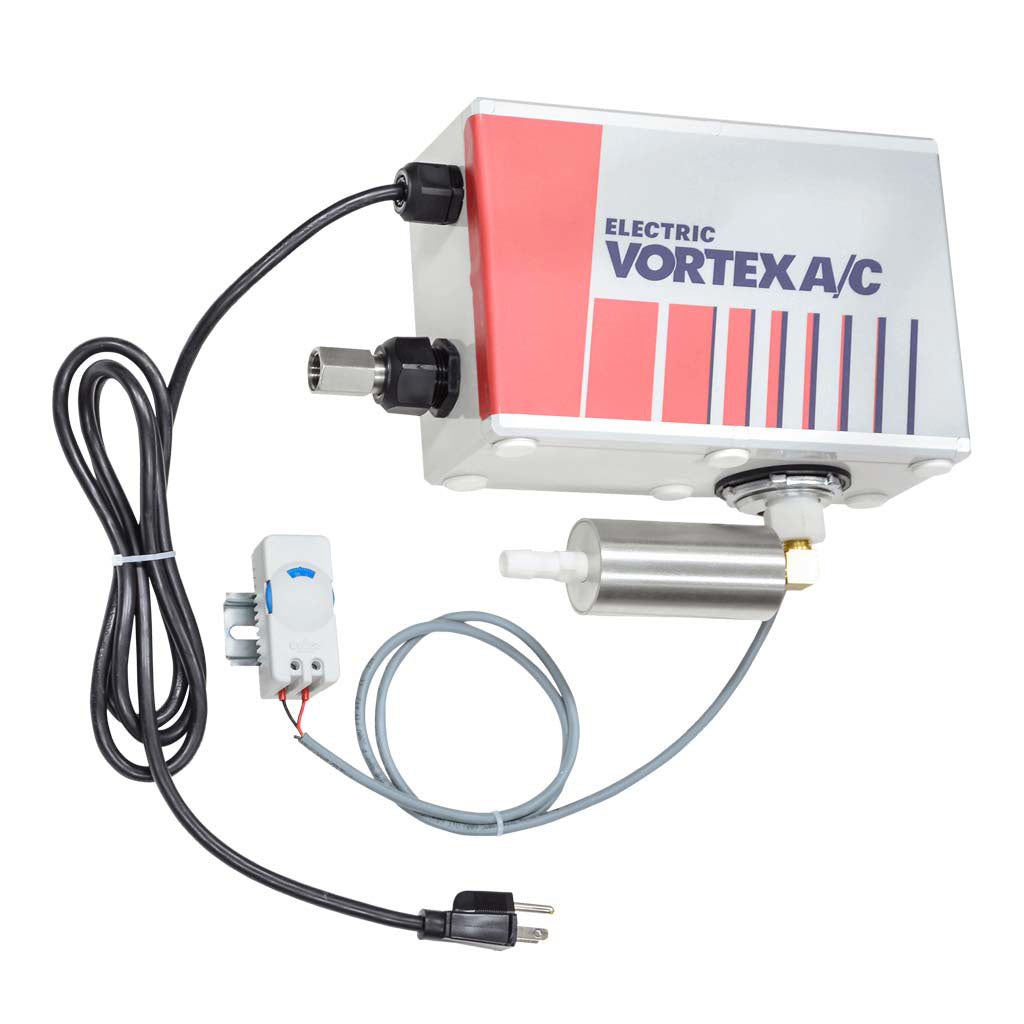

Electric Vortex A/C Enclosure Cooler NEMA 4/4X Ultra Quiet Easy Installation 240V AC 900-2500 BTU

Electric Vortex A/C Enclosure Coolers are the most advanced line of Vortec enclosure coolers and incorporate the most up-to-date features of the Vortex A/C and Vortex Cooler lines. These enclosure coolers are yet another innovative compressed air product in Vortec’s line of highly reliable, cost effective enclosure coolers.

• 240V AC
• Sleek, modern design
• Noise reduction of 78%, when compared to other vortex enclosure coolers
• Energy use reduction through its integral mechanical thermostat
• Quick and easy installation in about 5 minutes
• Flexible installation: top, side or front (door) mount
• UL Listed Type 4/4X
• Can be supplied with 40 - 150 psi pressure, compressed air

The Electric Vortex A/C Coolers are available in 3 different cooling capacities from 900 to 2,500 BTU/hr*. All of Vortec’s Enclosure Coolers keep Electrical and Electronic Enclosures cool, clean and protected and are a low cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans. Today’s small, compact multi-function electronic controls, variable speed drives, servos and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below rated loads. The result is productivity lost due to machine or line shutdowns.

Features

• UL Listed Type 4/4X
• Small footprint to fit on all enclosures and in confined areas
• Top, side or front (door) mount models available
• Maintain temperature at a user defined thermostat setting
• Supplied with air filter and ducting kit
• Maintains slight pressurization in the enclosure

Benefits

• Easy to install, takes less than 10 minutes
• No wiring required to install, comes pre-wired
• Thermostatically controlled to maintain enclosure temperatures at a user defined temperature
• Operates effectively at 40 - 150 psi pressure levels, does not require a specific pressure
• Highly reliable, with full 10 year warranty
• No ambient, dirty or humid air enters the enclosure
• Can be used on all enclosures, even in tight spaces
• Operates in environments up to 175 degree F
• Reduce operating cost with electric thermostat turning the unit on only when necessary
• Very quiet, 62-68 dBA operation, 78% quieter than standard vortex coolers
• Multiple cooling capacities available, to optimize performance and operating cost
• Little maintenance required, as compared to Freon A/C and fans
• Use no refrigerants
• Sleek, modern design

Models

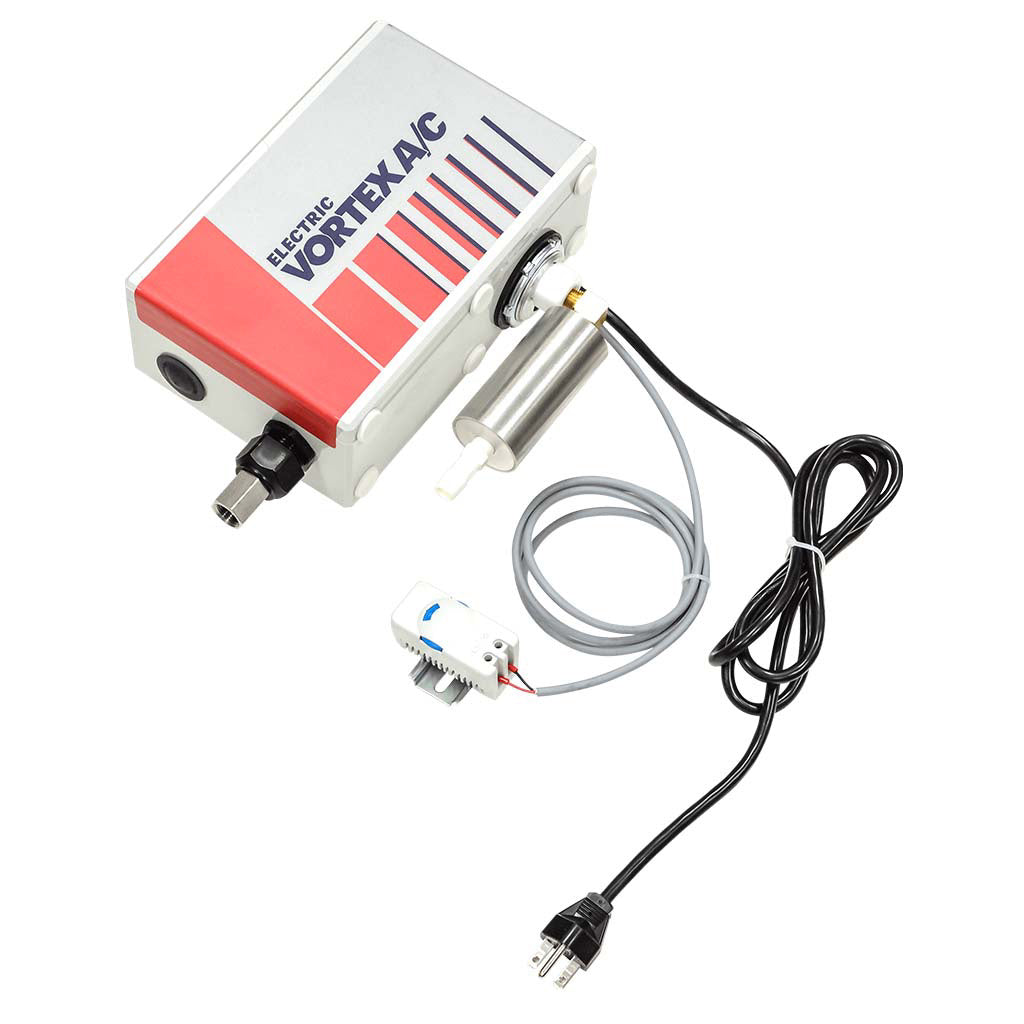

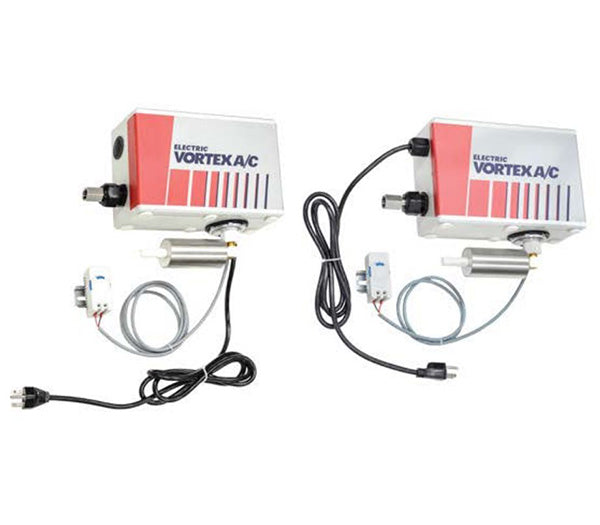

• EB = Bottom Power Cord
• ES = Side Power Cord
• F = 240V AC

Specifications

• Product Series: Vortec Electric Vortex A/C Coolers

• Product Type: Electric vortex-powered enclosure cooler
• Cooling Method: Vortex tube cooling (No refrigerant)
• Application: Enclosure cooling for electrical/control cabinets
• Cooling Capacity: 900 BTU/hr / 1500 BTU/hr / 2500 BTU/hr (Varies by model)
• Cooling Capacity (Watts): 264 W / 440 W / 733 W (Varies by model)
• Air Consumption: 15 scfm / 25 scfm / 35 scfm @ 100 psig (model dependent)
• Rated Voltage: 240 VAC
• Thermostat: Electrical thermostat included
• System Type: Cooler Only / System (Varies by model)
• Enclosure Rating: NEMA 4 / 4X
• Cord Orientation: EB (Bottom) or ES (Side) mount
• Sound Level: 62–68 dBA
• Mounting Orientation: Vertical (Top mount on enclosure)
• Compressed Air Requirement: Clean, dry, filtered compressed air (Not supplied by cooler)
• Installation Cutout Size: Standard enclosure cooler cutout (Per Vortec spec)
• Typical Applications: Electrical panels, control cabinets, industrial cooling

Model Numbers

• 7015EBF - Vortex 240V AC 900 Btu 15 SCFM Cooler Only
• 7025EBF - Vortex 240V AC 1500 Btu 25 SCFM Cooler Only
• 7035EBF - Vortex 240V AC 2500 Btu 35 SCFM Cooler Only
• 7015ESF - Vortex 240V AC 900 Btu 15 SCFM Cooler Only
• 7025ESF - Vortex 240V AC 1500 Btu 25 SCFM Cooler Only
• 7035ESF - Vortex 240V AC 2500 Btu 35 SCFM Cooler Only

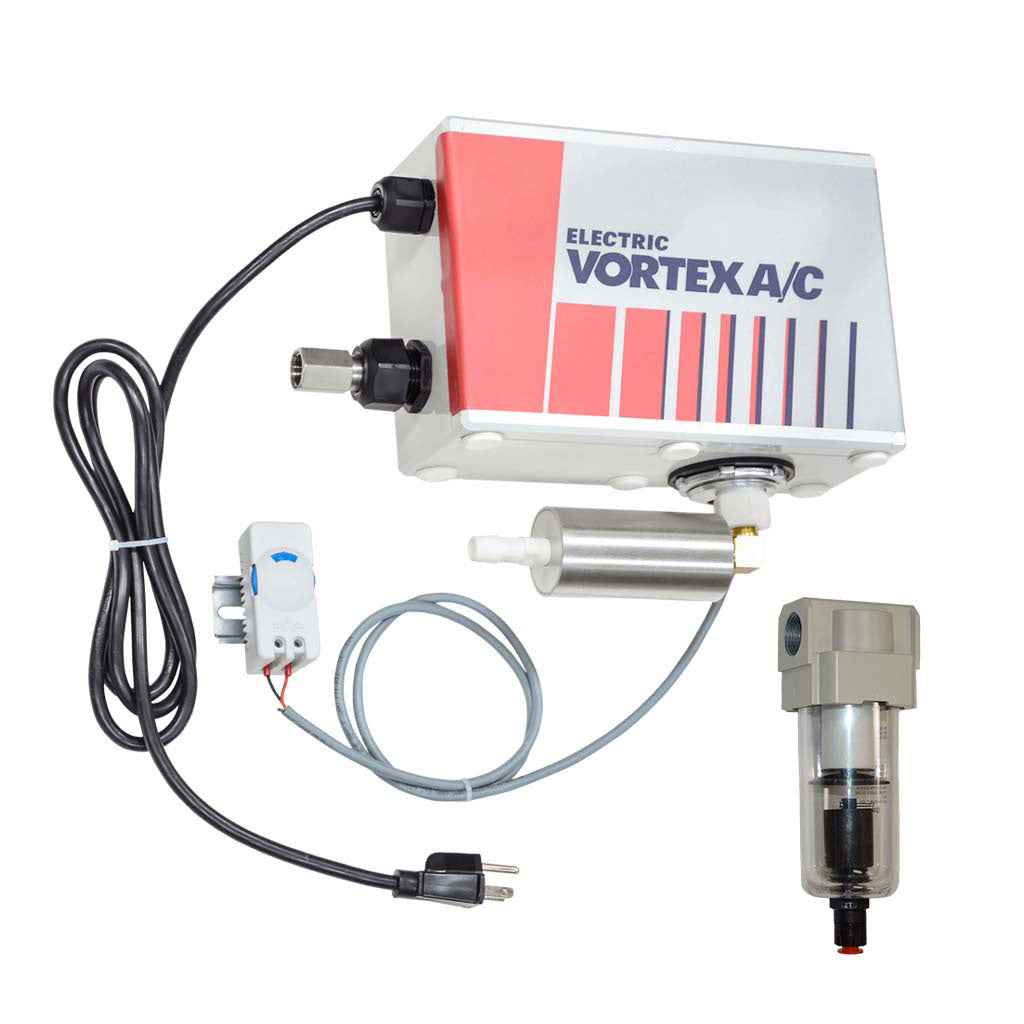

• 7715ESF - Vortex 240V AC 900 Btu 15 SCFM System
• 7725ESF - Vortex 240V AC 1500 Btu 25 SCFM System
• 7735ESF - Vortex 240V AC 2500 Btu 35 SCFM System
• 7715EBF - Vortex 240V AC 900 Btu 15 SCFM System
• 7725EBF - Vortex 240V AC 1500 Btu 25 SCFM System
• 7735EBF - Vortex 240V AC 2500 Btu 35 SCFM System
