DS 013 Enclosure Door Switch

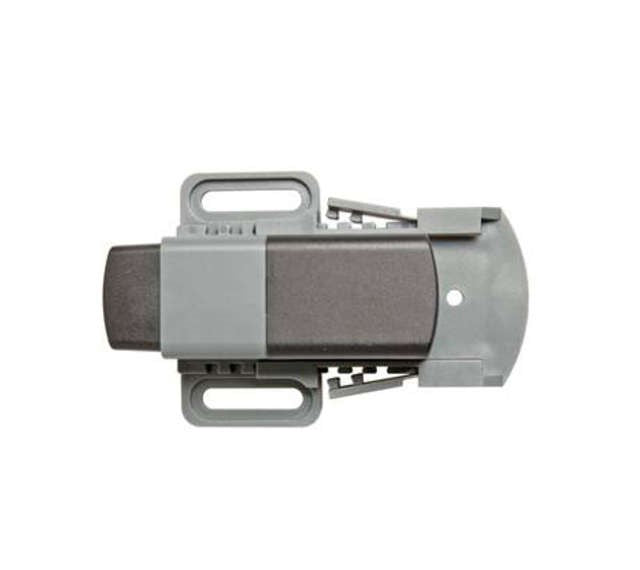

The door switch monitors the position of cabinet doors and is available in three versions. For example, it can be used for switching a light when opening a door (NC), or to activate a fan when closing a door (NO). The version with change-over contact (CO) can be used as a normally closed and/or normally open contact. The wide mechanical adjustment range of the door switch DS 013 offers versatile mounting: the housing is adjustable within a 1-3/8" (35 mm) range, while the screw flange with a slotted hole offers an additional 13/16" (21 mm). The travel of the switch itself is another 5/16" (8 mm).

Specifications

• Suitable Wire: ⠀Round cable, stranded wire (With wire end ferrule) AWG 18 to 17 (0.75 mm² to 1 mm²)

• Housing: ⠀Plastic according to UL 94V‑0, grey/black

• Max. Switching Capacity: ⠀10 A resistive / 1.5 A inductive at AC 250 V

• Service Life: ⠀VDE: > 10 000 cycles, UL: > 6 000 cycles

• Connection: ⠀4‑pole clamp with strain relief, clamping torque 0.5 Nm max.

• Mounting: ⠀M5 screws (Not included)

• Mounting Position: ⠀Variable

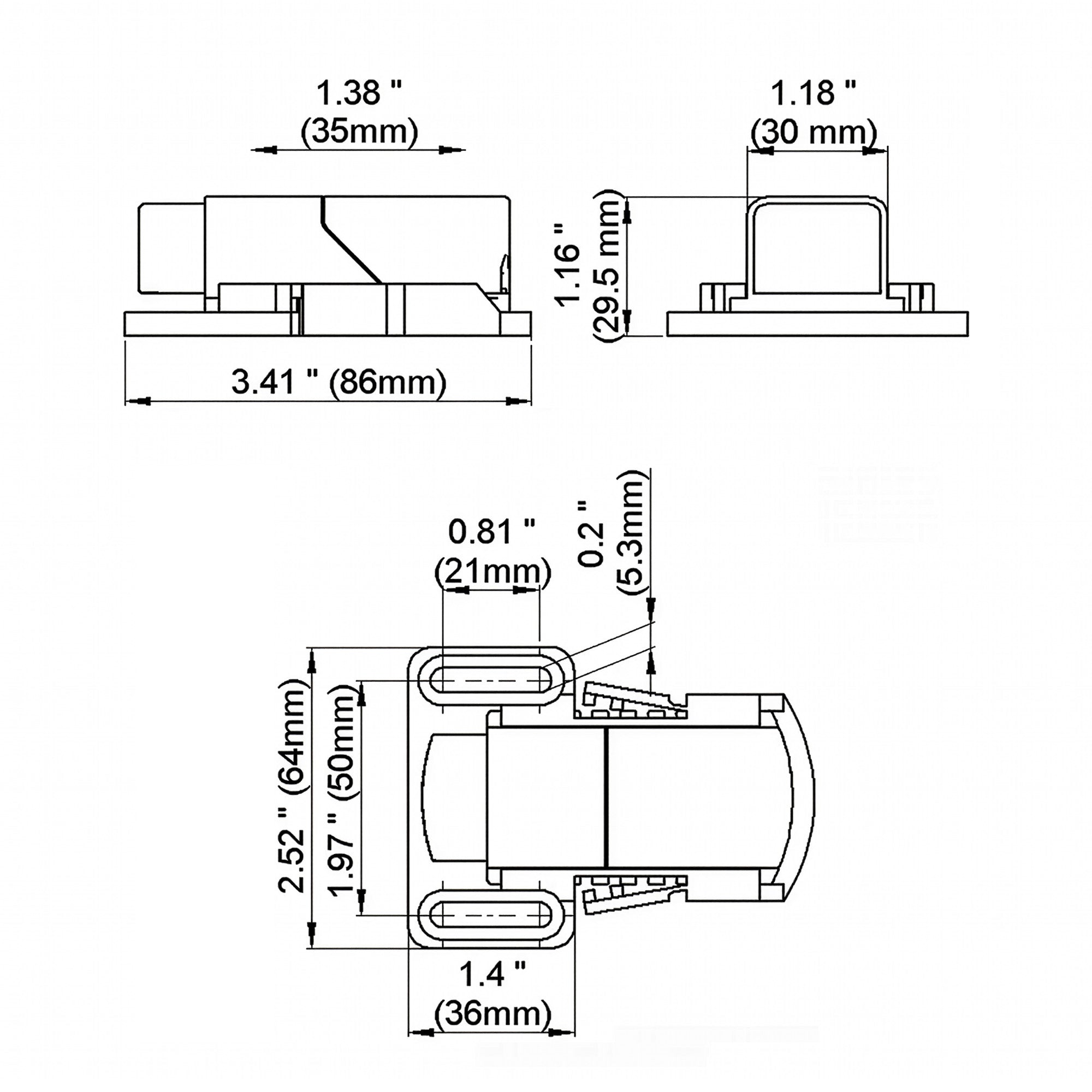

• Dimensions: (H x W x D): ⠀3.4 x 2.5 x 1.2 inches (87 x 64 x 30 mm)

• Weight: ⠀Approx. 1.8 oz (50 g)

• Operating/Storage Temperature: ⠀‑4 to 185 °F (‑20 to 85 °C)

• Operating/Storage Humidity: ⠀Max. 90 % RH (Non‑condensing)

• Protection Type: ⠀IP20

• Agency Approvals: ⠀UL + VDE intended

Model Numbers

• 01350.0-00 - Change-Over (CO)
• 01351.0-00 - Normally Closed (NC)
• 01352.0-00 - Normally Open (NO)
