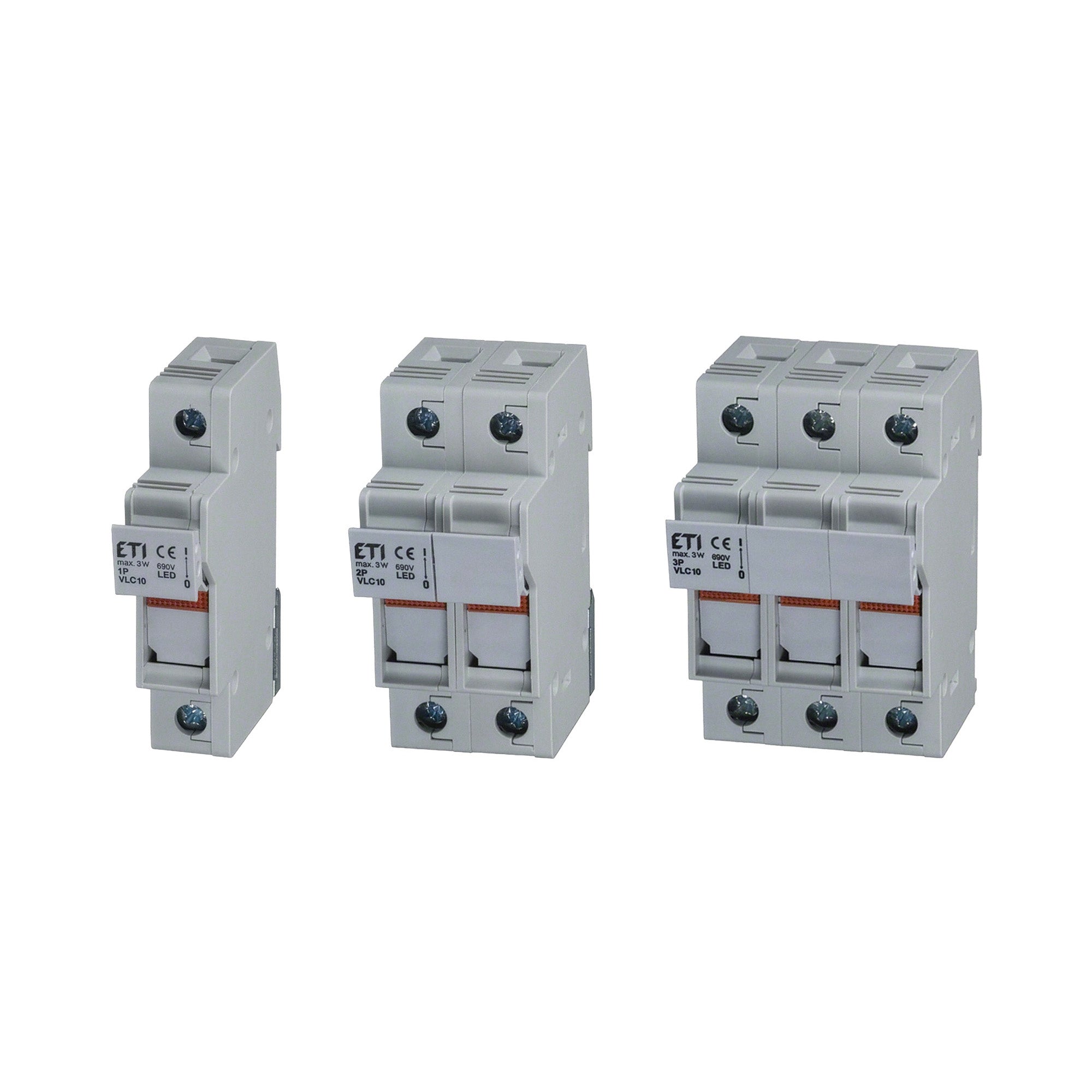

DIN Rail Fuse Holder with LED Blown Fuse Indicator 1-3 Pole 50A 600V 14x51mm Fuse

DIN Rail mount fuse holder.  1, 2, and 3 pole with Neutral pole option, blinking LED upon fuse failure.

Features

• 50 amps @ 600 volts max. rating
• Utilization category AC-22B
• 100kA RMS SCCR withstand rating
• Evaluated for use with midget 14x51mm fuses
• All contact surfaces are silver plated
• DIN rail mount (35mm)
• Touchsafe modular design IEC type IP20
• Handle allows quick easy fuse change
• Blown fuse led indication (blinks on failure) is available
• Base Materials: high temperature thermoplastic
• CE compliant to IEC 60947-1, IEC 60947-3
• Torque is 22-26 in-lb (2.5-3nm)

Specifications

Model Numbers

• 2561000    1 Pole

• 2563000    2 Pole
• 2564000    3 Pole
• 2561100    1 Pole, LED Blown Fuse Indicator
• 2563100    2 Pole, LED Blown Fuse Indicator
• 2564100    3 Pole, LED Blown Fuse Indicator
