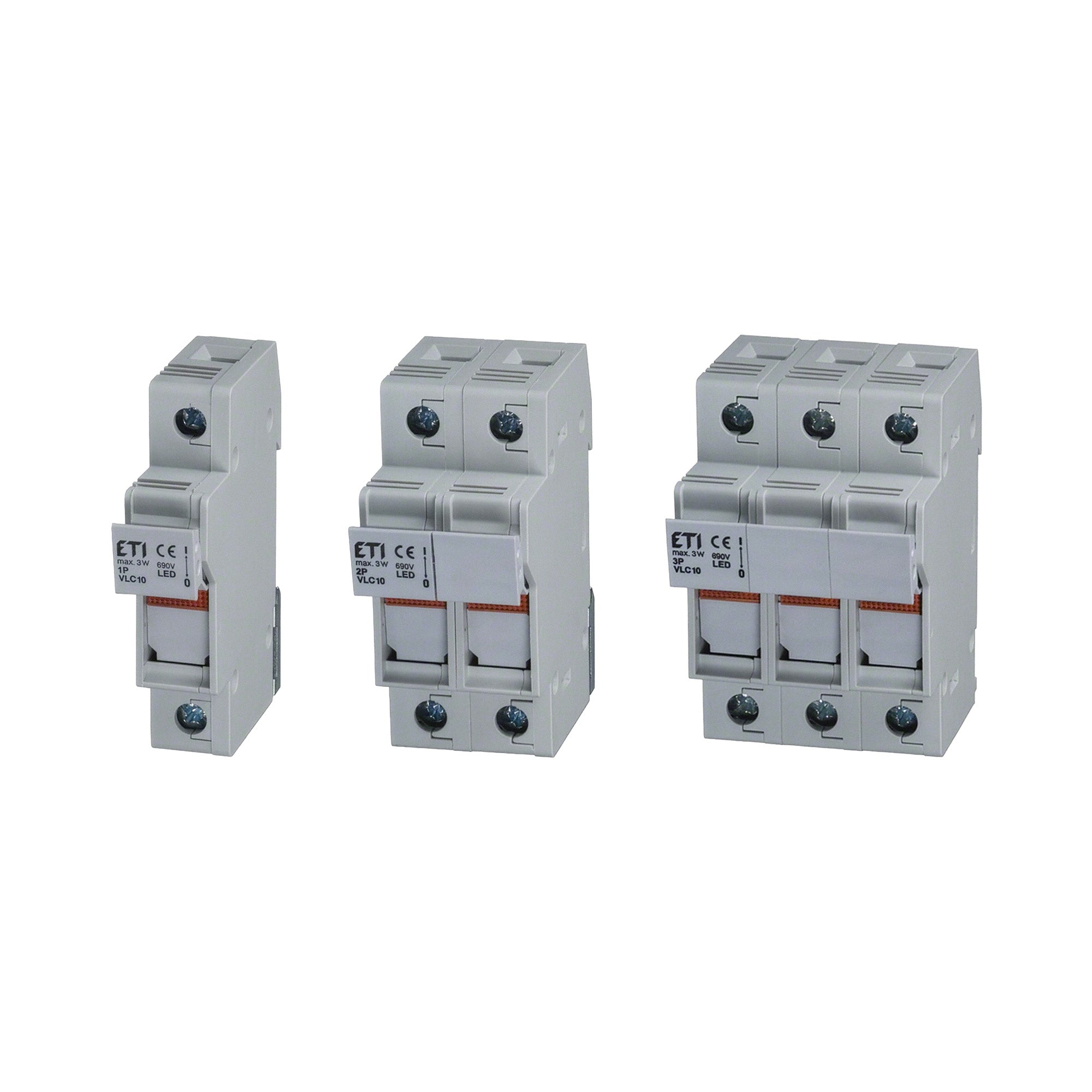

DIN Rail Fuse Holder with LED Blown Fuse Indicator 1-3 Pole 30A 600V 10x38mm Fuse

DIN Rail mount fuse holder.  1, 2, and 3 pole with Neutral pole option, blinking LED upon fuse failure.

Features

• All contact surfaces are silver plated
• Evaluated for use with midget 10x38mm fuses

• DIN rail mount (TH 35mm)
• Touch-safe modular design
• Handle allows quick easy fuse change
• Blown fuse led indication (Blinks on failure) is available
• Base Materials: high temperature thermoplastic

Specifications

• Product Series: 10×38 mm DIN Rail Fuse Holders

• Fuse Size: 10 × 38 mm (Midget, cartridge style)

• Rated Current: 32 A

• Normal Operating Limit: 30 A @ 600 V AC

• Rated AC Voltage: 600 V AC max

• Withstand Rating: 100 kA RMS SCCR

• Utilization Category: AC-22B

• Number of Poles: 1 Pole / 2 Pole / 3 Pole (Varies by model)

• Indicator: LED blown fuse indicator on 2541100 / 2543100 / 2544100 models (Non-indicating on 2541000 / 2543000 / 2544000)

• Termination Style: Screw terminal / pressure plate

• Mounting Orientation: Vertical (35 mm DIN rail)

• Case Protection: IEC Type IP20

• Contact Surfaces: Silver plated

• Base Material: High-temperature thermoplastic

• Approvals / Compliance: cUL Recognized, CE, IEC 60947-1, IEC 60947-3

• Wire Range: 10–18 AWG Copper solid & stranded (typical)

• Torque: 17.7–22 in-lb (2–2.5 Nm)

*2541000 / 2543000 / 2544000  non-indicating fuse holders

*2541100 / 2543100 / 2544100 include LED blown fuse indication.

Model Numbers

• 2541000    1 Pole
• 2543000    2 Pole
• 2544000    3 Pole

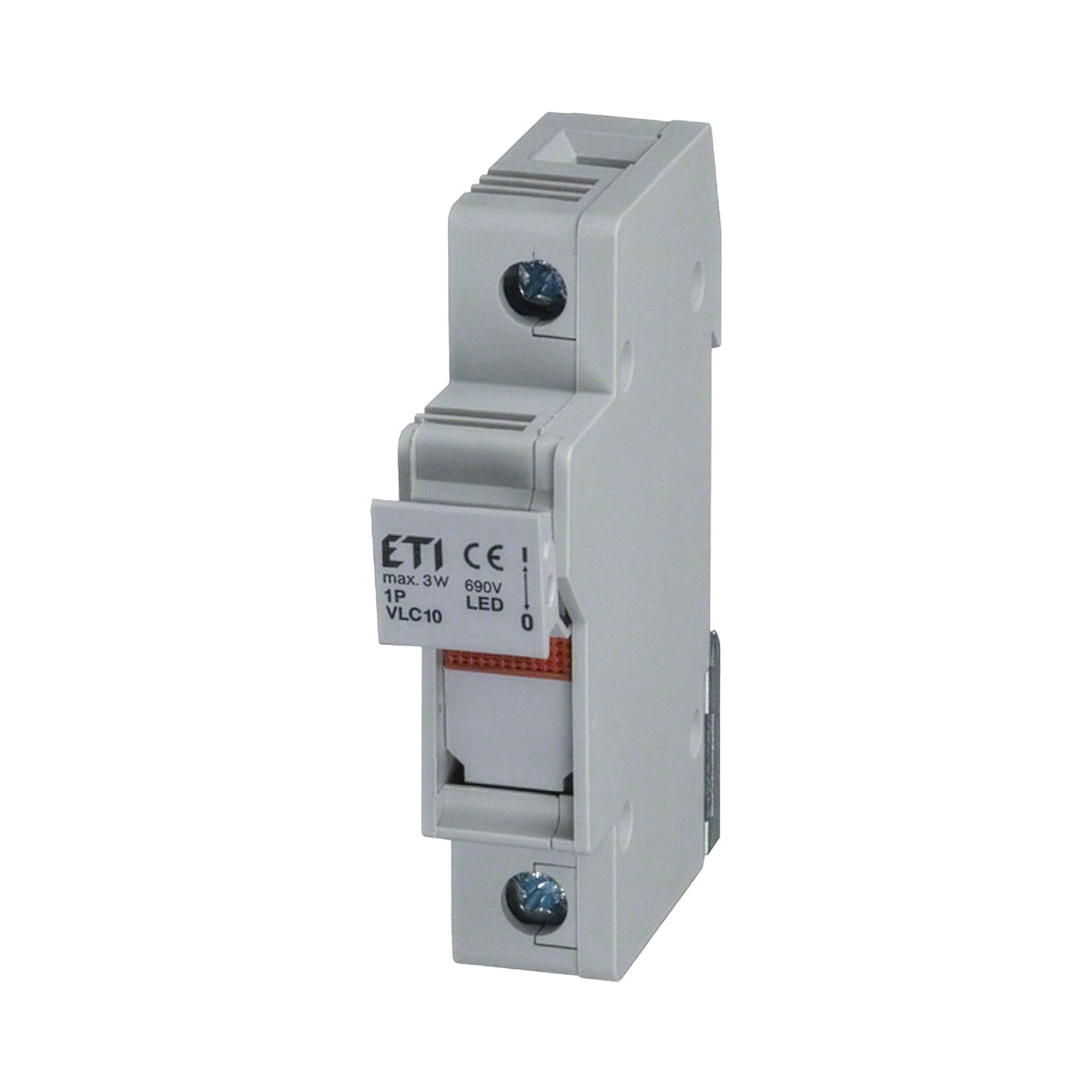

• 2541100    1 Pole, LED Blown Fuse Indicator

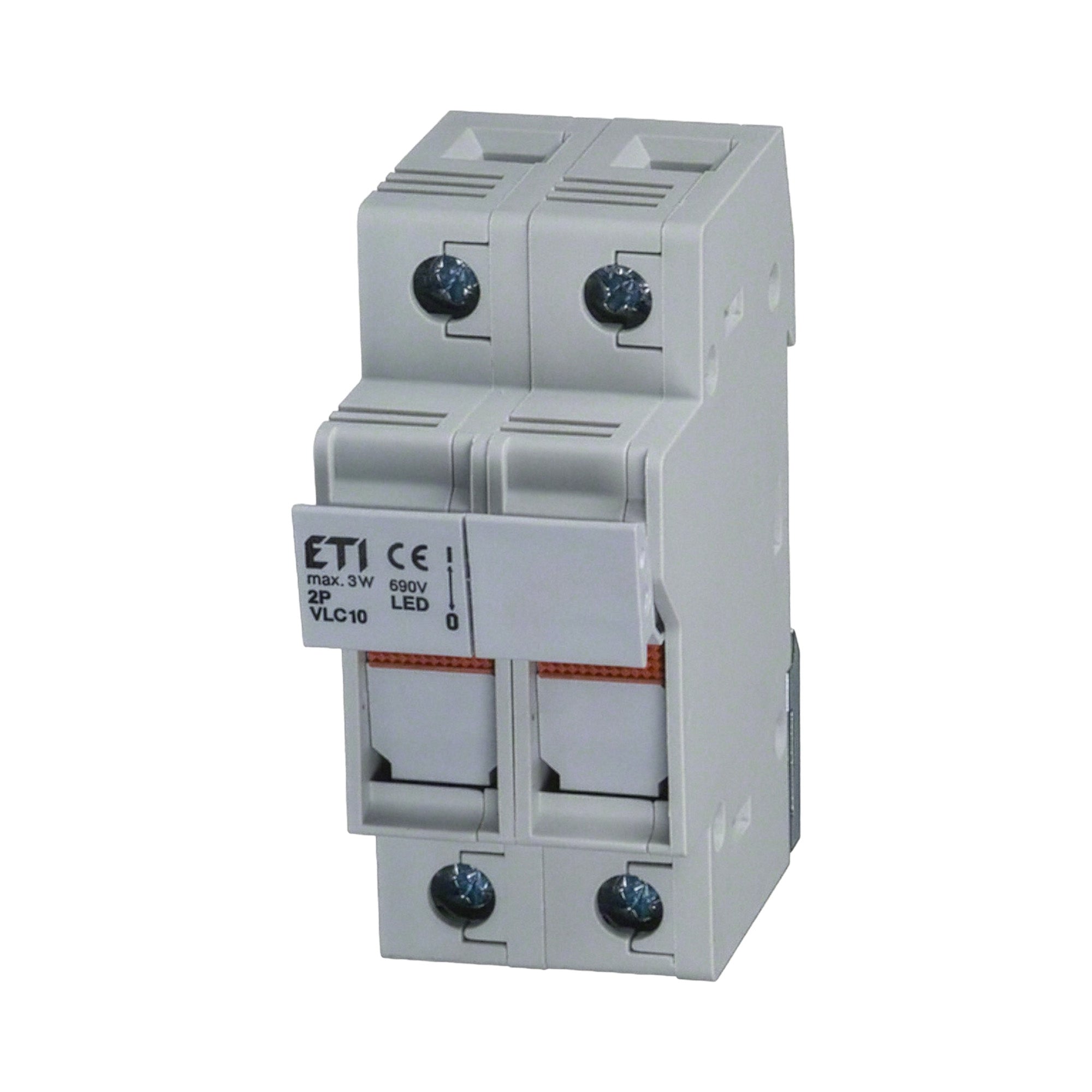

• 2543100    2 Pole, LED Blown Fuse Indicator

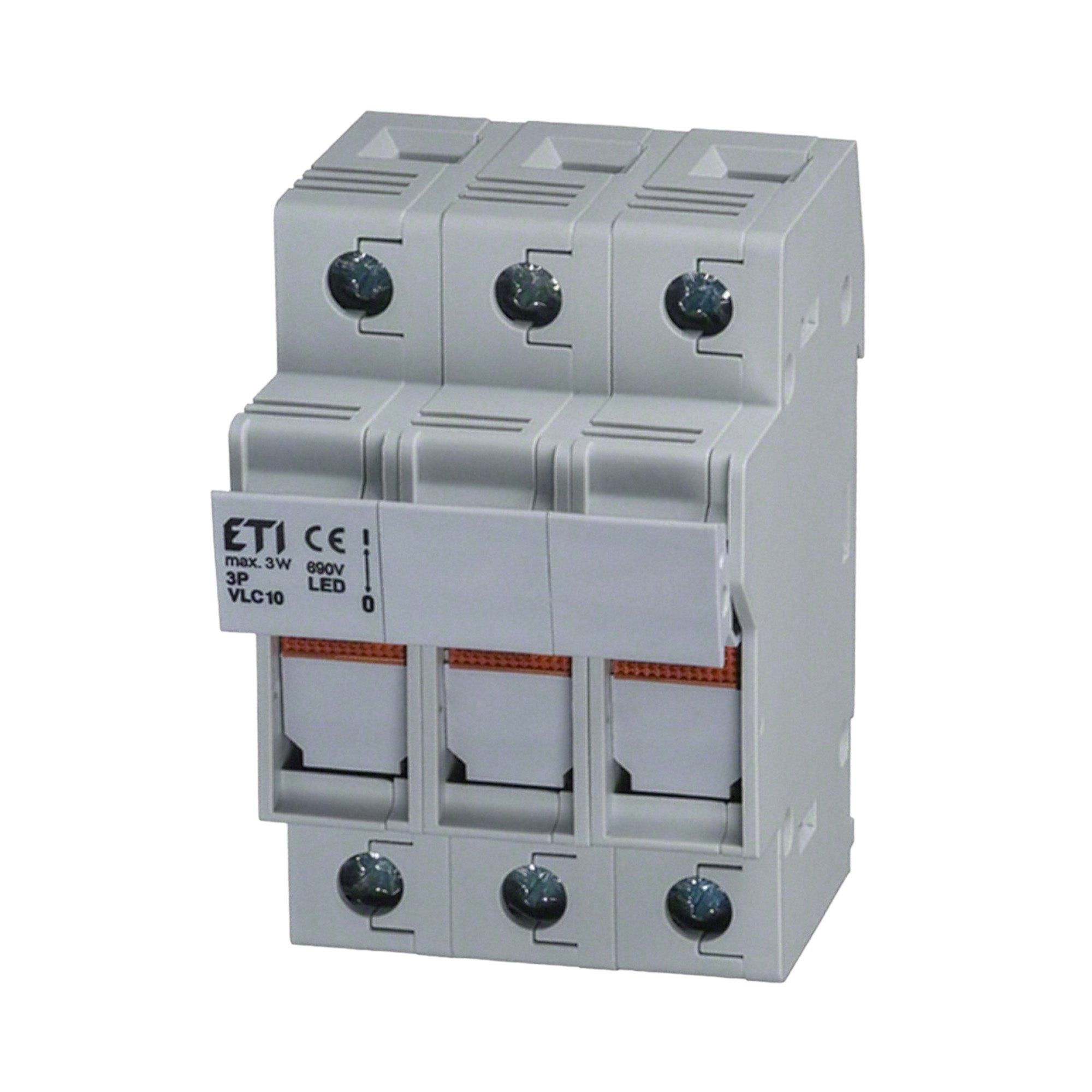

• 2544100    3 Pole, LED Blown Fuse Indicator
