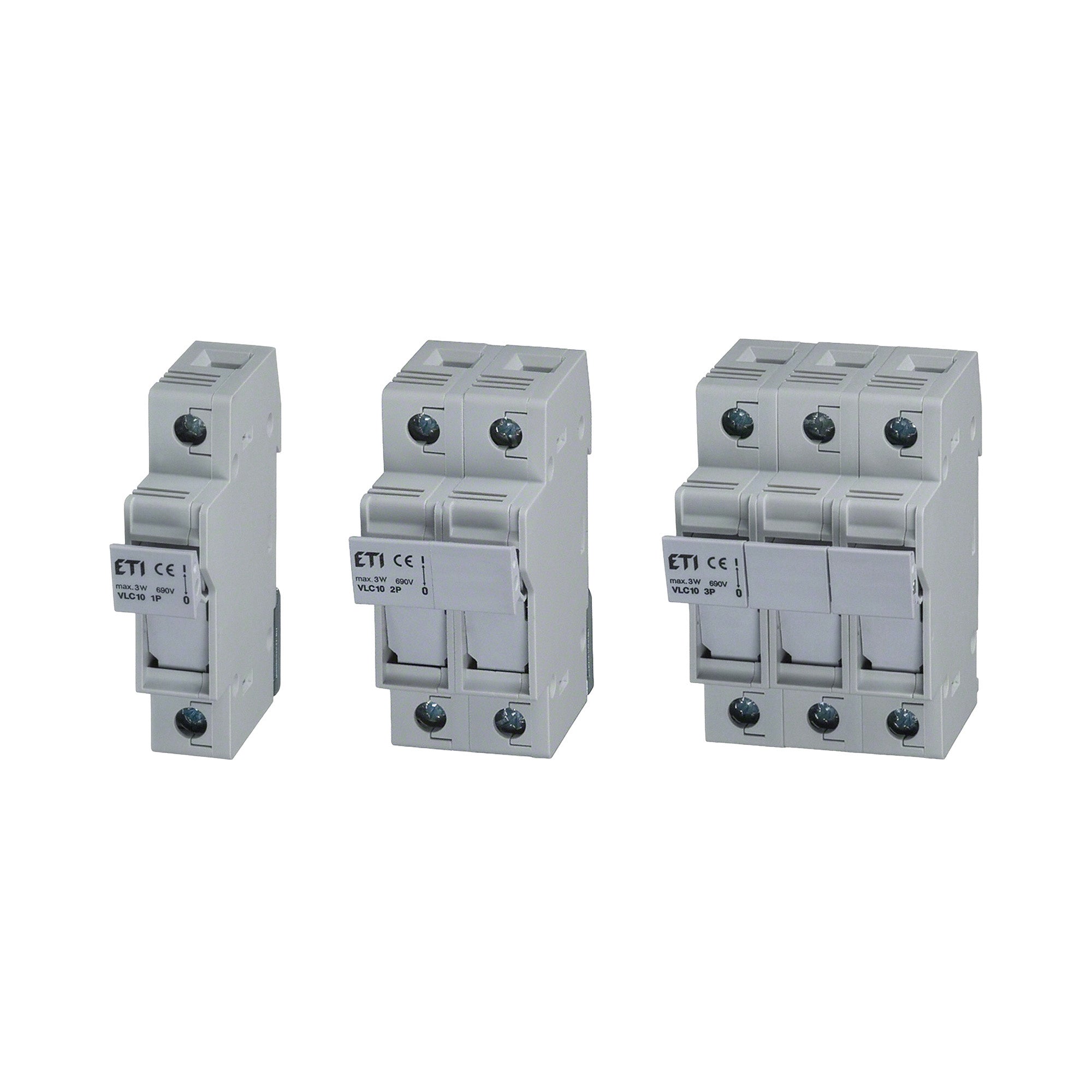

DIN Rail Fuse Holder 1-3 Pole 50A 600V 14x51mm Fuse

DIN Rail mount fuse holder.  1, 2, and 3 pole with Neutral pole option, blinking LED upon fuse failure.

Features

• Evaluated for use with midget 14x51mm fuses

• DIN rail mount (TH 35mm)
• Touchsafe modular design
• Handle allows quick easy fuse change
• Blown fuse led indication (Blinks on failure) is available
• Base Materials: High temperature thermoplastic

Specifications

• Fuse Size: 14 × 51 mm fuse (9/16" × 2")

• Normal Operating Limit: 50 A @ 600 V AC max rating

• Withstand Rating: 100 kA RMS SCCR withstand rating

• Rated AC Voltage: 600 V AC max

• Utilization Category: AC-22B

• Number of Poles: 1 Pole / 2 Pole / 3 Pole (Varies by model)

• Termination Style: Screw terminal / Pressure plate (wire range #2-#10 AWG solid & stranded)

• Mounting Orientation: Vertical (DIN rail mount 35 mm)

• Case Protection: IEC Type IP20 (Touch-safe modular design)

• Contact Surfaces: Silver plated

• Blown Fuse Indication (Optional versions): LED (Blinking on failure) available

• Approvals / Compliance: cUL Recognized, CSA, CE, IEC 60947-1, IEC 60947-3

• Torque: 22–26 in-lb (2.5–3 Nm)

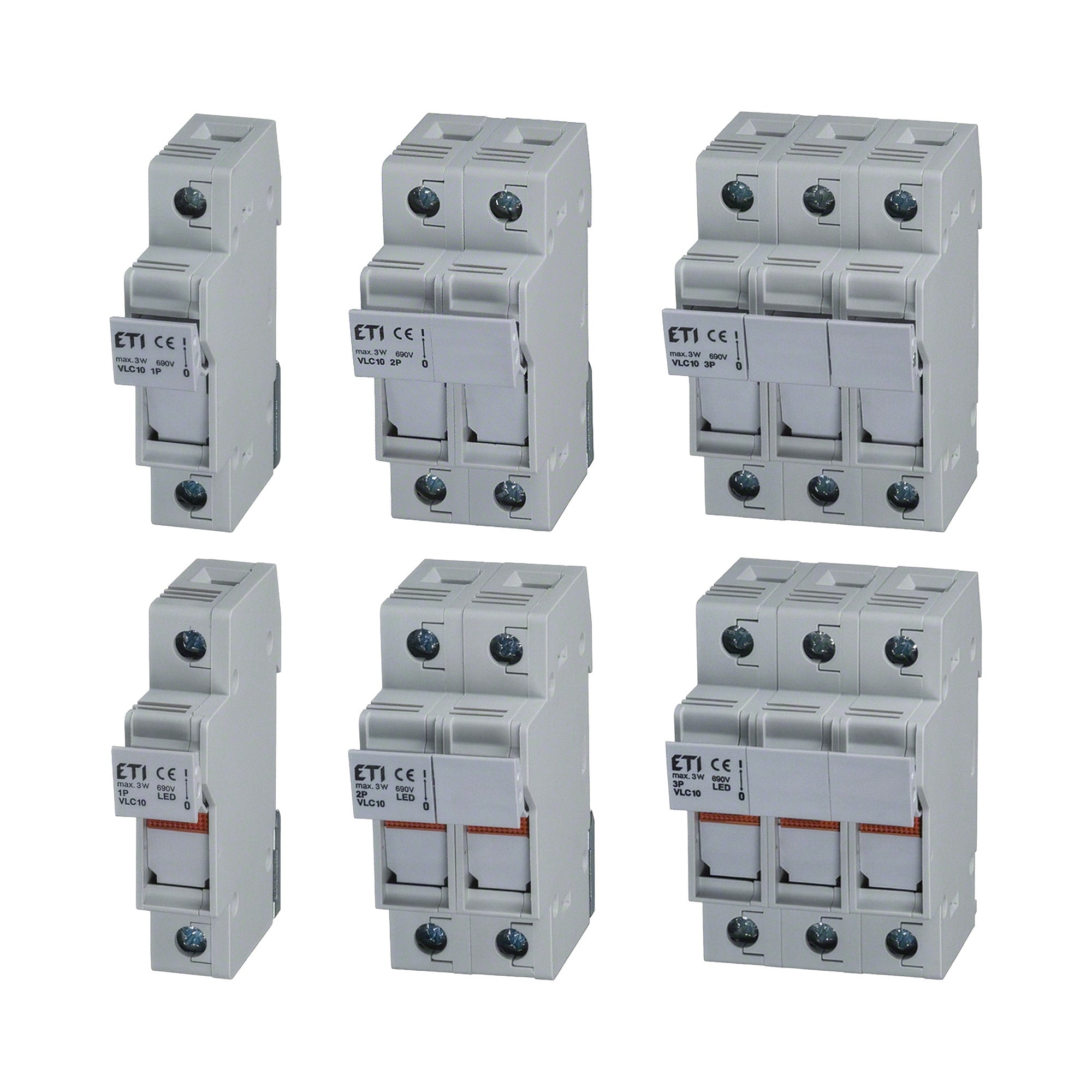

Model Numbers

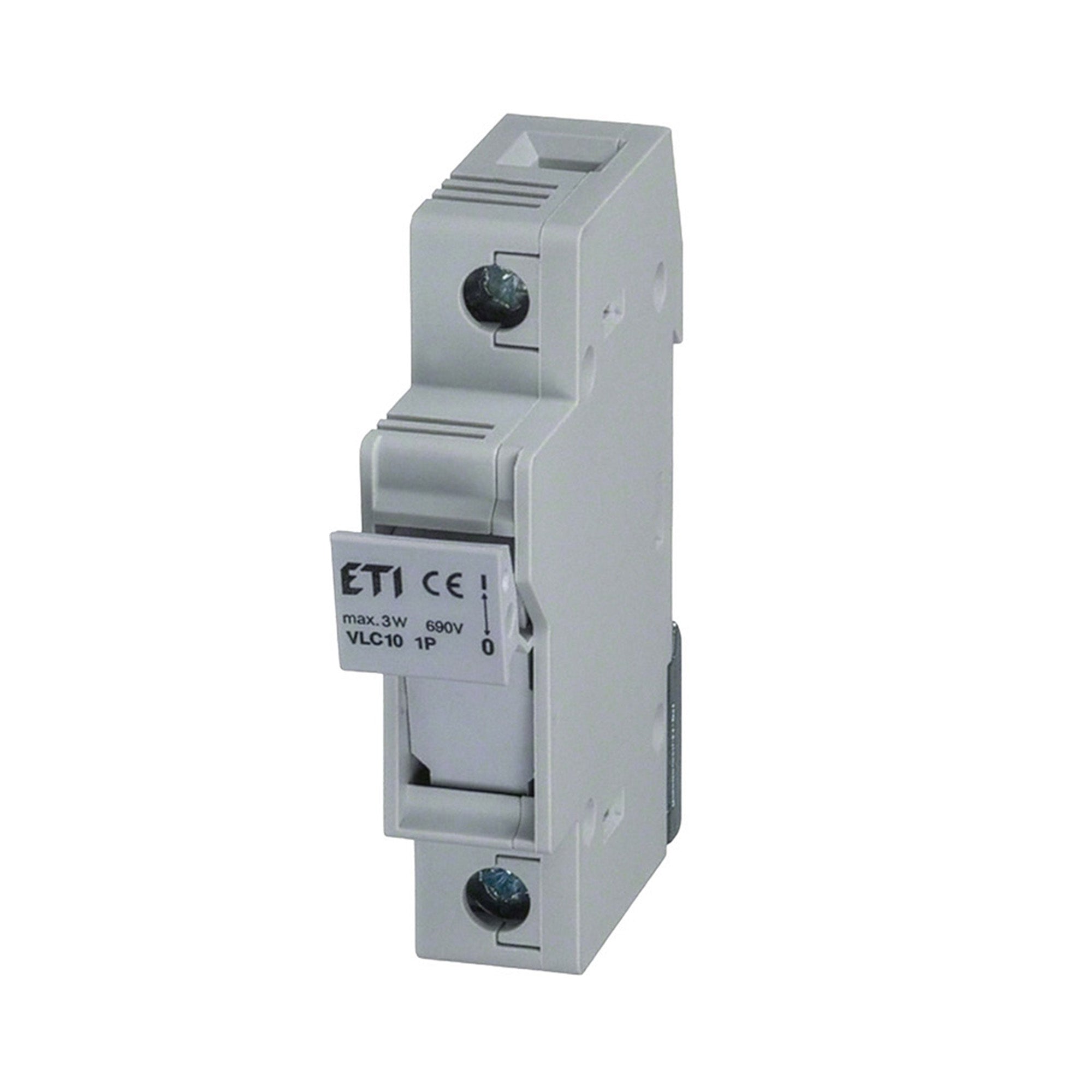

• 2561000    1 Pole

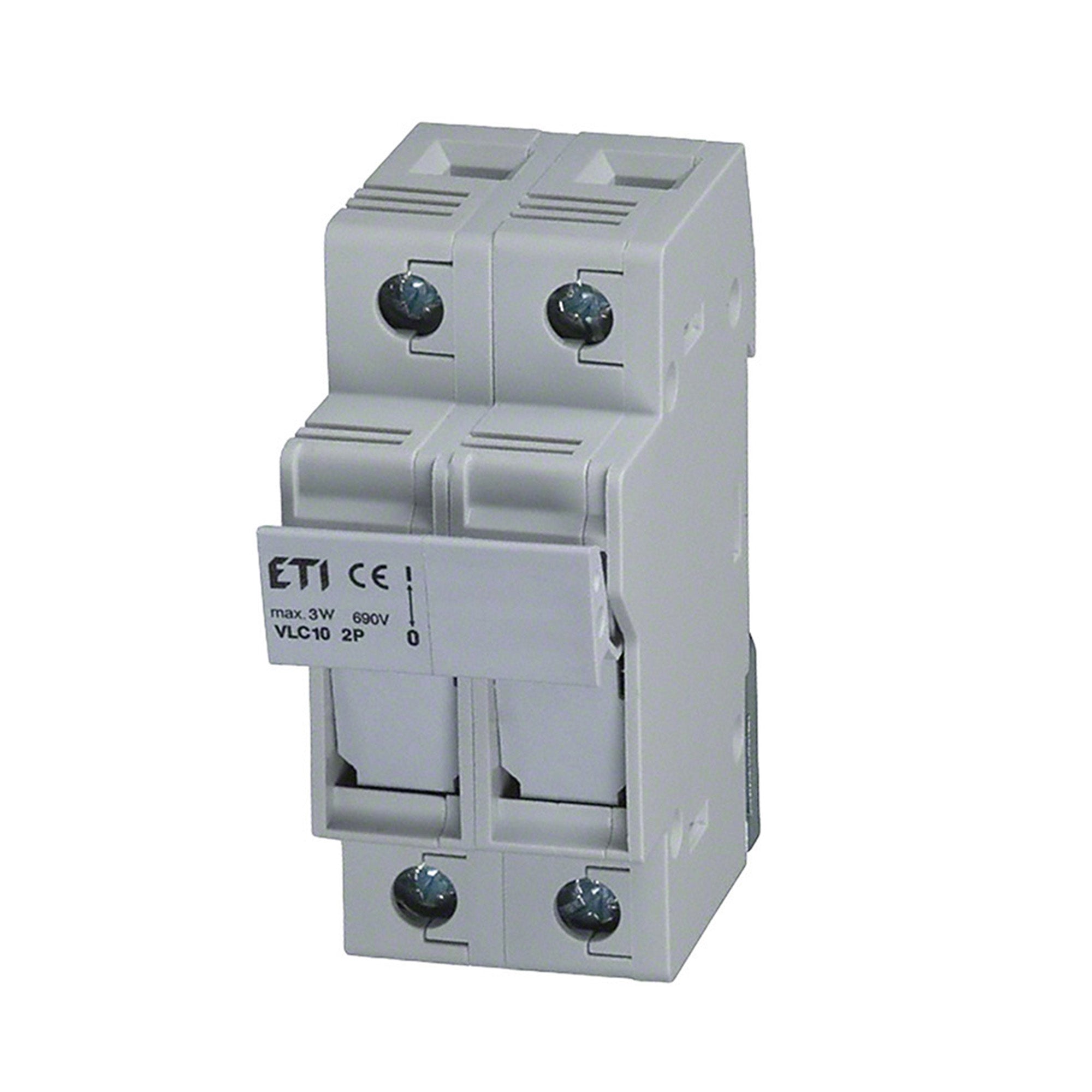

• 2563000    2 Pole

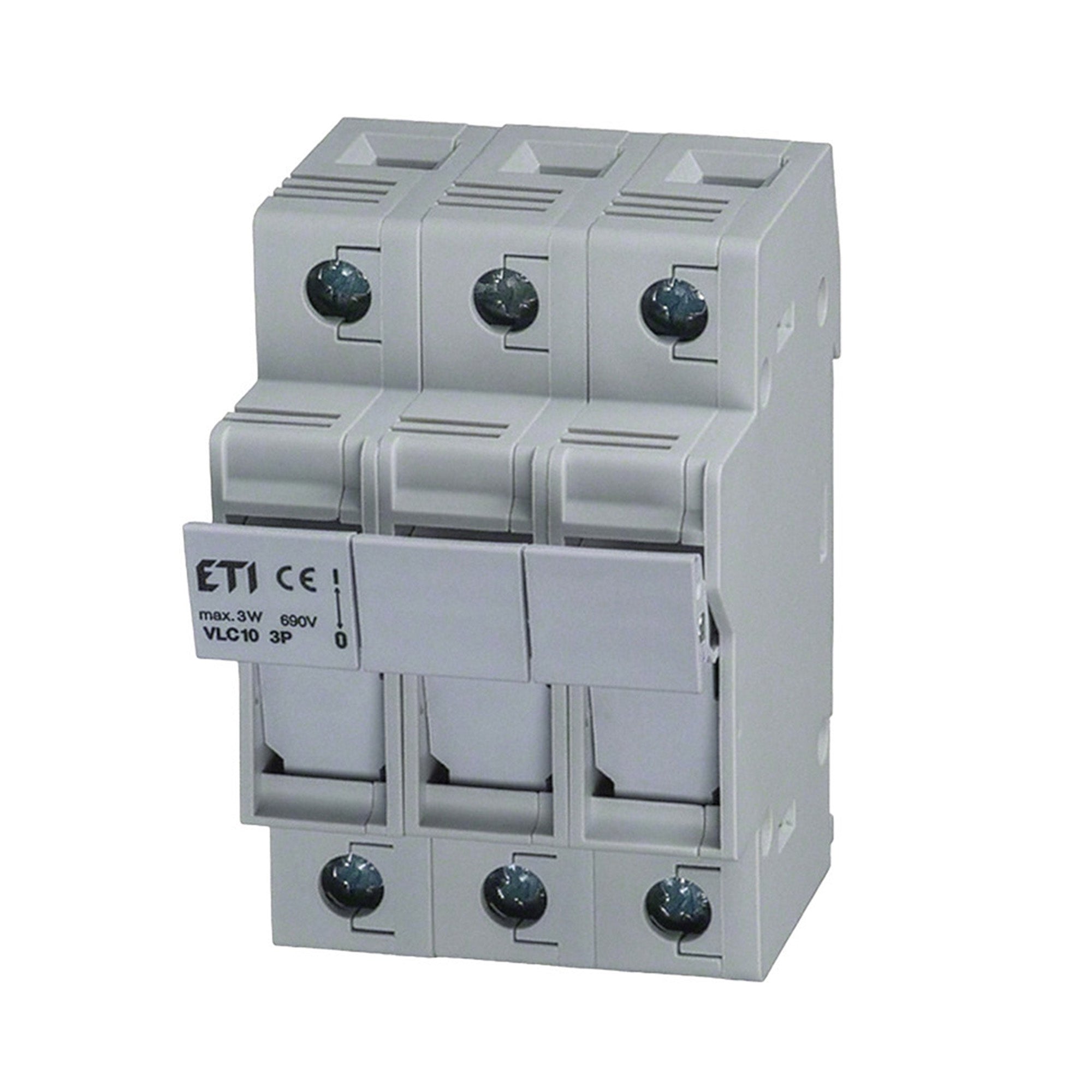

• 2564000    3 Pole
• 2561100    1 Pole, LED Blown Fuse Indicator
• 2563100    2 Pole, LED Blown Fuse Indicator
• 2564100    3 Pole, LED Blown Fuse Indicator
