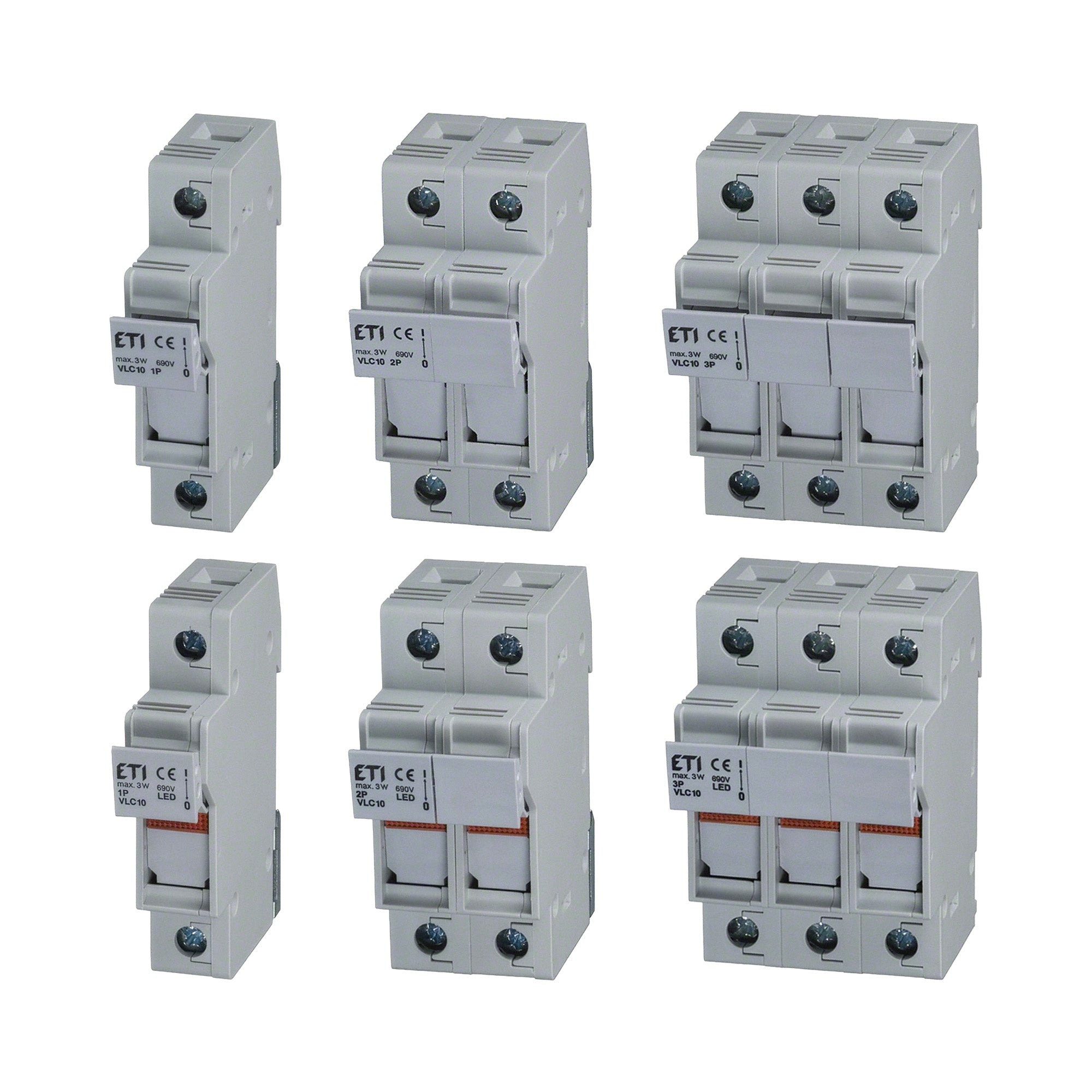

DIN Rail Fuse Holder 1-3 Pole 30A 600V 10x38mm Fuse

DIN Rail mount fuse holder.  1, 2, and 3 pole with Neutral pole option, blinking LED upon fuse failure.

Features

• All contact surfaces are silver plated
• DIN rail mount (TH 35mm)
• Touchsafe modular design
• Handle allows quick easy fuse change
• Blown fuse LED indication (Blinks on failure) is available
• Base Materials: High temperature thermoplastic

Specifications

• Product Type: Fuse Holder / Fuse Disconnector (Modular)

• Fuse Size: 10 × 38 mm (Midget Fuse)

• Rated Current: 32 A

• Normal Operating Limit:  30 amps @ 600 volts max. rating

• Withstand Rating:  100kA RMS SCCR
• Rated AC Voltage: Up to 690 V AC

• Utilization Category: AC-22B

• Number of Poles: 1 Pole / 2 Pole / 3 Pole (Varies by model)

• Termination Style: Screw terminal / Pressure plate

• Mounting Orientation: Vertical

• Case Protection: IEC Type IP20
• Compliance: UL512, UL486E, CE, IEC 60947-1, IEC 60947-3
• Torque: 22-26 in-lb. (2.5-3nm)

Model Numbers

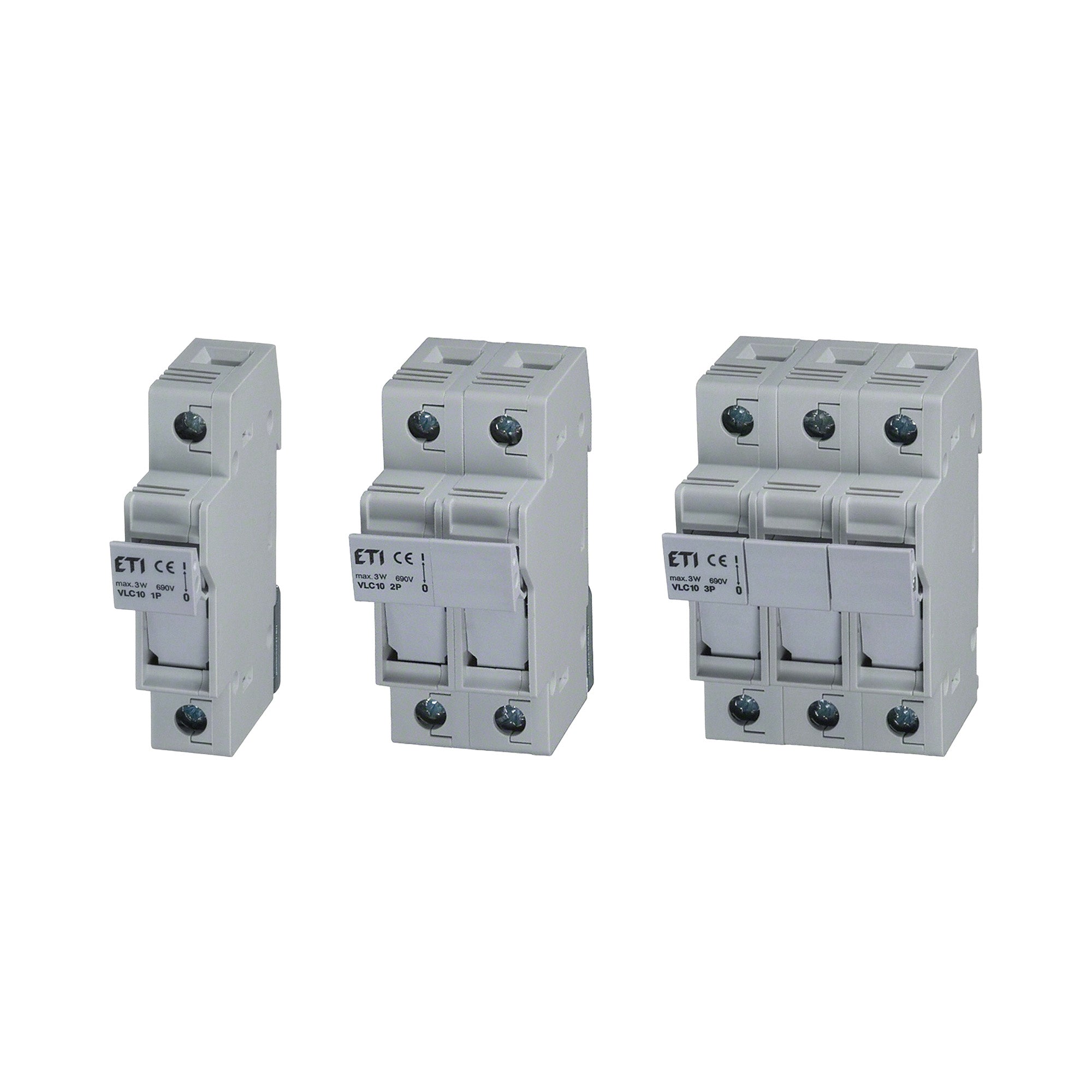

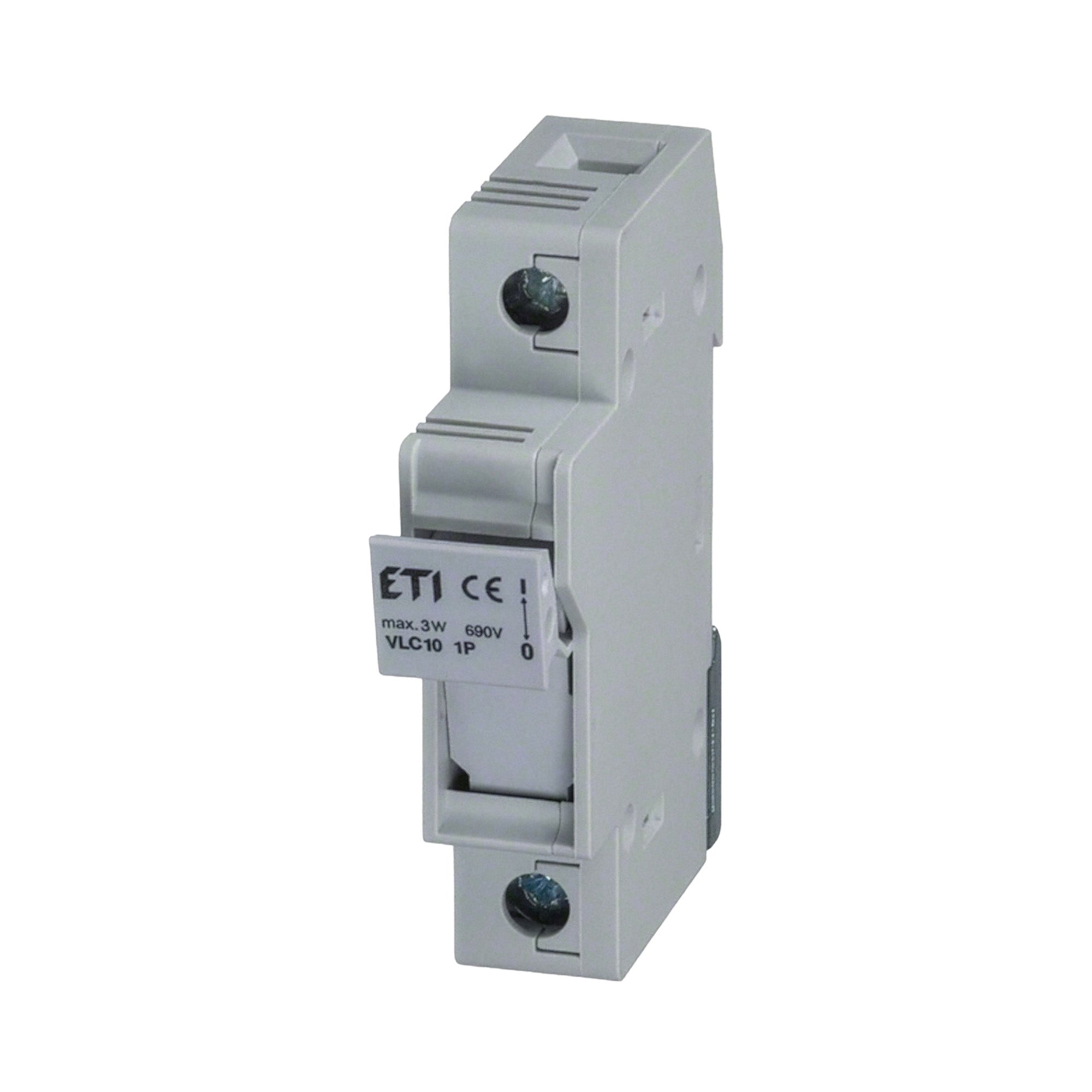

• 2541000    1 Pole

• 2543000    2 Pole

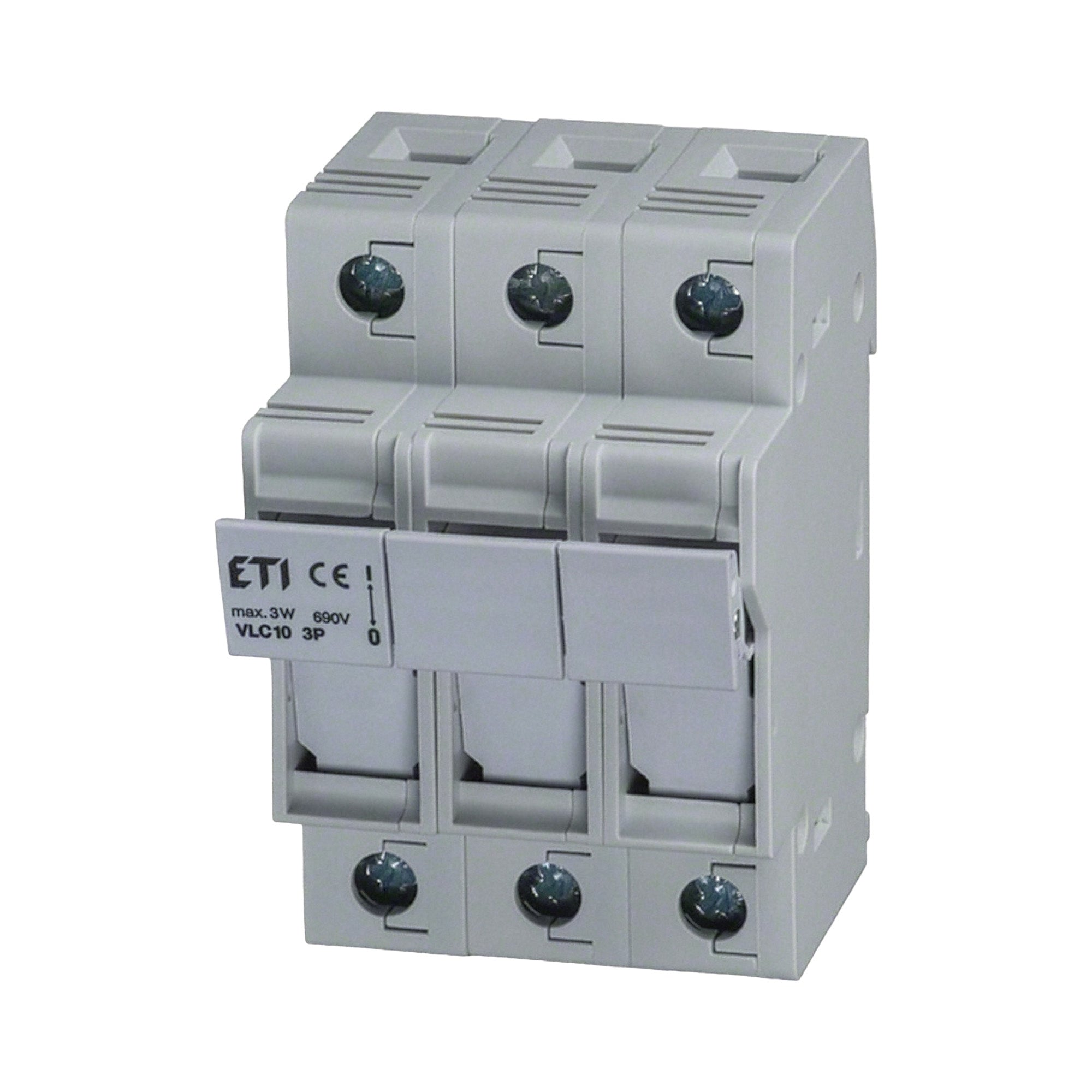

• 2544000    3 Pole
• 2541100    1 Pole, LED Blown Fuse Indicator
• 2543100    2 Pole, LED Blown Fuse Indicator

• 2544100    3 Pole, LED Blown Fuse Indicator
