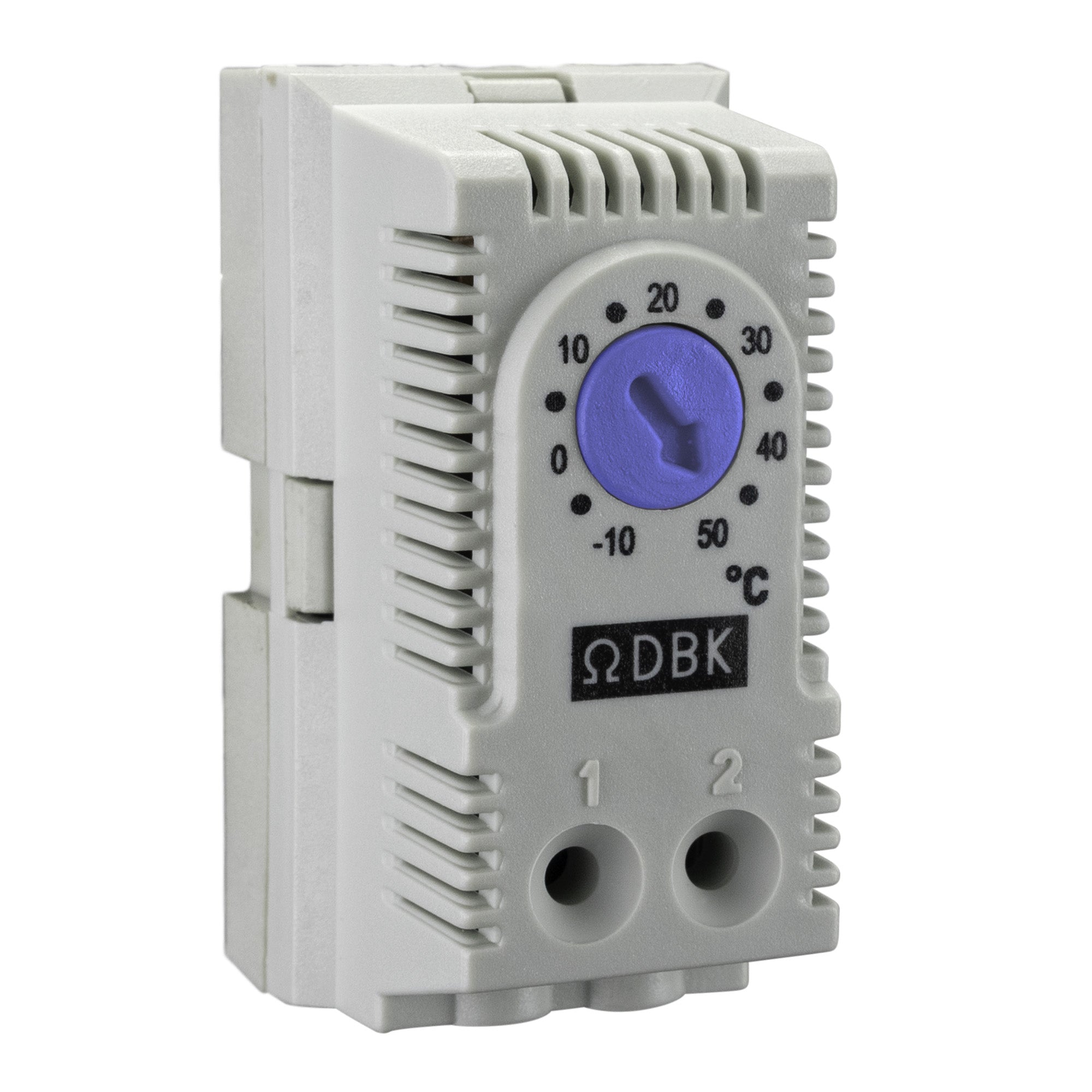

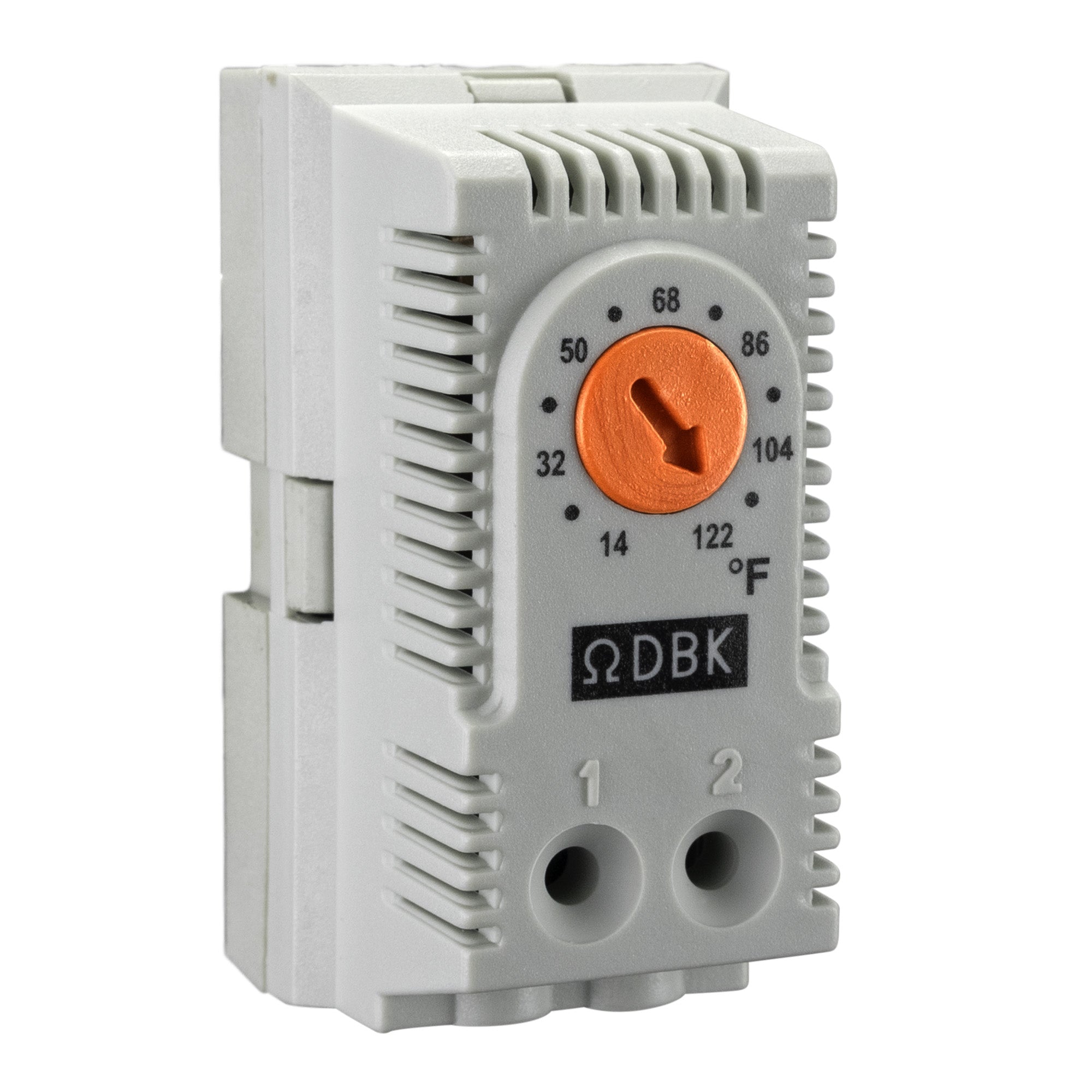

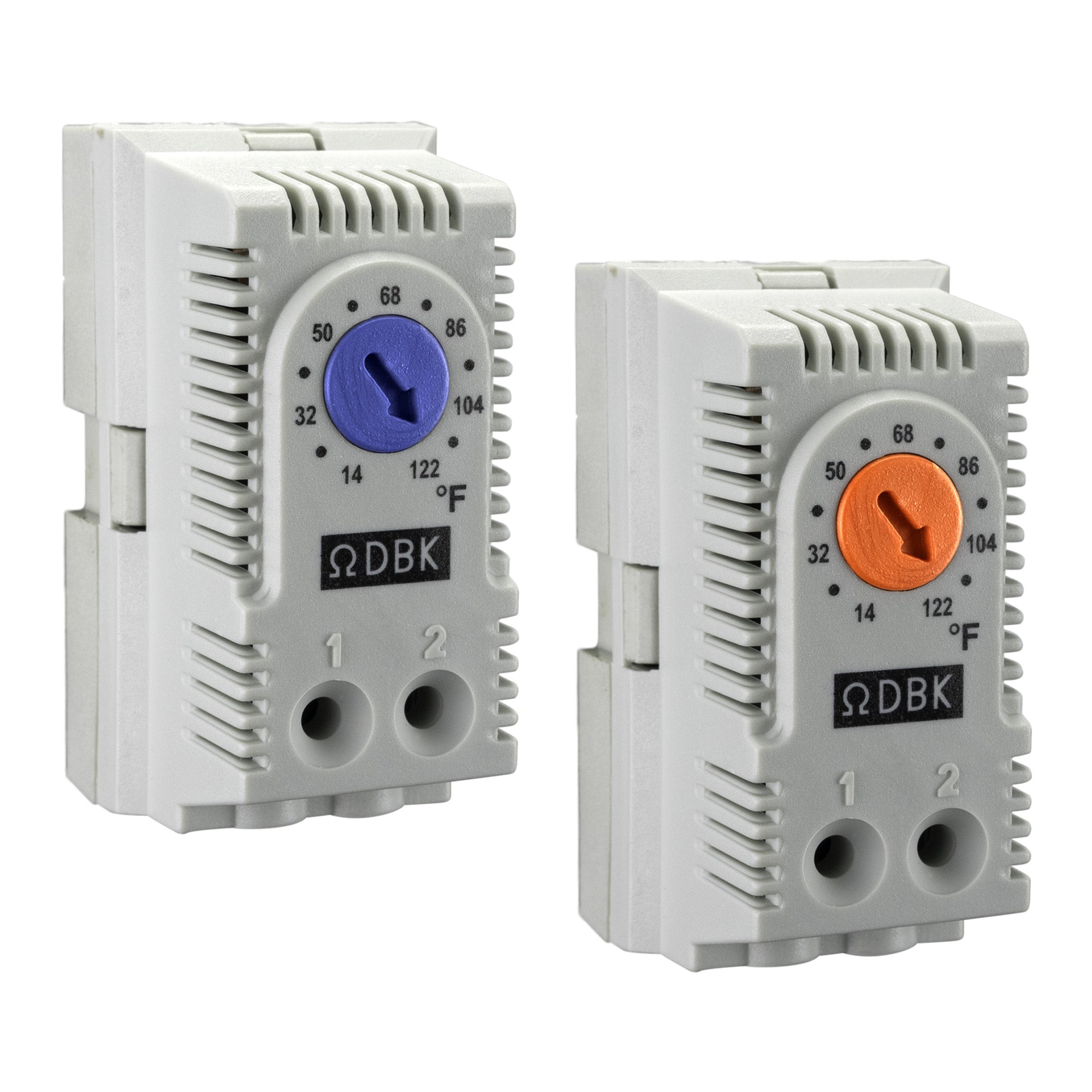

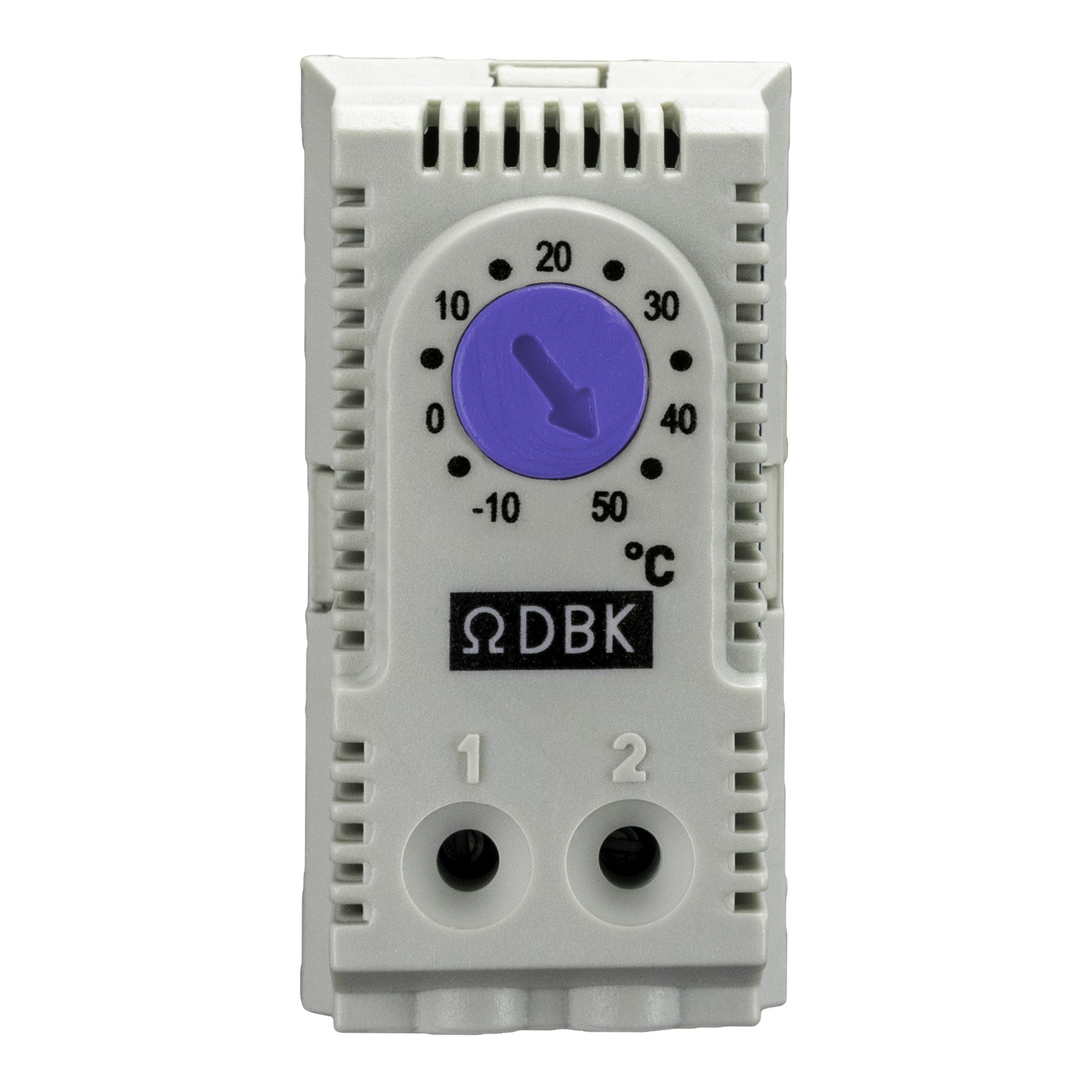

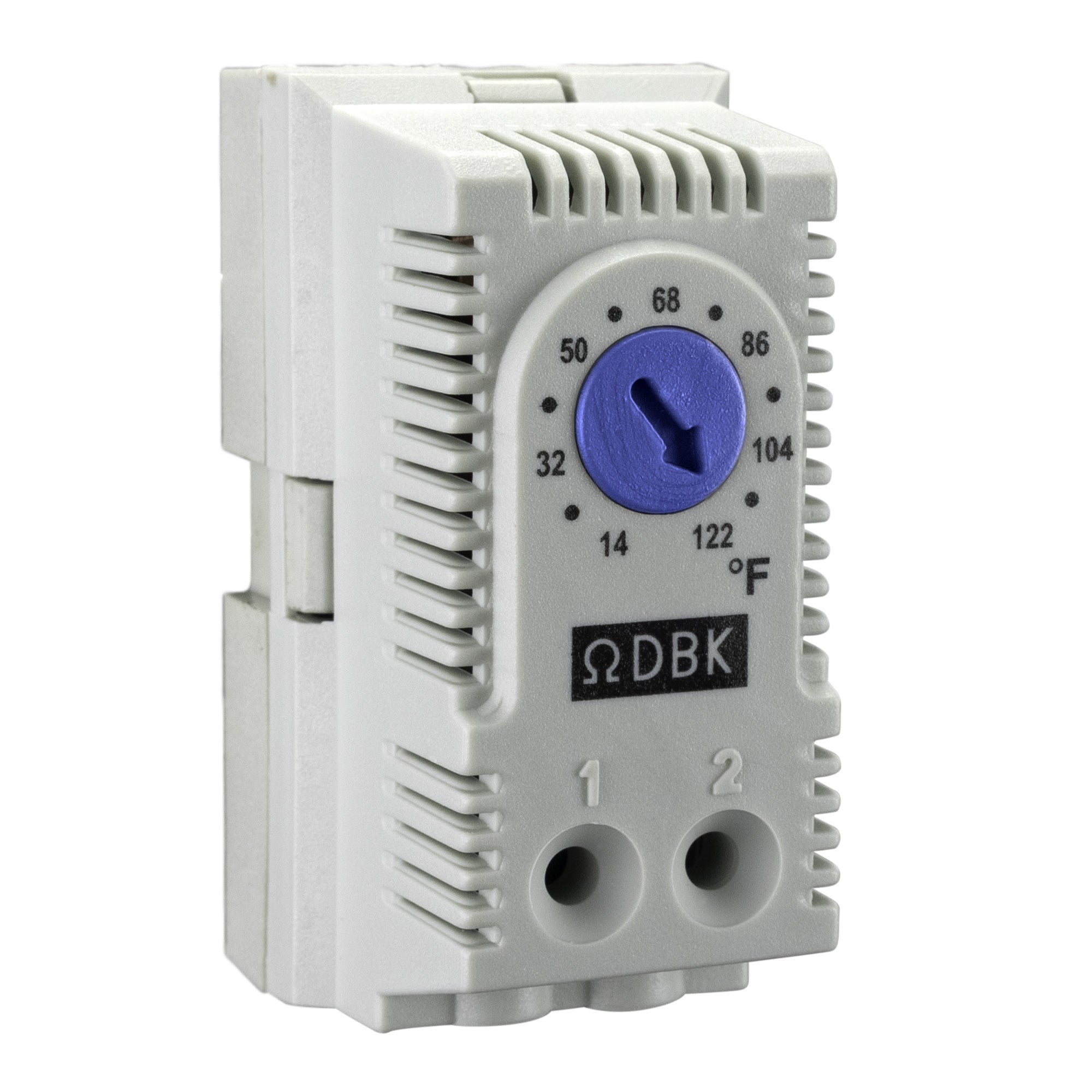

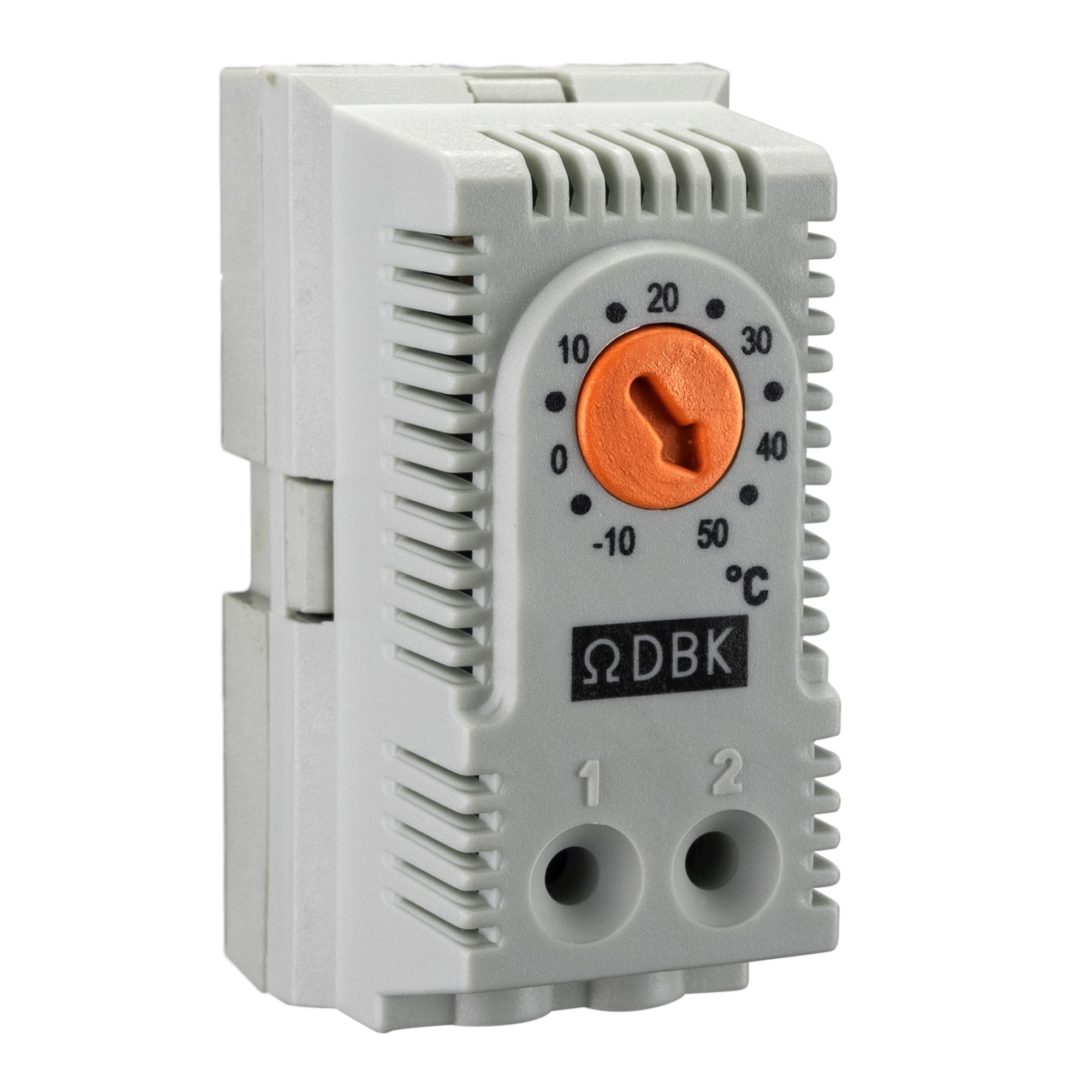

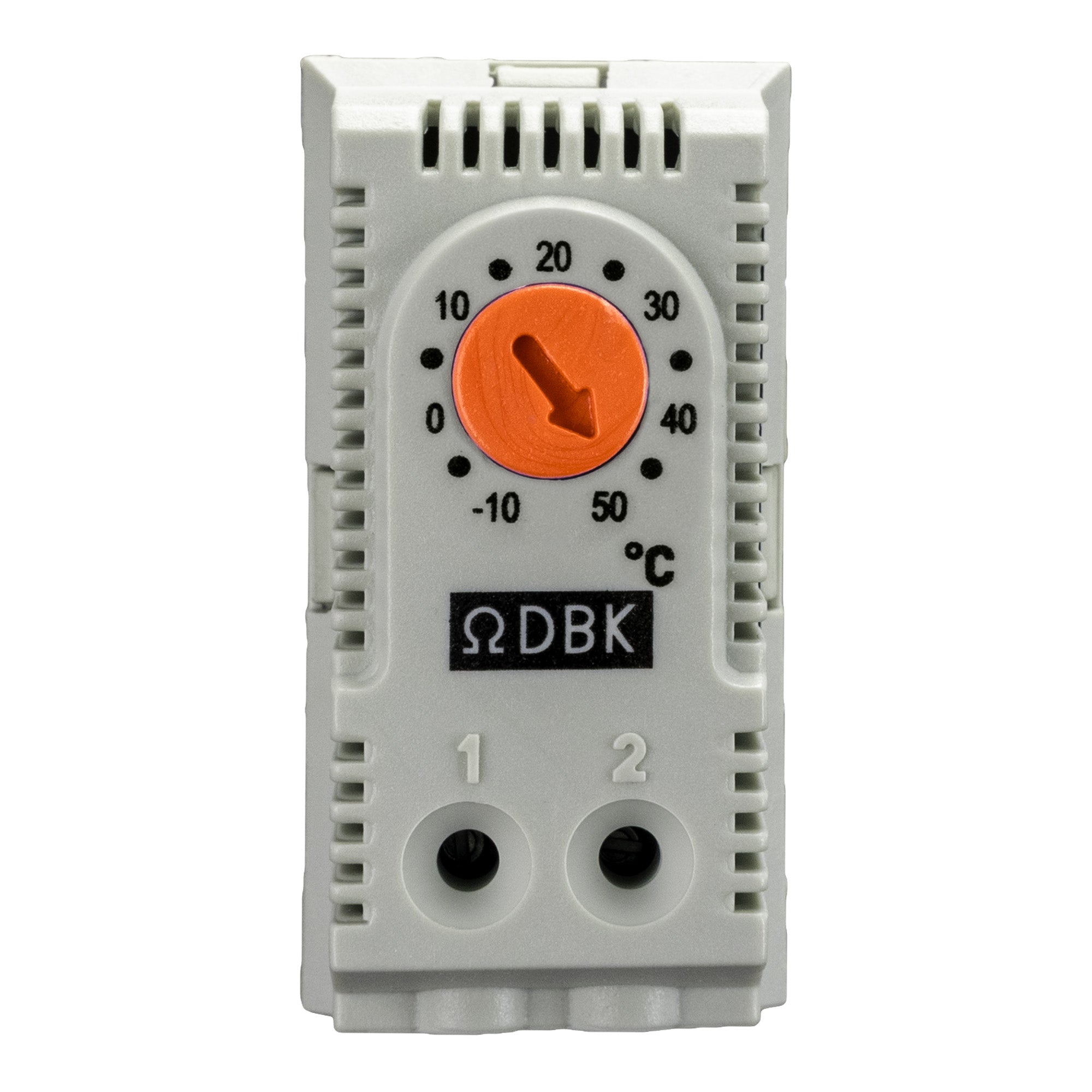

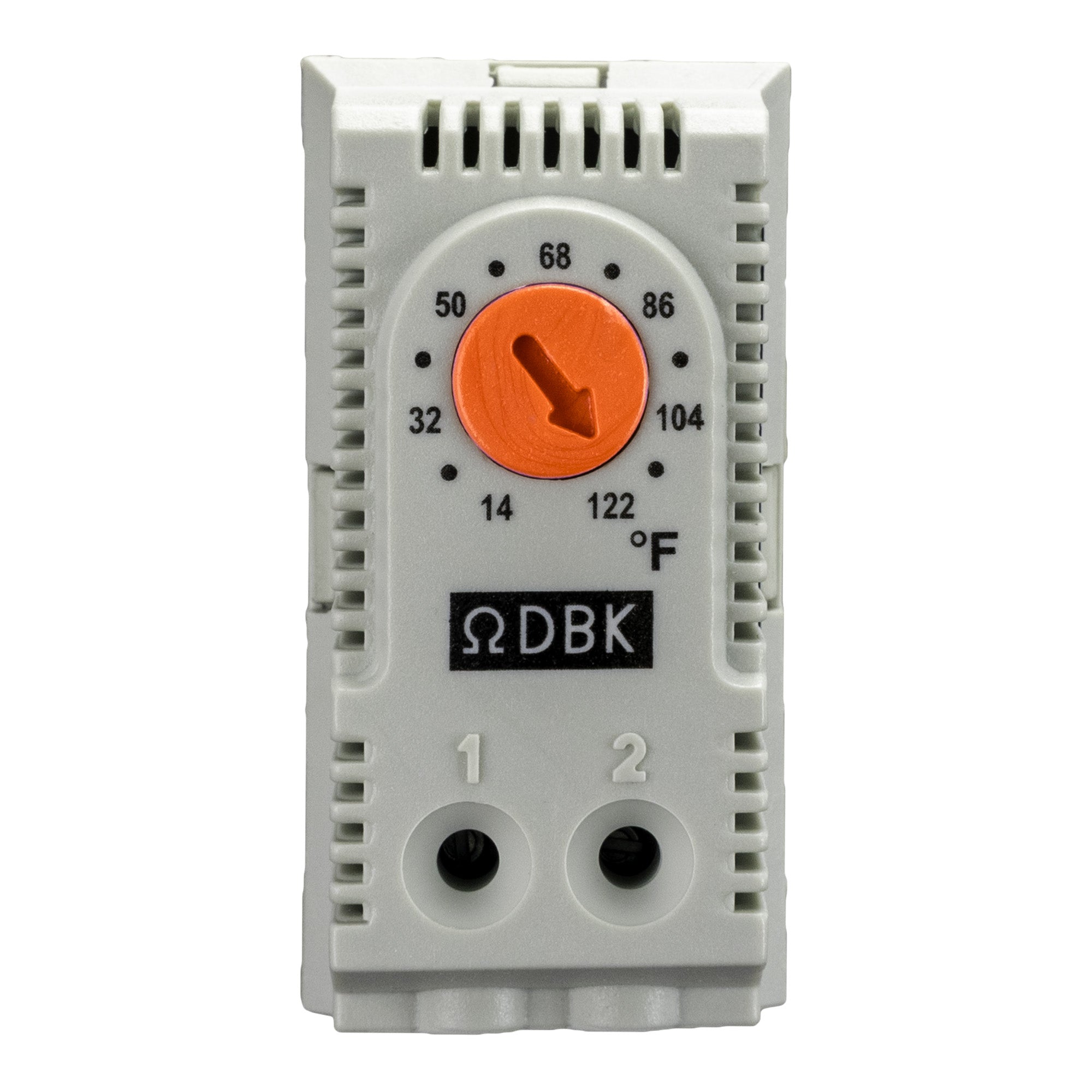

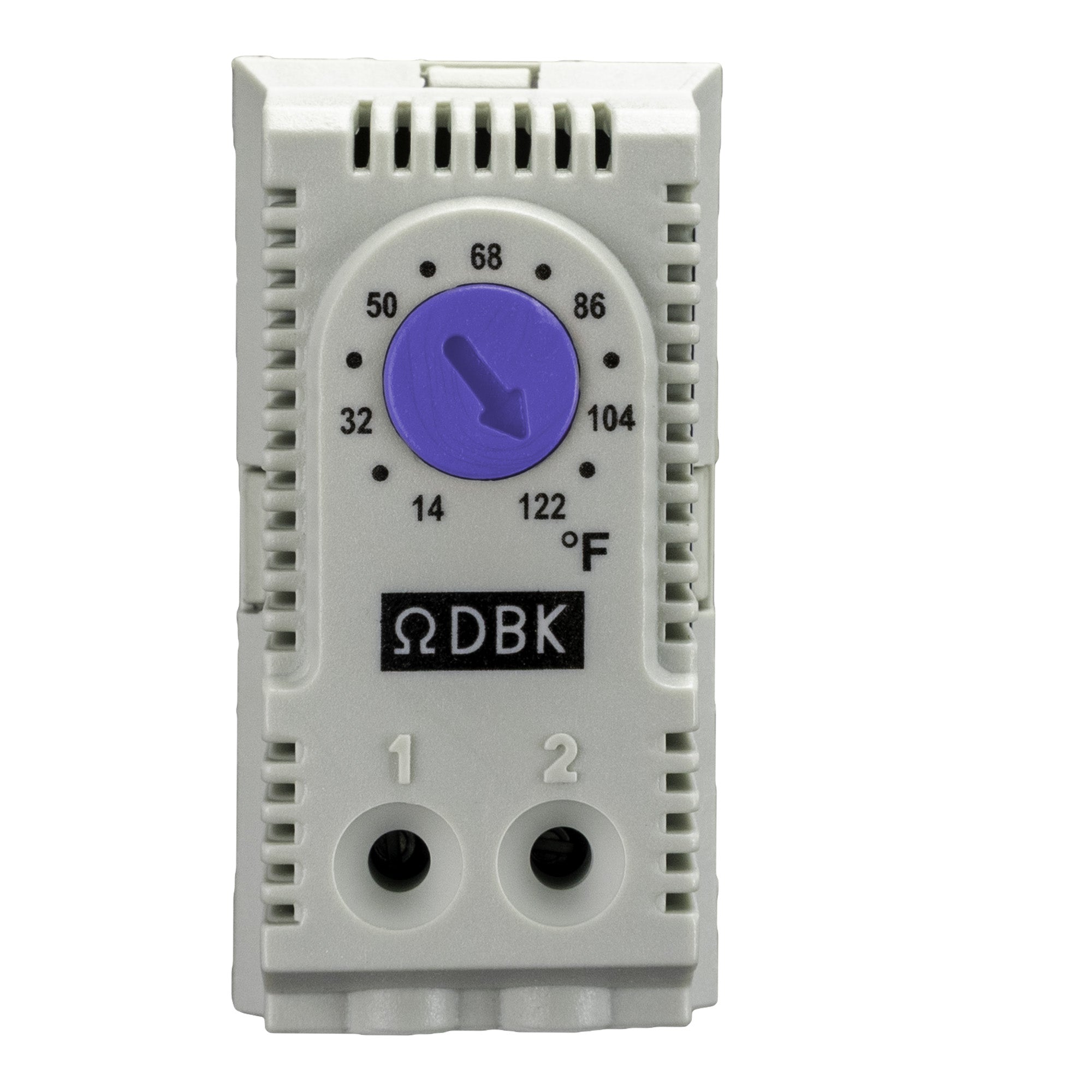

DIN Rail Enclosure Thermostat AC/DC

Specifications

• Function:  Heating Control (Normally Closed) / Cooling Control (Normally Open)

• Temperature Range:  -10 to +50 °C / +14 to +122 °F  and  0 to +60 °C / +32 to +140 °F

• Hysteresis:  7 K ± 4 K

• Current Rating at 240 VAC:  16 A

• Current Rating at 100 VAC:  10 A

• Current Rating at 24 VDC:  2.5 A

• Current Rating at 12 VDC:  5 A

• Voltage (AC):  100-240 V

• Voltage (DC):  12-24 V

• Degree of Enclosure Protection:  IP 30 (terminals IP20)

• Electrical Protection Class:  II

• Dimensions: (L×W×H):  65×33×43 mm / 2.56×1.3×1.69 in

• Operating Temperature:  -20 to +80 °C / -4 to +176 °F

• Storage Temperature:  -40 to +80 °C / -40 to +176 °F

• Connection:  2 × 2 pole terminals

• Max Clamping Torque:  4.5 in·lbf

• Wire Gauge:  14-22 AWG
