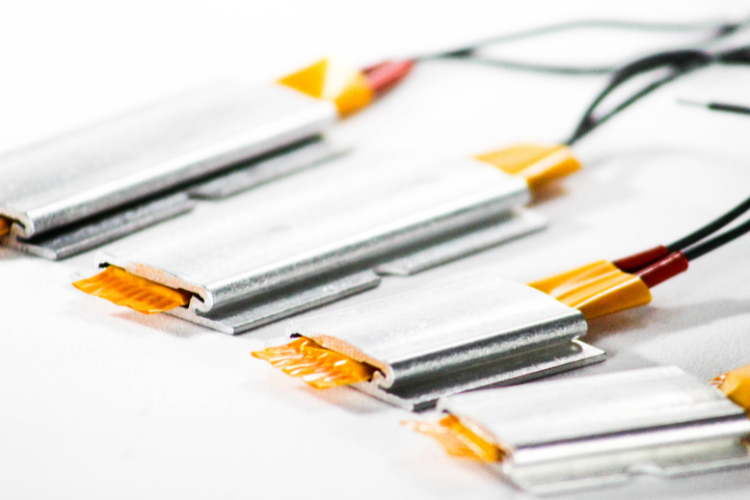

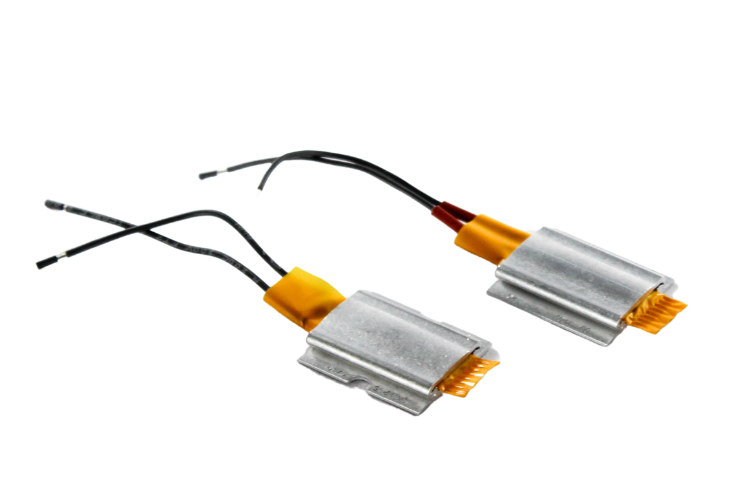

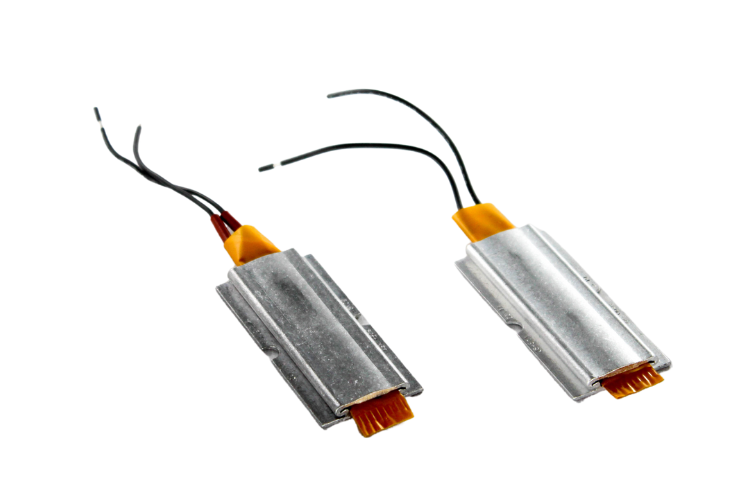

DBK Finned Heating Profiles HPG Compact PTC Contact Heater 10W to 30W

PTC Contact Heaters of the HPG series are available in three power versions (10W, 20W, 30W) and three voltage versions (24V, 115V, 230V) with a maximum surface temperature of 428°F.

Features

• Power up to 30W
• Surface temperature up to 428°F
• Voltage versions of 24V, 115V, 230V
• Compact heating element with high power density
• Highly effective heat transfer provided by the finned aluminum housing
• Flexible installation via outer profile surface

Specifications

• Nominal Power Output: 24 W (For HPG 1/22 Models)

• Nominal Input Voltage: 24 V, 115 V, 230 V

• Maximum Heater Temperature: 220 °C / 428 °F

• Surface Temperature +5/−10 °C: (Value Applies as Listed for Surface Profile)

• Operating Temperature: −30 to +70 °C / −22 to +158 °F

• Storage Temperature: −40 to +70 °C / −40 to +158 °F

• Ingress Protection (EN 60529): IP20

• Electrical Protection Class: II

• Lead Wire Type: Silicone AWG 20

• Lead Wire Length: 300 mm / 11.8″

• Wire Termination: Splice Crimp 6 mm

• Dimensions (Cross Section): 38.5 × 17.5 mm / 1.52 × 0.69″

• Dimensions (Length): 30 mm / 1.18″, 60 mm / 2.36″

• Mounting Holes Distance: 18 mm / 0.71″; 30 mm / 1.18″; 40 mm / 1.57″ (Varies by model)

• Weight: 26 g / 0.92 oz; 36 g / 1.27 oz; 42 g / 1.48 oz (Varies by model)

Model Numbers

• 10070: 10W 24V DC
• 10010: 10W 115V AC
• 10020: 10W 230V AC
• 10170: 20W 24V DC
• 10110: 20W 115V AC
• 10120: 20W 230V AC
• 10270: 30W 24V DC
• 10210: 30W 115V AC
• 10220: 30W 230V AC
