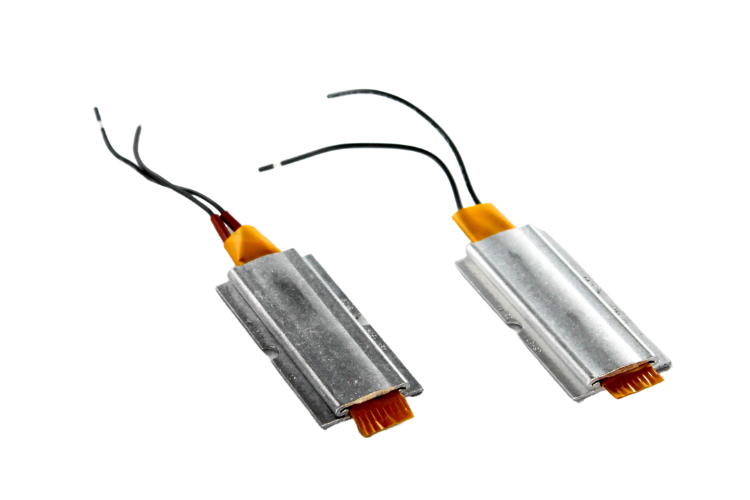

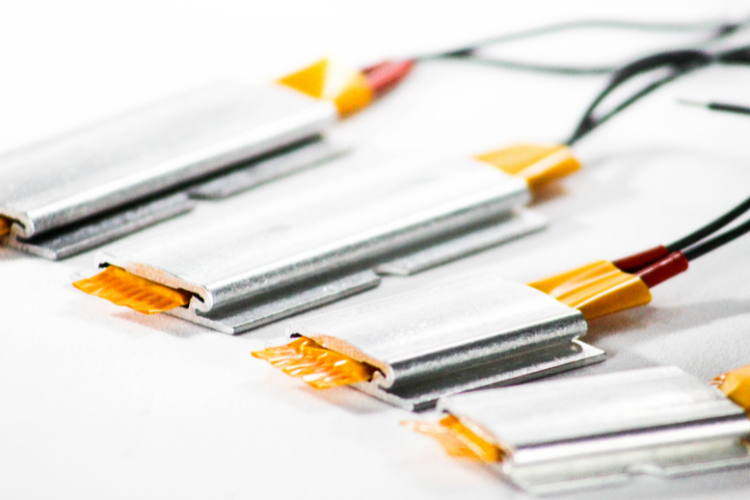

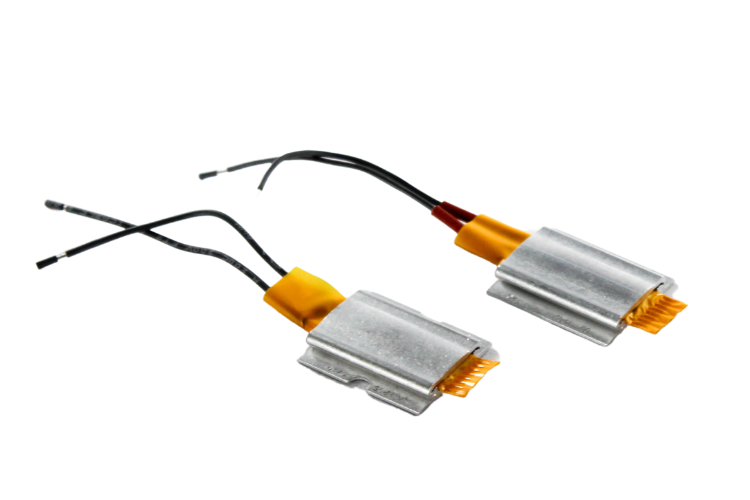

DBK Flange Heating Profiles HPG Compact PTC Contact Heater 8W to 13W

PTC Contact Heaters of the HPG series are available in three power versions (8W, 10W, 13W) and three voltage versions (24V, 115V, 230V) with a maximum surface temperature of 302°F.

FEATURES

• Power up to 13W
• Surface temperature up to 302°F
• Voltage versions of 24V, 115V, 230V
• Compact heating element with high power density
• Highly effective heat transfer provided by the finned aluminum housing
• Flexible installation via outer profile surface

Specifications

• Nominal Power Output (W): 8, 10, 13

• Nominal Input Voltage (V): 24, 115, 230

• Surface Temperature +5 / −10 °C (°F): 302 °F

• Operating Temperature (°F): −22 to +158 °F

• Storage Temperature (°F): −40 to +158 °F

• Dimensions — Cross Section (″): 1.1 × 0.28

• Dimensions — Length (″): 1.18, 1.97, 2.36

• Mounting Holes Distance (″): 0.71, 1.18, 1.57

• Lead Wire Type: Silicone AWG 20

• Lead Wire Length (″): 11.8

• Wire Termination: Splice Crimp 6 mm

• Weight (oz): 0.6, 0.74, 0.81

• Electrical Protection Class: II

• Ingress Protection (EN 60529): IP20

Model Numbers

• 03375: 8W 24V DC
• 03315: 8W 115V AC
• 03325: 8W 230V AC
• 03475: 10W 24V DC
• 03415: 10W 115V AC
• 03425: 10W 230V AC
• 03575: 13W 24V DC
• 03515: 13W 115V AC
• 03525: 13W 230V AC
