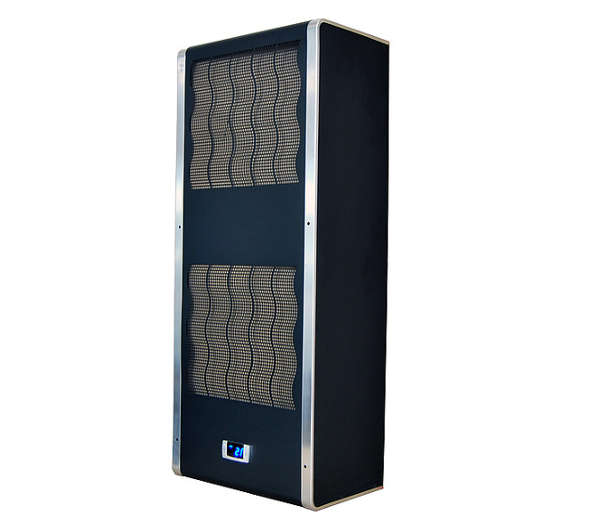

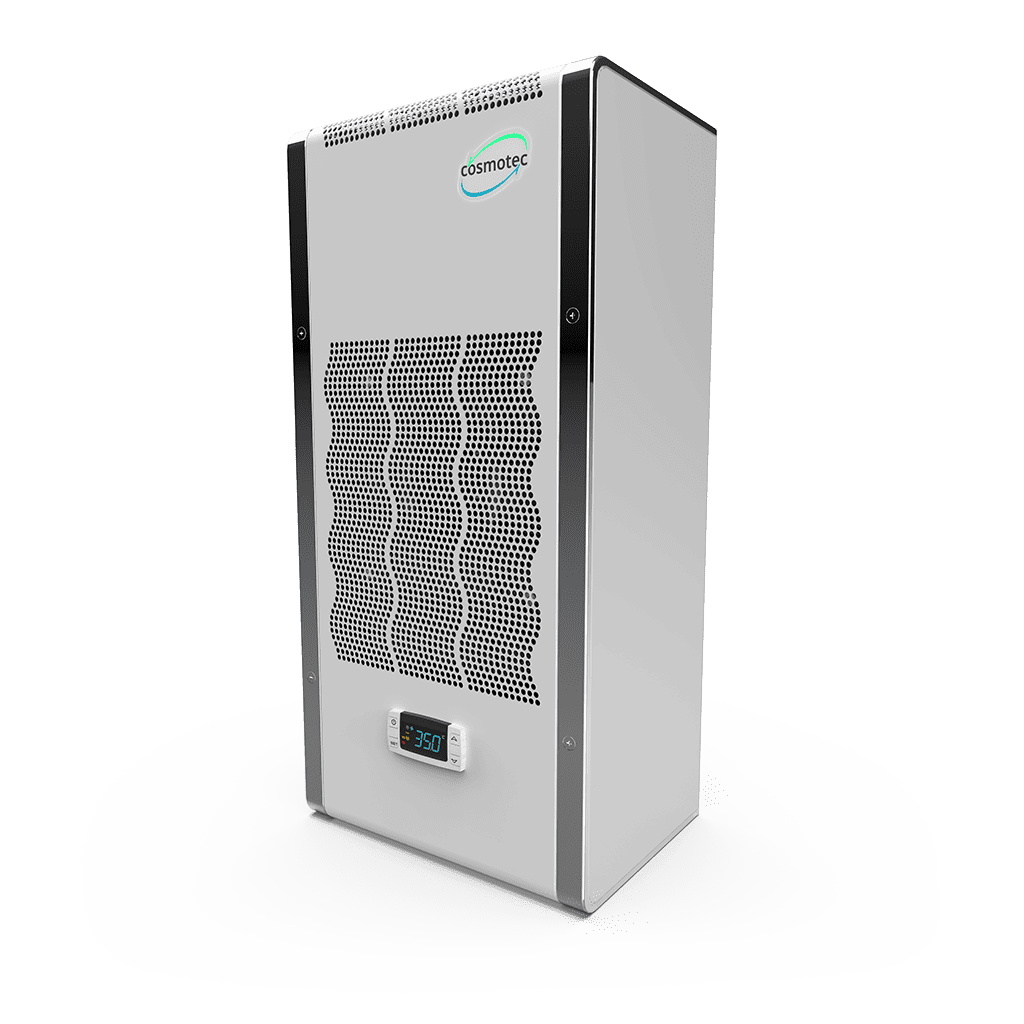

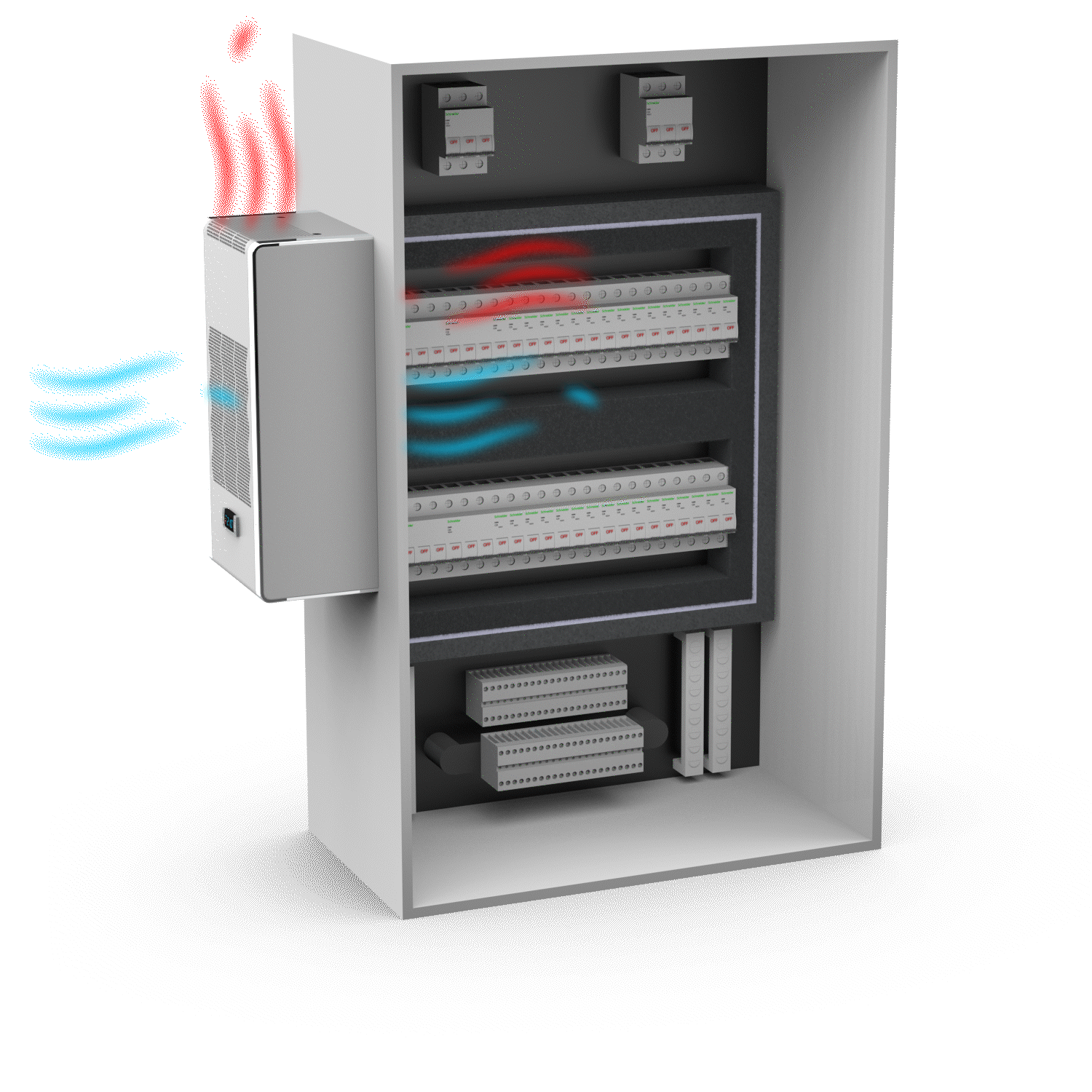

CVE Protherm Indoor Wall Mounted Enclosure Air Conditioner 360W to 5600W

• Air Conditioners for wall and Door Mounting
• Cooling Capacity 360 - 5,600 W
• CVE 00S available for semi-flush mounting
• Electronic Board XCB + Display
• SEM and SEM² functions (With accessory)
• Sequencing and Modbus (With accessory)
• Condensate dissipating device from CVE11 and on CVE0700S
• Quick Connections (CE Version)
• µchannel condenser (From CVE11)
• General Alarm contacts and remote control standard (Except CVE03)

Specifications

• Product Type: Indoor enclosure air conditioner
• Series: PROTHERM Indoor
• Mounting Type: Door or side-panel mounted
• Cooling Capacity: 500 W to 4000 W (Varies by model)
• Power Supply: 115 V AC / 230 V AC (Varies by model)
• Frequency: 50 / 60 Hz
• Rated Current: Varies by model
• Power Consumption: Varies by model
• Temperature Control: Integrated electronic thermostat
• Set Point Range: Adjustable
• Ambient Operating Temperature: –20 °C to +55 °C
• Enclosure Protection (Internal): IP54
• Enclosure Protection (External): IP24
• Refrigerant: R134a
• Airflow (Internal): Forced air circulation
• Condensate Management: Self-evaporating condensate system
• Housing Material: Painted sheet steel
• Color: RAL 7035 (light gray)
• Noise Level: Low-noise operation (model dependent)
• Installation Orientation: Vertical
• Compliance: CE
