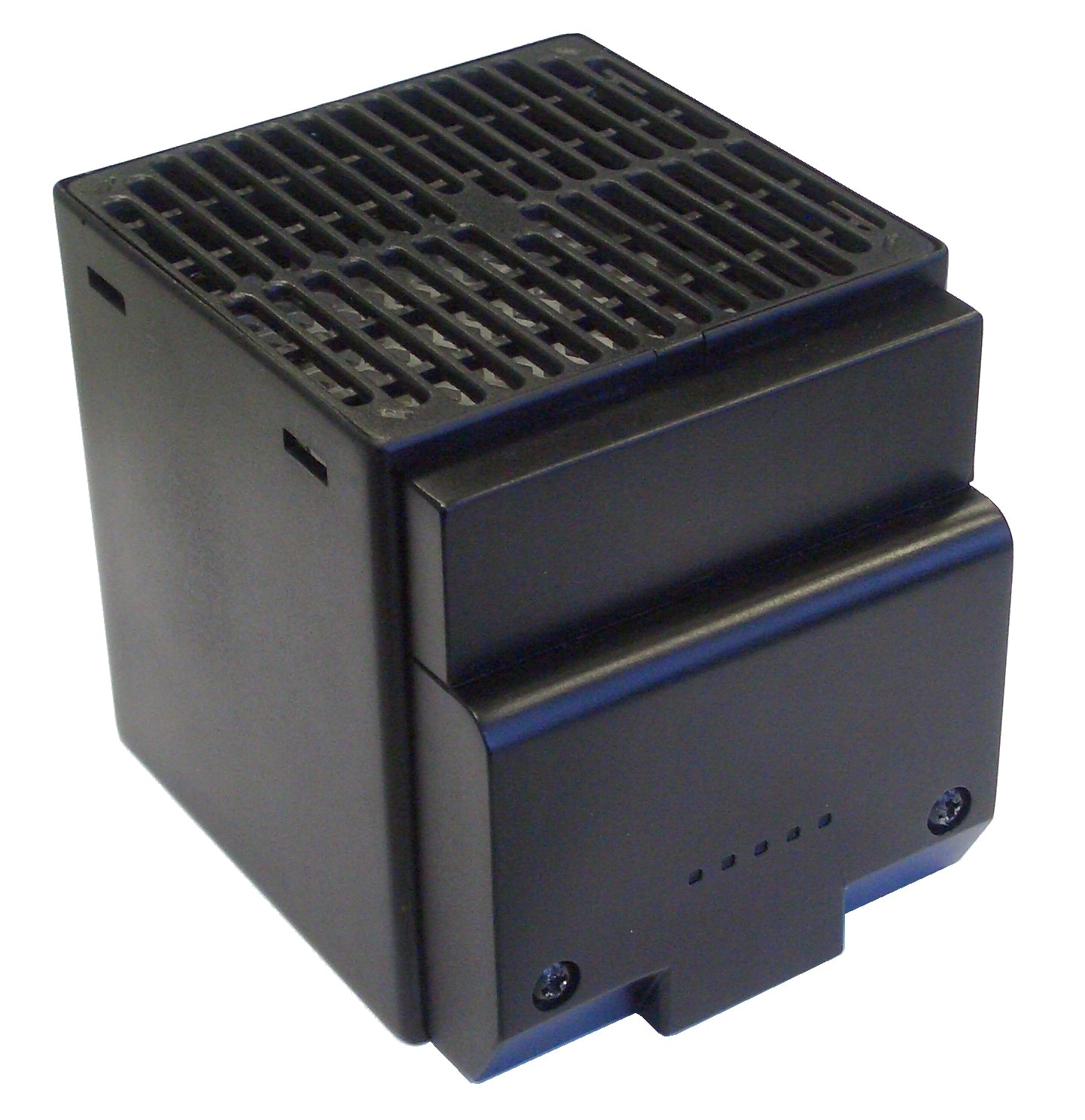

CSL 028 DIN Rail Enclosure Touch Safe PTC Fan Heater 250W to 400W

The CSL 028 fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. The heater is connected using the internal terminal connectors. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design. The CS 028’s small size make it ideal for use in enclosures where space is at a premium.

Features

DIN rail mount or screw mount
Comact Size
Quiet operation
Heating power adjusts to ambient temperature
Protection Class IP20
Operating / Storage Temperature: -40 to +158°F / -49 to +158°F
Weight: 17.6 oz. (500 g)

Specifications

Power: 400 W
Voltage: 230 VAC, 50/60 Hz
Max. Current: 15 A (inrush)
Agency Approvals: UL, VDE
Heating Element: PTC resistor, temperature limiting
Housing: plastic, UL 94V‑0, black
Surface Temperature at Housing: 149 °F (65 °C)
Axial Fan, Ball Bearing: 40,000 h at 104 °F (40 °C)
Air Flow, Free Blowing: 26 cfm (45 m³/h)
Connection: 2‑pole terminal, AWG 14 max (2.5 mm²)
Mounting: Clip for 35 mm DIN rail (EN 60 715)
Position: Preferably vertical

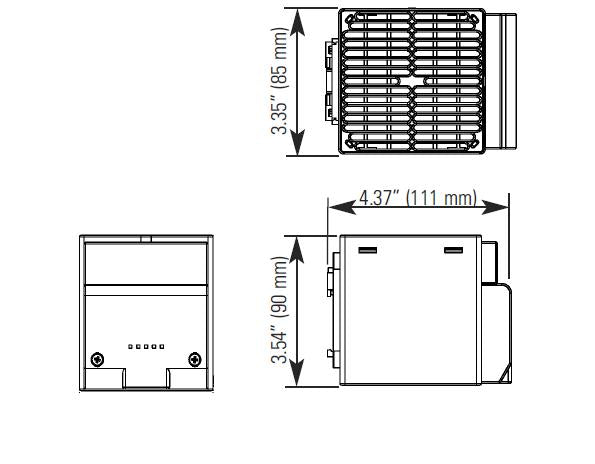

Dimensions: (H x W x D): 3.54 x 3.35 x 4.37 inches (90 x 65 x 111 mm)
Weight: 17.6 Oz (500 g)
Operating/Storage Temperature: ‑49 to 158 °F (‑45 to 70 °C)
Protection Type: IP20
Protection Class: II (double insulated)

Model Numbers

02810.0-00 400W, 230VAC, 15A Fan Heater
02810.0-01 400W, 230VAC, 15A Fan Heater w/ screw mount
02810.9-00 400W, 120VAC, 9A Fan Heater
02810.9-01 400W, 120VAC, 9A Fan Heater w/ screw mount
02811.0-00 250W, 230VAC, 9A Fan Heater
02811.0-01 250W, 230VAC, 9A Fan Heater w/ screw mount
02811.9-00 250W, 120VAC, 6A Fan Heater
02811.9-01 250W, 120VAC, 6A Fan Heater w/ screw mount
