CSK 060 Touch Safe Small Enclosure Heater 10W and 20W

Features

Specifications

• Power: 20 W

• Voltage: 120 – 240 VAC/VDC

• Max. Current (inrush): 2.5 A

• Agency Approvals: UL, VDE

• Heating Element: PTC resistor, temperature limiting

• Housing: Plastic, UL 94V‑0, black

• Surface Temperature: < 176 °F (80 °C), except at upper protective grill

• Connection: 2‑pole terminal, AWG 14 max (2.5 mm²)

• Mounting: Clip for 35 mm DIN rail (EN 60 715)

• Position: Preferably vertical

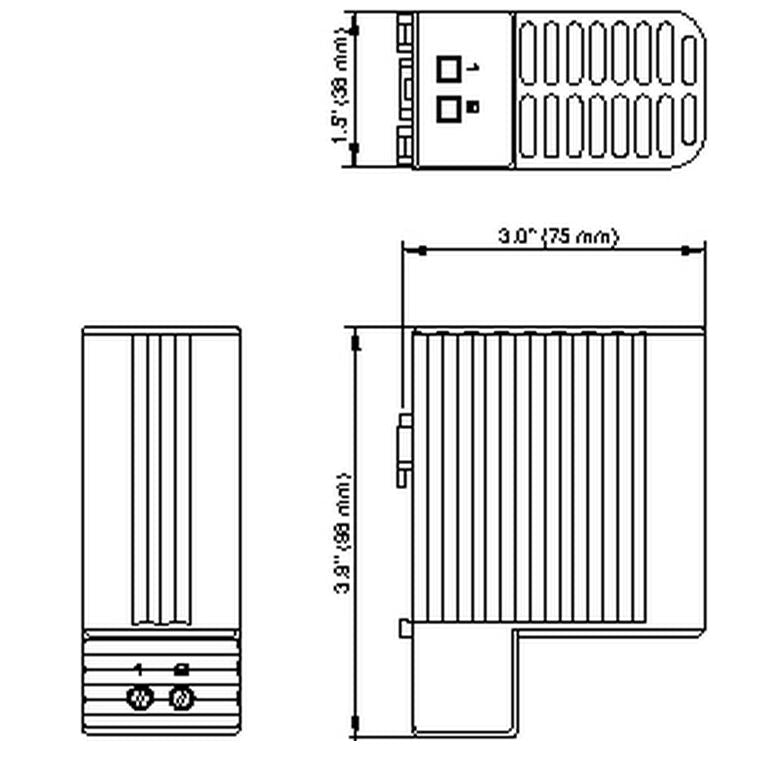

• Dimensions: (H × W × D): 3.9 × 1.5 × 3.0 inches (98 × 38 × 75 mm)

• Weight: 6.1 Oz (170 g)

• Operating Temperature: ‑49 to 158 °F (‑45 to 70 °C)

• Storage Temperature: ‑49 to 158 °F (‑45 to 70 °C)

• Protection Type: IP20

• Protection Class: II (double insulated)

Model Numbers

• 06030.0-00     20 Watt, 120-240 Voltage, 2.5 Amps PTC Heater
• 06040.0-00     10 Watt, 120-240 Voltage, 1.0 Amps PTC Heater
• 06040.4-00     10 Watt, 12-30 Voltage, 8 Amps PTC Heater
