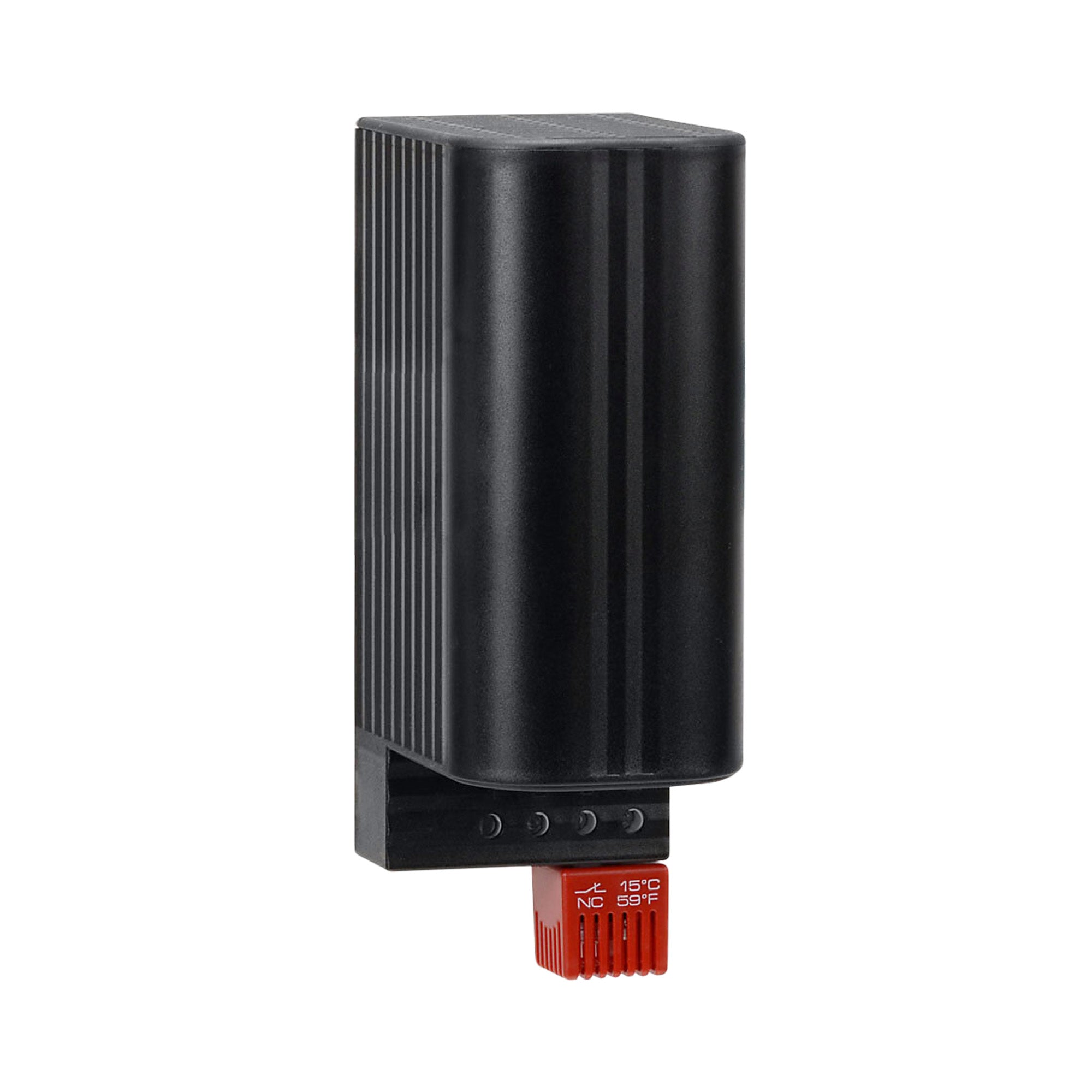

CSF 060 Touch Safe PTC Enclosure Heater with Preset Thermostat 50W to 150W

Features

Specifications

• Power: 50 W

• Voltage: 120 – 240 VAC

• Switch‑Off Temperature: 59 °F (15 °C)

• Switch‑On Temperature: 41 °F (5 °C)

• Max. Current (inrush): 2.5 A

• Agency Approvals: VDE

• Heating Element: PTC resistor, temperature limiting

• Housing: Plastic, UL 94V‑0, black

• Surface Temperature: < 176 °F (80 °C), except at upper protective grill

• Air Outlet Temperature: 187 °F (86 °C)

• Connection: 4‑pole terminal, AWG 14 max (2.5 mm²)

• Mounting: Clip for 35 mm DIN rail (EN 60 715)

• Position: Preferably vertical

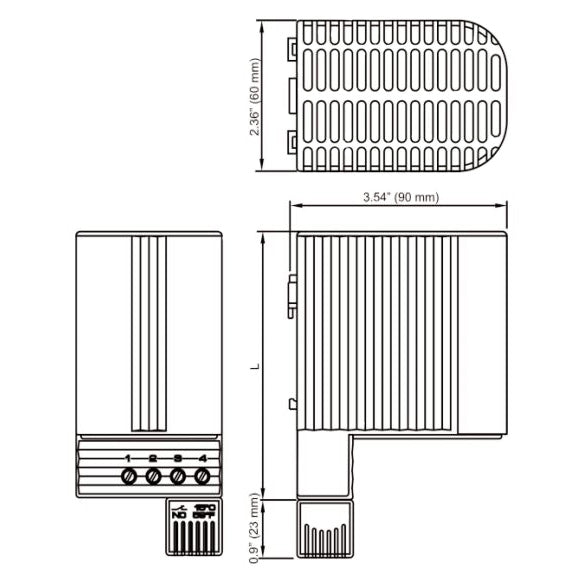

• Dimensions: (H × W × D): 4.3 × 2.4 × 3.5 inches (110 × 60 × 90 mm)

• Weight: 10.8 Oz (305 g)

• Operating Temperature: ‑40 to 158 °F (‑40 to 70 °C)

• Storage Temperature: ‑49 to 158 °F (‑45 to 70 °C)

• Protection Type: IP20

• Protection Class: II (double insulated)

Model Numbers

• 06000.0-00       50 Watt, 120-240 Voltage AC, 2.5 Amps PTC Heater
• 06010.0-00     100 Watt, 120-240 Voltage AC, 4.5 Amps PTC Heater
• 06020.0-00     150 Watt, 120-240 Voltage AC,  8 Amps PTC Heater
