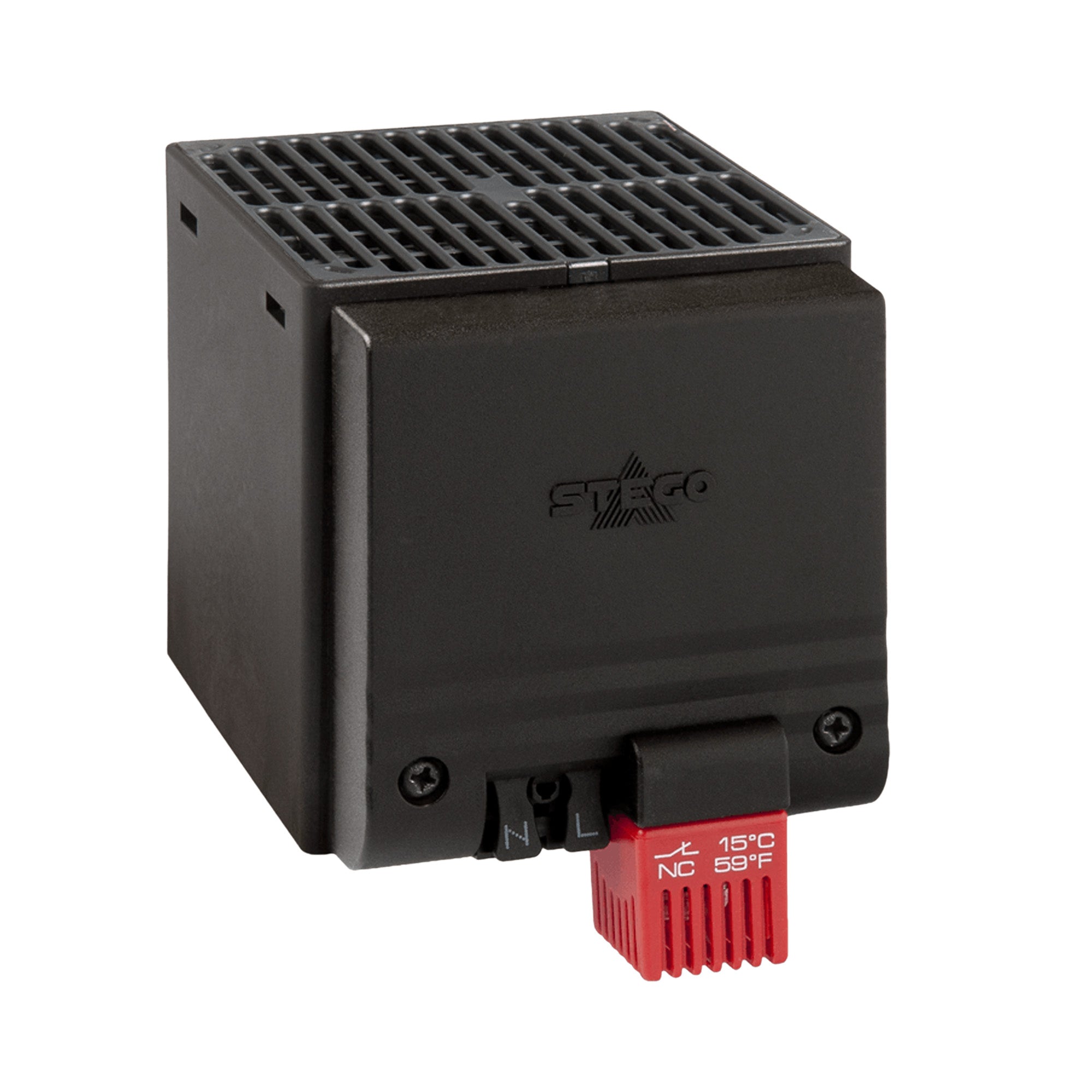

CSF 028 DIN Rail Enclosure PTC Fan Heater with Fixed Thermostat 250W to 400W

• DIN rail mount or screw mount

• Comact Size
• Integrated pre-set thermostat
• Quiet operation
• Heating power adjusts to ambient temperature
• Protection Class IP20
• Operating / Storage Temperature: -40 to +158°F / -49 to +158°F
• Weight: 17.6 oz. (500 g)

Specifications

• Operating Voltage: 120 VAC, 50/60 Hz

• Heating Capacity: 250 W

• Max. Current (inrush): 6 A

• Pre‑Fuse T (Time‑Delay): 10 A

• Switch‑Off Temperature: 59 °F (15 °C)

• Switch‑On Temperature: 41 °F (5 °C)

• Heating Element: PTC resistor, temperature limiting

• Surface Temperature at Housing: 149 °F (65 °C)

• Overheat Protection: Built‑in temperature limiter

• Axial Fan, Ball Bearing Service Life: 40,000 h at 104 °F (40 °C)

• Axial Fan, Free Blowing: 32 cfm (54 m³/h)

• Connection: 2‑pole dual pressure clamp for solid AWG 14 max (2.5 mm²) and stranded wire AWG 16 max (1.5 mm²)

• Housing: Plastic, UL 94V‑0, black

• Mounting: Clip for 35 mm DIN rail (EN 60 715)

• Mounting Position: Vertical airflow (air outlet up), horizontal airflow

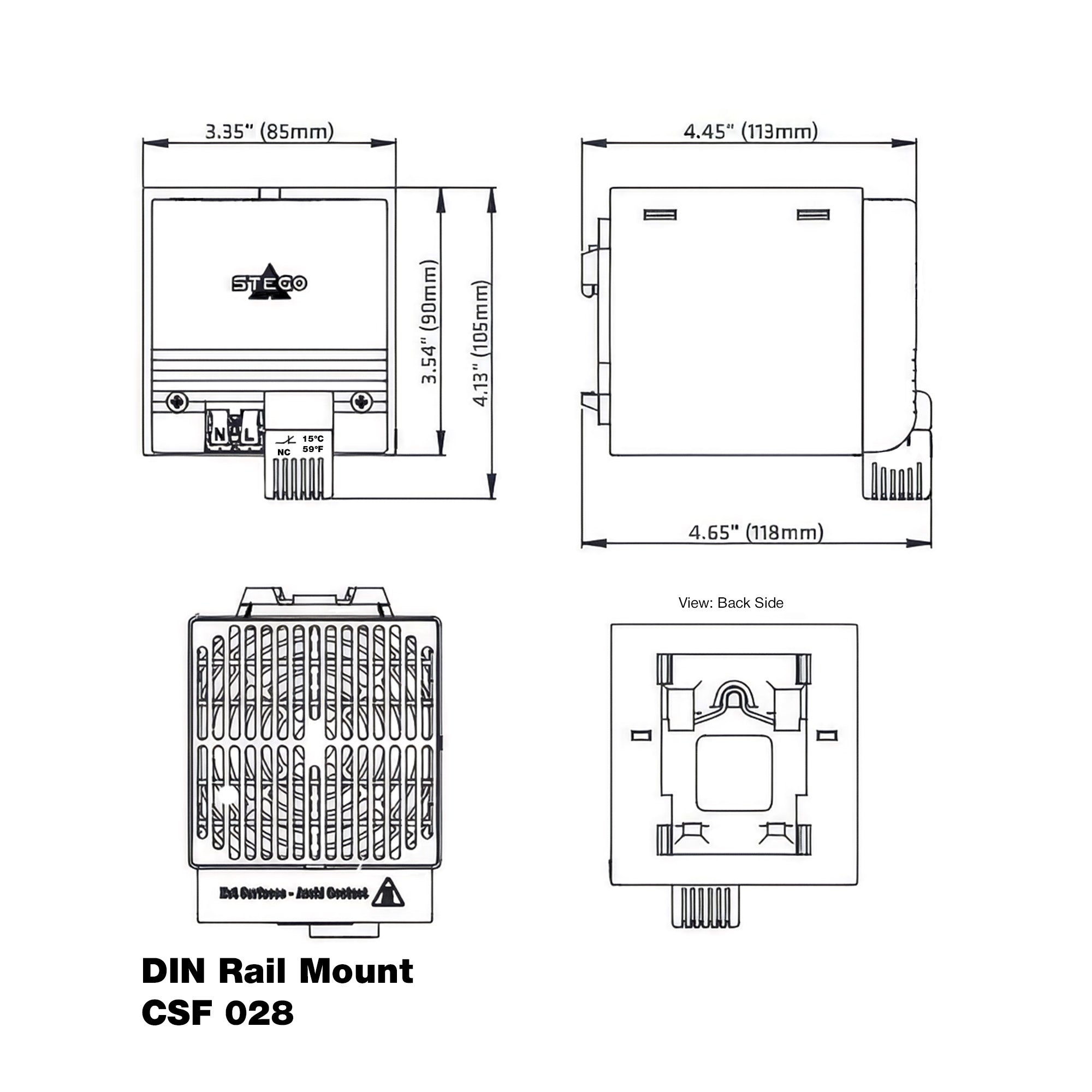

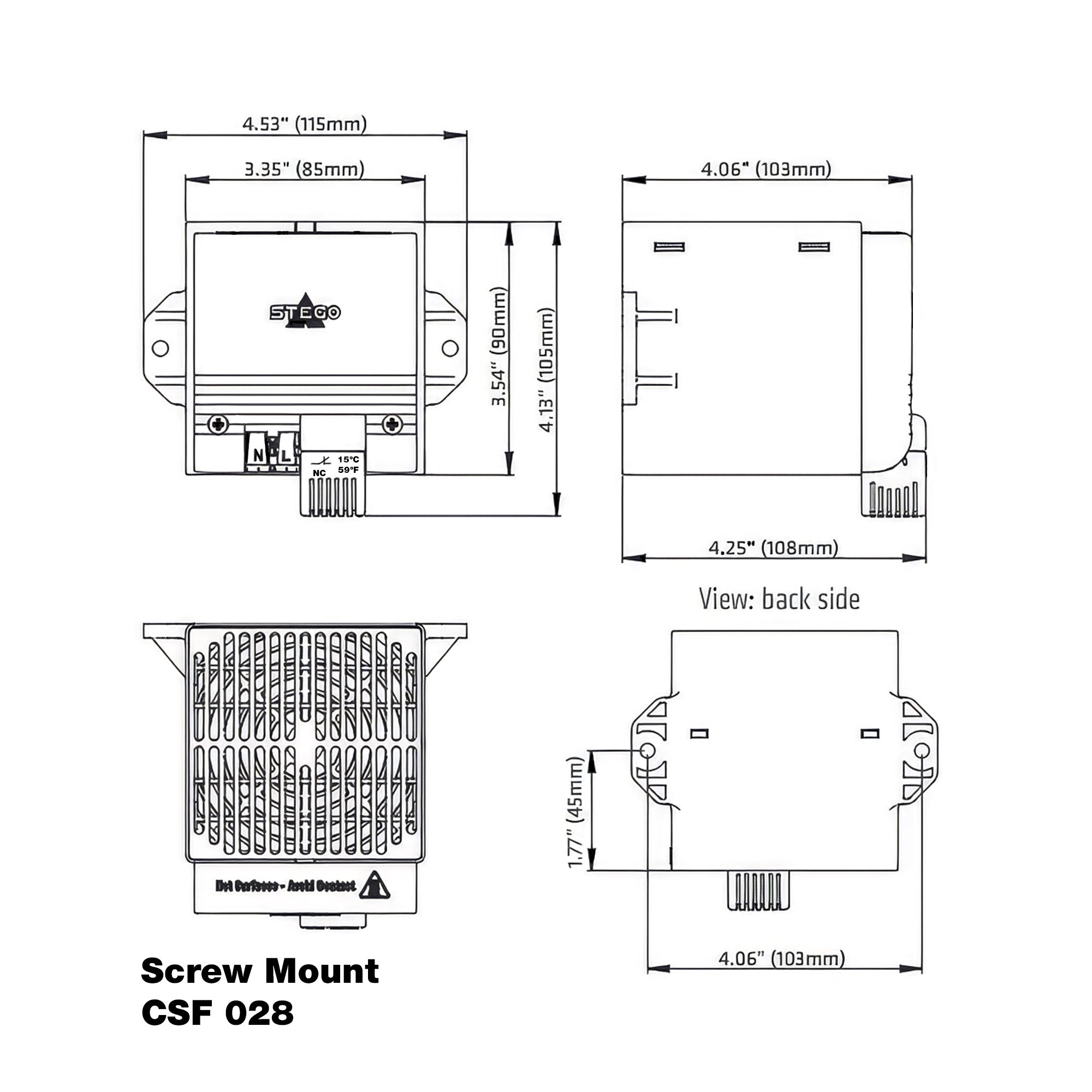

• Dimensions (H x W x D): 4.13 x 3.35 x 4.65 inches (105 x 85 x 118 mm)

• Weight: 17.6 Oz (500 g)

• Operating Temperature: ‑40 to 158 °F (‑40 to 70 °C)

• Storage Temperature: ‑49 to 158 °F (‑45 to 70 °C)

• Protection Type: IP20

• Protection Class: II (double insulated)

• Agency Approvals: UL File No. E150057, VDE

Model Numbers
02821.9-06     59°F off, 41°F on, 250W, 120VAC Fan Heater

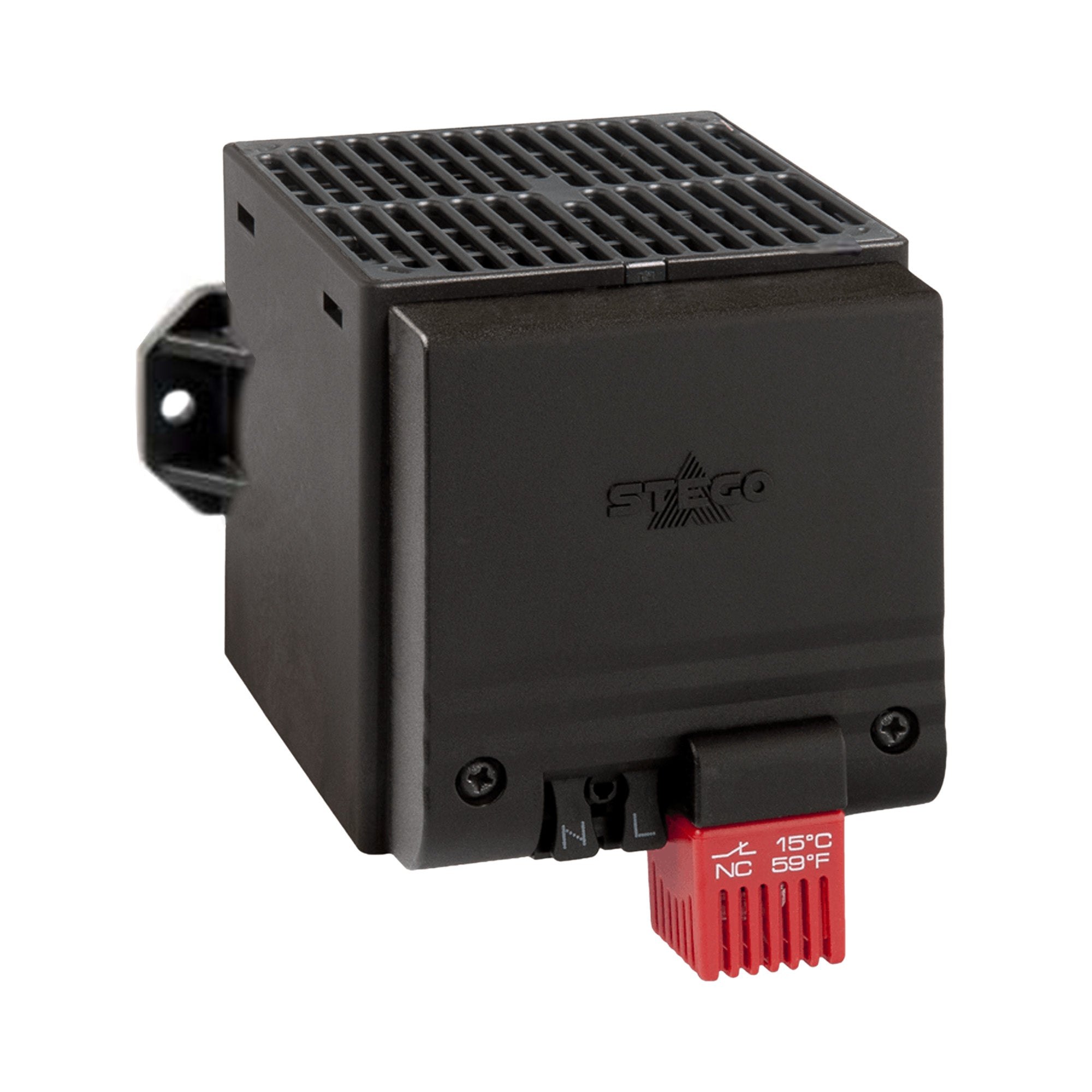

02821.9-08    59°F off, 41°F on, 250W, 120VAC Fan Heater w/ screw mount
02821.9-09    77°F off, 59°F on, 250W, 120VAC Fan Heater
02821.9-11    77°F off, 59°F on, 250W, 120VAC Fan Heater w/ screw mount
02820.9-06    59°F off, 41°F on, 400W, 120VAC Fan Heater
02820.9-08    59°F off, 41°F on, 400W, 120VAC Fan Heater w/ screw mount
02820.9-09    77°F off, 59°F on, 400W, 120VAC Fan Heater
02820.9-11    77°F off, 59°F on, 400W, 120VAC Fan Heater w/ screw mount
02821.0-06    59°F off, 41°F on, 250W, 230VAC Fan Heater
02821.0-08    59°F off, 41°F on, 250W, 230VAC Fan Heater w/ screw mount
02821.0-09    77°F off, 59°F on, 250W, 230VAC Fan Heater
02821.0-11    77°F off, 59°F on, 250W, 230VAC Fan Heater w/ screw mount
02820.0-06    59°F off, 41°F on, 400W, 230VAC Fan Heater
02820.0-08    59°F off, 41°F on, 400W, 230VAC Fan Heater w/ screw mount
02820.0-09    77°F off, 59°F on, 400W, 230VAC Fan Heater
02820.0-11    77°F off, 59°F on, 400W, 230VAC Fan Heater w/ screw mount
