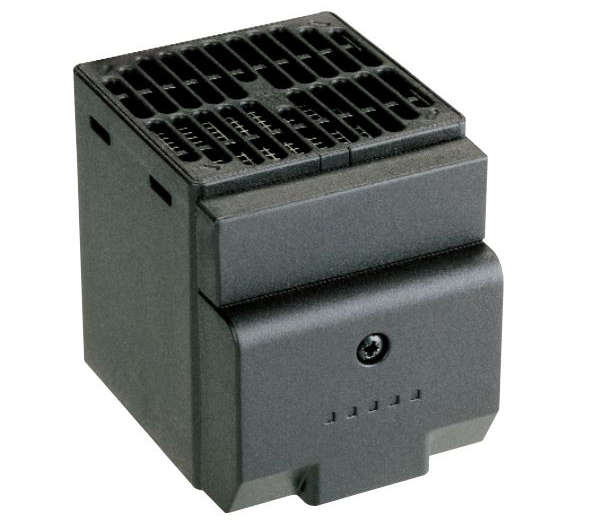

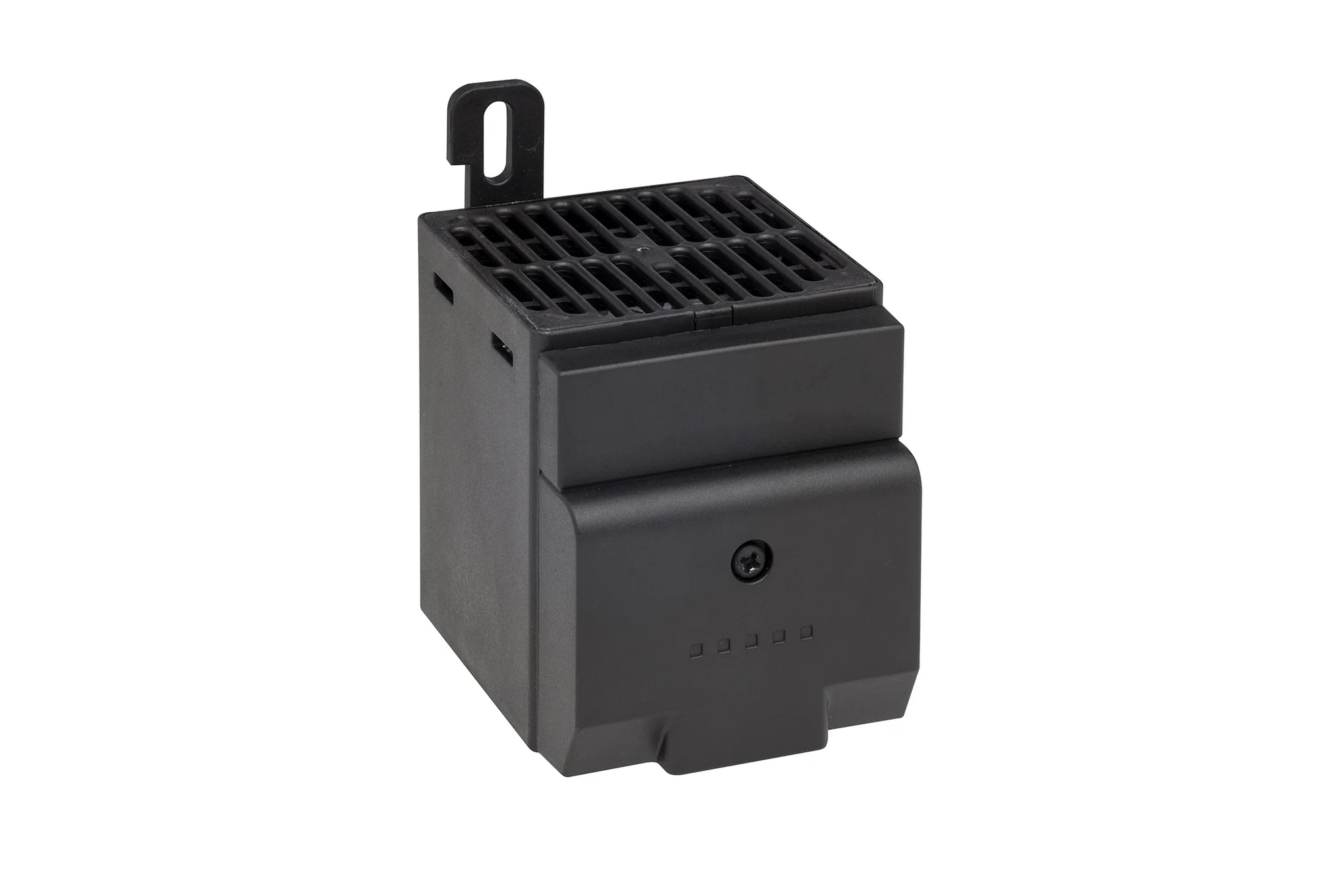

CS 028 DIN Rail Enclosure PTC Fan Heater 150W

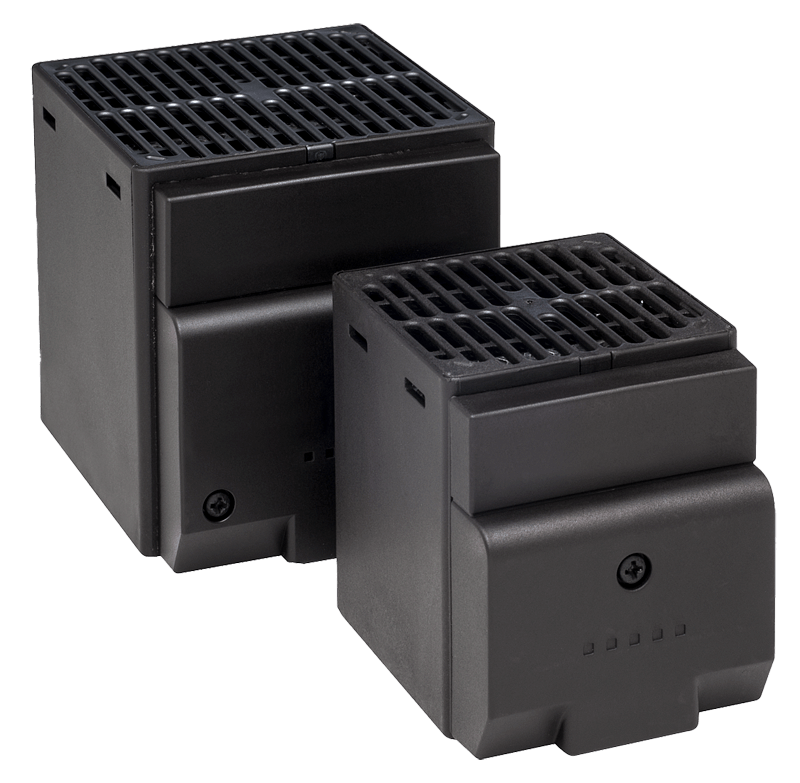

The CS/CSL 028 fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. The heater is connected using the internal terminal connectors. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design. The CS 028’s small size make it ideal for use in enclosures where space is at a premium.

Features

Compact Size
Quiet Operation
PTC Technology with self regulating characteristics
Heating power adjusts to ambient temperature
DIN rail or screw mount available

Specifications

Operating Voltage: 220 V – 240 V
Operating Voltage Tolerance: 198 V – 264 V
Inrush Current Maximum: 12 A
Nominal Current: 6 A
Heating Capacity Minimum: 600 to 1200 W
Axial Fan: 30 – 100 m³/h
Storage Temperature: ‑49 to 158 °F
Device Name: New: Enclosure heater with fan Plus ‑ Available to order from 06/2025
Device Type: Fan heater Touchsafe
Series: CS 032
Electrical Protection: Overvoltage protection
Temperature Monitoring: Overheating protection in the event of fan failure (not reversible)
Protection Class: II
Protection Type: IP20
Heating Element: PTC resistor (PTC)
Operating Display: LED
Casing: Plastic to UL94 V‑0, black
AC/DC: AC
Inrush Current Duration: 12 s
Frequency: 50;60 Hz
Reaction Time: 5 s
Service Life: >50000 h
Setting Range: 32 to 140 °F
Surface Temperature: < + 176 °F
Operating Temperature: ‑49 to 158 °F
Operating Humidity: =90 % RH
Storage Humidity: =90 % RH
Connection Type: Connection terminal (push‑in)
Connection: 2 x stranded wire 1.0‑2.5 mm² (with wire end ferrule) and rigid wire 1.0‑2.5 mm²
Mounting: Clip for 35 mm DIN rail screw angle
Installation Position: variable
Setup Height: 3000 m

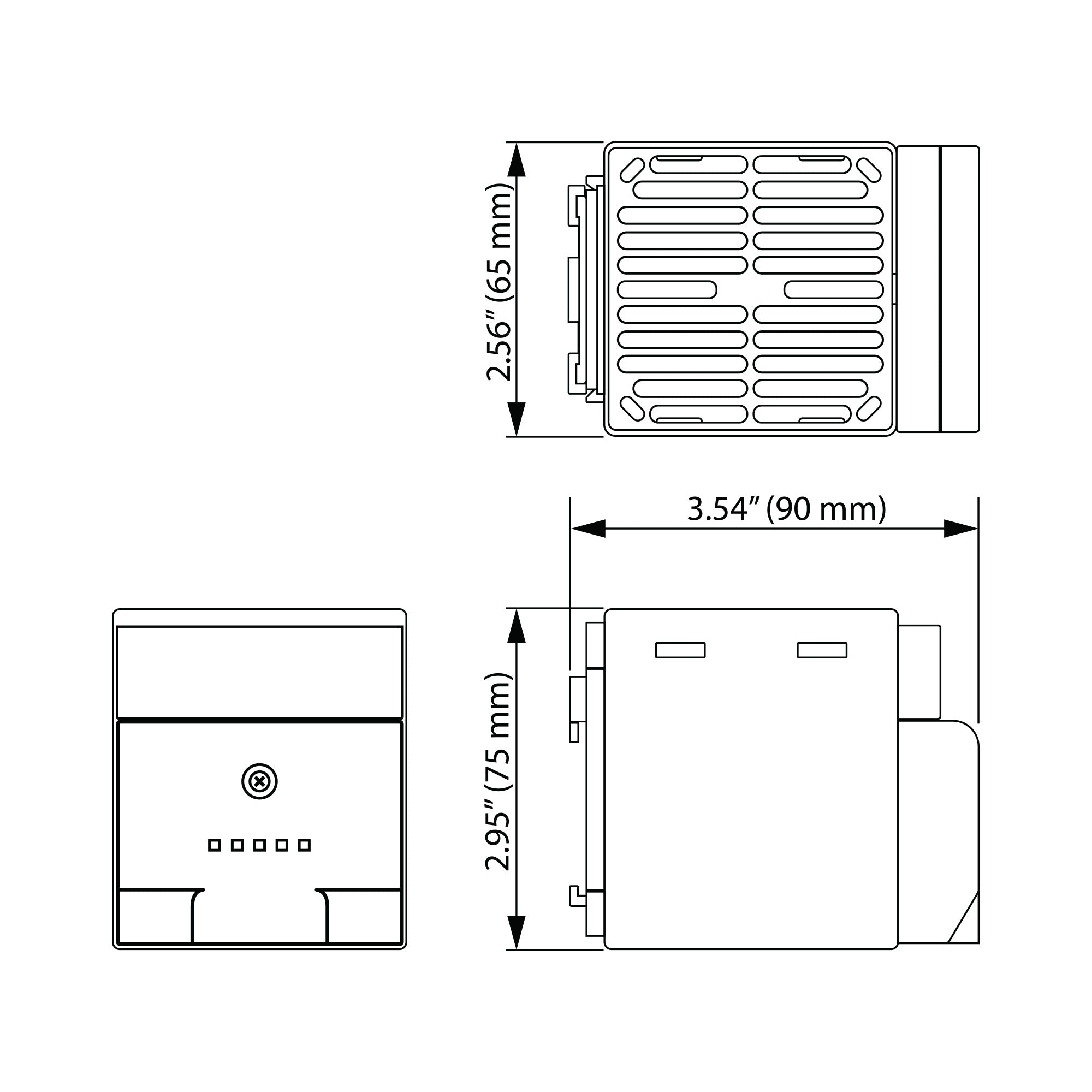

Height: 3.8 in
Width: 2.6 in
Depth: 4.7 in
Weight: 17.6 Oz

Model Numbers

02800.0-00 150W, 230VAC, PTC Fan Heater
02801.0-00 150W, 230VAC, PTC Fan Heater
02800.9-00 150W, 120VAC, PTC Fan Heater
02801.9-00 150W, 120VAC, PTC Fan Heater
