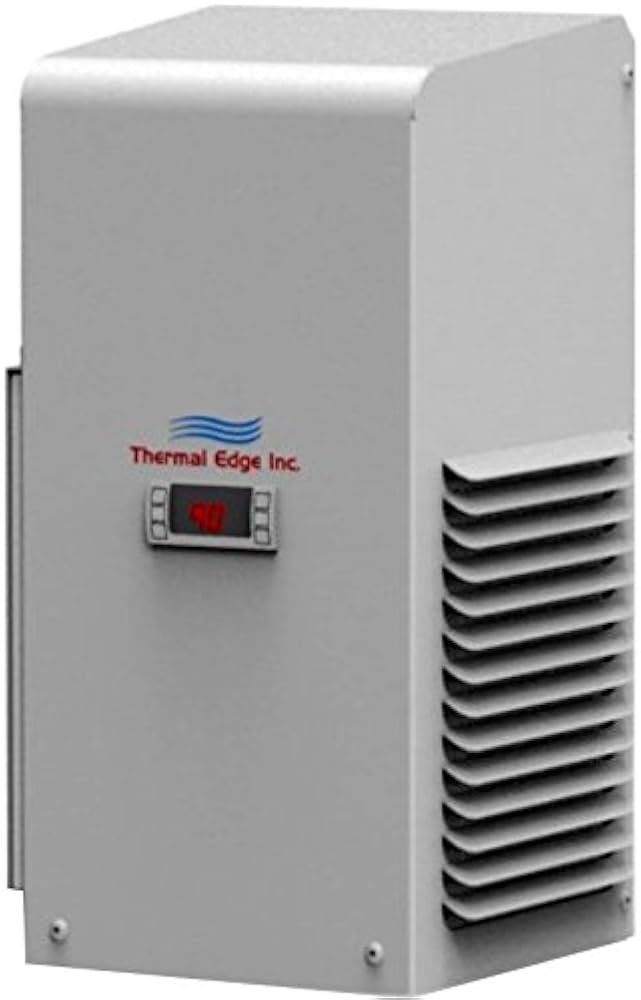

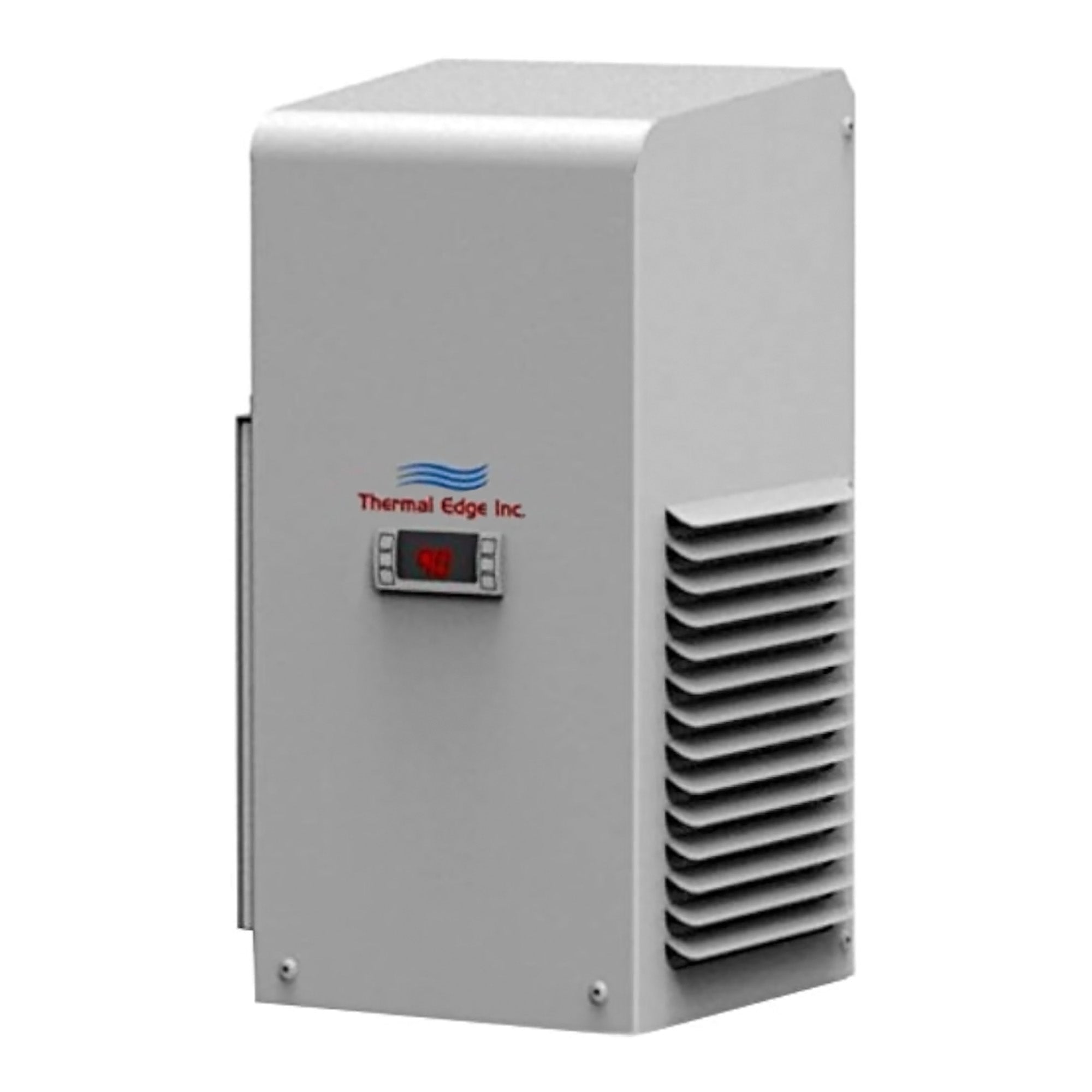

CS020 Compact Series 2000 BTU Closed-Loop Enclosure Air Conditioner NEMA 4

The CS020 is the Compact Series 2,000 BTU Closed-loop Enclosure Air Conditioner engineered & manufactured to endure the most difficult of environments and applications. Thermal Edge air conditioners will exceed environmental requirements in applications like Steel, Food Processing, Petro-Chemical, Cement, Paper & Pulp and Plastics.

Features

• Digital Temperature Controller
  • Programmable set point and temperature controls
  • Visible Error and/or alarm messaging
  • System status indication & keypad lockout function
• Active Condensate Evaporation System
  • Constant elimination of condensate
  • Increases unit efficiency by pre-cooling refrigerant
• Unit Efficiency
  • Temperature operated condenser fan reduces power inrush and saves energy
  • Highly efficient rotary compressor
  • Fully insulated & sealed cabinet
  • Thermal Expansion Valve to maintain cooling capacity over a broad ambient temperature range

Specifications

• Running Amps: 4.1

• NEMA Type: 4

• Unit Weight (lbs): 44
• Shipping Weight (lbs): 58
• Product Series: Compact Series CS020
• Product Type: Enclosure-mounted air conditioner
• Cooling Capacity: 2000 BTU/hr
• Application: Indoor / Outdoor enclosure cooling
• Mounting Type: Wall-mounted enclosure installation
• Power Supply Options: 115 V AC or 230 V AC (Varies by model)
• Phase: Single-phase
• Frequency: 60 Hz
• Rated Current: Model dependent
• Cooling Technology: Compressor-based refrigeration
• Compressor Type: High-efficiency rotary compressor
• Temperature Control: Digital temperature controller
• Controller Features: Programmable set point, alarm messaging, system status indication, keypad lockout
• Maximum Ambient Temperature: 131 °F (55 °C)
• Condensate Management: Active condensate evaporation system
• Airflow: Forced internal and external airflow
• Cabinet Design: Fully insulated and sealed cabinet
• Expansion Device: Thermal expansion valve
• Compressor Protection: High/low refrigerant cutouts, anti–short-cycle protection, thermal overload protection
• Housing Design: Rigid chassis with seam-welded shroud
• Body Style: Narrow profile design (Fits 10 in deep enclosures)
• Installation Orientation: Vertical
• Enclosure Protection Rating: UL Type 12 / Type 4 / Type 4X (Varies by model)
• Housing Material: Powder-coated steel, stainless steel, or aluminum (Varies by model)
• Dimensions (H × W × D): 20 in × 10 in × 10 in
• Certifications: UL Listed (File #SA32252)
• Warranty: 5-year warranty
• Typical Applications: Industrial control panels, harsh environment enclosures, steel, food processing, petrochemical, cement, paper & pulp, plastics
