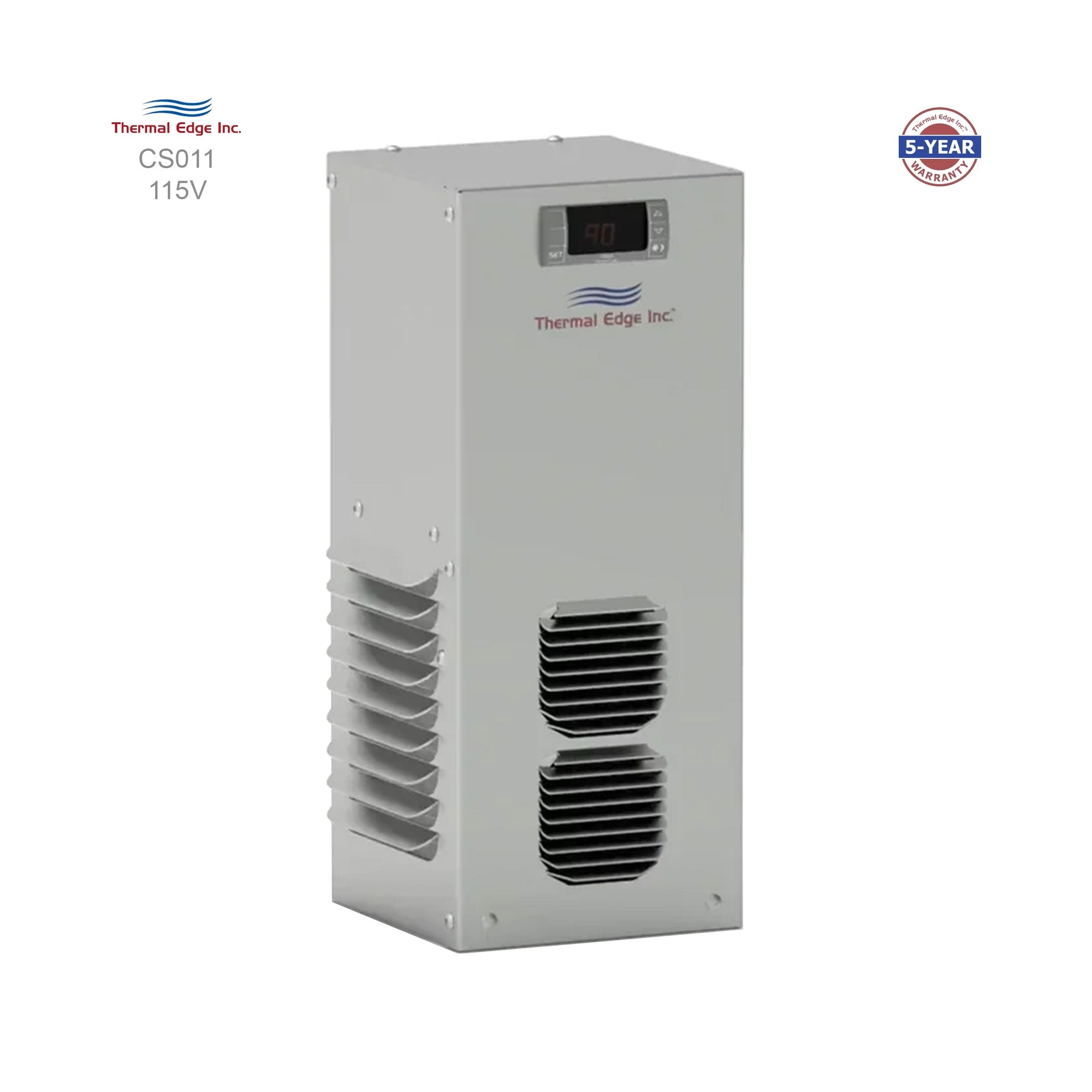

CS011 Compact Series Closed-Loop Enclosure Air Conditioner NEMA 4/4X 1000 BTU

The CS011 is the Compact Series 1,000 BTU Closed-loop Enclosure Air Conditioner engineered & manufactured to endure the most difficult of environments and applications. Thermal Edge air conditioners will exceed environmental requirements in applications like Steel, Food Processing, Petro-Chemical, Cement, Paper & Pulp and Plastics. The CS011 uses a unique 3 coil design providing high capacity cooling while utilizing air intake from either side. Dual intake allows for mounting on a wall mounted enclosure on the right or left side of your enclosure.

Features

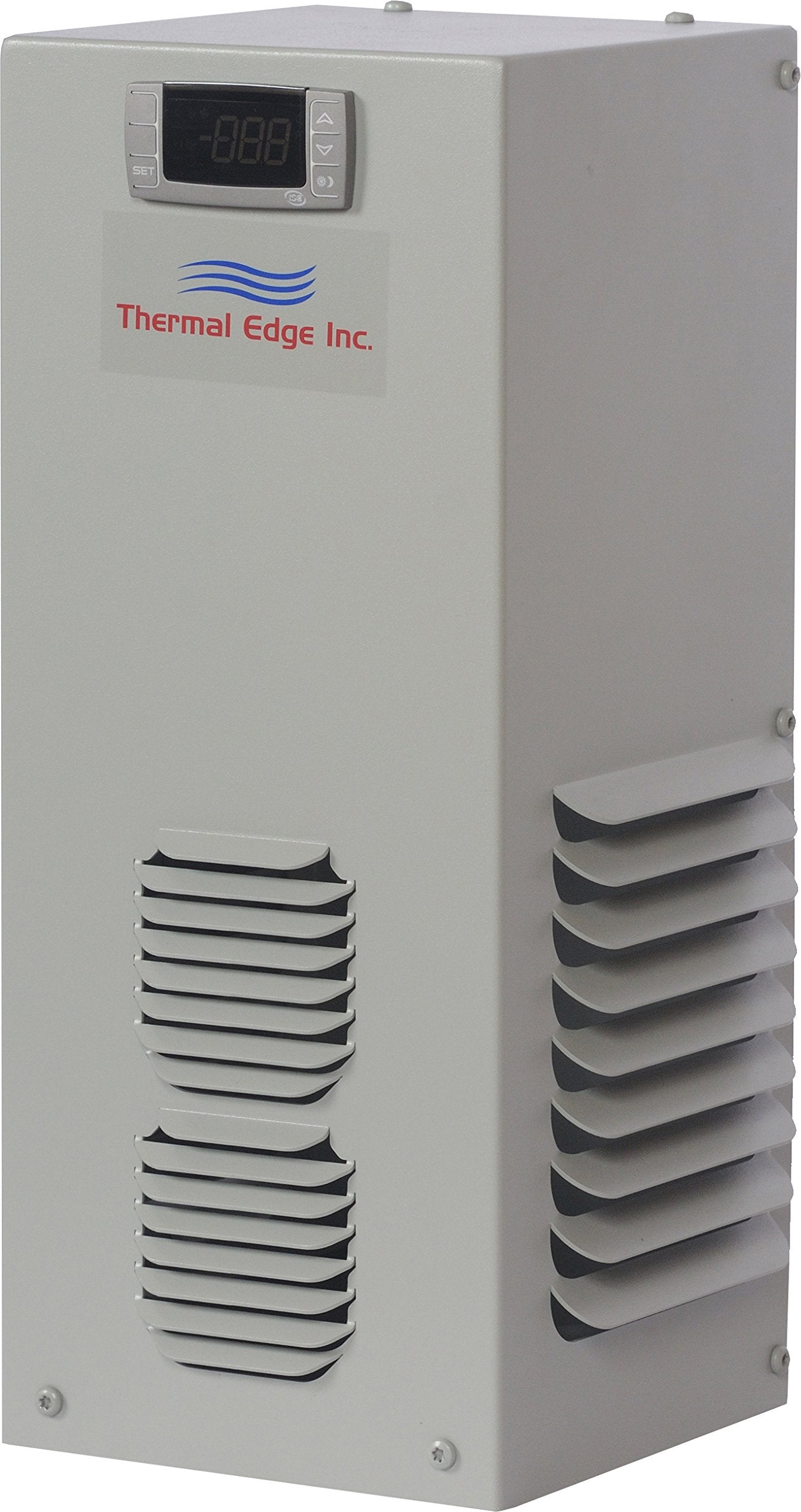

• Digital Temperature Controller
  • Programmable set point and temperature controls
  • Visible Error and/or alarm messaging
  • System status indication & keypad lockout function
• Active Condensate Evaporation System
  • Constant elimination of condensate
  • Increases unit efficiency by pre-cooling refrigerant
• Unit Efficiency
  • Temperature operated condenser fan reduces power inrush and saves energy
  • Highly efficient rotary compressor
  • Fully insulated & sealed cabinet
  • Thermal Expansion Valve to maintain cooling capacity over a broad ambient temperature range

Specifications

• Product Series: Compact Series CS011
• Product Type: Enclosure-mounted air conditioner
• Cooling Capacity: 1000 BTU/hr
• Application: Indoor / Outdoor enclosure cooling
• Power Supply: 115 V AC
• Phase: Single-phase
• Frequency: 60 Hz
• Rated Current: 2.7 A
• Cooling Technology: Compressor-based refrigeration
• Compressor Type: High-efficiency rotary compressor
• Temperature Control: Digital temperature controller
• Controller Features: Programmable set point, alarm messaging, system status indication, keypad lockout
• Maximum Ambient Temperature: 131 °F (55 °C)
• Condensate Management: Active condensate evaporation system
• Airflow: Forced internal and external airflow
• Efficiency Features: Temperature-operated condenser fan, thermal expansion valve, insulated cabinet
• Compressor Protection: High/low refrigerant cutouts, anti–short-cycle protection, thermal overload protection
• Mounting Type: Wall-mounted enclosure installation (Left or right side)
• Housing Design: Rigid chassis with seam-welded shroud
• Body Style: Narrow profile design
• Filter Type: Filter-free design

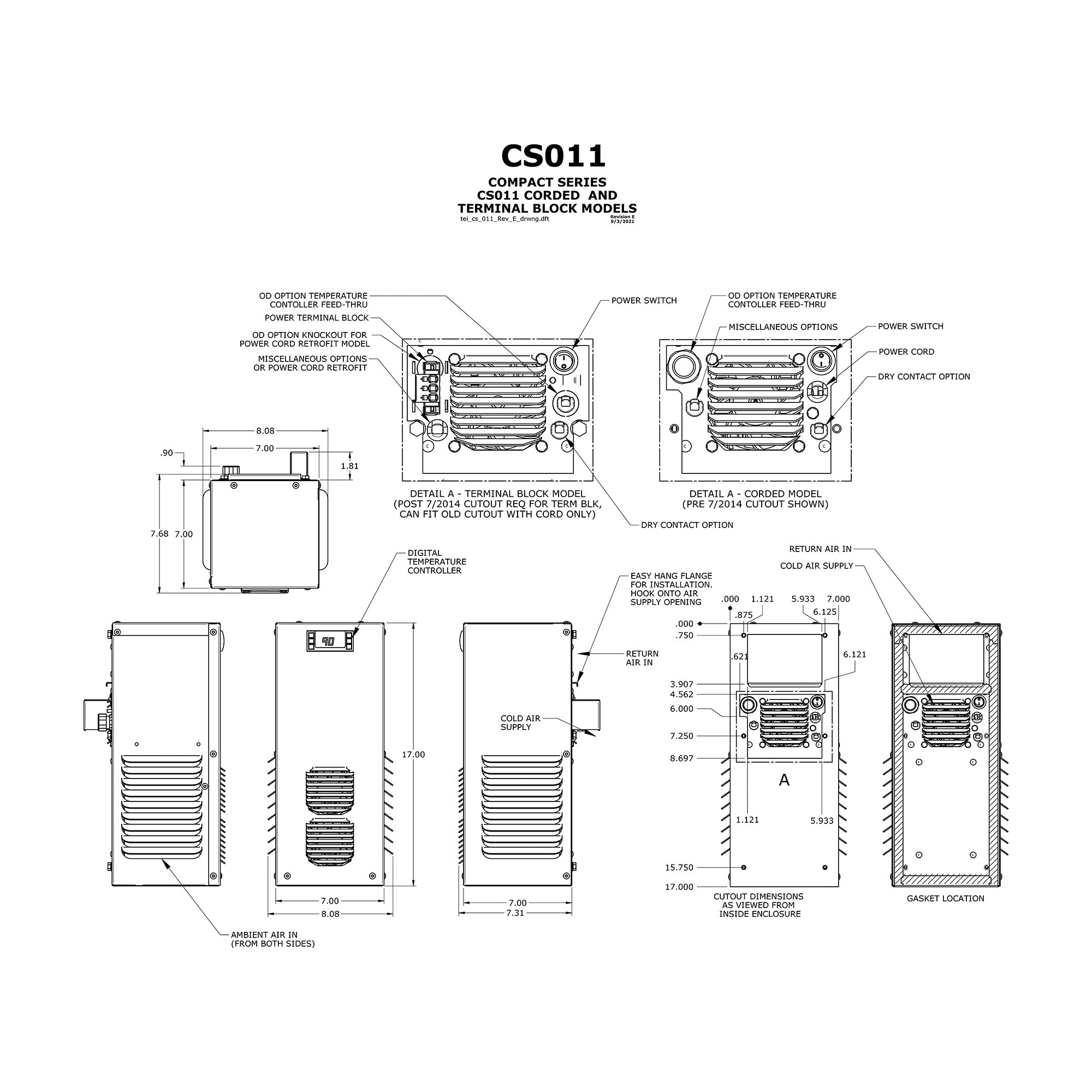

• Unit Dimensions (H × W × D): 17 in × 7 in × 7 in
• Installation Orientation: Vertical
• Enclosure Protection Rating: NEMA Type 4 / 4X (Varies by model)
• Certifications: UL Listed
• Warranty: 5-year warranty
• Typical Applications: Industrial control panels, harsh environment enclosures, food processing, petrochemical, manufacturing

Model Number

• CS01112604WS - Compact Series 1000 BTU 115V/60Hz  NEMA 4

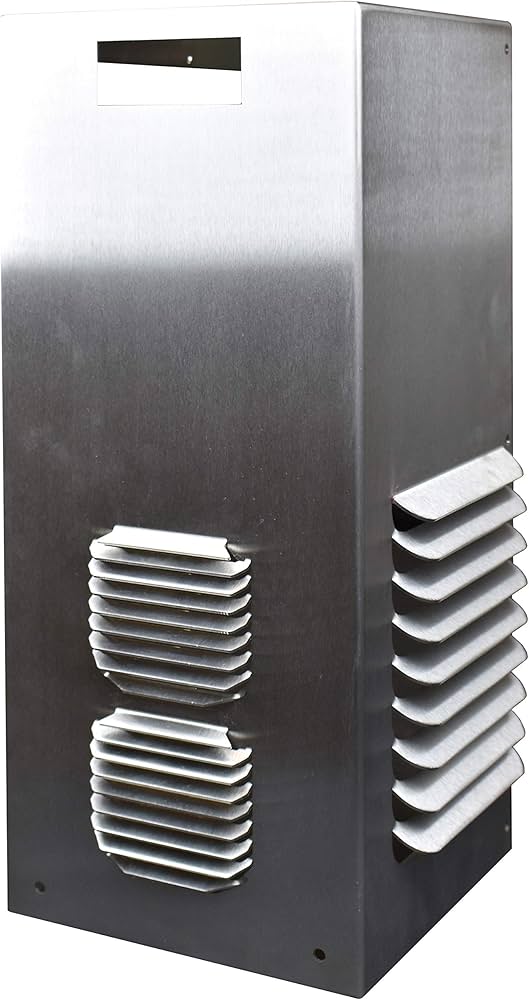

• CS0111264XWS - Compact Series 1000 BTU 115V/60Hz  NEMA 4X with 304 Stainless Steel
