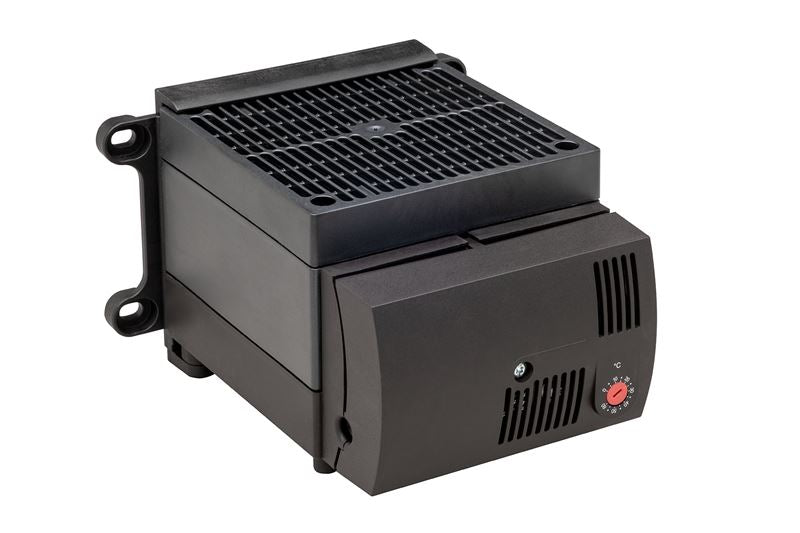

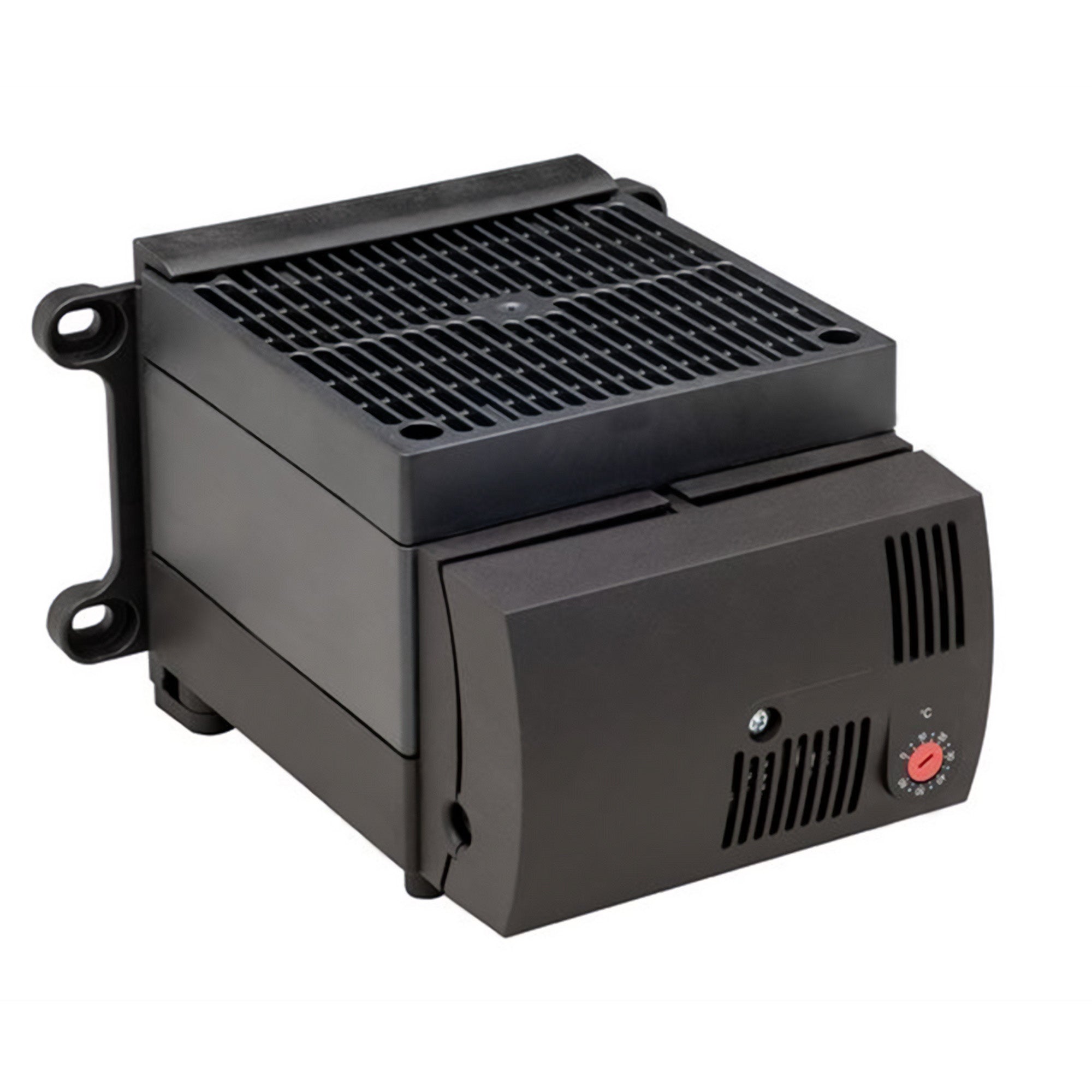

CS 130 Panel Mount Enclosure PTC Fan Heater 950W to 1200W

• DIN rail or panel mount
• High performance cartridge heater
• Integrated adjustable thermostat
• Screw terminal connections 16AWG max
• Double insulated plastic with built-in temperature limiter
• Protection class II (IP20)
• UL,CE, VDE, RoHS


Specifications

• Power: 1200 W

• Voltage: 230 VAC, 50/60 Hz

• Control Type: Thermostat, 0‑60 °C

• Max. Current (inrush): 13 A

• Recommended Pre‑Fuse T (time‑delay): 13.0 A

• Agency Approvals: UL, VDE, EAC

• Heating Element: PTC resistor, temperature limiting

• Overheat Protection: Built‑in temperature limiter

• Axial Fan, Ball Bearing Service Life: 50,000 h at 77 °F (25 °C)

• Air Flow, Free Blowing: 94 cfm (160 m³/h)

• Housing: Plastic, UL 94V‑0, black

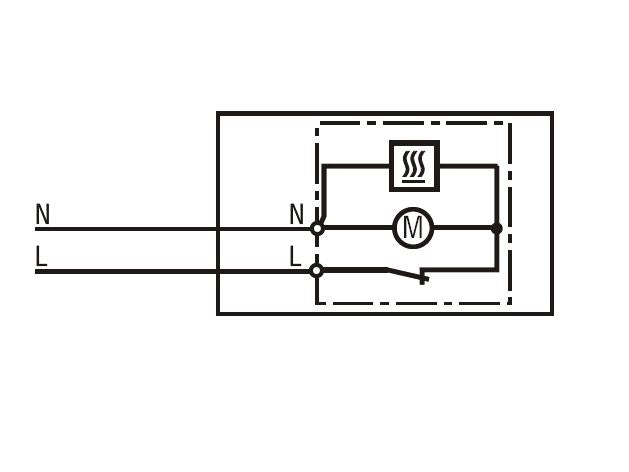

• Connection: 2‑pole terminal, AWG 16 max (1.5 mm²) with strain relief, clamping torque 0.8 Nm max

• Mounting Position: Clip for 35 mm DIN rail, EN 60 715 or M6 screws (not included)

• Position: Horizontal

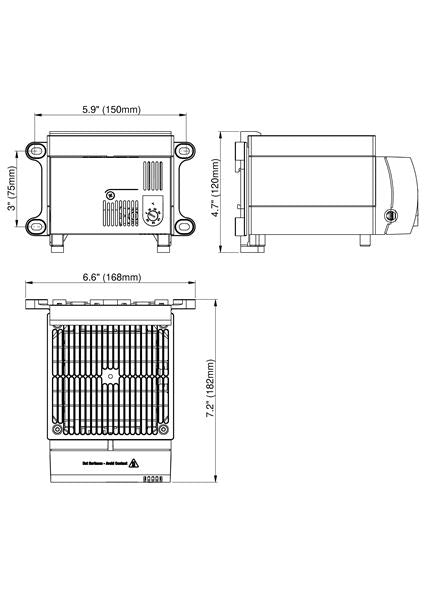

• Dimensions: (H × W × D): 7.2 × 6.6 × 4.7 inches (182 × 168 × 120 mm)

• Weight: 2.6 lb. (1.2 kg)

• Operating/Storage Temperature: ‑49 to 158 °F (‑45 to 70 °C)

• Operating/Storage Humidity: 90 % RH (non‑condensing)

• Protection Type: IP20

• Protection Class: II (double insulated)
