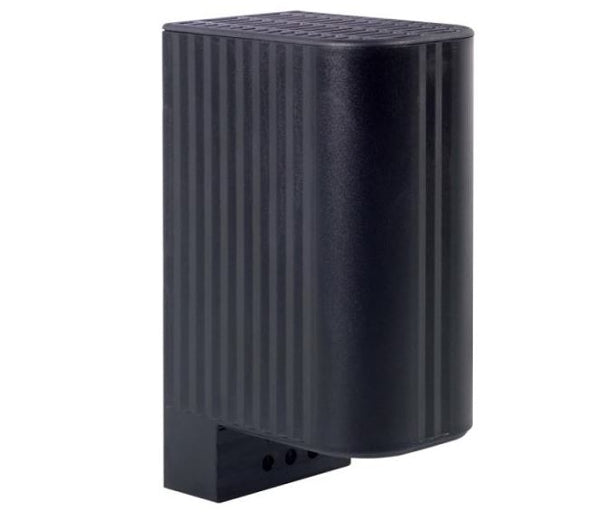

CS 060 Touch Safe Small Enclosure Heater 50W 100W 150W

• Low Surface Temperature
• Integrated Thermostat
• Compact Size
• Wide Voltage Range
• Double insulated protection
• DIN Rail mountable
• Voltage: 120-240VAC (min. 110V, max. 265V)
• Protection Type: IP20
• CE, DVE, and RoHS


Specifications

• Power: 50 W

• Voltage: 120 – 240 VAC/VDC

• Max. Current: 2.5 A (inrush)

• Agency Approvals: UL, VDE

• Heating Element: PTC resistor, temperature limiting

• Housing: Plastic, UL 94V-0, black

• Surface Temperature: < 176 °F (80 °C), except at upper protective grill

• Air Outlet Temperature: 187 °F (86 °C)

• Connection: 4-pole terminal, AWG 14 max (2.5 mm²)

• Mounting: Clip for 35 mm DIN rail (EN 60 715)

• Position: Preferably vertical

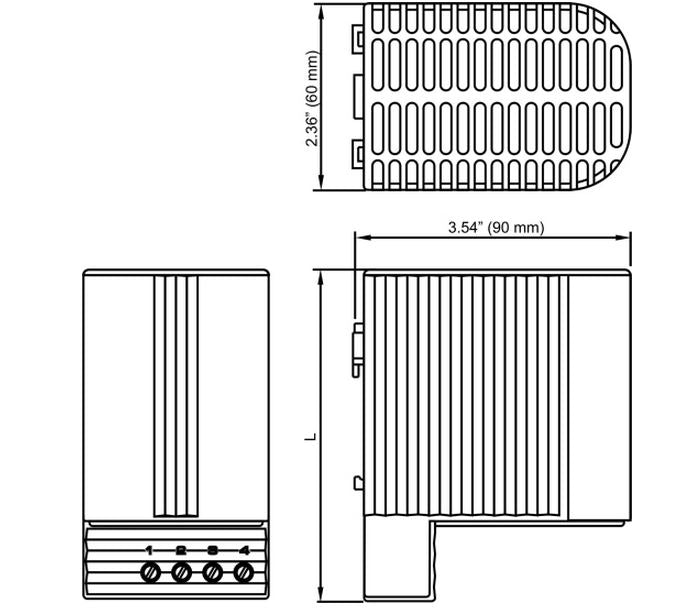

• Dimensions (H × W × D): 4.3 × 2.4 × 3.5 inches (110 × 60 × 90 mm)

• Weight: 10.4 oz (295 g)

• Operating Temperature: -49 to 158 °F (-45 to 70 °C)

• Storage Temperature: -49 to 158 °F (-45 to 70 °C)

• Protection Type: IP20

• Protection Class: II (double insulated)
