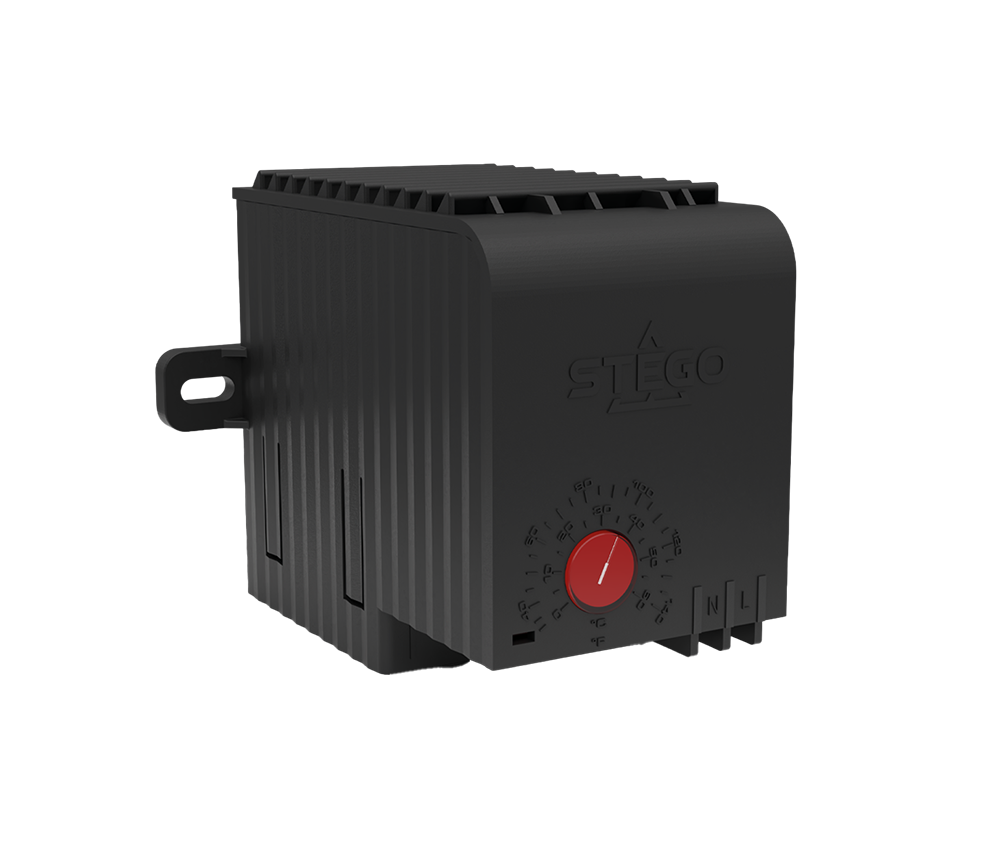

CS 032 PLUS DIN Rail Enclosure PTC Fan Heater with Thermostat 600W-1200W Variable Heating

CS 032 Plus - enclosure heater with fan and PTC heating element that reliably protects against frost and condensation. The CS 032 Plus fan heater is equipped with a user-friendly temperature selector wheel. Variable heating capacity is possible thanks to intelligent control behavior. The flexible mounting option (variable) supports optimum air circulation.

Specifications

• Operating Voltage: 220 V – 240 V

• Operating Voltage Tolerance: 198 V – 264 V

• Inrush Current Maximum: 12 A

• Nominal Current: 6 A

• Heating Capacity Minimum: 600 W – 1200 W

• Axial Fan: 30 – 100 m³/h

• Storage Temperature: ‑49 to 158 °F

• Device Name: New: Enclosure heater with fan Plus ‑ Available to order from 06/2025

• Device Type: Fan heater Touchsafe

• Series: CS 032

• Electrical Protection: Overvoltage protection

• Temperature Monitoring: Overheating protection in the event of fan failure (not reversible)

• Protection Class: II

• Protection Type: IP20

• Heating Element: PTC resistor (PTC)

• Operating Display: LED

• Casing: Plastic to UL94 V‑0, black

• AC/DC: AC

• Inrush Current Duration: 12 s

• Frequency: 50;60 Hz

• Reaction Time: 5 s

• Service Life: >50000 h

• Setting Range: 32 to 140 °F

• Surface Temperature: < + 176 °F

• Operating Temperature: ‑49 to 158 °F

• Operating Humidity: ≤90 % RH

• Storage Humidity: ≤90 % RH

• Connection Type: Connection terminal (push‑in)

• Connection: 2 × stranded wire 1.0 – 2.5 mm² (with wire end ferrule) and rigid wire 1.0 – 2.5 mm²

• Mounting: Clip for 35 mm DIN rail; screw flange

• Installation Position: Variable

• Setup Height: 3000 m

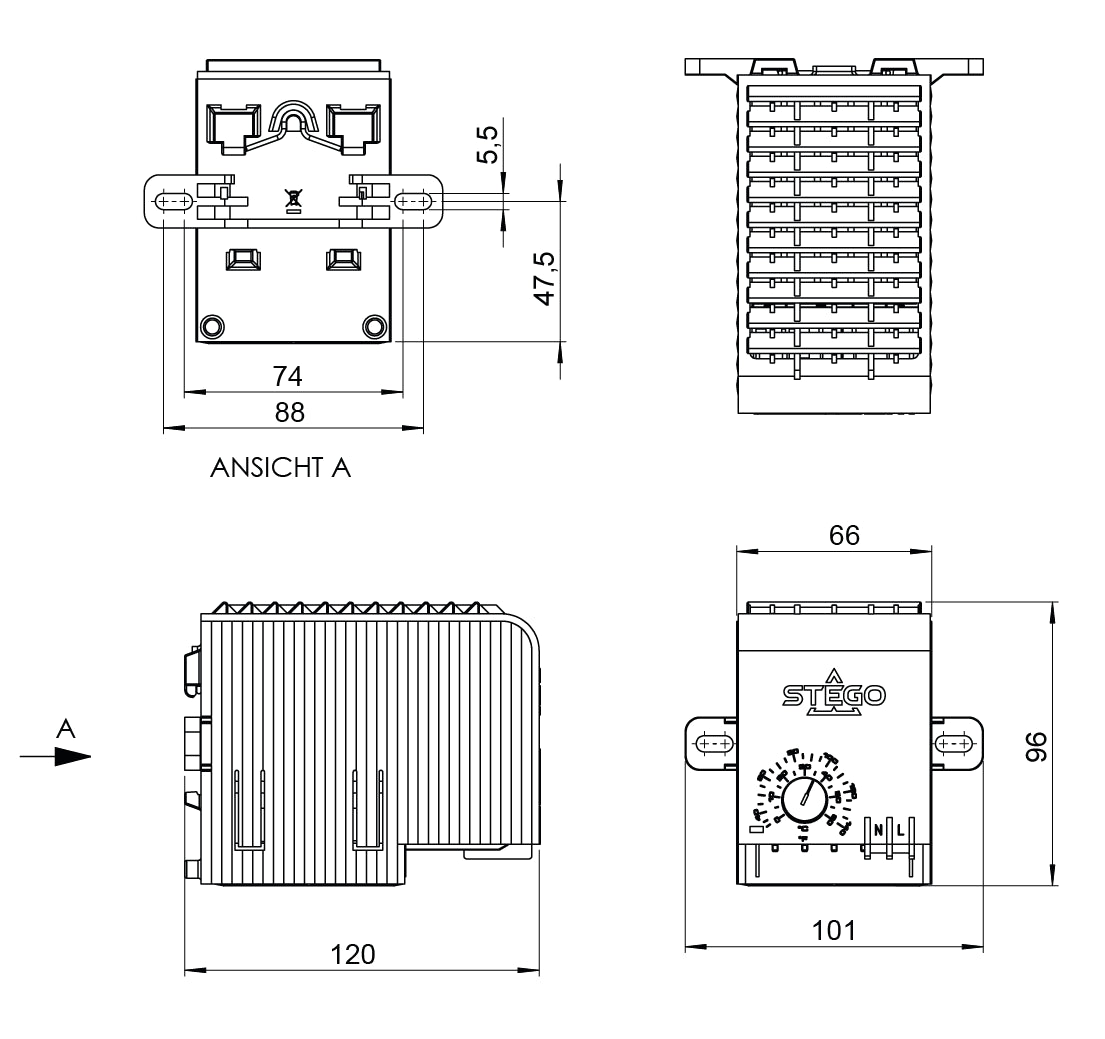

• Height: 3.8 in

• Width: 2.6 in

• Depth: 4.7 in

• Weight: 17.6 Oz
