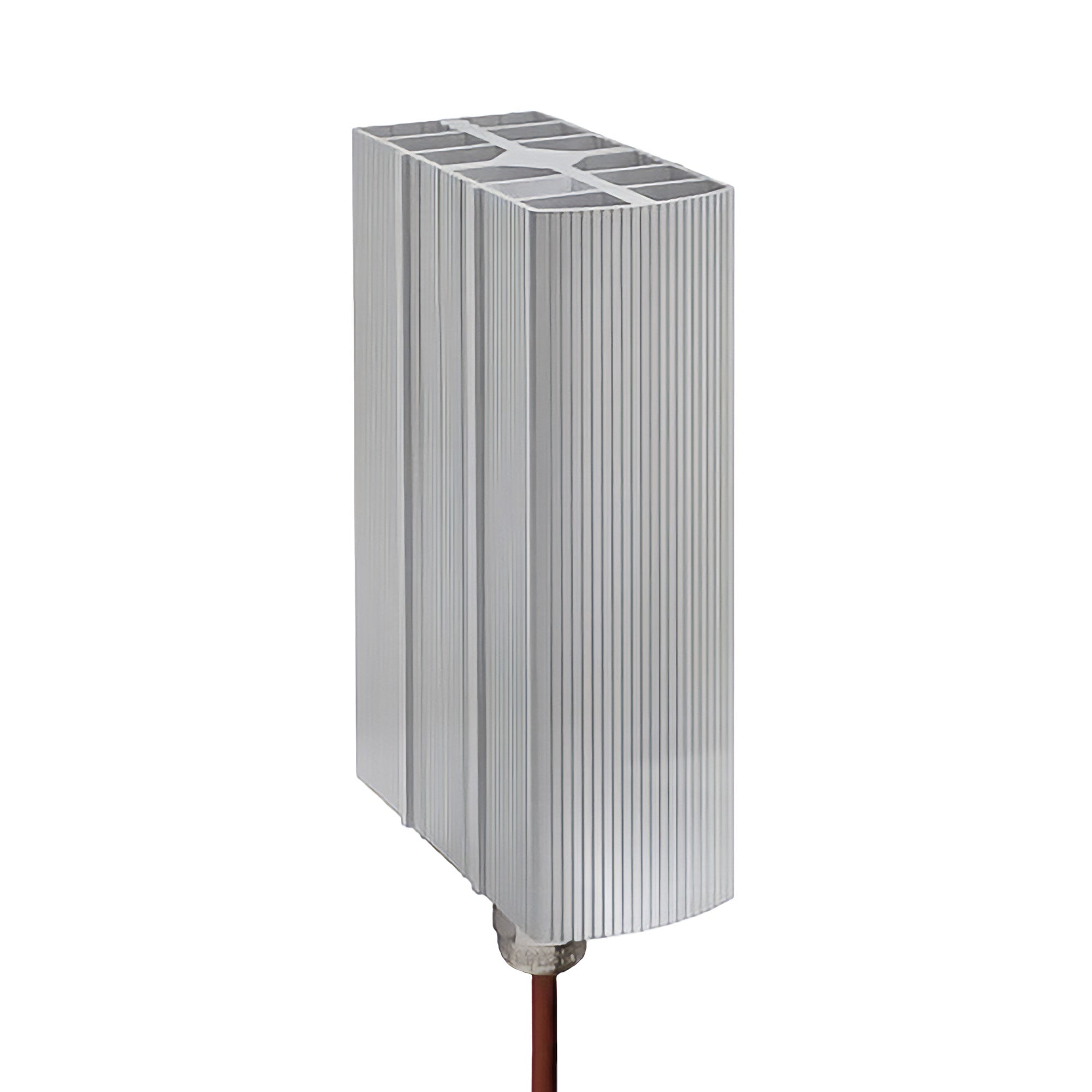

CREx 020 (T4) Hazardous Area Explosion Proof Enclosure Heater 50W to 200W

Features

• DIN Rail Mount Spring Clip and Screw Mounting
• PTC Technology with self regulating characteristics
• Wire Harness 3-wire 3ft cord
• Rugged Aluminum Extrusion Profile
• Rugged Silver Anodized Aluminum Body
• ATEX Certified Protection E Ex d IIc T5 & T
• IP66
• Temperature Class: T4

Specifications

• Operating Voltage: 230 V AC

• Heating Capacity: 50 W to 200 W

• Recommended Pre‑Fuse T (Time‑Delay): 0.5 A

• Temperature Class: T4 (max. +275 °F / +135 °C)

• Ex Protection Type Gases: Ex db IIC T4 Gb

• Ex Protection Type Dusts: Ex tb IIIC T135 °C Db IP66

• Ambient Temperature: ‑76 to +122 °F (‑60 to +50 °C)

• Surface Temperature: max. +275 °F (+135 °C)

• Heating Element: High‑performance cartridge

• Heating Body: Aluminum profile, silver anodized

• Connection: Silicone cable (Halogen‑free) 3 × AWG 18 (0.75 mm²), length 3 ft (1 m)

• Connection PE: AWG 18 to 14 (0.75 to 2.5 mm²)

• Mounting: Clip for 35 mm DIN rail (EN 60715); screw mounting with brackets (Optional)

• Mounting Position: Vertical airflow (Connection at bottom)

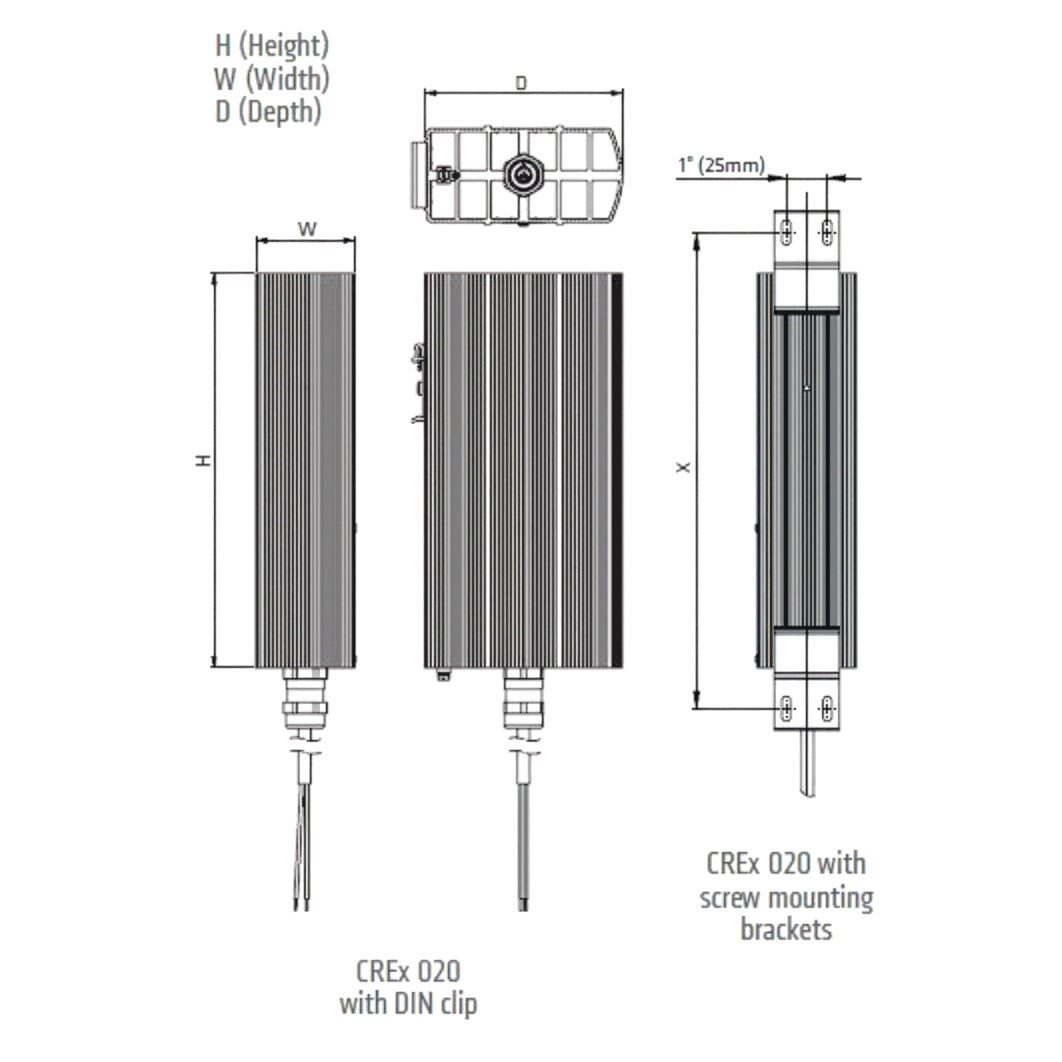

• Dimensions (D × W × H): 3.2 × 1.9 × 4.3 inches (80 × 48 × 110 mm)

• Weight Approx.: 1.5 lbs (0.7 kg)

• Storage Temperature: ‑76 to +185 °F (‑60 to +85 °C)

• Operating/Storage Humidity: max. 90 % RH (Non‑condensing)

• Protection Type / Protection Class: IP66 / I (Grounded)

• Approvals: EPS 16 ATEX 1 109 X; IECEx EPS 16.0048X; EAC

Model Numbers

• 02041.0-00    50 Watt, 230VAC DIN Rail Mount Explosion-Proof Heater
• 02041.0-10    50 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02041.9-00    50 Watt, 120VAC DIN Rail Mount Explosion-Proof Heater
• 02041.9-10    50 Watt, 120VAC Screw Mount Explosion-Proof Heater
• 02042.0-00    100 Watt. 230VAC Screw Mount Explosion-Proof Heater
• 02042.0-10    100 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02042.9-00    100 Watt, 120VAC DIN Rail Mount Explosion-Proof Heater
• 02042.9-10    100 Watt, 120VAC Screw Mount Explosion-Proof Heater
• 02043.0-10    150 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02043.9-10    150 Watt, 120VAC Screw Mount Explosion-Proof Heater
• 02044.0-10    200 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02044.9-10    200 Watt, 120VAC Screw Mount Explosion-Proof Heater


*Heat in Watts at 60Hz, -76 to +122°F Ambient
