CREx 020 (T3) Hazardous Area Explosion Proof Enclosure Heater 50W to 250W DIN Rail Mount or Screw Mount

Features

• DIN Rail Mount Spring Clip and Screw Mounting
• PTC Technology with self regulating characteristics
• Wire Harness 3-Wire 3ft Cord
• Rugged Aluminum Extrusion Profile
• Rugged Silver Anodized Aluminum Body
• ATEX Certified Protection E Ex d IIc T5 & T
• IP66
• Temperature Class: T3

Specifications

• Operating Voltage: AC 230 V
• Heating Capacity: 50 W
• Recommended Pre‑Fuse T (Time‑Delay): 0.5 A

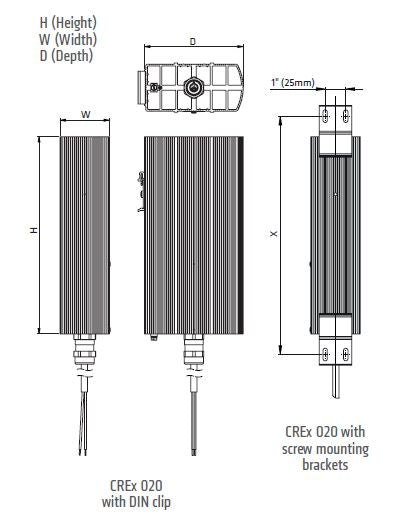

• Dimensions: (D × W × H): 3.2 × 1.9 × 4.3 inches (80 × 48 × 110 mm)
• Weight Approx.: 1.5 lbs (0.7 kg)
• Temperature Class: T3 (Max. +392 °F / +200 °C)
• Ex Protection Type Gases: Ex db IIC T3 Gb
• Ex Protection Type Dusts: Ex tb IIIC T200 °C Db IP66
• Ambient Temperature: ‑76 to +185 °F (‑60 to +85 °C)
• Surface Temperature: Max. +392 °F (+200 °C)
• Heating Element: High‑performance cartridge
• Heating Body: Aluminum profile, silver anodized

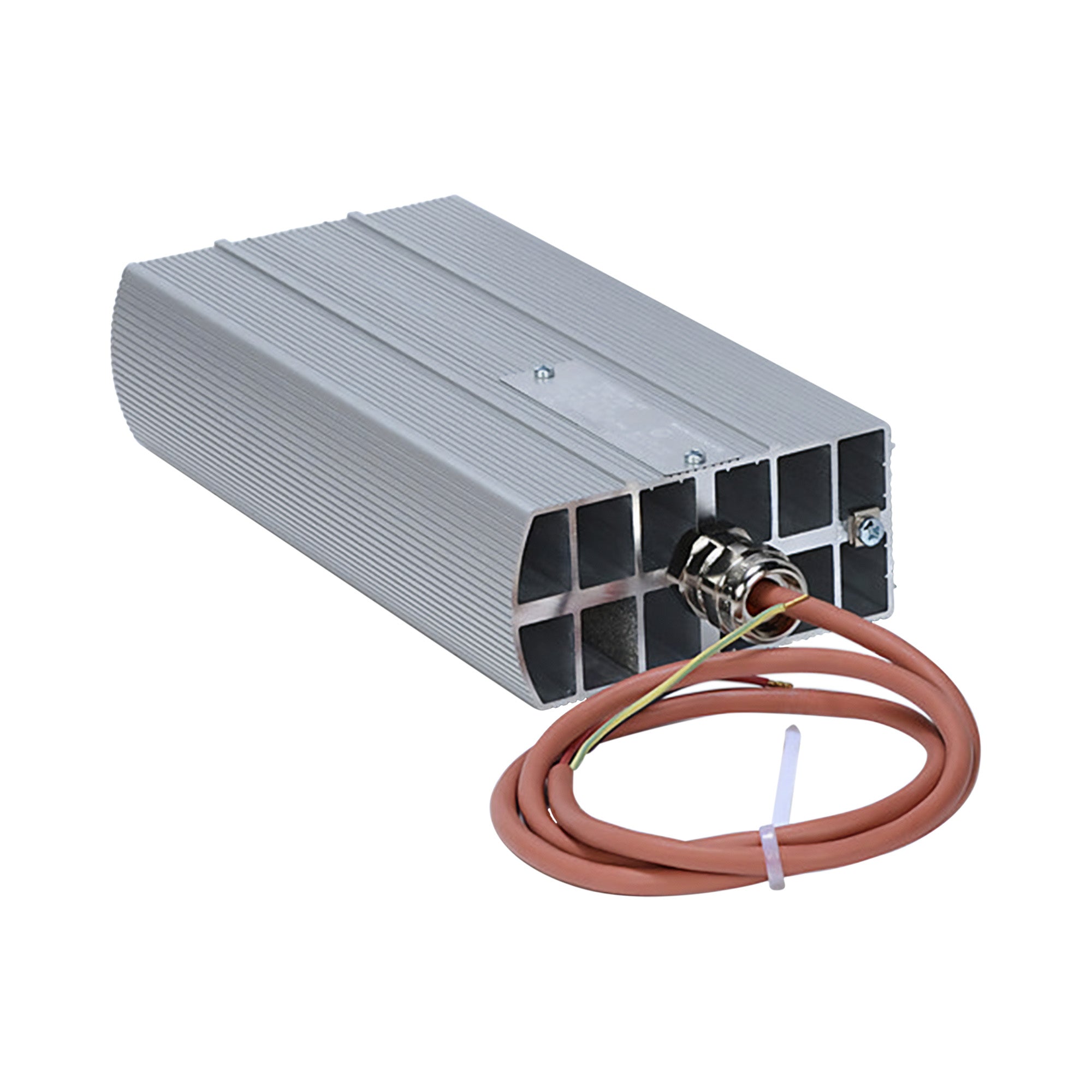

• Connection: Silicone cable (halogen‑free) 3 × AWG 18 (0.75 mm²), length 3 ft (1 m)
• Connection PE: AWG 18 to 14 (0.75 to 2.5 mm²)

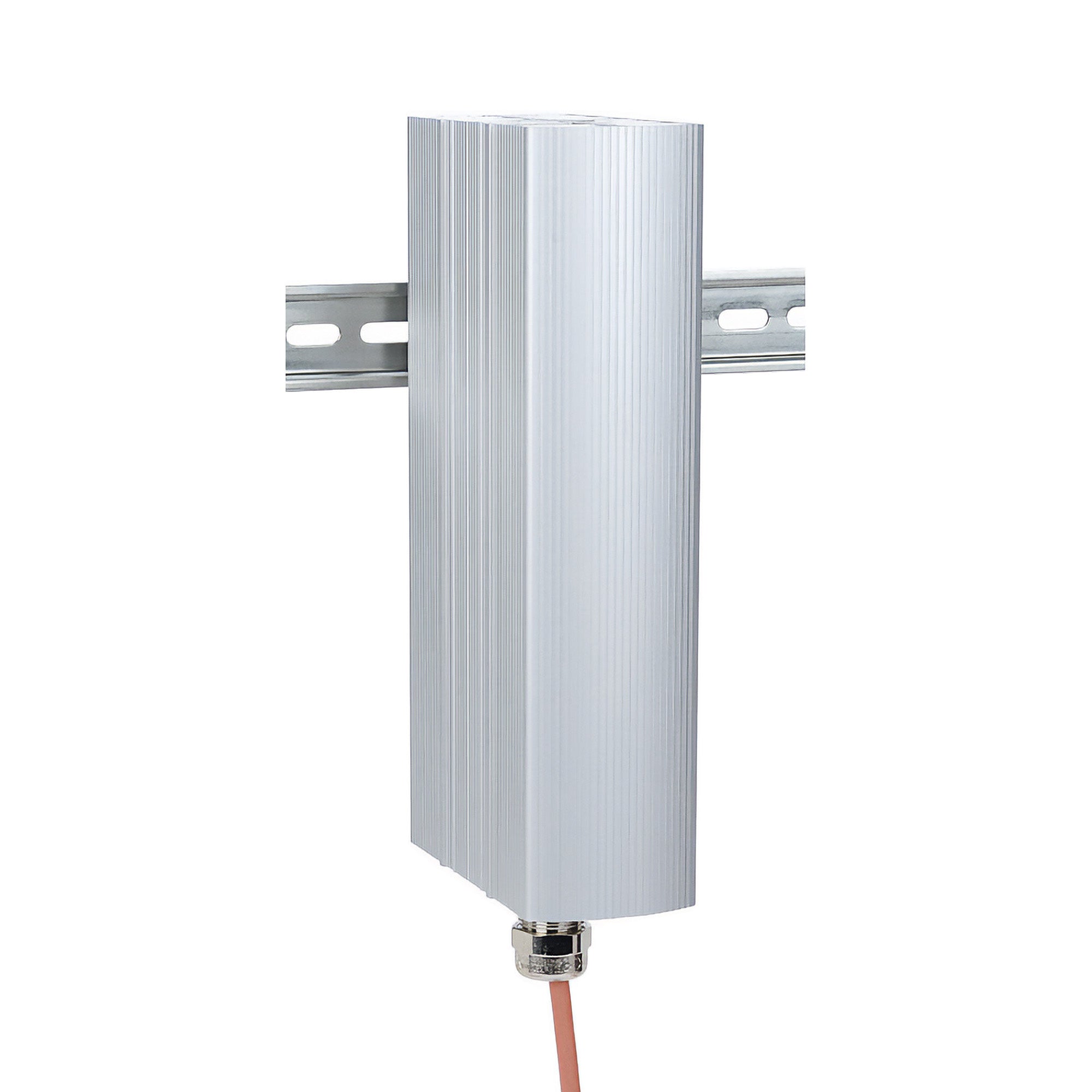

• Mounting: Clip for 35 mm DIN rail, EN 60715; screw mounting with 2 mounting brackets (Optional)
• Mounting Position: Vertical airflow (Connection at bottom)
• Storage Temperature: ‑76 to +185 °F (‑60 to +85 °C)
• Operating/Storage Humidity: Max. 90 % RH (Non‑condensing)
• Protection Type / Protection Class: IP66 / I (Grounded)
• Approvals: EPS 16 ATEX 1 109 X; IECEx EPS 16.0048X; EAC

Model Numbers

• 02031.0-00     50 Watt, 230VAC DIN Rail Mount Explosion-Proof Heater
• 02031.0-10     50 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02031.9-00     50 Watt, 120VAC DIN Rail Mount Explosion-Proof Heater
• 02031.9-10     50 Watt, 120VAC Screw Mount Explosion-Proof Heater
• 02032.0-00    100 Watt, 230VAC DIN Rail Mount Explosion-Proof Heater
• 02032.0-10    100 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02032.9-00    100 Watt, 120VAC DIN Rail Mount Explosion-Proof Heater
• 02032.9-10    100 Watt, 120VAC Screw Mount Explosion-Proof Heater
• 02033.0-00    150 Watt, 230VAC DIN Rail Mount Explosion-Proof Heater
• 02033.0-10    150 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02033.9-00    150 Watt, 120VAC DIN Rail Mount Explosion-Proof Heater
• 02033.9-10    150 Watt, 120VAC Screw Mount Explosion-Proof Heater
• 02034.0-00    200 Watt, 120VAC DIN Rail Mount Explosion-Proof Heater
• 02034.0-10    200 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02034.9-00    200 Watt, 120VAC DIN Rail Mount Explosion-Proof Heater
• 02034.9-10    200 Watt, 120VAC Screw Mount Explosion-Proof Heater
• 02035.0-10    250 Watt, 230VAC Screw Mount Explosion-Proof Heater
• 02035.9-10    250 Watt, 120VAC Screw Mount Explosion-Proof Heater

*Heat in Watts at 60Hz, -76 to +186°F Ambient
