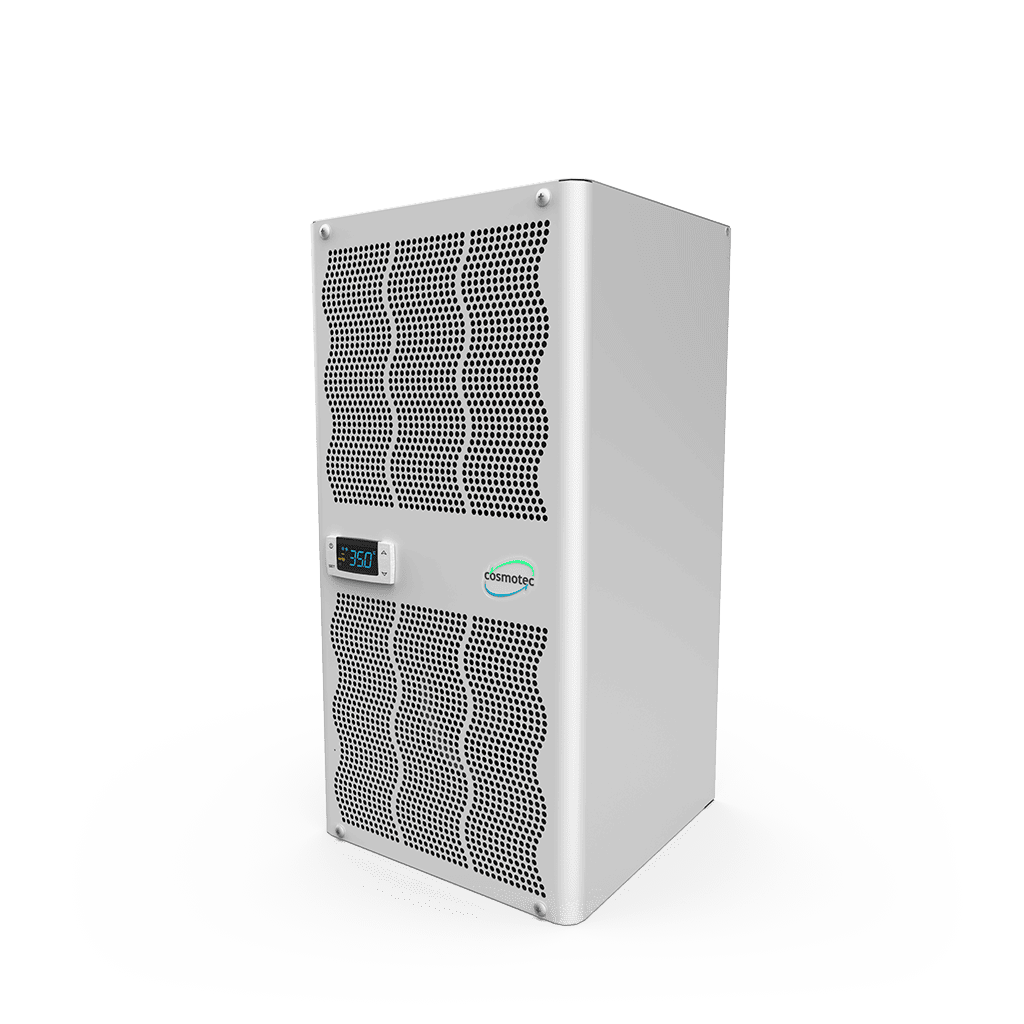

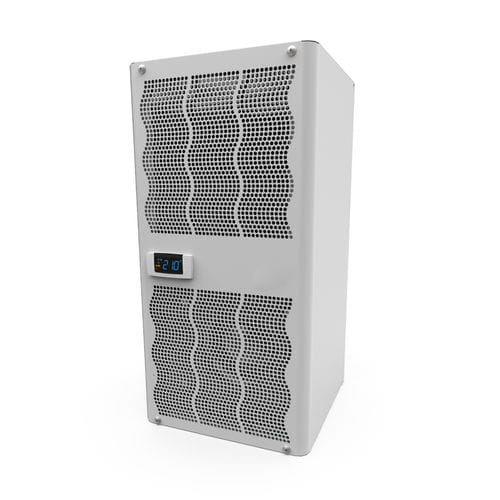

CNE Compact Protherm Indoor Wall Mounted Enclosure Air Conditioner 455W to 1050W

• High efficiency
• Indoor and Outdoor applications
• Cooling capacity: 400 ÷ 1000 W
• Electronic board XCB + display
• Quick electrical connections
• Condensate evaporator device (CNE Models)
• General alarm and remote enable contacts
• Sequencing and modbus (With specific accessories)
• SEM and SEM2 functions (With specific accessory)
• Electrical heater
• (Models CNO 230V-400/460V, 115V on request)
• Certifications: CE, EAC, UL Listed

Options

• Special Color
• Stainless steel 304/316 housing
• Protective treatment on the condenser
• Electrical heater (CNO models)
• Remote Probe

Accessories

• Air Filter (CNE)
• Air Baffle (CNE)
• Keypad (CNO)
• Sequencing cable
• Modbus serial port
• IP55
• Rubber caps
• 30° Sloped roof

Specifications

• Product Series: Compact Protherm (CNE / CNO)
• Product Type: Enclosure air conditioner
• Application: Indoor and outdoor electrical enclosures
• Cooling Capacity Range: 400 to 1000 W
• Mounting Type: Side-mounted on electrical enclosures
• Maximum Enclosure Depth: 300 mm (12 in)
• Dimensions (H x W x D): 565 mm x 280 mm x 220 mm (CNE) / 278 mm (CNO)
• Power Supply Options: 115 V AC / 230 V AC / 400 V AC / 460 V AC
• Frequency: 50 / 60 Hz
• Control Type: Electronic control board with display
• Temperature Set Point Range: Up to 20 °C (Varies by model)
• Maximum Ambient Temperature: Up to 55 °C
• Condensate Management: Integrated condensate evaporator (CNE models)
• Protection Degree (Unit to Enclosure): IP54 / IP55, Type 12 / Type 4 / 4X (model dependent)
• Evaporator Type: Hydrophilic coated evaporator
• Noise Level: 55–58 dB(A) (Varies by model)
• Housing Material: Painted steel (stainless steel optional)
• Color: Light gray (Standard)
• Quick Connections: Power supply and signal quick-connect terminals
• Alarm Outputs: General alarm and remote enable contacts
• Communication Options: Modbus and sequencing (With accessories)
• Heater Option: Electrical heater available (CNO models, voltage dependent)
• Certifications: CE, EAC, UL Listed
• Typical Applications: Industrial automation, machine tools, Food & Beverage enclosures

Model Numbers

• CNE04-230-1 -   455W Indoor Compact Protherm A/C
• CNE04-115-1 -   455W Indoor Compact Protherm A/C
• CNE04-400-1 -   450W Indoor Compact Protherm A/C
• CNE04-460-1 -   490W Indoor Compact Protherm A/C
• CNE07-230-1 -   660W Indoor Compact Protherm A/C
• CNE07-115-1 -   625W Indoor Compact Protherm A/C
• CNE07-400-1 -   645W Indoor Compact Protherm A/C
• CNE07-460-1 -   655W Indoor Compact Protherm A/C
• CNE10-230-1 -   975W Indoor Compact Protherm A/C
• CNE10-115-1 -   950W Indoor Compact Protherm A/C
• CNE10-400-1 -   950W Indoor Compact Protherm A/C
• CNE10-460-1 - 1050W Indoor Compact Protherm A/C
