Cirrus 80 FGC DIN Rail Enclosure PTC Fan Heater 600W to 800W

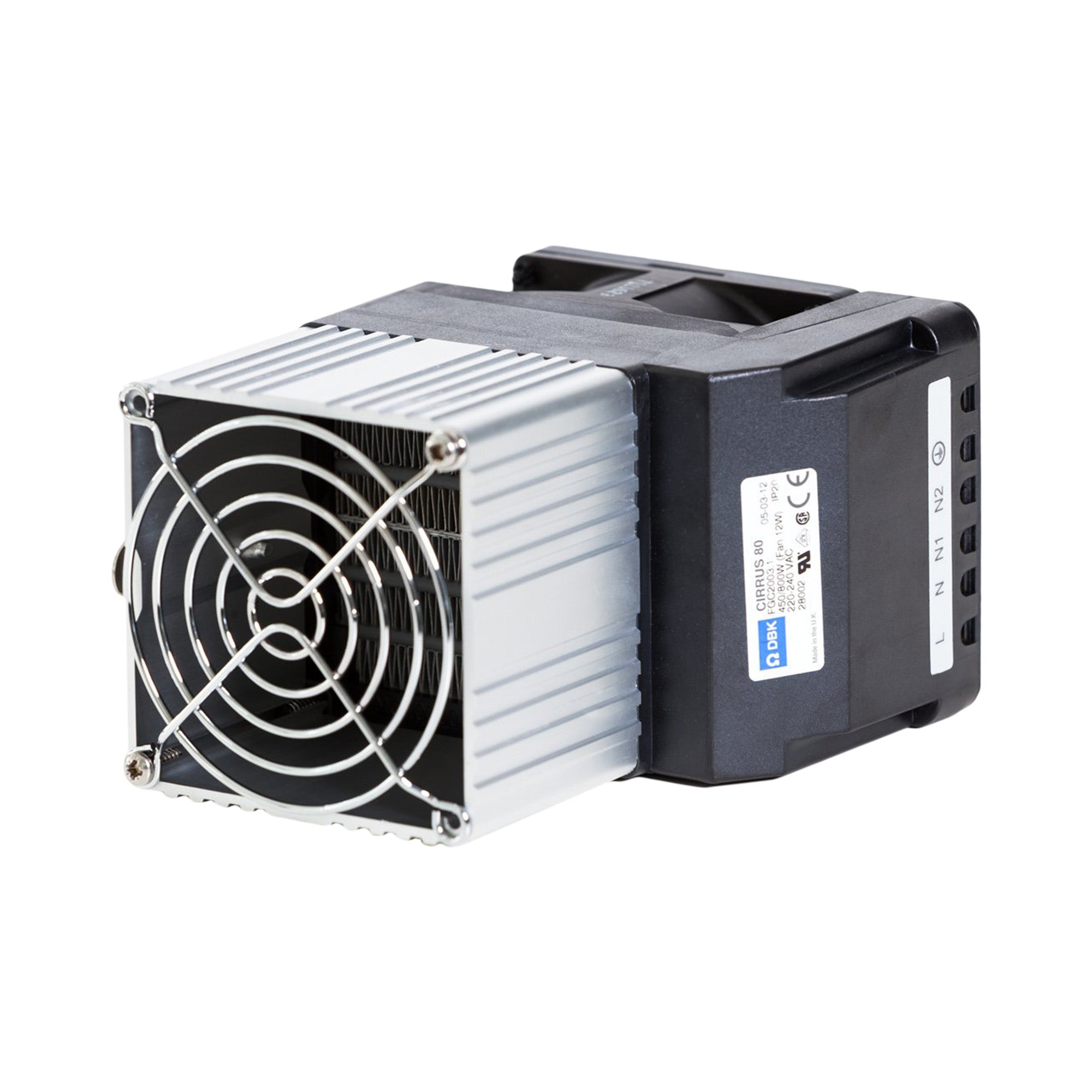

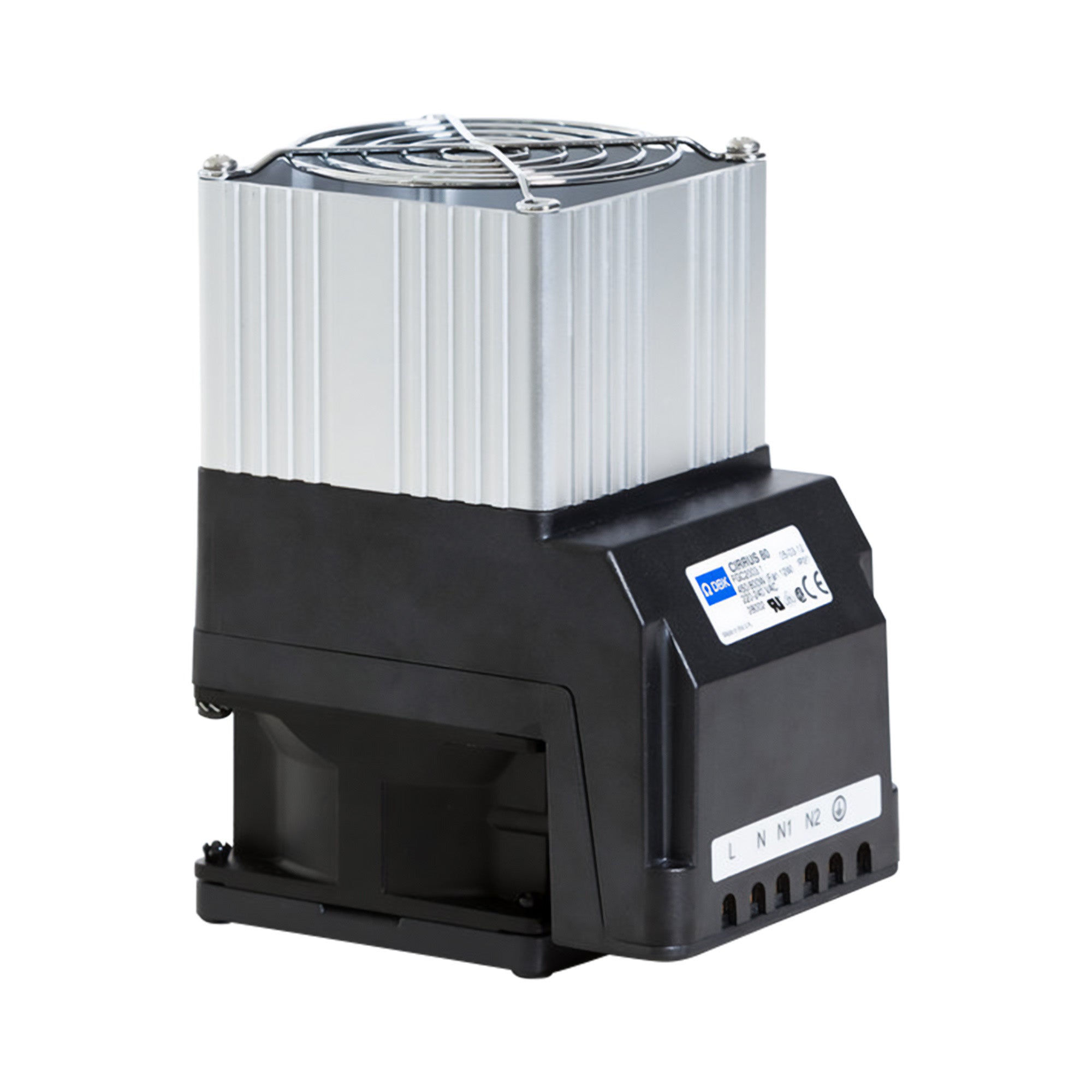

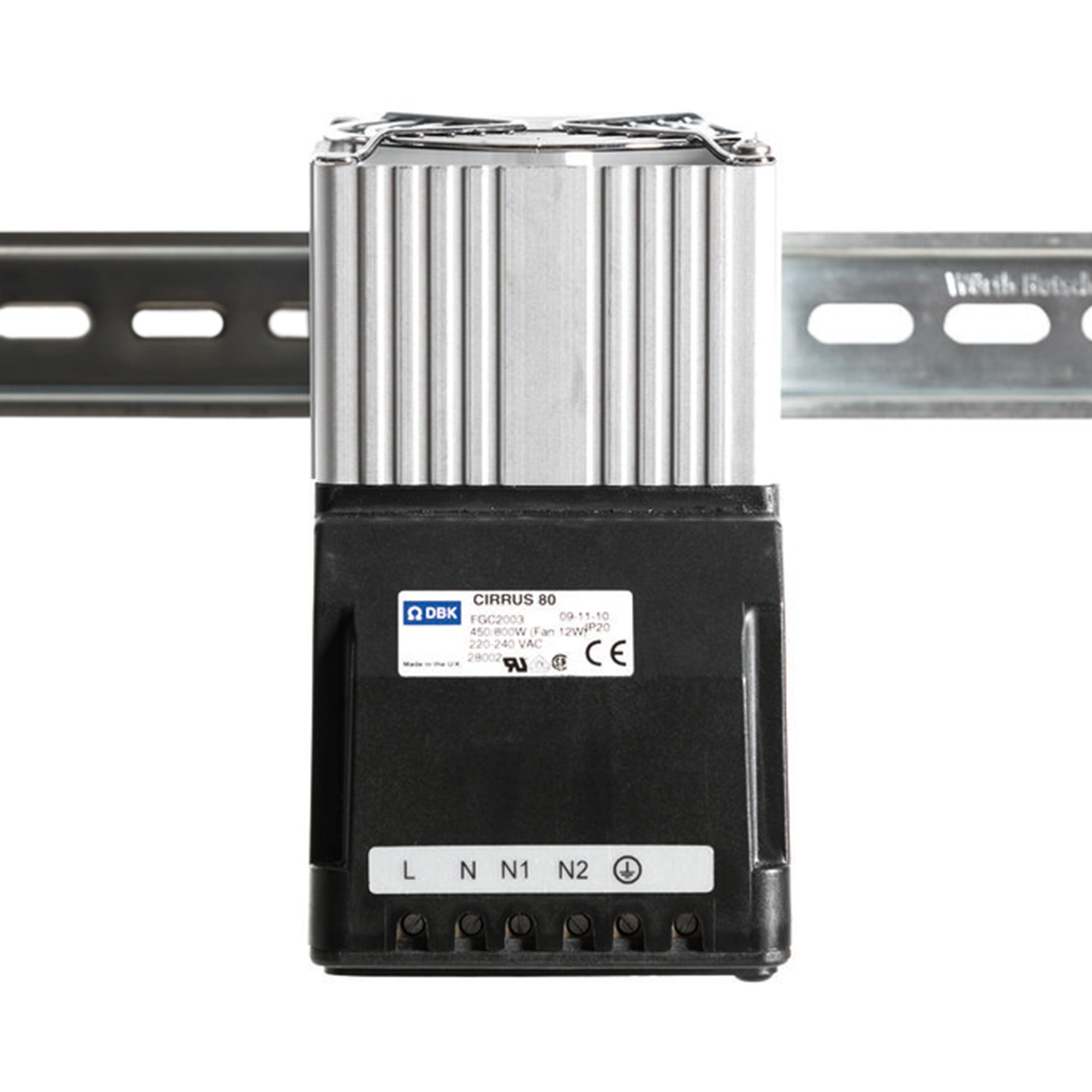

PTC Fan Heaters of the Cirrus series are powerful heaters for targeted air heating in all kinds of electrical housings. They consist of a PTC heating element and an axial fan, installed in a compact housing made of aluminum and plastic. Their DIN clip and terminal block allows for easy and space-saving integration into the customer application. PTC fan heaters are particularly often used in control cabinets, where they protect electronic components from moisture and frost.

Cirrus 80 is available in two power versions, 600W and 800W, with two power levels each, suitable for a voltage of 115V or 230V AC.

Specifications

• Nominal Power at 50 °F (10°C): 300 / 600 W | 450 / 800 W

• Typical Max. Inrush Current RMS at 230 V AC: 10 A | 11 A

• Typical Max. Inrush Current RMS at 115 V AC: 15 A | 14 A

• Max. Body Temperature: 131 °F (55 °C) | 176 °F (80 °C)

• Electrical Protection Class: I | II

• Ingress Protection: IP20

• Operating Temperature Range: -40 °F (−40 °C) to +140 ° (60 °C)

• Fan Volumetric Flow (50-60 Hz): 45 – 54 m³/h

• Fan Lifetime – L10 at 104 °F (40 °C): 61,000 hrs

• Nominal Input Voltage: 115 / 230 AC

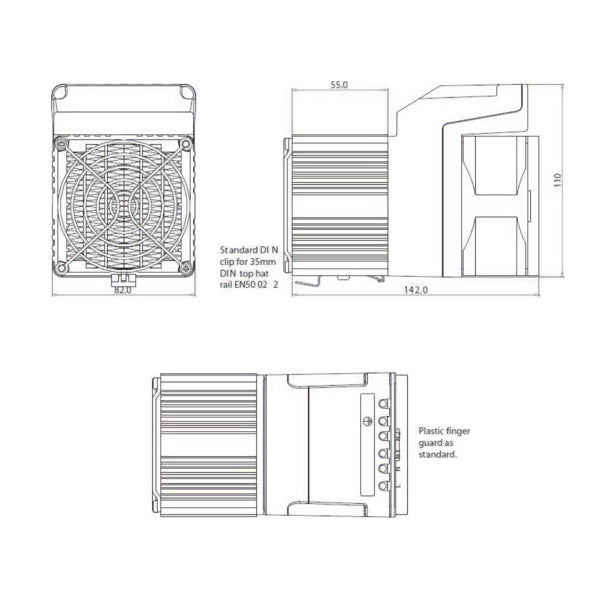

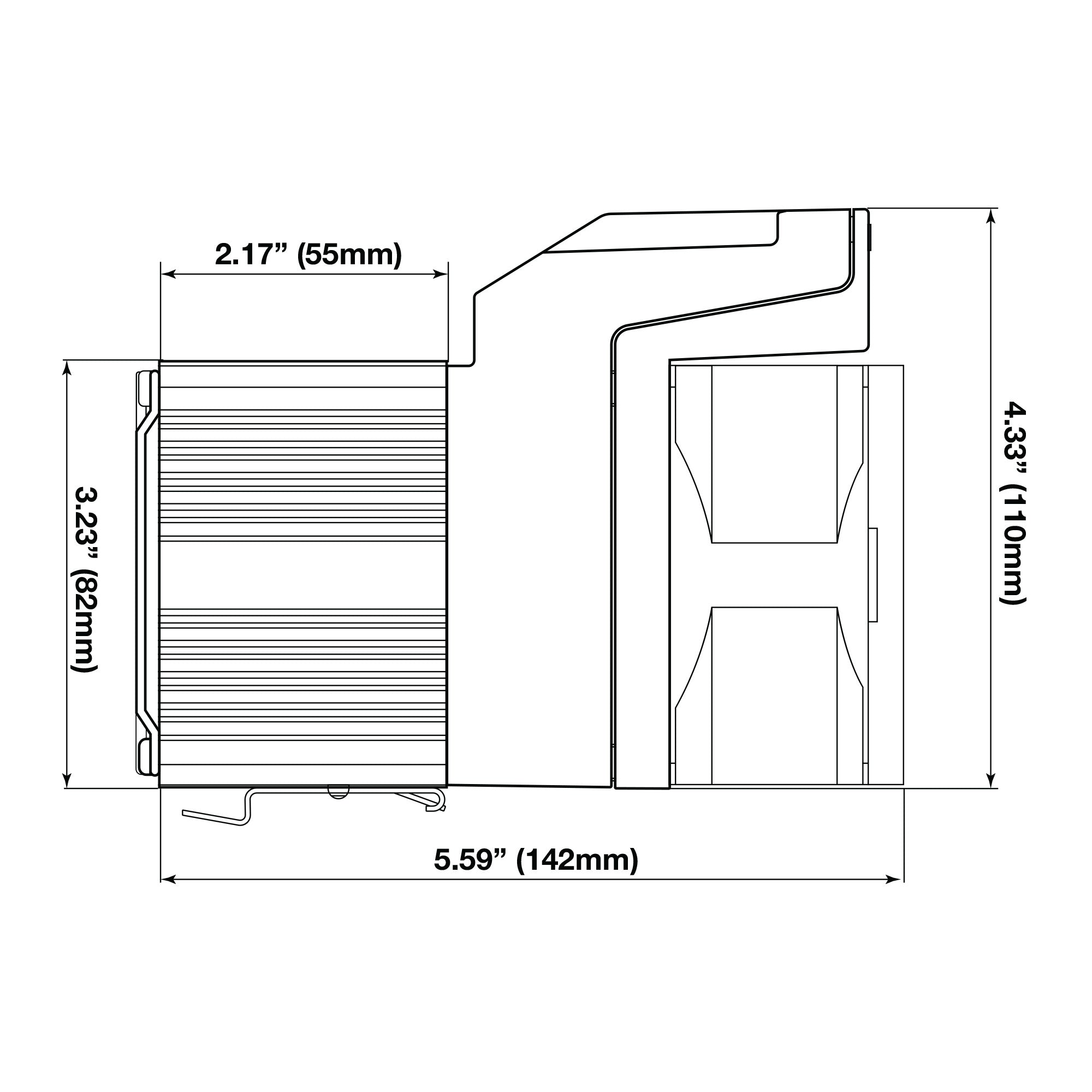

• Cross Section Dimensions: 82 × 110 mm

• Length: 150 mm

• Weight: 785g (27.7 oz)

• Finger Guards at Inlet and Outlet: Yes
