Cirrus 60 FGC DIN Rail Enclosure PTC Fan Heater 200W to 400W

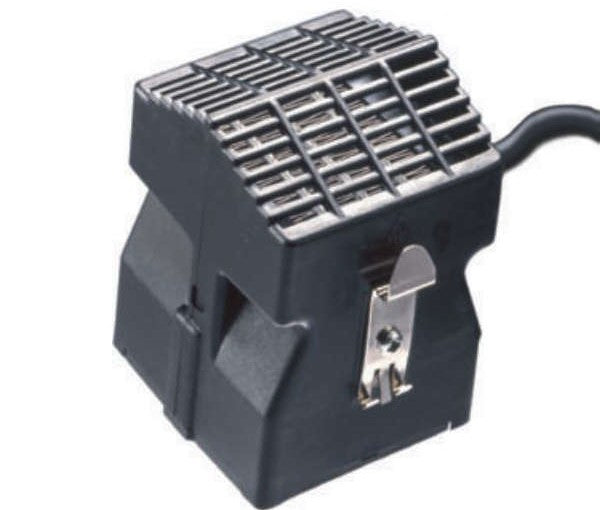

PTC Fan Heaters of the Cirrus series are powerful heaters for targeted air heating in electrical housings. The Cirrus 60 consists of a PTC heating element and fan, installed in a compact plastic housing. The DIN rain mounting clip and connection cable allows for easy and space-saving use and installation. PTC fan heaters are used in electrical control cabinets, where they protect electronic components from moisture and frost.

Cirrus 60 is available in 115Vac or 230Vac versions each of which can be have three user selectable power levels (200W / 300W / 400W).

Features

DIN rail mount with cable connection
PTC Technology with self regulating characteristics
Three independent heater circuits for 200, 300, or 400 watts in one unit
Rugged Plastic Housing, IP20

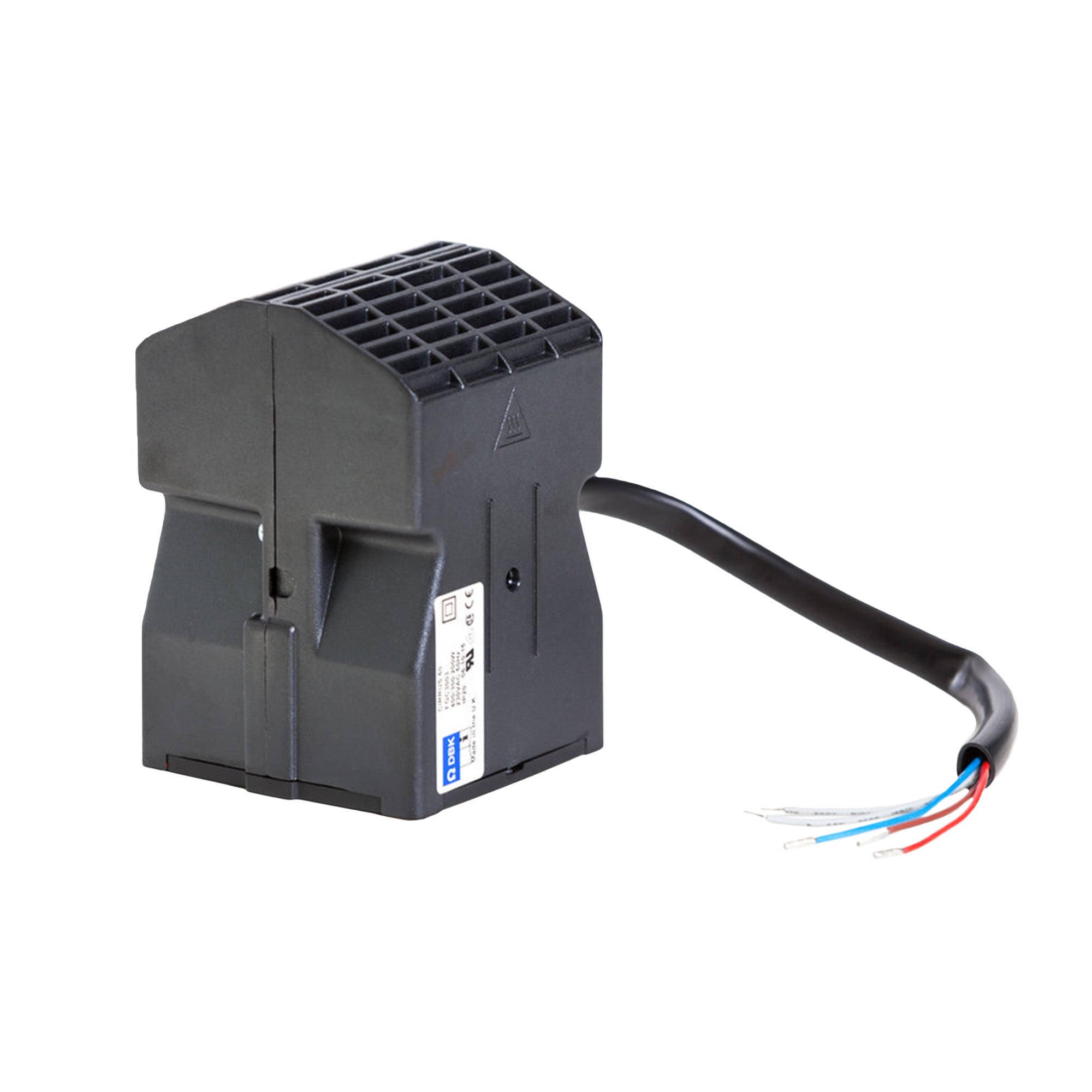

240mm cable for termination
Independent fan circuit to aid in cooling
Approvals UL, CSA, CE, VDE, RoHS

Specifications

Specification	200 W Variant	300 W Variant	400 W Variant
Nominal Power (at ~10 °C)	200 W	300 W	400 W
Max. Inrush Current (230 V AC)	4 A	8 A	10 A
Max. Inrush Current (115 V AC)	1.75 A	3.5 A	5 A
Protection Class	Class II	Class II	Class II
Ingress Protection (IP)	IP20	IP20	IP20
Operating Temperature Range	‑10 °C to +70 °C	‑10 °C to +70 °C	‑10 °C to +70 °C
Storage Temperature Range	‑40 °C to +70 °C	‑40 °C to +70 °C	‑40 °C to +70 °C
Fan Volumetric Flow (50 Hz @ 230 V AC)	~10 m³/h	~10 m³/h	~10 m³/h
Fan Volumetric Flow (60 Hz @ 115 V AC)	~13 m³/h	~13 m³/h	~13 m³/h
Fan Life (L₁₀)	~49,000 h	~49,000 h	~49,000 h
Body Max. Temp. at 40 °C Amb.	~45 °C	~50 °C	~55 °C
Nominal Input Voltage	115 V / 230 V AC	115 V / 230 V AC	115 V / 230 V AC

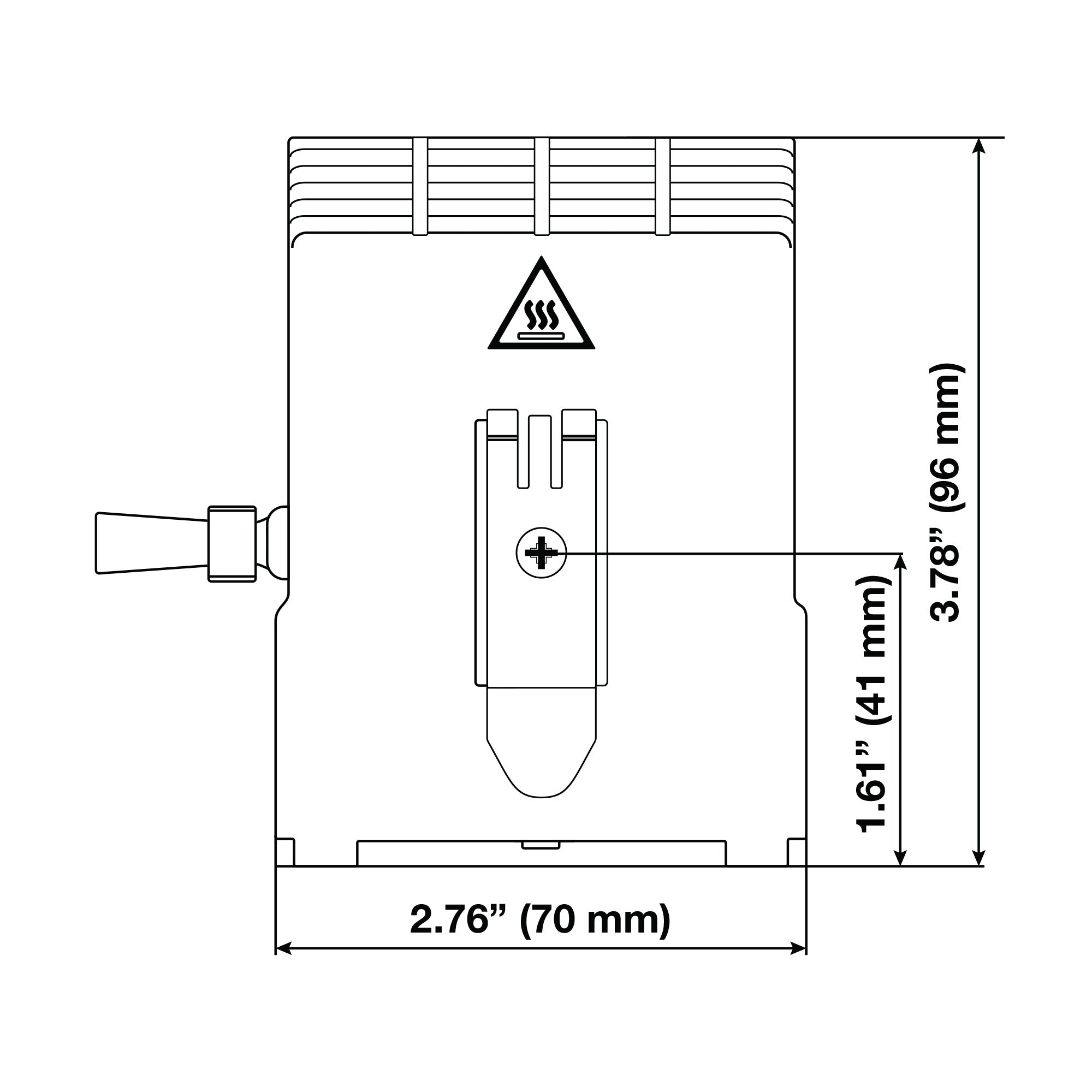

Dimensions (cross section)	71 × 70 mm	71 × 70 mm	71 × 70 mm
Length	~98 mm	~98 mm	~98 mm
Harness Length	~240 mm	~240 mm	~240 mm
Weight	~275 g	~275 g	~275 g
Separate Fan Mode	Yes (fan works independently)	Yes	Yes
Housing Material	Heat‑resistant plastic	Heat‑resistant plastic	Heat‑resistant plastic
Installation	DIN clip; optional bracket	DIN clip; optional bracket	DIN clip; optional bracket

Model Numbers
FGC3000 230VAC/50Hz DIN Rail Mountable Fan Heater
FGC3001 115VAC/60Hz DIN Rail Mountable Fan Heater
