Cirrus 40 FGC Inline DIN Rail Enclosure PTC Fan Heater 60W to 200W

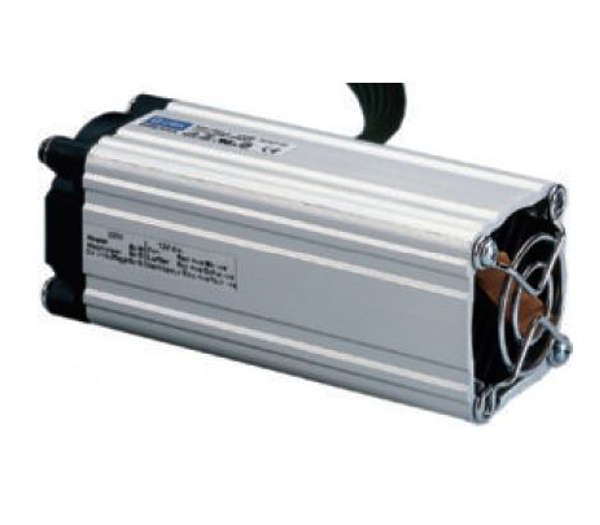

PTC Fan Heaters of the Cirrus series are powerful heaters for targeted air heating in all kinds of electrical housings. They consist of a PTC heating element and an axial fan, installed in a compact housing made of aluminum. Their DIN clip and connection cable allows for easy and space-saving integration into the customer application. PTC fan heaters are particularly often used in control cabinets, where they protect electronic components from moisture and frost. Cirrus 40 is available in two sizes (C40/1 and C40/2) with several power outputs from 60 to 230W. A special feature of the Cirrus 40 is the separate power supply for the fan (12/24V AC or DC) and heating element (12/24V or 115/230V). PTC Fan Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.

Specifications

Cirrus 40 | 1 – 60 W (230 V Heater – 24 V Fan)

Nominal Power at 50°F (W): 60 W
Max. Inrush Current | RMS at 12V AC (A): 6.5 A
Max. Inrush Current | RMS at 24V AC (A): 7.5 A
Max. Inrush Current | RMS at 115/230V AC (A): 1.5/5 A
Protection Class: I
Ingress Protection: IP20
Fan Volumetric Flow (cfm): 8
Fan Life Time | L10 at 104°F (hrs): 51,000 hrs
Fan Operating Temperature Range (°F): +14 to +158
Nominal Input Voltage Fan (V): 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage Heater (V): 12 AC/DC, 24 AC/DC, or 115/230 V
Dimensions cross section (In): 1.65 × 1.65
Length (In): 3.03
Weight (oz): 9.2
Finger Guards at Outlet (High Voltage Supply): YES
Finger Guards at Outlet (Low Voltage Supply): –

Cirrus 40 | 1 – 80 W (230 V Heater – 24 V Fan)

Nominal Power at 50°F (W): 80 W
Max. Inrush Current | RMS at 12V AC (A): –
Max. Inrush Current | RMS at 24V AC (A): –
Max. Inrush Current | RMS at 115/230V AC (A): 2/6.5 A
Protection Class: I
Ingress Protection: IP20
Fan Volumetric Flow (cfm): 7.3
Fan Life Time | L10 at 104°F (hrs): 95,000 hrs
Fan Operating Temperature Range (°F): +14 to +158
Nominal Input Voltage Fan (V): 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage Heater (V): 115/230 V
Dimensions cross section (In): 1.65 × 1.65
Length (In): 3.03
Weight (oz): 9.7
Finger Guards at Outlet (High Voltage Supply): YES
Finger Guards at Outlet (Low Voltage Supply): –

Cirrus 40 / 1 – 100 W (230 V Heater – 24 V Fan)

Nominal Power at 50°F (W): 100 W
Max. Inrush Current | RMS at 12V AC (A): –
Max. Inrush Current | RMS at 24V AC (A): 12 A
Max. Inrush Current | RMS at 115/230V AC (A): 1.5/4.5 A
Protection Class: I
Ingress Protection: IP20
Fan Volumetric Flow (cfm): 8
Fan Life Time | L10 at 104°F (hrs): 51,000 hrs
Fan Operating Temperature Range (°F): +14 to +158
Nominal Input Voltage Fan (V): 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage Heater (V): 115/230 V
Dimensions cross section (In): 1.65 × 1.65
Length (In): 4.41
Weight (oz): 9.2
Finger Guards at Outlet (High Voltage Supply): YES
Finger Guards at Outlet (Low Voltage Supply): Optional

Cirrus 40 / 2 – 125 W (230 V Heater – 12 V Fan)

Nominal Power at 50°F (W): 125 W
Max. Inrush Current | RMS at 12V AC (A): –
Max. Inrush Current | RMS at 24V AC (A): –
Max. Inrush Current | RMS at 115/230V AC (A): –/10 A
Protection Class: I
Ingress Protection: IP20
Fan Volumetric Flow (cfm): 7.3
Fan Life Time | L10 at 104°F (hrs): 95,000 hrs
Fan Operating Temperature Range (°F): +14 to +158
Nominal Input Voltage Fan (V): 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage Heater (V): 115/230 V
Dimensions cross section (In): 1.65 × 1.65
Length (In): 4.8
Weight (oz): 9.7
Finger Guards at Outlet (High Voltage Supply): YES
Finger Guards at Outlet (Low Voltage Supply): –

Cirrus 40 / 2 – 150 W (230 V Heater – 24 V Fan)

Nominal Power at 50°F (W): 150 W
Max. Inrush Current | RMS at 115/230V AC (A): –/10 A
Protection Class: I
Ingress Protection: IP20
Fan Volumetric Flow (cfm): 7.3
Fan Life Time | L10 at 104°F (hrs): 95,000 hrs
Fan Operating Temperature Range (°F): +14 to +158
Nominal Input Voltage Fan (V): 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage Heater (V): 115/230 V
Dimensions cross section (In): 1.65 × 1.65
Length (In): 4.8
Weight (oz): 9.7
Finger Guards at Outlet (High Voltage Supply): YES
Finger Guards at Outlet (Low Voltage Supply): –

Cirrus 40 / 2 – 200 W (230 V Heater – 12 V Fan)

Nominal Power at 50°F (W): 200 W
Max. Inrush Current | RMS at 115/230V AC (A): –/10 A
Protection Class: I
Ingress Protection: IP20
Fan Volumetric Flow (cfm): 7.3
Fan Life Time | L10 at 104°F (hrs): 95,000 hrs
Fan Operating Temperature Range (°F): +14 to +158
Nominal Input Voltage Fan (V): 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage Heater (V): 115/230 V
Dimensions cross section (In): 1.65 × 1.65
Length (In): 4.41
Weight (oz): 9.2
Finger Guards at Outlet (High Voltage Supply): YES
Finger Guards at Outlet (Low Voltage Supply): –

Cirrus 40 / 2 – 230 W (230 V Heater – 12 V or 24 V Fan)

Nominal Power at 50°F (W): 230 W
Max. Inrush Current | RMS at 115/230V AC (A): –/10 A
Protection Class: I
Ingress Protection: IP20
Fan Volumetric Flow (cfm): 8 cfm (with 12 V fan)
Fan Life Time | L10 at 104°F (hrs): 51,000 hrs (12 V fan)
Fan Operating Temperature Range (°F): +14 to +158
Nominal Input Voltage Fan (V): 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage Heater (V): 115/230 V
Dimensions cross section (In): 1.65 × 1.65
Length (In): 2.83 / 3.03
Weight (oz): 6.2 / 9.2
Finger Guards at Outlet (High Voltage Supply): YES
Finger Guards at Outlet (Low Voltage Supply): Optional
