Cirrus 25 FGC Inline DIN Rail Enclosure PTC Fan Heater 5W to 40W

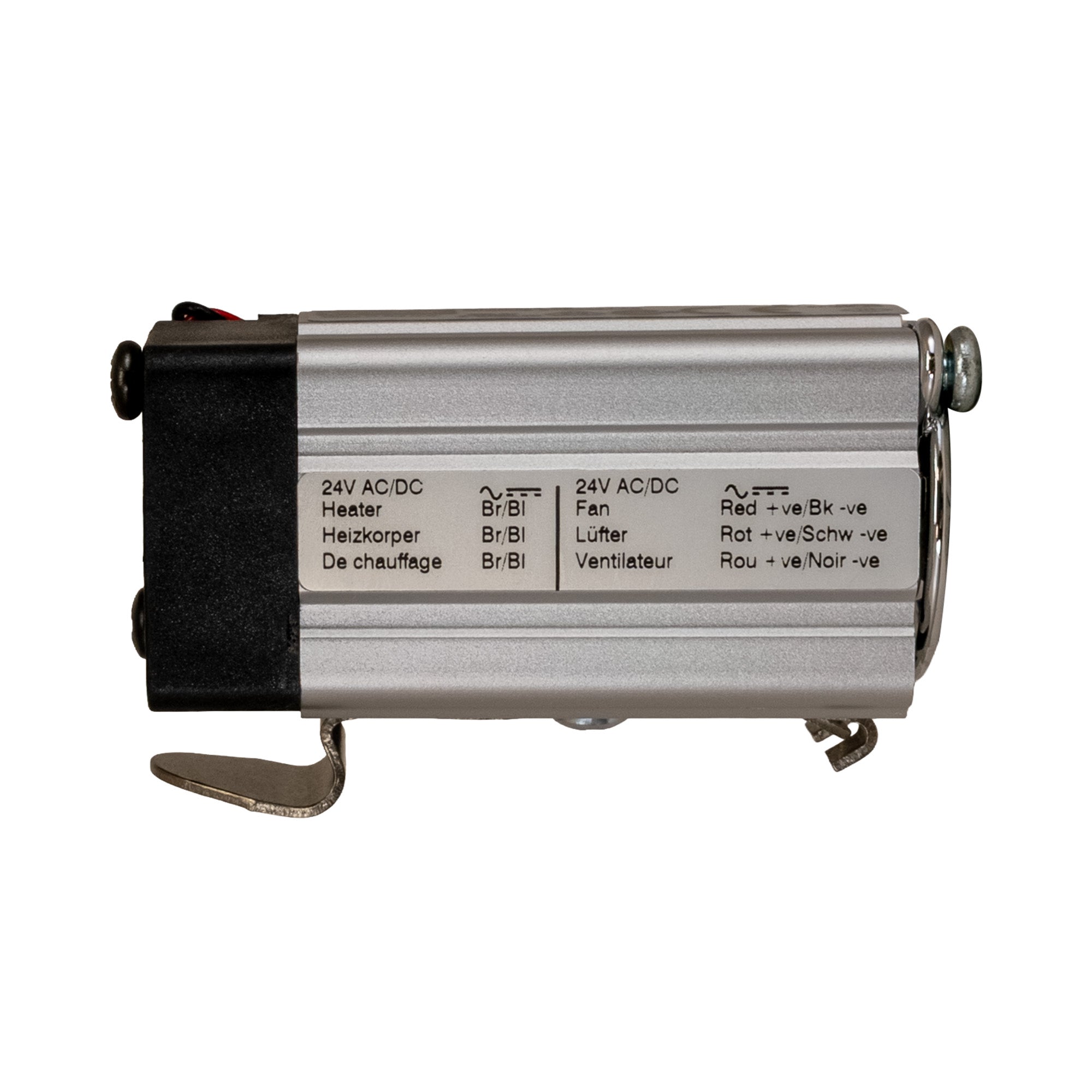

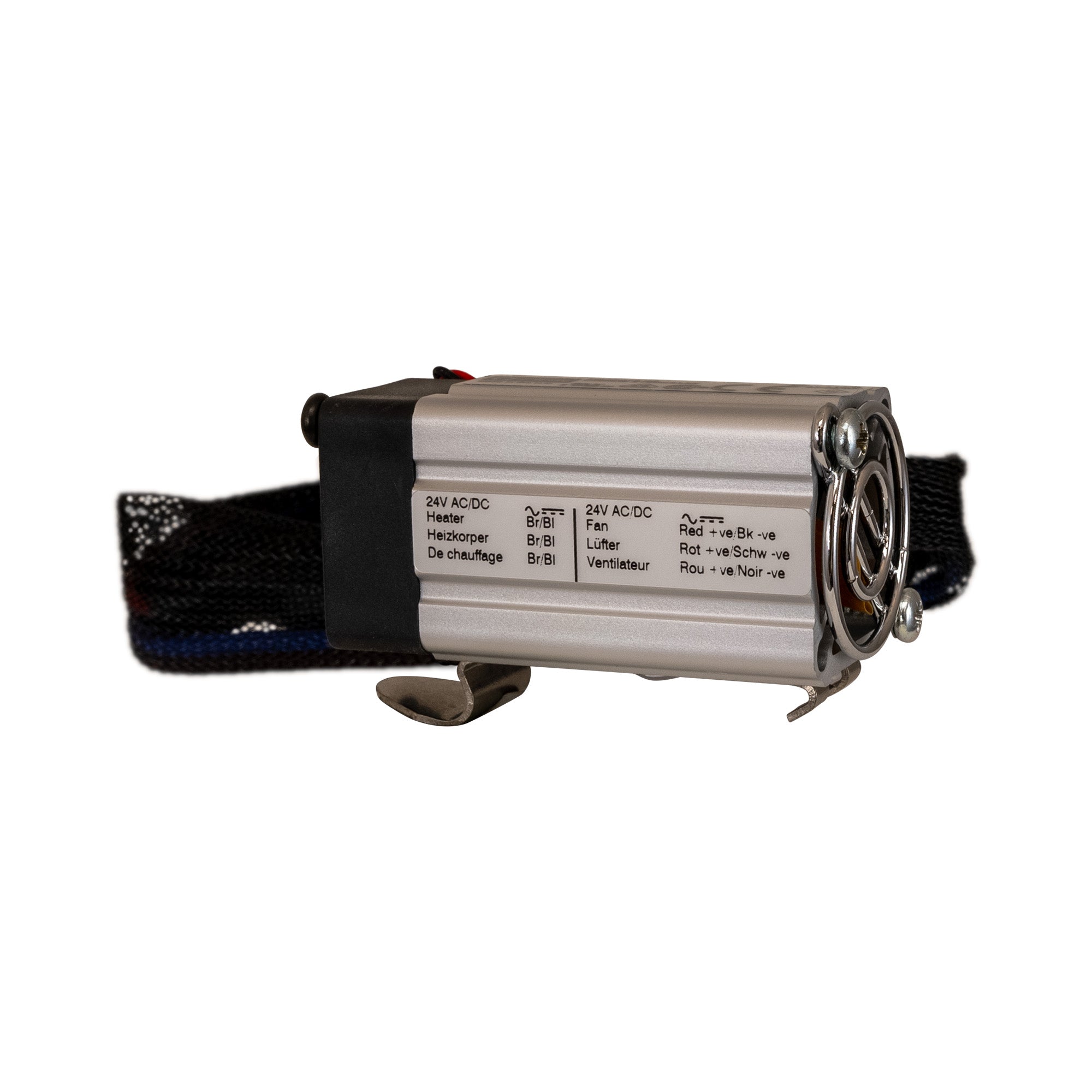

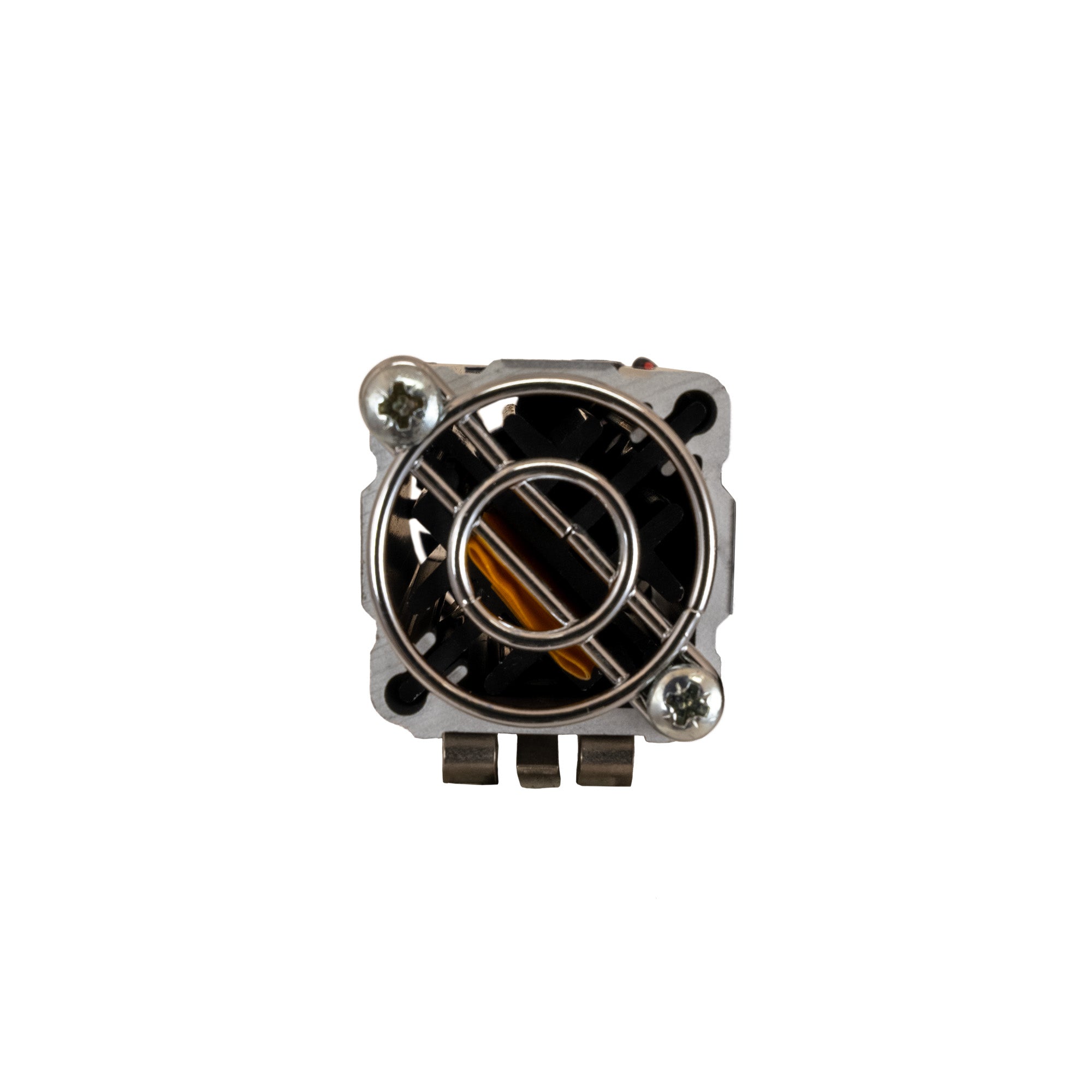

TC Fan Heaters of the Cirrus series are powerful heaters for targeted air heating in all kinds of electrical housings. They consist of a PTC heating element and an axial fan, installed in a compact housing made of aluminum. Their DIN clip and connection cable allows for easy and space-saving integration into the customer application. PTC fan heaters are particularly often used in control cabinets, where they protect electronic components from moisture and frost.

Cirrus 25 is available in two sizes (C25/1 and C25/2) with several power outputs from 5 to 40W. A special feature of the Cirrus 25 is the separate power supply for the fan (12/24V AC or DC) and heating element (12/24V or 115/230V).

PTC Fan Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.

Specifications:

Cirrus 25/1 – 5 W

Nominal Power @ 50 °F (W): 5
Max Inrush Current @ 12 V AC (A RMS): 0.5
Max Inrush Current @ 24 V AC (A RMS): 1.3
Max Inrush Current @ 115/230 V AC (A RMS): —
Protection Class: III / SELV
Ingress Protection: IP20
Fan Volumetric Flow: 3 cfm
Fan Life (L10 @ 104 °F): 34,590 hrs
Fan Operating Temperature Range: +14 °F to +158 °F
Nominal Input Voltage – Fan: 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage – Heater: 12 DC, 12 AC, or 24 AC/DC

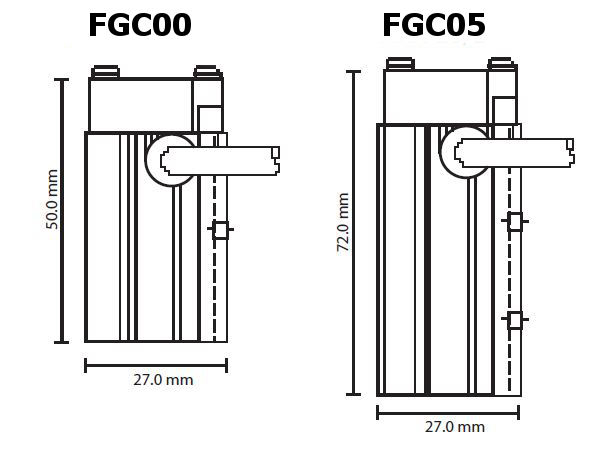

Cross-Section Dimensions: 1.02″ × 1.06″
Length: 1.97″
Weight: 2.1 oz
Finger Guard (High Voltage): No
Finger Guard (Low Voltage): Optional

Cirrus 25/1 – 10 W

Nominal Power @ 50 °F (W): 10
Max Inrush Current @ 12 V AC (A RMS): 1.5
Max Inrush Current @ 24 V AC (A RMS): 1.3
Max Inrush Current @ 115/230 V AC (A RMS): —
Protection Class: III / SELV
Ingress Protection: IP20
Fan Volumetric Flow: 3 cfm
Fan Life (L10 @ 104 °F): 34,590 hrs
Fan Operating Temperature Range: +14 °F to +158 °F
Nominal Input Voltage – Fan: 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage – Heater: 12 DC, 12 AC, or 24 AC/DC
Cross-Section Dimensions: 1.02″ × 1.06″
Length: 1.97″
Weight: 2.1 oz
Finger Guard (High Voltage): No
Finger Guard (Low Voltage): Optional

Cirrus 25/1 – 20 W

Nominal Power @ 50 °F (W): 20
Max Inrush Current @ 12 V AC (A RMS): 3
Max Inrush Current @ 24 V AC (A RMS): 3
Max Inrush Current @ 115/230 V AC (A RMS): 0.5 / 2.5
Protection Class: III / SELV (fan), Class I (heater)
Ingress Protection: IP20
Fan Volumetric Flow: 3 cfm
Fan Life (L10 @ 104 °F): 34,590 hrs
Fan Operating Temperature Range: +14 °F to +158 °F
Nominal Input Voltage – Fan: 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage – Heater: 12 AC/DC or 115/230 V
Cross-Section Dimensions: 1.02″ × 1.06″
Length: 1.97″
Weight: 2.1 oz
Finger Guard (High Voltage): —
Finger Guard (Low Voltage): Optional

Cirrus 25/2 – 10 W

Nominal Power @ 50 °F (W): 10
Max Inrush Current @ 12 V AC (A RMS): —
Max Inrush Current @ 24 V AC (A RMS): 2.5
Max Inrush Current @ 115/230 V AC (A RMS): 1 / 3.5
Protection Class: III / SELV
Ingress Protection: IP20
Fan Volumetric Flow: 3 cfm
Fan Life (L10 @ 104 °F): 34,590 hrs
Fan Operating Temperature Range: +14 °F to +158 °F
Nominal Input Voltage – Fan: 24 AC/DC
Nominal Input Voltage – Heater: 24 AC/DC
Cross-Section Dimensions: 1.02″ × 1.06″
Length: 2.83″
Weight: 3.2 oz
Finger Guard (High Voltage): Yes
Finger Guard (Low Voltage): Optional

Cirrus 25/2 – 20 W

Nominal Power @ 50 °F (W): 20
Max Inrush Current @ 12 V AC (A RMS): 2.5
Max Inrush Current @ 24 V AC (A RMS): —
Max Inrush Current @ 115/230 V AC (A RMS): 1 / 3.5
Protection Class: Class I
Ingress Protection: IP20
Fan Volumetric Flow: 3 cfm
Fan Life (L10 @ 104 °F): 34,590 hrs
Fan Operating Temperature Range: +14 °F to +158 °F
Nominal Input Voltage – Fan: 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage – Heater: 12 AC/DC, 24 AC/DC, or 115/230 V
Cross-Section Dimensions: 1.02″ × 1.06″
Length: 2.83″
Weight: 3.2 oz
Finger Guard (High Voltage): Yes
Finger Guard (Low Voltage): Optional

Cirrus 25/2 – 30 W

Nominal Power @ 50 °F (W): 30
Max Inrush Current @ 12 V AC (A RMS): 4
Max Inrush Current @ 24 V AC (A RMS): 5.5
Max Inrush Current @ 115/230 V AC (A RMS): 1 / 3.5
Protection Class: Class I
Ingress Protection: IP20
Fan Volumetric Flow: 3 cfm
Fan Life (L10 @ 104 °F): 34,590 hrs
Fan Operating Temperature Range: +14 °F to +158 °F
Nominal Input Voltage – Fan: 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage – Heater: 12 AC/DC, 24 AC/DC, or 115/230 V
Cross-Section Dimensions: 1.02″ × 1.06″
Length: 2.83″
Weight: 3.2 oz
Finger Guard (High Voltage): Yes
Finger Guard (Low Voltage): Optional

Cirrus 25/2 – 40 W

Nominal Power @ 50 °F (W): 40
Max Inrush Current @ 12 V AC (A RMS): 5
Max Inrush Current @ 24 V AC (A RMS): 9.5
Max Inrush Current @ 115/230 V AC (A RMS): 1 / 3.5
Protection Class: Class I
Ingress Protection: IP20
Fan Volumetric Flow: 3 cfm
Fan Life (L10 @ 104 °F): 34,590 hrs
Fan Operating Temperature Range: +14 °F to +158 °F
Nominal Input Voltage – Fan: 12 DC, 12 AC, or 24 AC/DC
Nominal Input Voltage – Heater: 12 AC/DC, 24 AC/DC, or 115/230 V
Cross-Section Dimensions: 1.02″ × 1.06″
Length: 2.83″
Weight: 3.2 oz
Finger Guard (High Voltage): Yes
Finger Guard (Low Voltage): Optional
