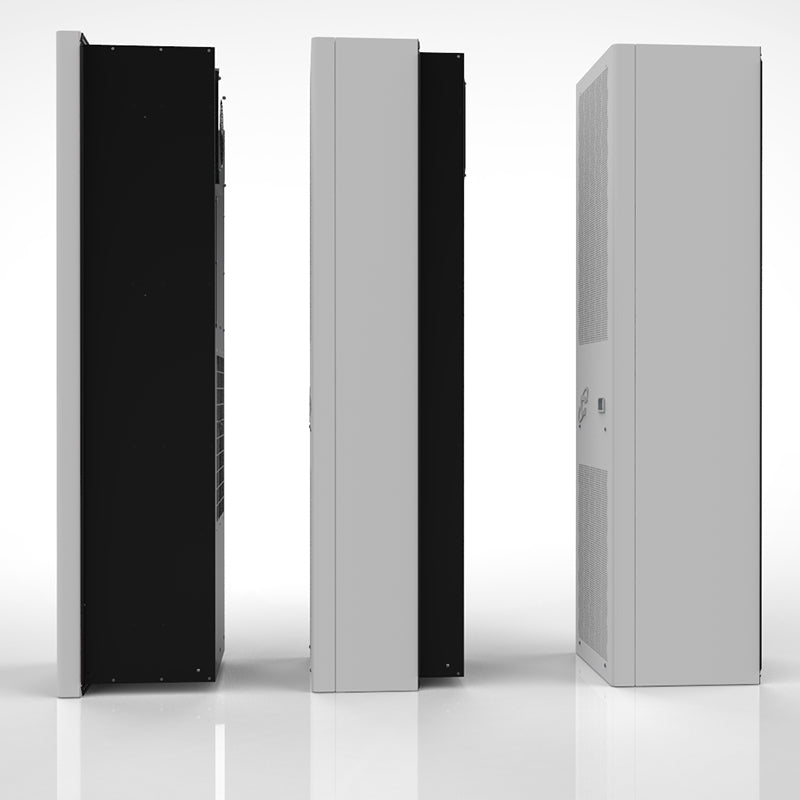

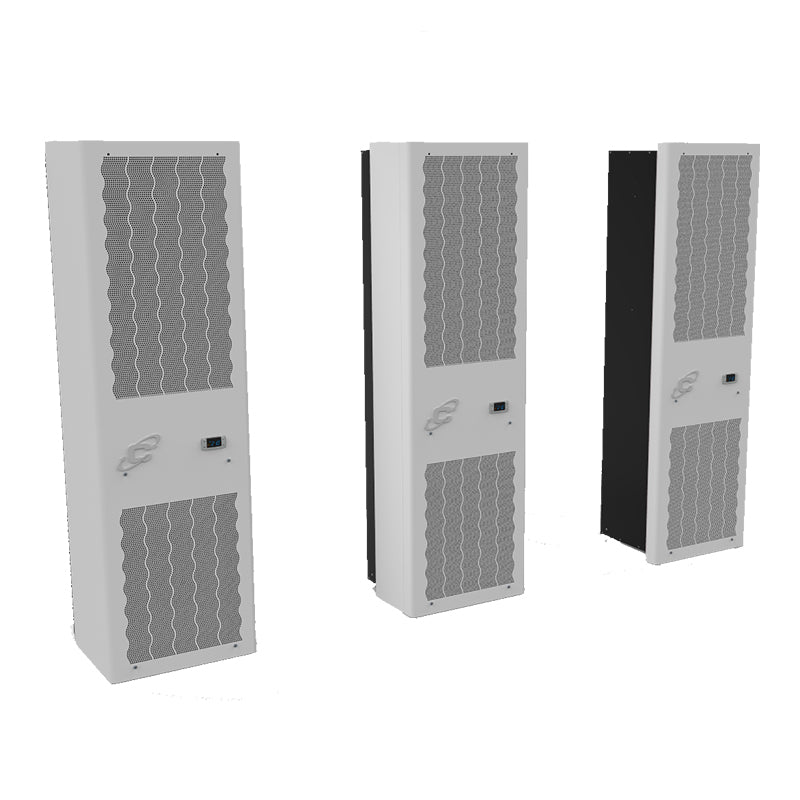

CDI Flex Line Industrial Wall Mounted Enclosure Air Conditioner with Inverter Technology 2000W to 4200W
SKU: CDI-20-230-1
Call for Quote and Customization
Description
Modern industrial electrical panels and servers require more accurate temperature control and low energy consumption even with variable thermal loads. In the past, these two needs were incompatible or only partially met, but now they are both available in the FlexIn air conditioner with Inverter technology.
Features
- Wall-mounted air conditioners with Inverter technology
- High energy savings and efficiency
- External, semi-recessed, or fully recessed installation options
- Cooling capacities: 2000W / 2600W / 4200W
- Wide power supply range: 110...240,1,50...60 and 380...480,3,50...60
- Wide range of external temperatures: -20...+60 °C
- Refrigerant: R134a
- General alarm and remote control contacts
- Connections for sequencing and Ethernet
- Certifications: CE, UL Listed, EAC
- Condensate drain pan
- Internal circuit protection degree: IP54/Type12
- Gasket pre-installed on the air conditioner
- Microchannel condenser with protective treatment
- Low noise levels
Specifications
- Product Series: FlexIn CDI
- Product Type: Wall-mounted enclosure air conditioner with inverter technology
- Cooling Technology: Inverter-driven compressor with variable capacity control
- Cooling Capacity Range: 2000 W to 4200 W (Varies by model)
- Installation Type: External, semi-recessed, or fully recessed mounting
- Power Supply Options: 110–240 V AC, single-phase / 380–480 V AC, three-phase
- Frequency: 50 / 60 Hz
- Rated Current: Model dependent
- Power Consumption: Model dependent
- Temperature Control: Electronic control with inverter regulation
- Temperature Control Accuracy: ±0.2 °C under stable load conditions
- Ambient Operating Temperature Range: –20 °C to +60 °C
- Refrigerant: R134a
- Fans: EC fans for evaporator and condenser
- Expansion Device: Electronic expansion valve
- Condenser Type: Microchannel condenser with protective treatment
- Evaporator Type: Hydrophilic-coated evaporator
- Condensate Management: Integrated condensate drain pan
- Airflow Control: Variable airflow proportional to thermal load
- Noise Level: Low-noise operation
- Housing Material: Painted steel (Stainless steel optional)
- Color: Standard industrial gray
- Protection Degree (Unit to Enclosure): IP54 / Type 12
- Connectivity: Integrated Ethernet port (HTTP, SNMP, TCP/IP)
- Remote Monitoring: 24/7 monitoring and control capability
- Alarm Outputs: General alarm and remote enable contacts (NO / NC)
- Sequencing Capability: Communication between 2 or 3 units for redundancy
- Control Interface: Digital display with multilingual support
- Installation Features: Pre-installed gasket, quick electrical connections
- Certifications: CE, UL Listed, EAC

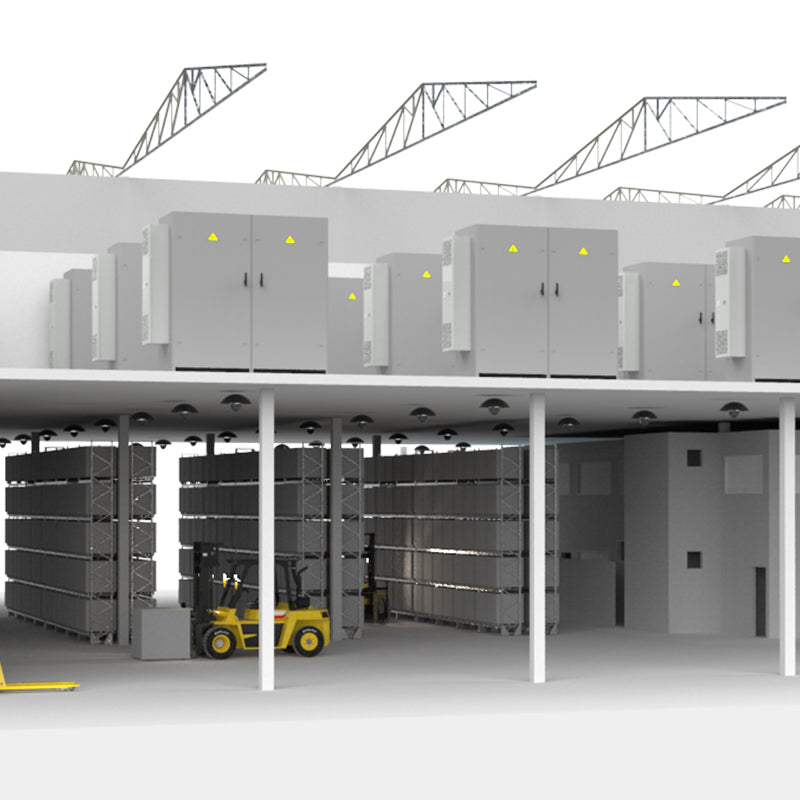

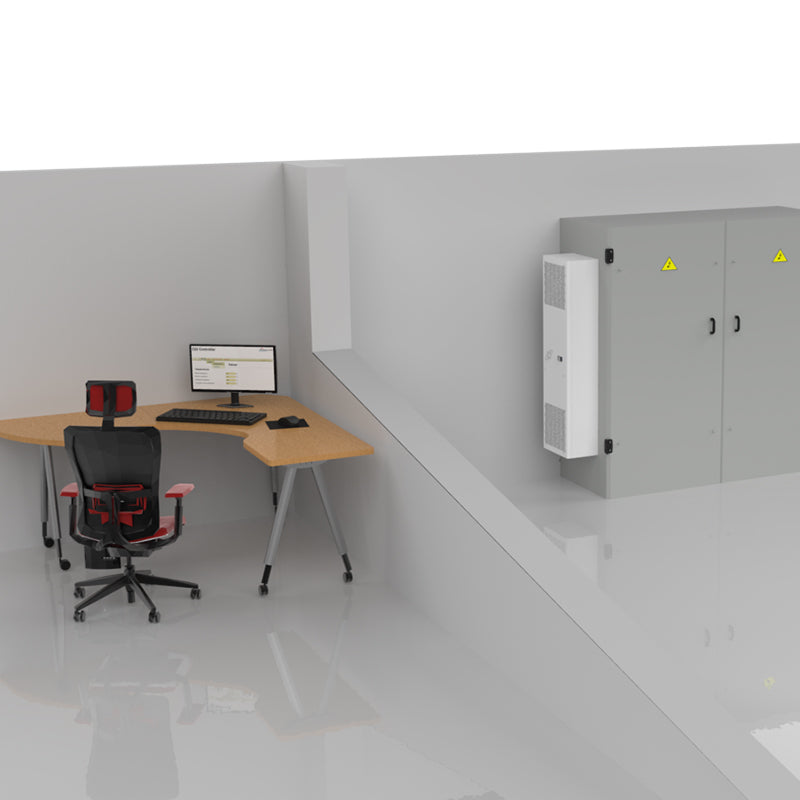

- Typical Applications: Industrial electrical panels, servers, automation systems, critical enclosures
Model Numbers
- CDI-20-230-1 - 2000W FlexLn A/C with Inverter technology
- CDI-26-230-1 - 2600W FlexLn A/C with Inverter technology
- CDI-40-230-1 - 4200W FlexLn A/C with Inverter technology
