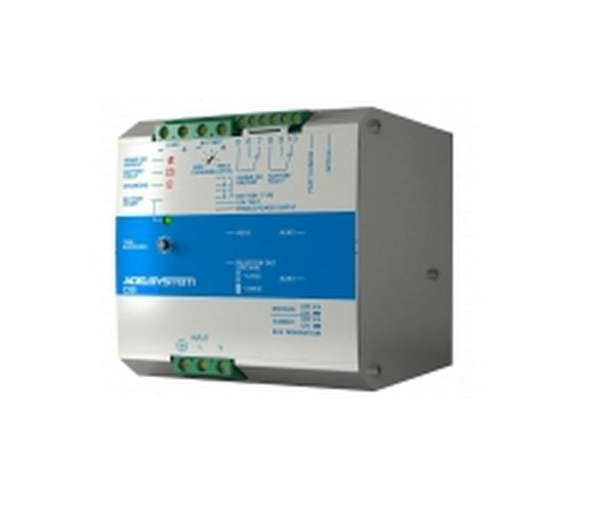

CBI 48V All In One DC UPS DIN Rail Power Supply

CBI All In One UPS Power Solutions combine the requirements for several applications in just one device which can be used as power supply unit, battery charger, battery care module or backup module. The available power is automatically distributed among load and battery, while supplying power to the load always is the first priority. The maximum available current of the load output is two times the value of the device’s rated current.

Features

Specifications

• Model (24V version):  GDA120-24A

• Model (48V version):  GDA120-48SSA

• Power Rating:  120 W

• Output Voltage (24V model):  24 V DC

• Output Voltage Adjustable Range (24V model):  22.5-28.5 V DC

• Output Current (24V model):  5 A

• Output Voltage (48V model):  48 V DC

• Output Voltage Adjustable Range (48V model):  45-55 V DC

• Output Current (48V model):  2.5 A

• AC Input Voltage:  115 V or 230 V switch selectable

• AC Input Voltage Range (115V):  90-132 VAC

• AC Input Voltage Range (230V):  180-264 VAC

• Input Frequency:  47-63 Hz

• DC Input Voltage Range:  210-375 V DC

• Input Protection:  Input fuse, line filter & inrush current limiter with internal surge protection

• Output Protection:  Overvoltage, overload, and short circuit protection

• Input & Output Isolation Voltage:  3 kV

• Output Efficiency (24V version):  ~86%

• Output Efficiency (48V version):  ~87%

• Parallel Operation:  Up to 3 units supported (with PFC and parallel enabled)

• Status Indicators:  DC ON (green LED) and DC LO (red LED)

• Additional Indicator (24V model):  Power Ready output relay N.O.

• Termination:  Finger-safe screw terminals

• Operating Temperature Range:  -31 to 141 °F (-35 to 71 °C) @ 100% continuous load

• Case Protection:  IP20

• Approvals:  cUL (UL508 & UL60950-I) and CE

• Case Material:  Metal

• Dimensions (HxWxD):  4.9 × 2.5 × 4.6 in

• Weight:  ~2 lb

Model Types

• CBI485A     UPS Single Phase 115-230V AC, DC UPS 48V (5A)

• CBI4810A   UPS Single Phase 115-230V AC, DC UPS 48V (10A)
