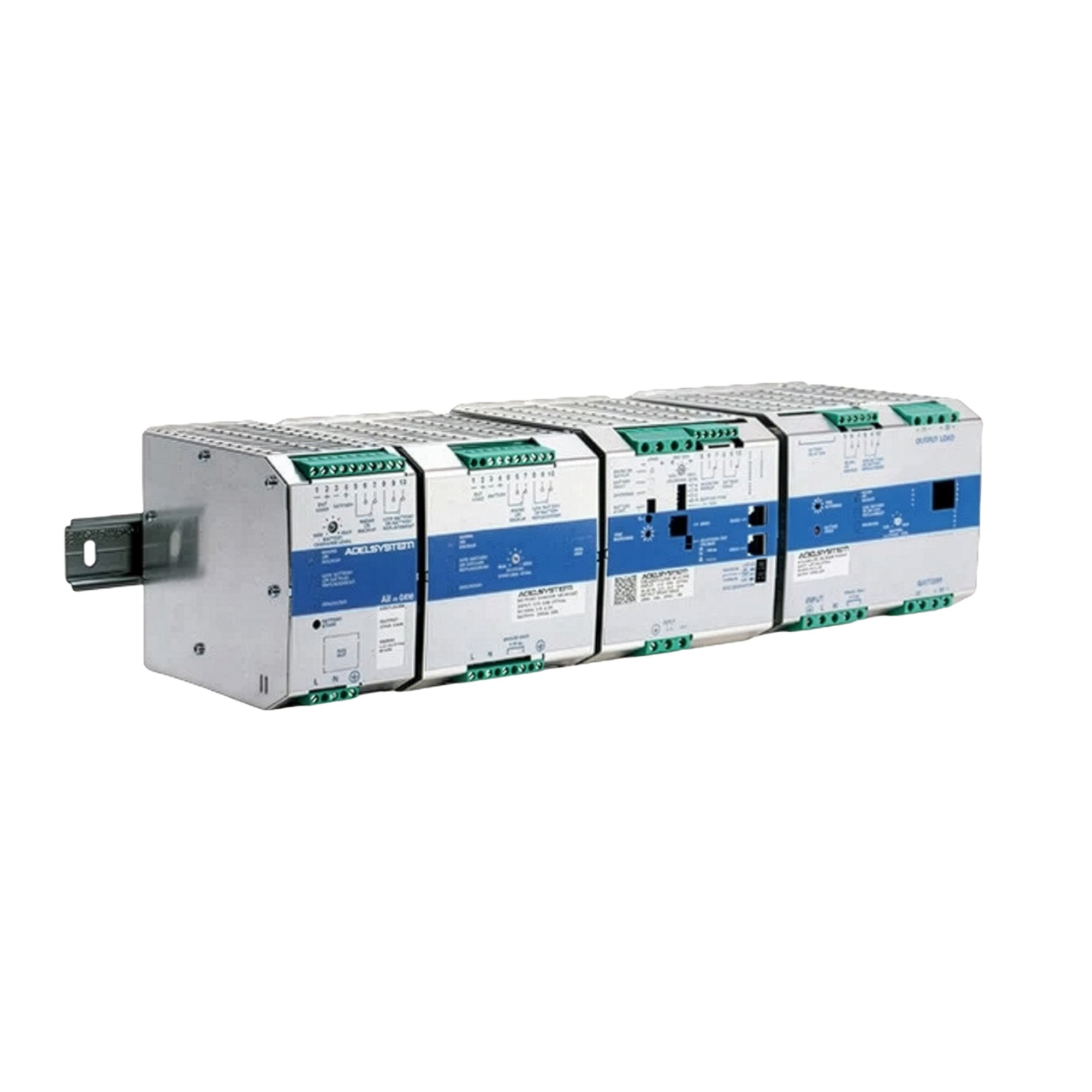

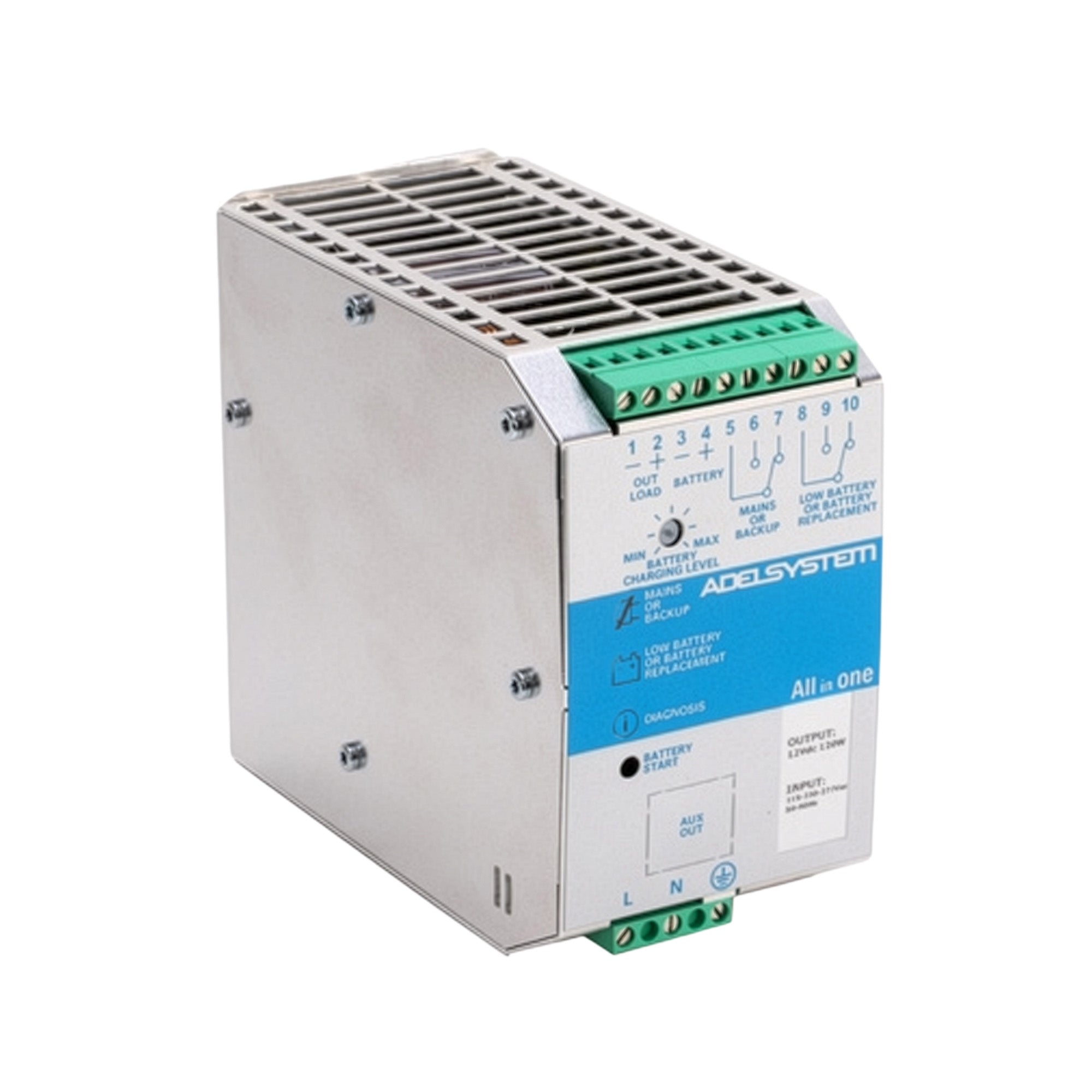

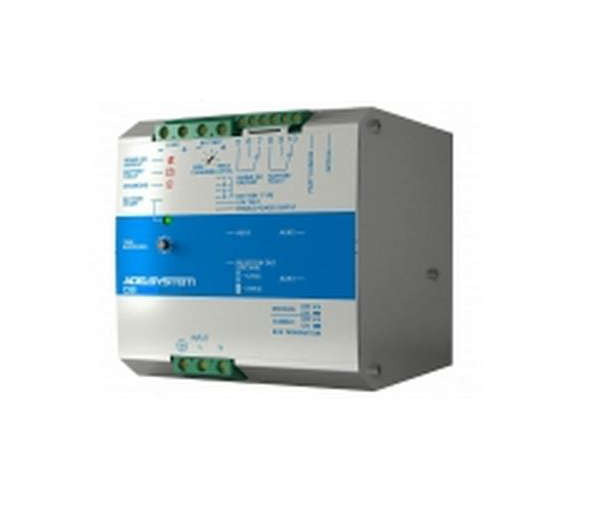

CBI 12V All In One DC UPS DIN Rail Power Supply

CBI All In One UPS Power Solutions combine the requirements for several applications in just one device which can be used as power supply unit, battery charger, battery care module or backup module. The available power is automatically distributed among load and battery, while supplying power to the load always is the first priority. The maximum available current of the load output is two times the value of the device’s rated current.

Features

DIN Rail Mountable Brackets
Continuous Battery Efficiency Monitoring & Diagnostic
Three Charging Levels: Boost, Trickle, and Recovery
Protected against short circuit and inverted polarity
Signal output for discharged for damaged battery

Specifications

Model (24V): GDA120-24A
Model (48V): GDA120-48SSA
Output Power: 120 W
Output Voltage (GDA120-24A): 24 V DC
Output Voltage (GDA120-48SSA): 48 V DC
Output Current (GDA120-24A): 5 A
Output Current (GDA120-48SSA): 2.5 A
AC Input Voltage: 115/230 VAC (Switch selectable)
Input Voltage Range (115 VAC): 90-132 VAC
Input Voltage Range (230 VAC): 180-264 VAC
Input Frequency: 47-63 Hz
DC Input Voltage: 210-375 V DC
Output Voltage Adjustable Range (GDA120-24A): 22.5-28.5 V DC
Output Voltage Adjustable Range (GDA120-48SSA): 45-55 V DC
Input Protection: Input fuse, line filter & inrush current limiter with surge voltage protection
Output Protection: Overvoltage, overload, short circuit protection
Input & Output Isolation: 3 kV
Efficiency (GDA120-48SSA): ~87% typical
Parallel Operation: Up to 3 units (with PFC/parallel enabled models)
Termination: Finger-safe screw terminals
Status Indicators: DC ON (green LED), DC LO (Red LED)
Operating Temperature Range: -31 to 141°F (-35 to 60°C) continuous load
Case Protection: IP20
Approvals: cUL (UL508 & UL60950-I) and CE
Case Material: Metal
Dimensions: 4.9 h x 2.5 w x 4.6 d in
Weight: ~2 lb

Model Types

CBI123A UPS Single Phase 115-230V AC, DC UPS 12V (3A)
CBI126A UPS Single Phase 115-230V AC, DC UPS 12V (6A)
CBI1210A UPS Single Phase 115-230V AC, DC UPS 12V (10A)
CBI1235A UPS Single Phase 115-230V AC, DC UPS 12V (35A)
